Comet - CHV-5A

Product code: 805555
Barcode: 4932273120962

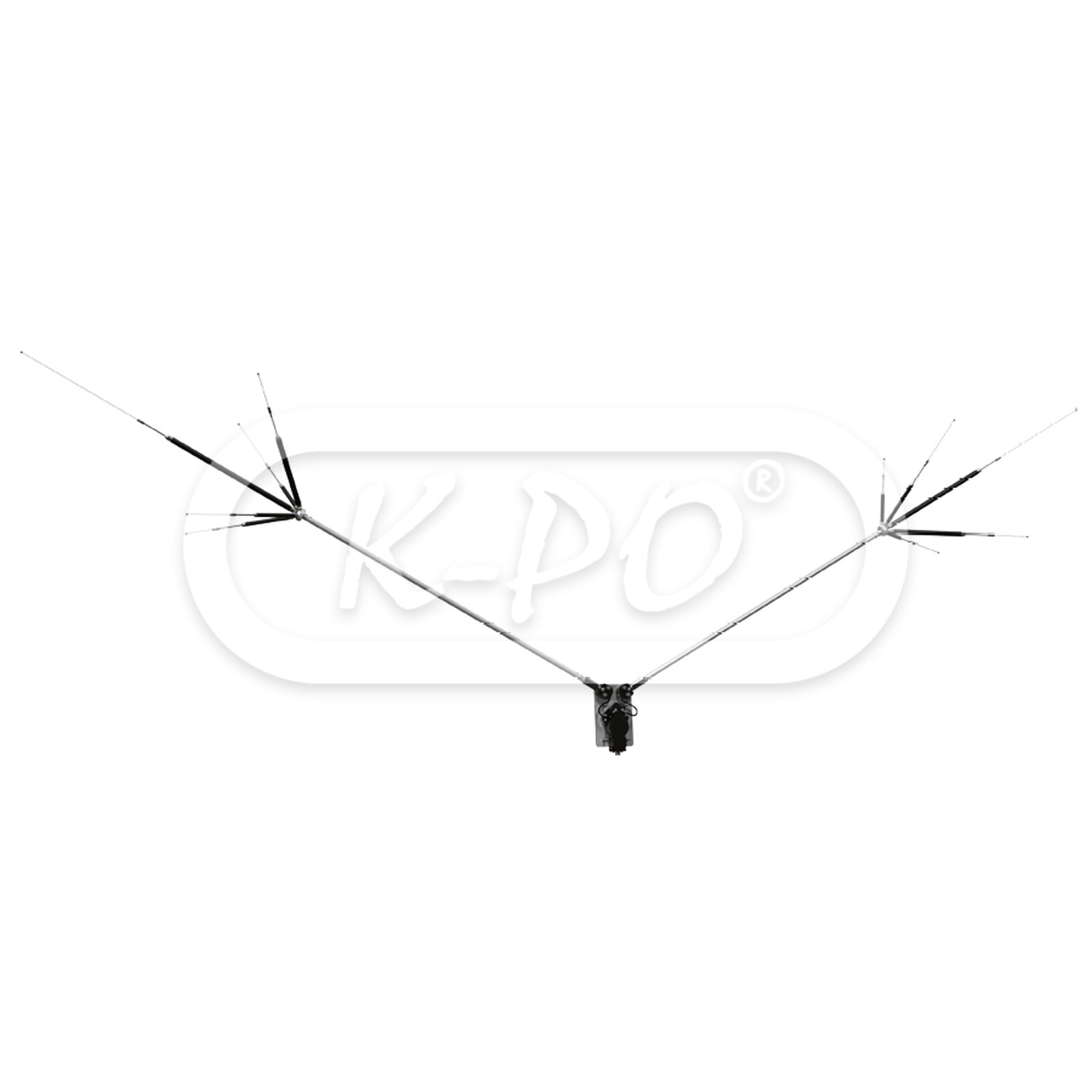

Comet CHV-5A, upgraded version of the CHV-5X, compact dipole antenna for 7, 14 or 18, 21, 28, 50 MHz.

  • Easily assembled in ‘V’, ground-plane or horizontal configuration.
  • It can also be used for carrying operations with lightweight design.
  • Easy to adjust frequency with wideband balun.
  • New 18 MHz band element is added plus a 14 MHz band selective installation type.
  • Can be mounted on horizontal masts such as veranda handrails
Frequency range: 7 / 14 / 18 / 21 / 28 / 50 MHz
Shipped next business day
€371.86 (371.86 excl. 0% VAT)

Electrical data

  • Electrical type: Center loading half wave dipole
  • Gain: 2.15 dBi
  • VSWR: ≤ 1.5 or less center frequency each band
  • Power continues: 7 / 14 / 18 MHz: 150 Watts (SSB) / 21 / 28 / 50 MHz: 220 Watts (SSB)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Mast Ø: Round pipe: 30 - 62 mm / square pipe: 25 - 60 mm
  • Max wind resistance: 108 km/h
  • Length: Horizontal length max. 4000 mm
  • Weight: 2800 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
