Comet - CMX-400

Product code: 805400
Barcode: 4932273180874

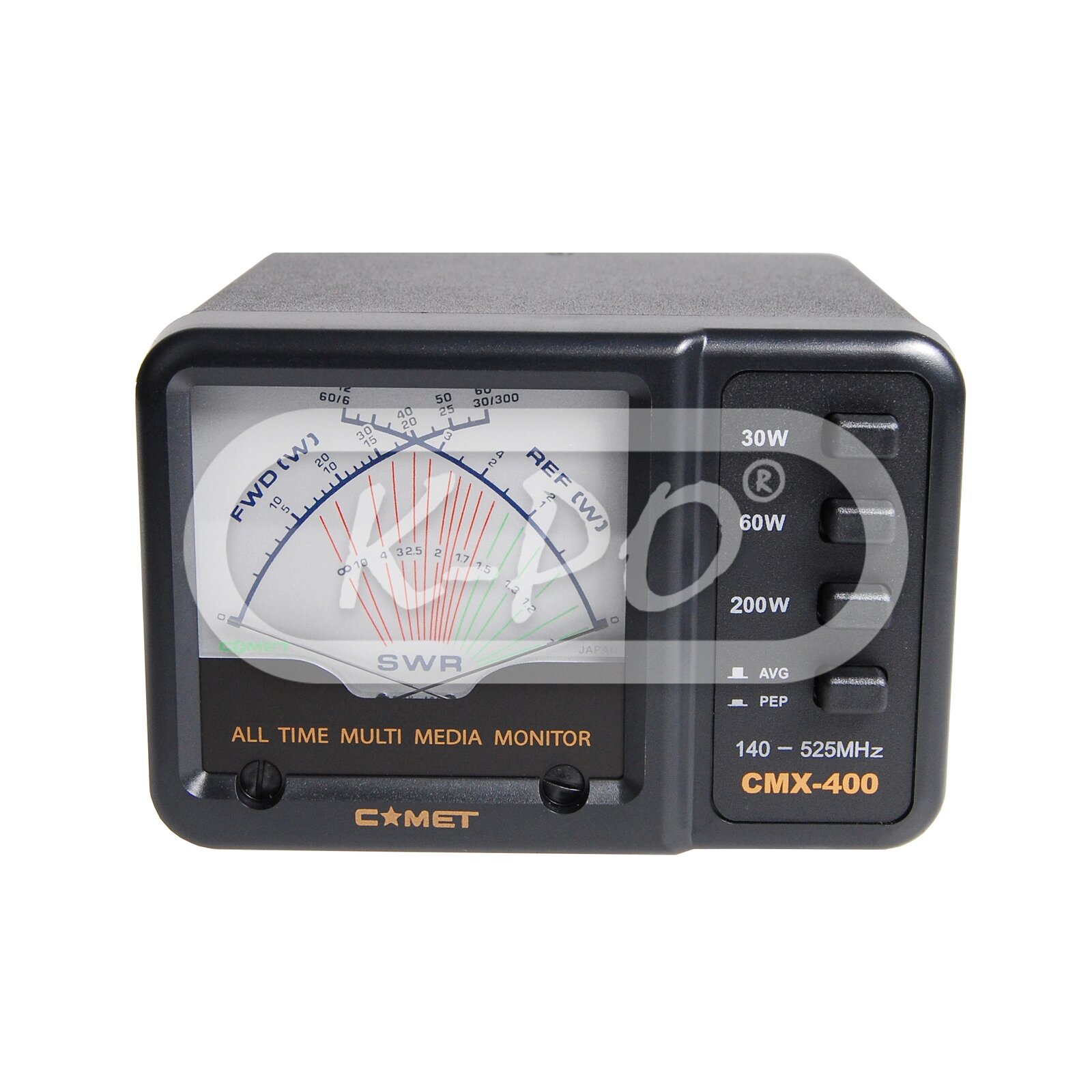

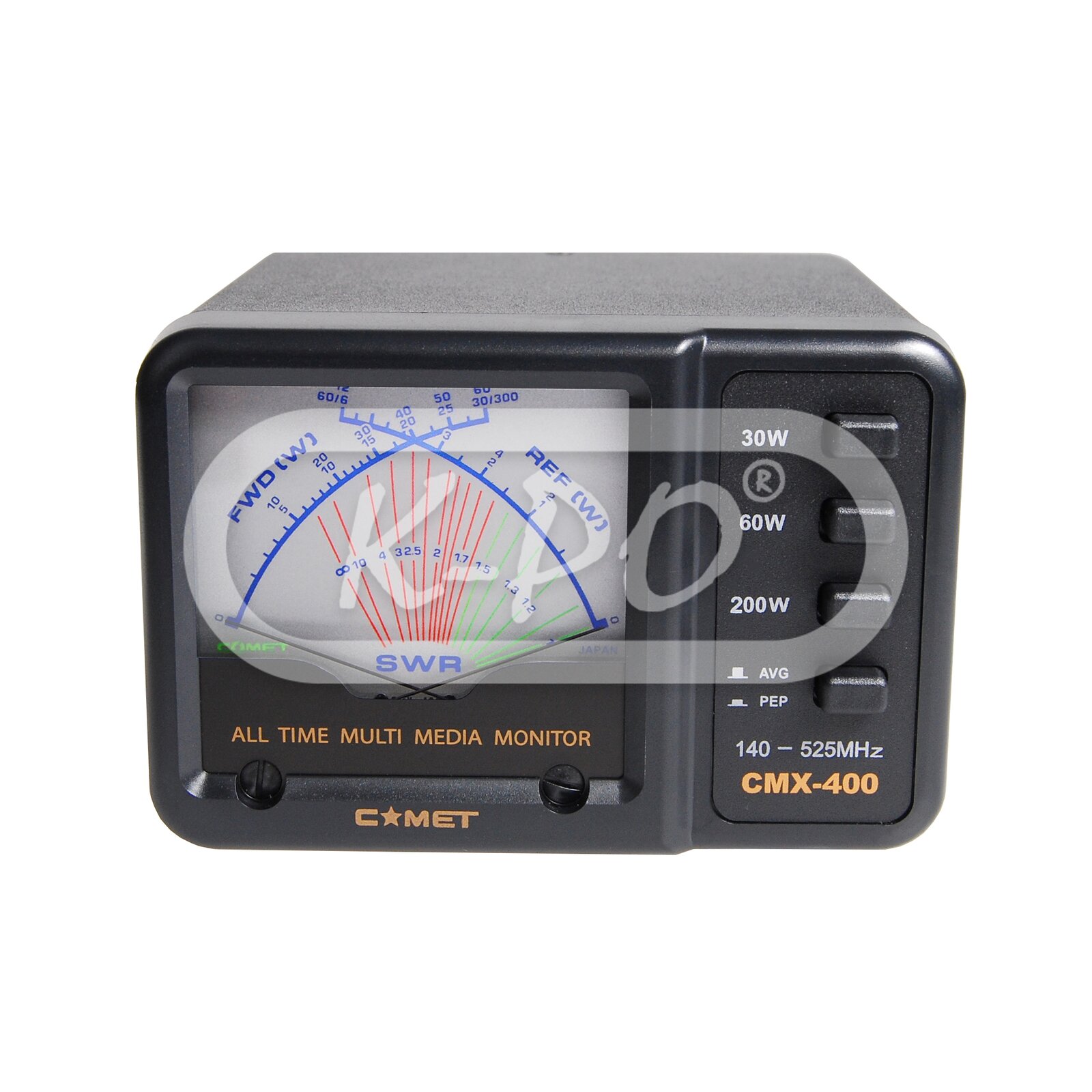

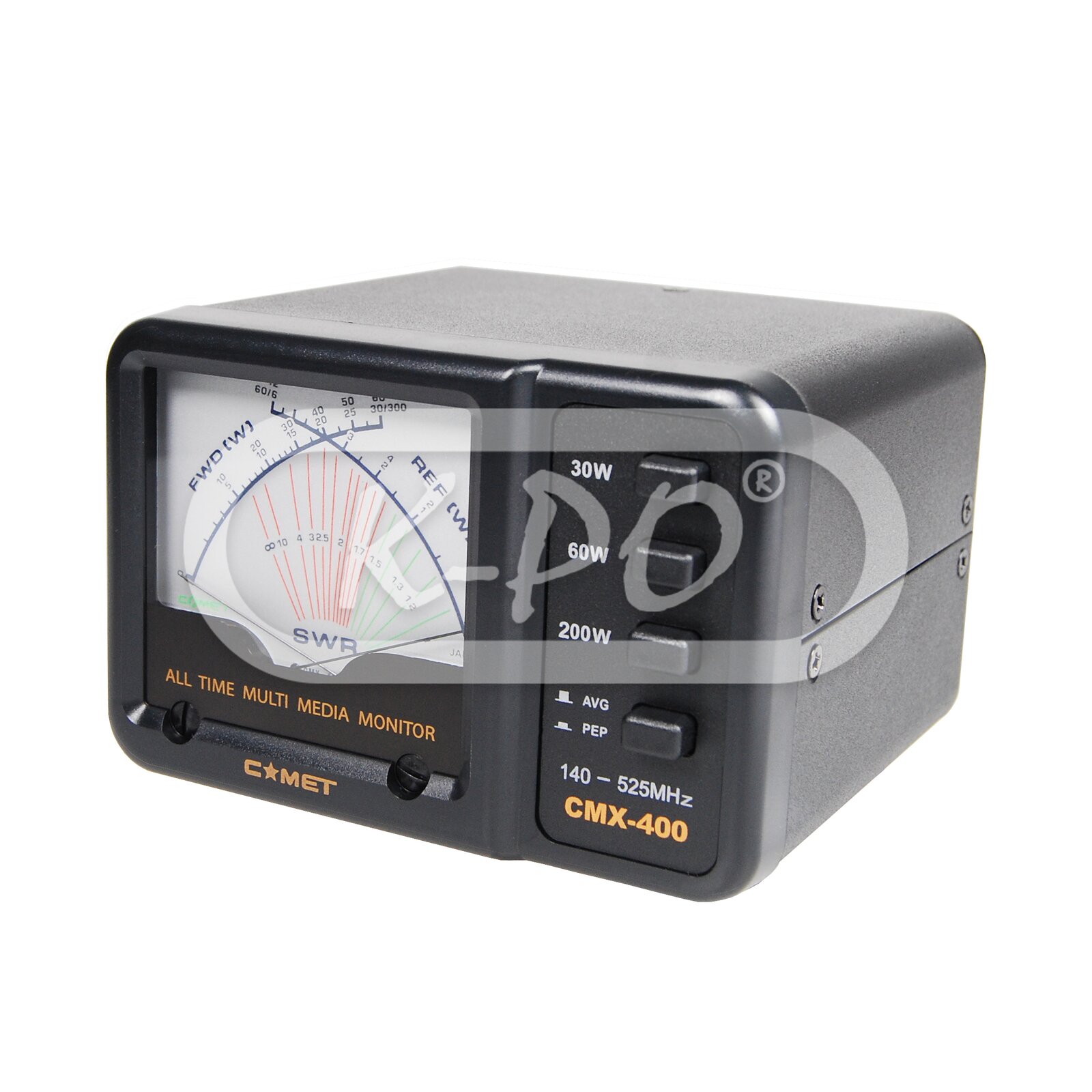

The Comet CMX-400 is a high quality cross needle meter that can be used for 140 - 525 MHz, to measure Forward Power, Reflected Power and SWR. With a maximum PEP power handling of 200 Watts. PEP switch to select average power or SSB / PEP. The Comet CMX-200 has a large and illuminated display. Gold-plated inner core connectors.

Frequency range: 140 - 525 MHz
Shipped today
€118.97 (118.97 excl. 0% VAT)

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 30 / 60 / 200 Watts
  • Accuracy: ±10%
  • Minimum Power for SWR: 6 Watts
  • Insertion loss: 0.2 dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only
  • Maximum continuous power handling 140 - 220 MHz: 150 Watts
  • Maximum continuous power handling above 400 MHz: 120 Watts

Mechanical data

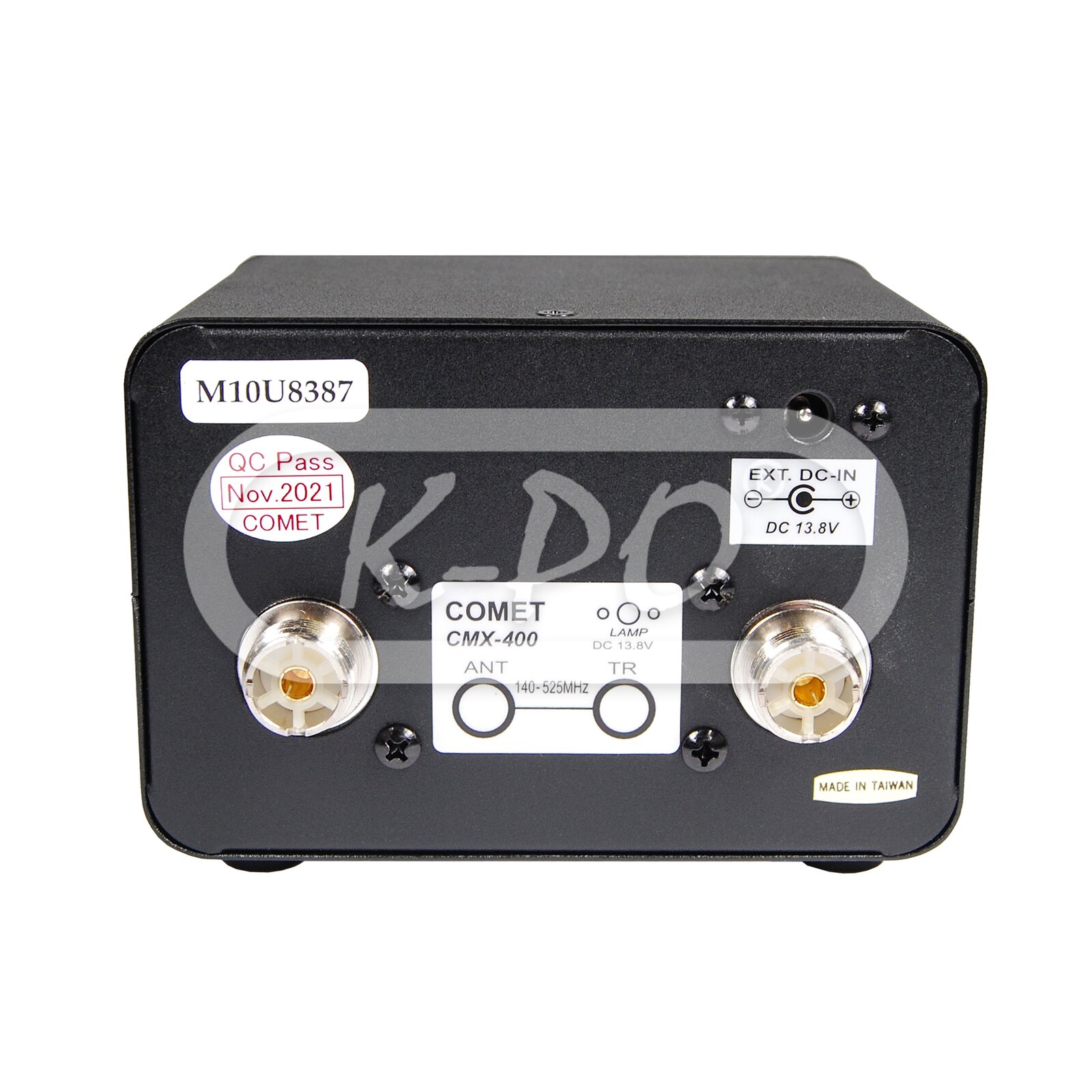

  • Input connector: UHF (PL) female, gold-plated inner core
  • Output connector: UHF (PL) female, gold-plated inner core
  • Length: 120 mm
  • Height: 80 mm
  • Width: 105 mm
  • Weight: 623 gram

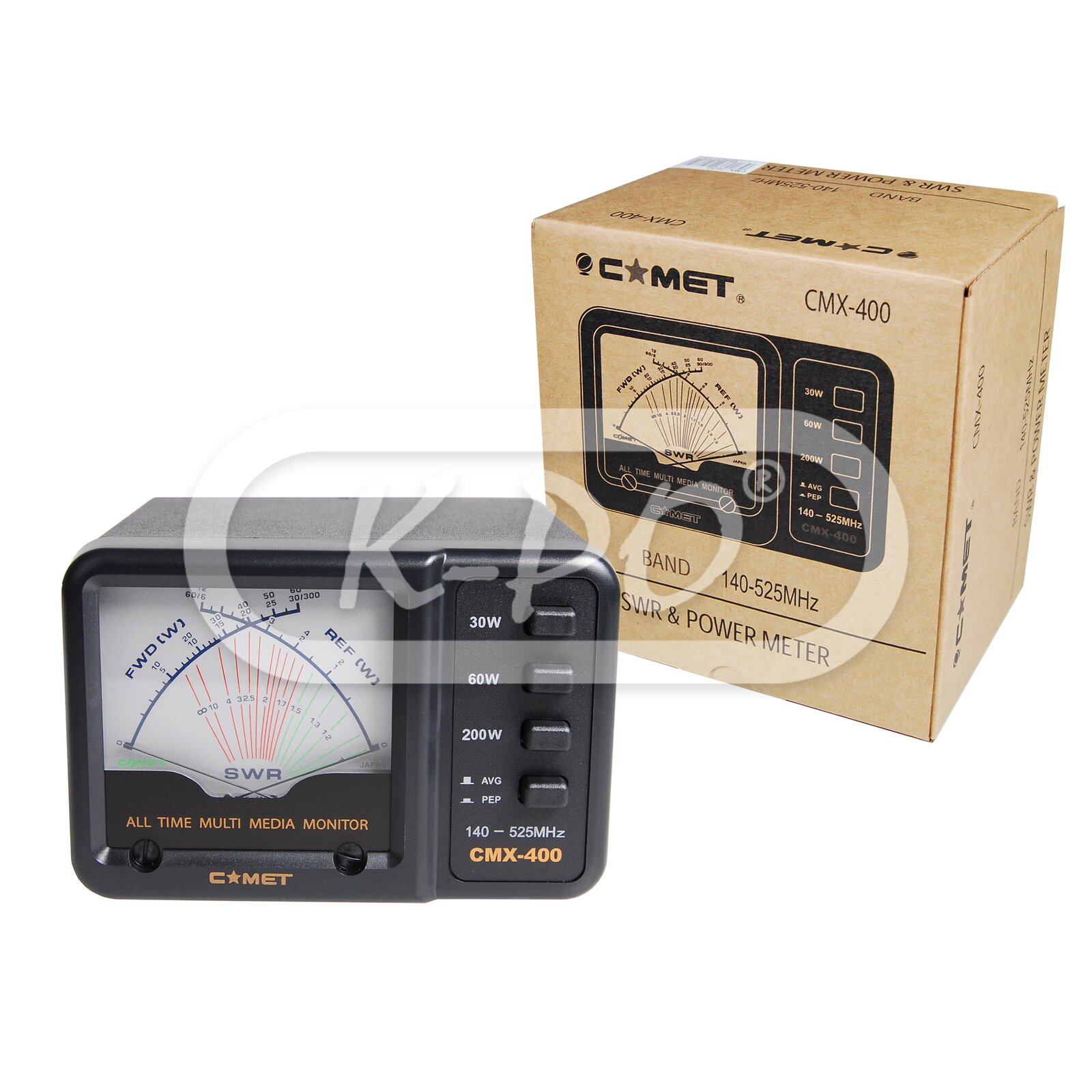

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
