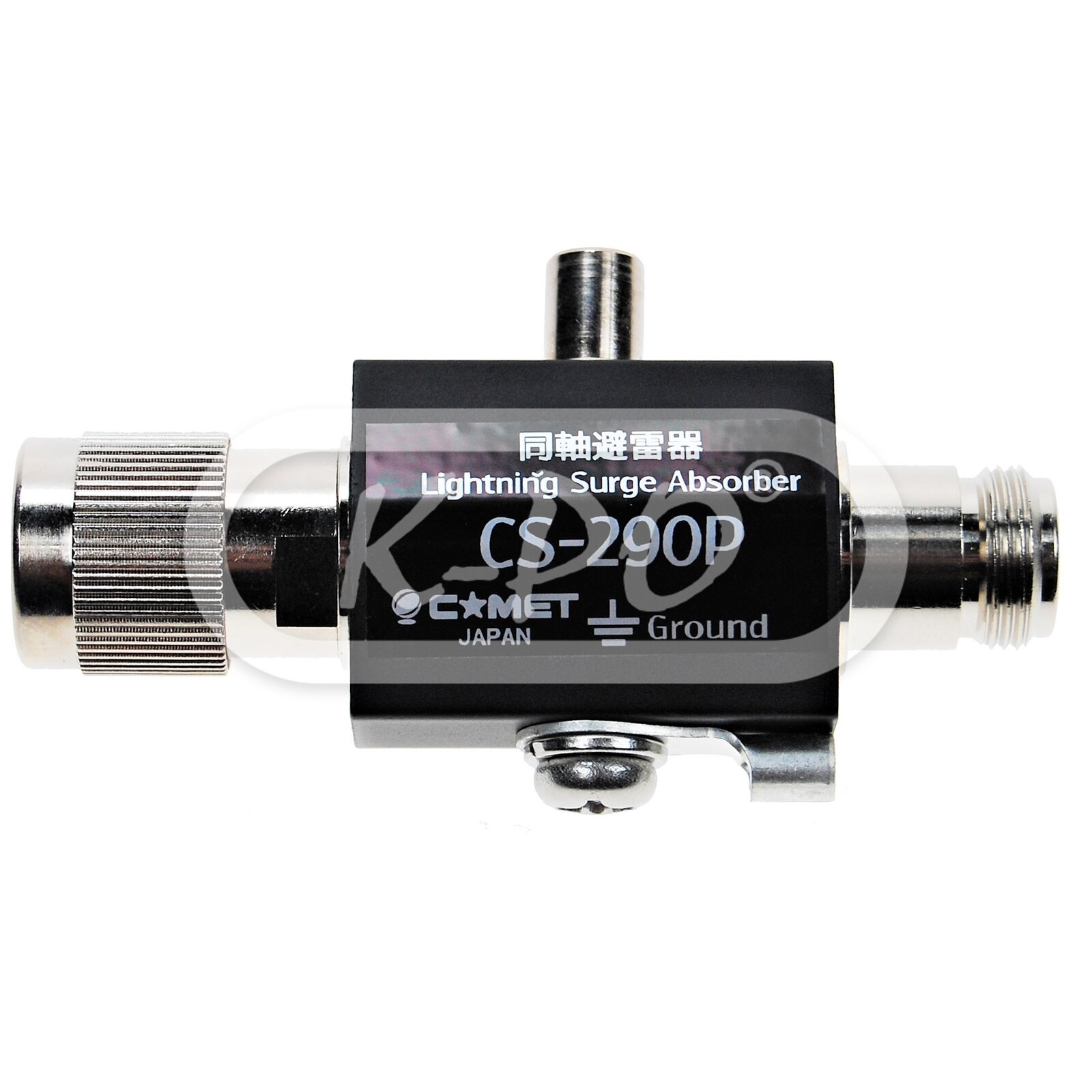

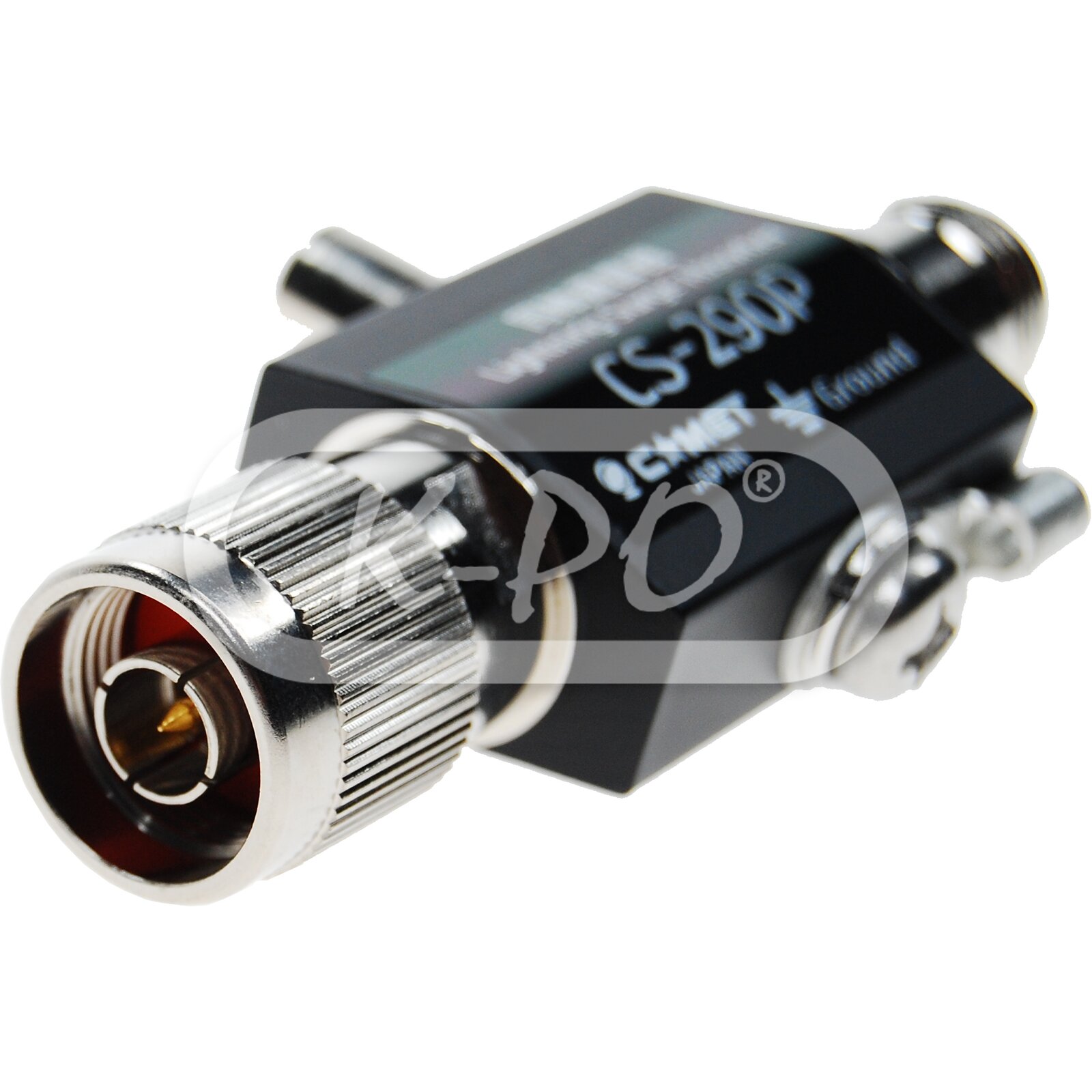

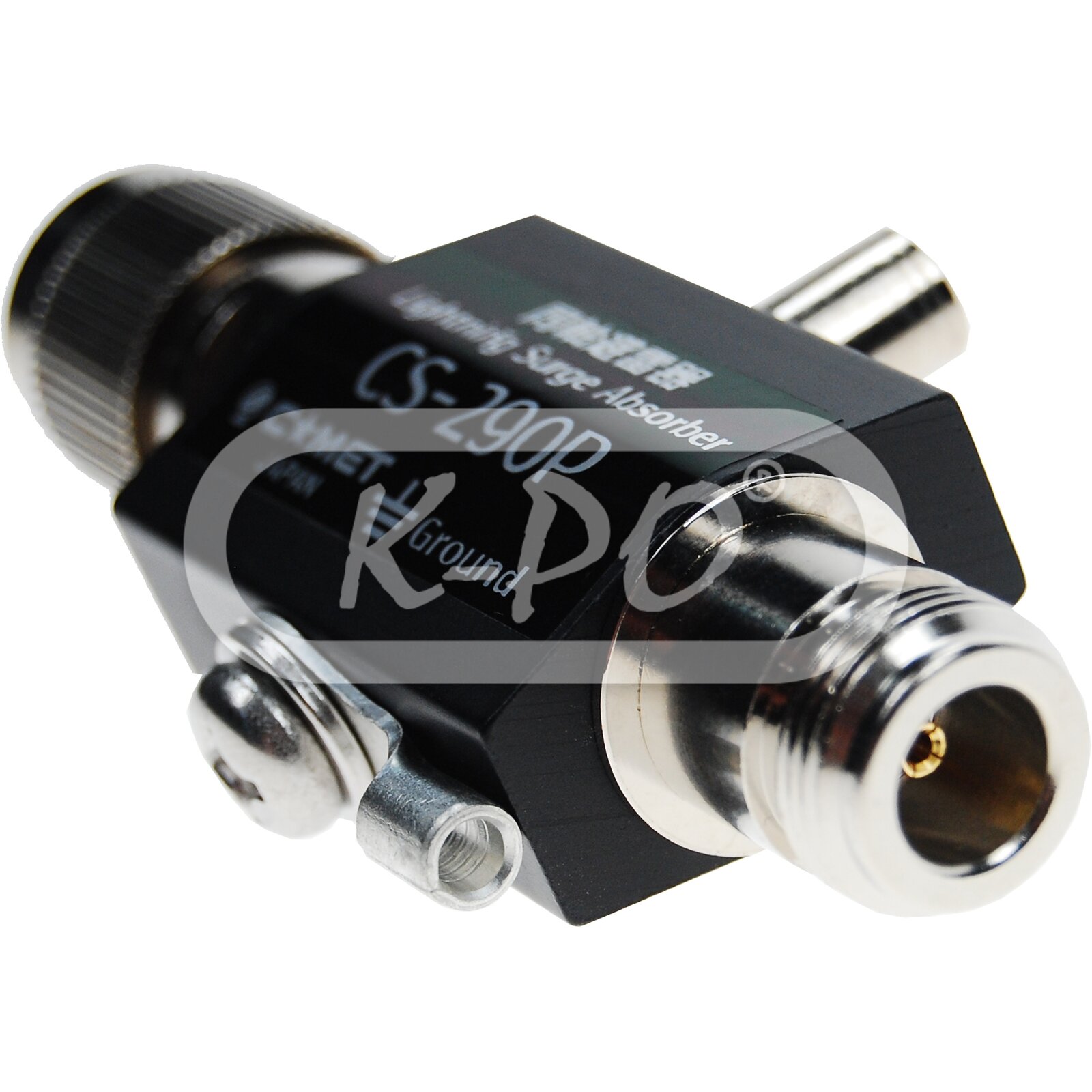

Comet - CS-290P Comet - CS-290P Comet - CS-290P

Comet - CS-290P

Product code: 806290
Barcode: 4932273006440

The Comet surge protector is to protect your transceivers and/or receivers from excessive high ampere currency occurred by thunder surge, provided by the sufficient grounding to the earth.

Frequency range: Up to 1500 MHz
Shipped next business day
€29.71 (29.71 excl. 0% VAT)

Electrical data

  • Power peak: 300 Watts
  • VSWR: 1.1 or less
  • Impedance: 50 Ohm
  • Insertion loss: 0.1 dB or less
  • Isolation: DC 100 V: more than 10.000 Ohm
  • Min. radiation voltage: DC290 V (+/-15%)
  • Min. shock wave voltage: 1000 V
  • Min. shock wave amp.: 6000 A
  • Min. shock wave repetition 500 times: DC290 V (+/-20%)

Mechanical data

  • Connector(s) type in: N male
  • Connector(s) type out: N female
  • Length: 86 mm
  • Height: 41 mm
  • Width: 20 mm
  • Weight: 130 gram
