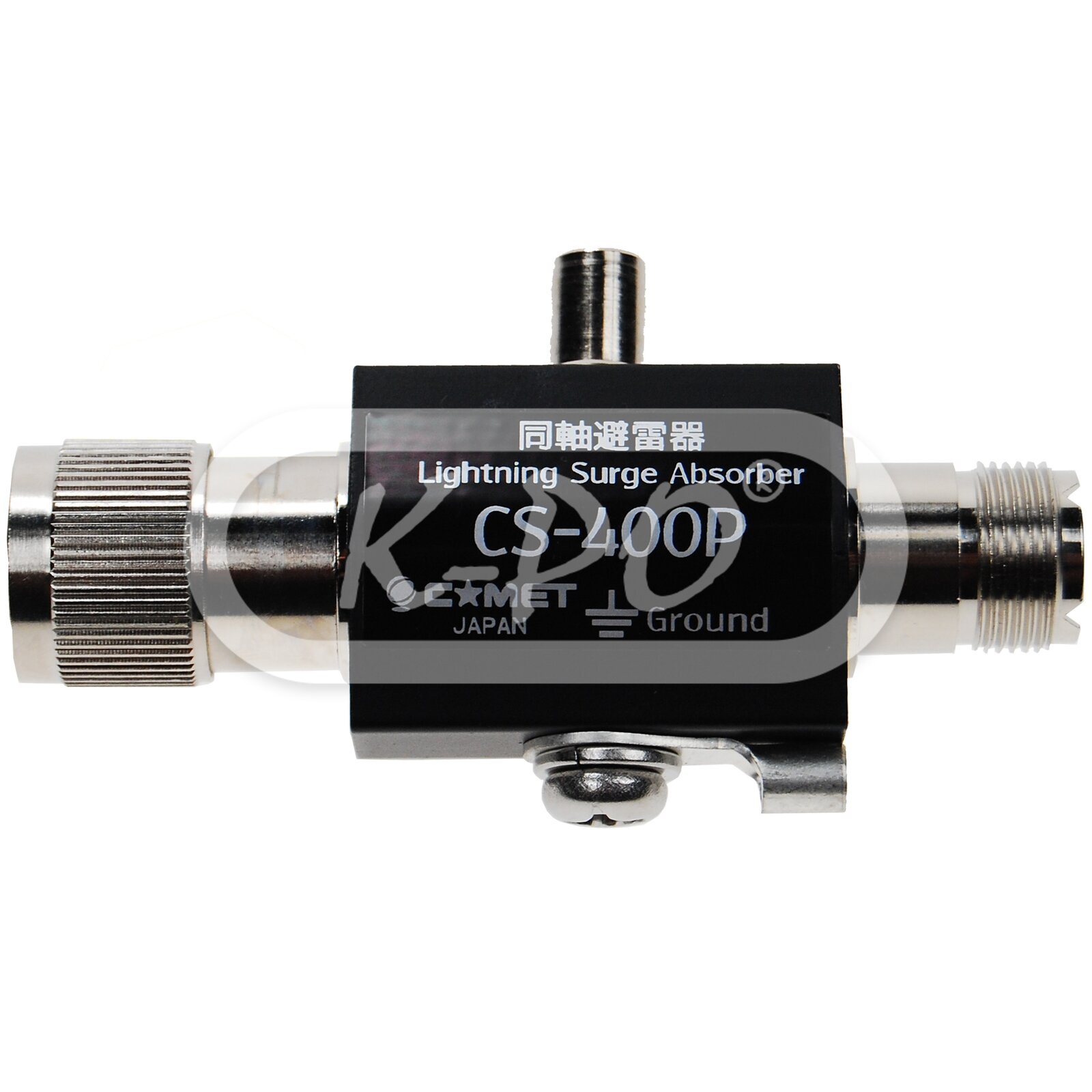

Comet - CS-400P

Product code: 806400

Barcode: 4932273006426

The Comet surge protector is to protect your transceivers and/or receivers from excessive high ampere currency occurred by thunder surge, provided by the sufficient grounding to the earth.

Frequency range: Up to 500 MHz

Shipped next business day - Stock: 4

€34.94 (28.88 excl. 21% VAT)

Electrical data

• Power peak: 500 Watts
• VSWR: DC400V (+/-15%)
• Impedance: 50 Ohm
• Insertion loss: 0.1 dB or less
• Isolation: DC 100 V: more than 10.000 Ohm
• Min. radiation voltage: DC290 V (+/-15%)
• Min. shock wave voltage: 1000 V
• Min. shock wave amp.: 6000 A
• Min. shock wave repetition 500 times: DC290 V (+/-20%)

Mechanical data

• Connector(s) type in: UHF (PL) male
• Connector(s) type out: UHF (PL) female
• Length: 86 mm
• Height: 41 mm
• Width: 20 mm
• Weight: 100 gram
