Comet - CSW-100 (PL) Comet - CSW-100 (PL) Comet - CSW-100 (PL)

Comet - CSW-100 (PL)

Product code: 805201
Barcode: 4932273181192

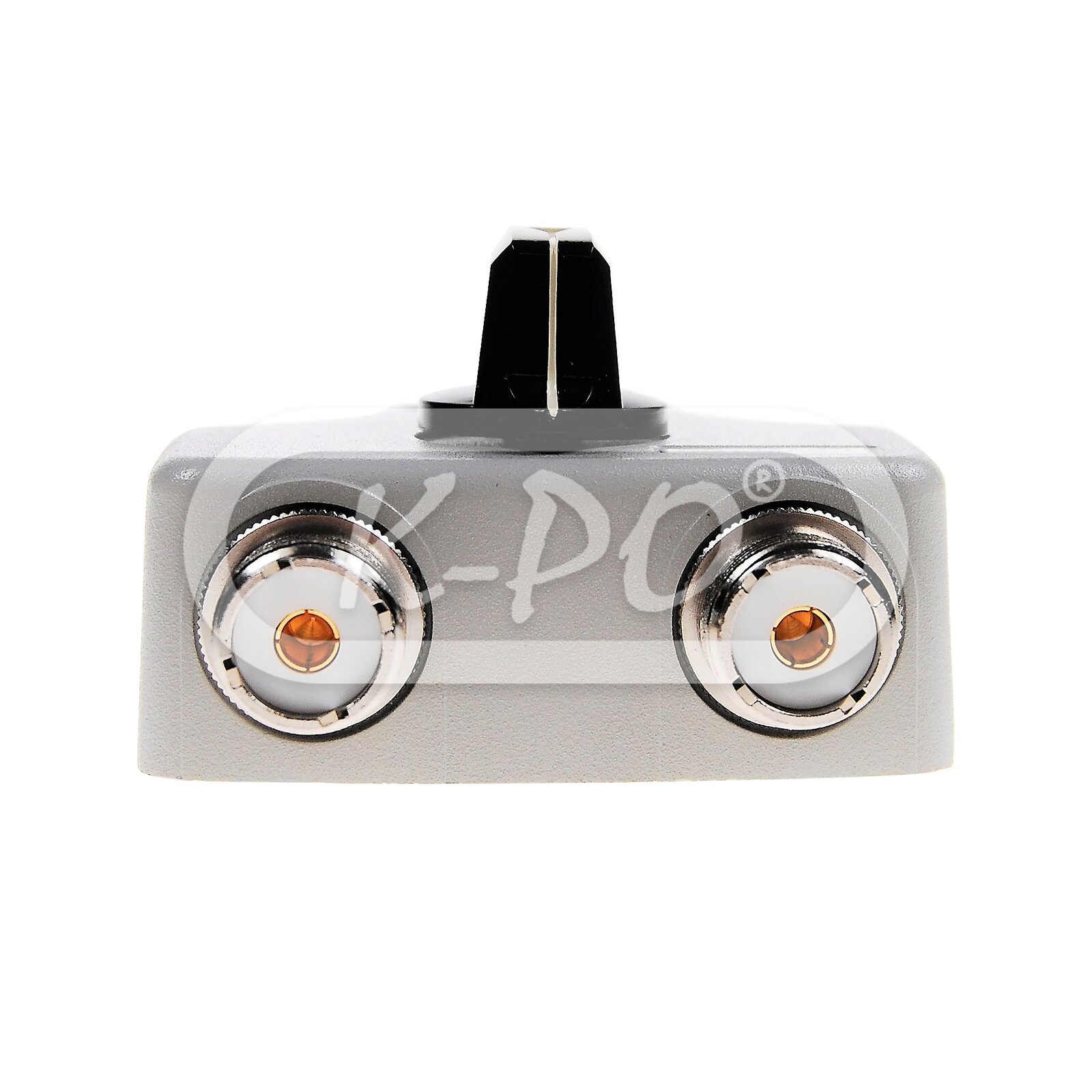

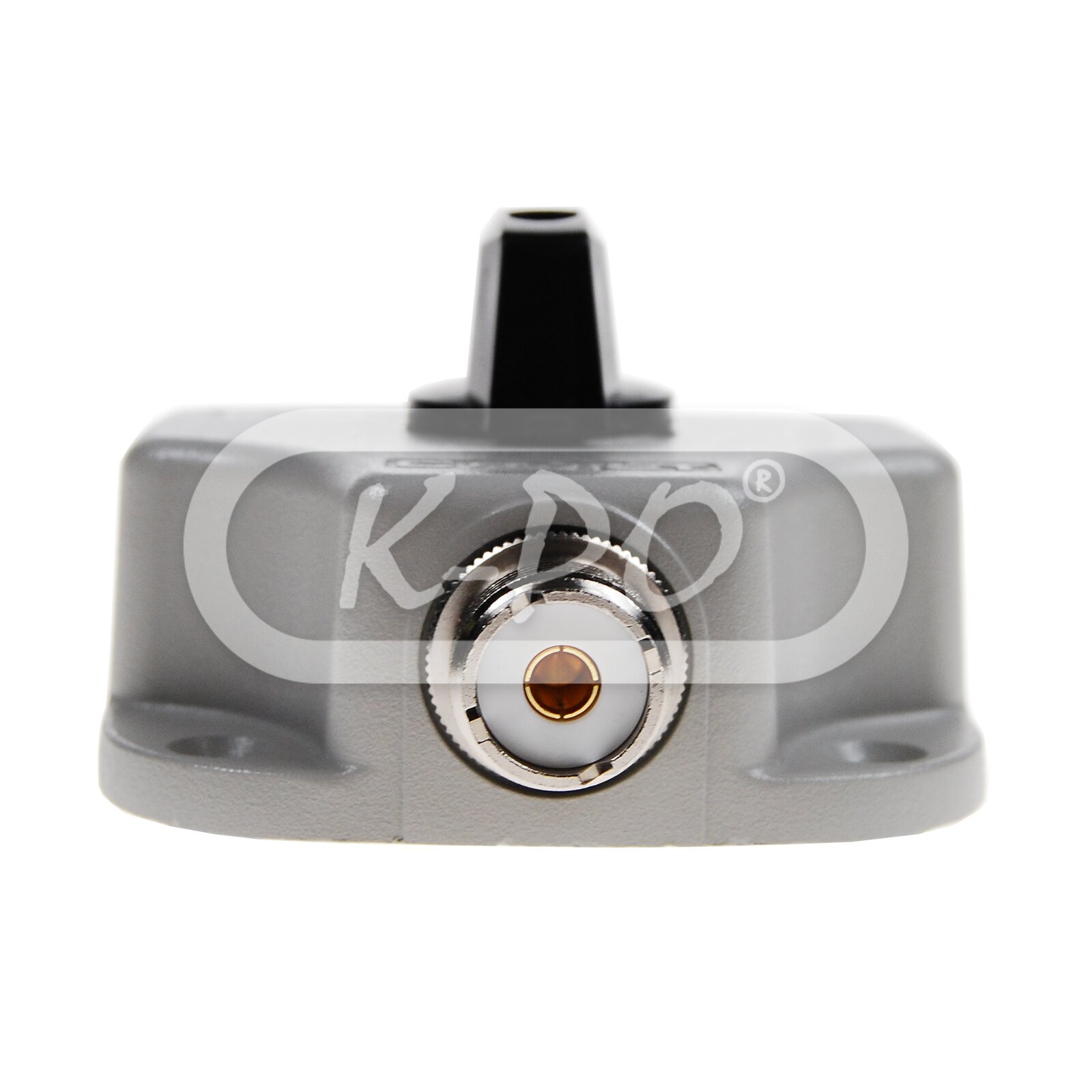

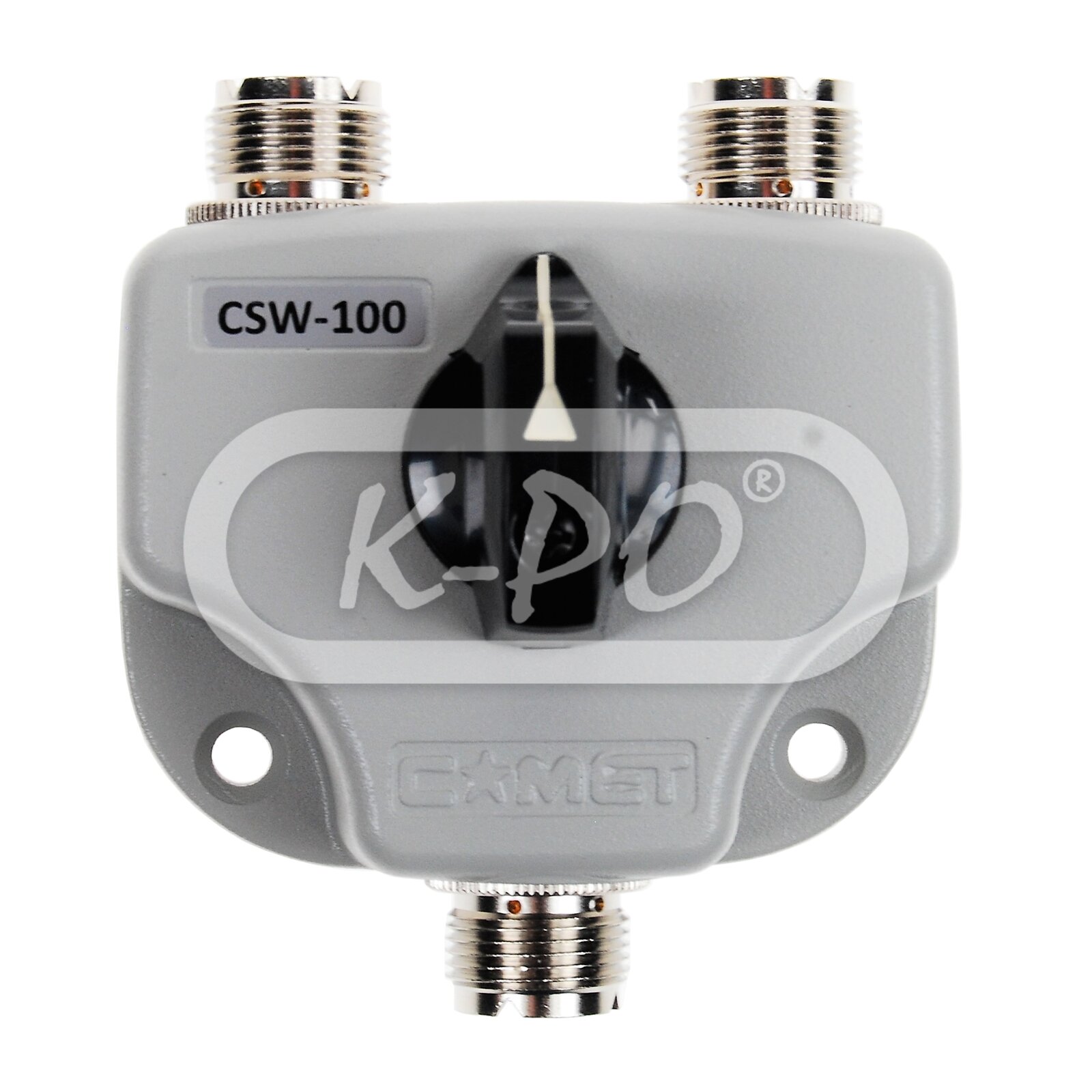

The Comet CSW-100 UHF (PL) is a 2 way antenna switch with a UHF (PL) female input connector and 2x UHF (PL) female output connectors.

Frequency range: Up to 500 MHz
Shipped next business day
€44.59 (44.59 excl. 0% VAT)

Electrical data

  • VSWR: less then 1.2
  • Impedance: 50 Ohm
  • Isolation: 0-170 MHz over 60 dB / 170-500 MHz over 35 dB
  • Power range: DC-30 MHz: 1500 Watts (PEP) / 30-170 MHz: 1000 Watts (PEP) / 170-500 MHz: 500 Watts (PEP)

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: UHF (PL) female
  • Length: 78 mm
  • Height: 47 mm
  • Width: 72mm
  • Weight: 430 gram
