Comet - GP5N

Product code: 805712
Barcode: 4932273129019

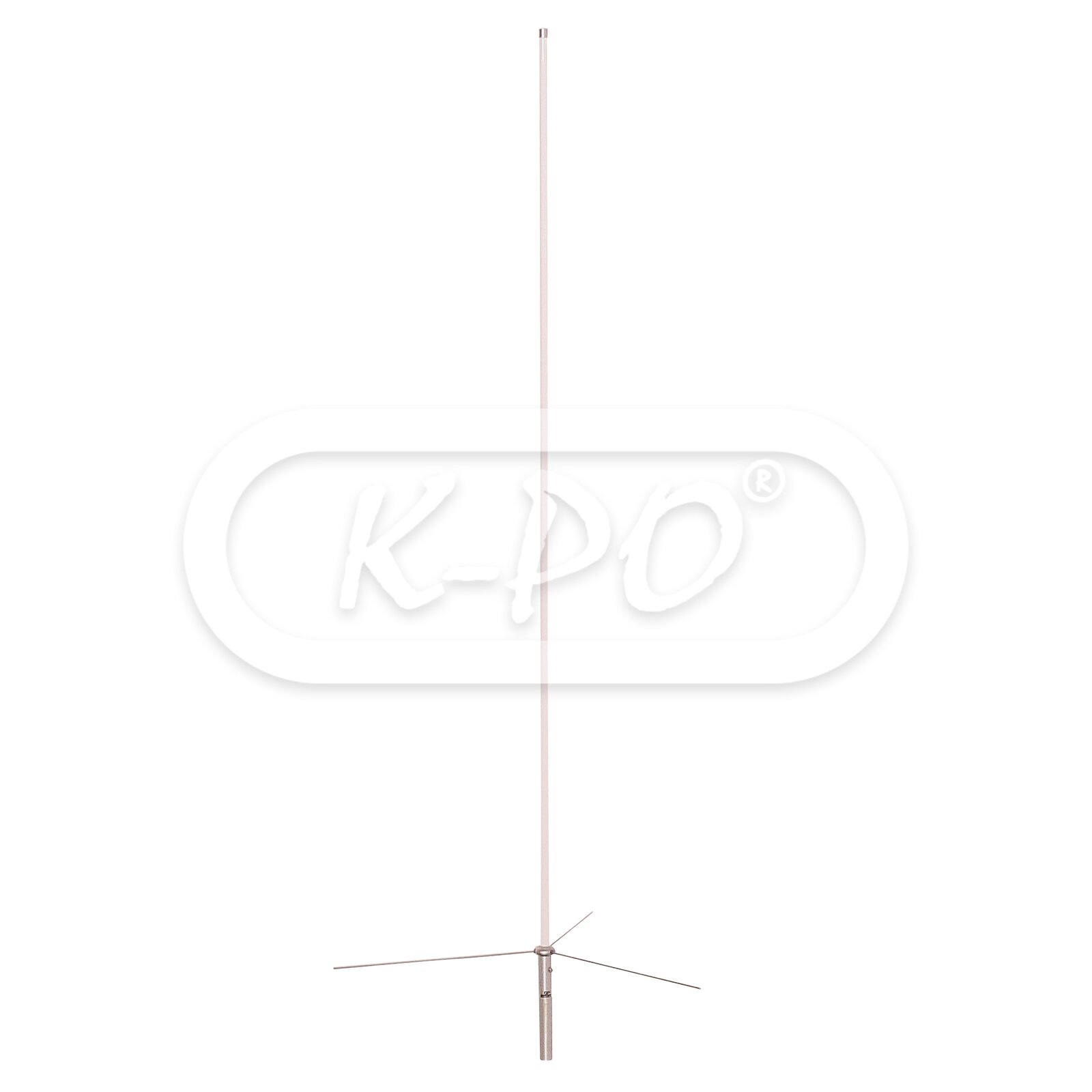

The Comet GP5N is a high gain dual band base antenna made out of one section. For use on 144 / 430 MHz, wide band reception on 100 - 170 / 350 - 470 MHz.

The Comet GP-series are one of the best in the market using Comet's SLC system. The SLC system is an advanced mechanism developed originally by Comet in order to greatly improve the gain on Dual and Triple band antennas. Through the implementation of the Air-Core Type Shaping Element Phase System and the Phosphor Bronze Element the loss during the existing Phase Shift Peak has been substantially reduced.

Completely factory tuned and no adjustment is necessary. The fiberglass construction assures long durability and is fully water resistance.

We can not ship this product, shipping cost on request.

Frequency range: 144 / 430 MHz
Shipped today - Stock: 1
€139.95 (115.66 excl. 21% VAT)

Electrical data

  • Electrical type: 144 MHz: 5/8 λ 2-step / 430 MHz: 5/8 λ 4-step
  • Gain: 144 MHz: 6.0 dBi / 430 MHz: 8.6 dBi
  • Maximum continuous power: 200 Watts SSB
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Mast Ø: 30 - 62 mm
  • Max wind resistance: 180 km/h
  • Height: 2420 mm
  • Weight: 1270 gram
  • Mounting type: On mast
  • Antenna connector: N-female

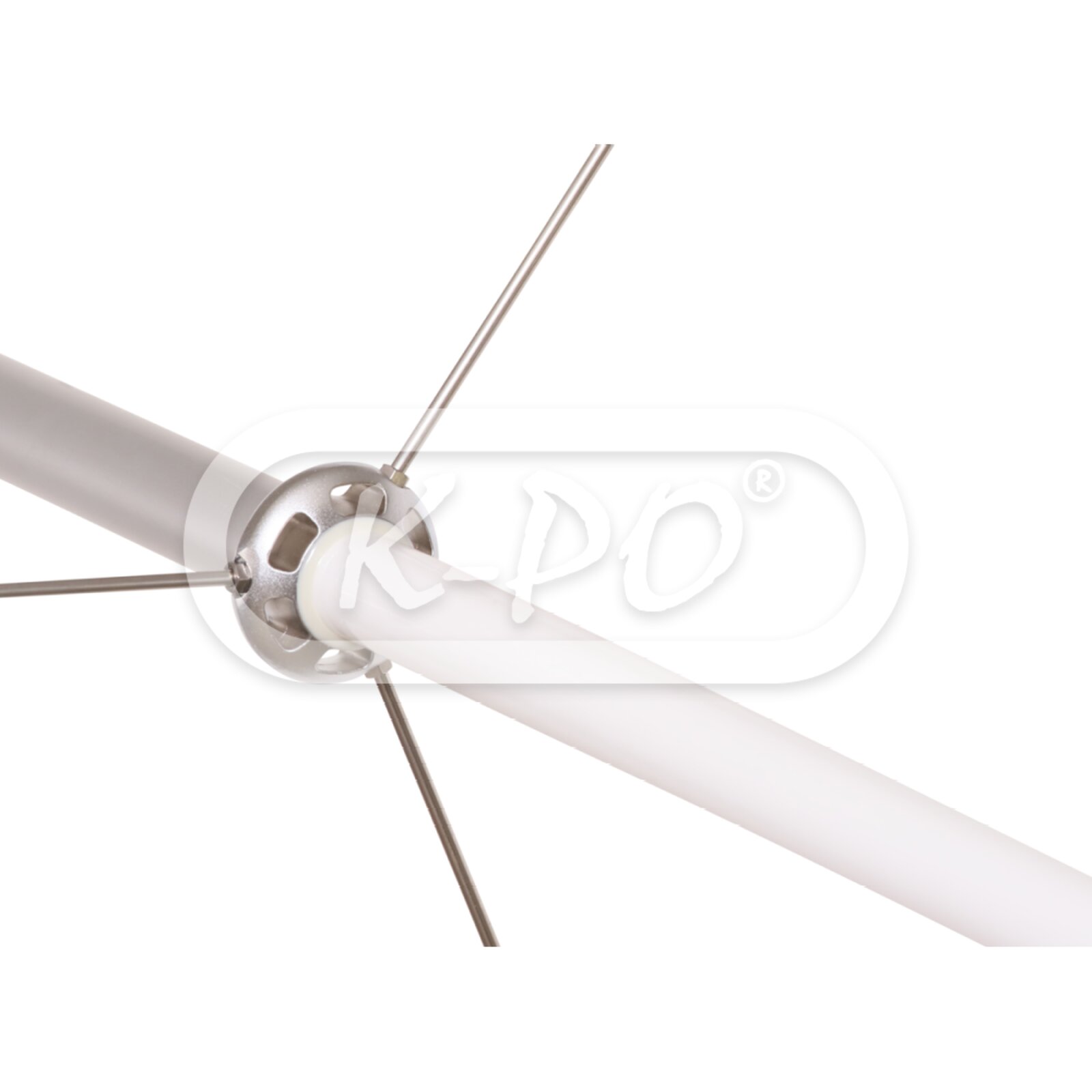

  • Radial length: 490 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
