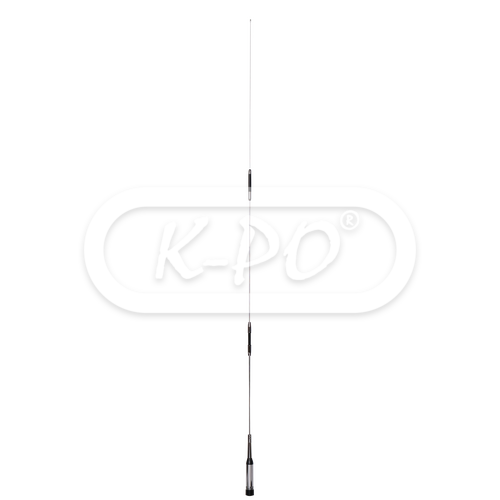

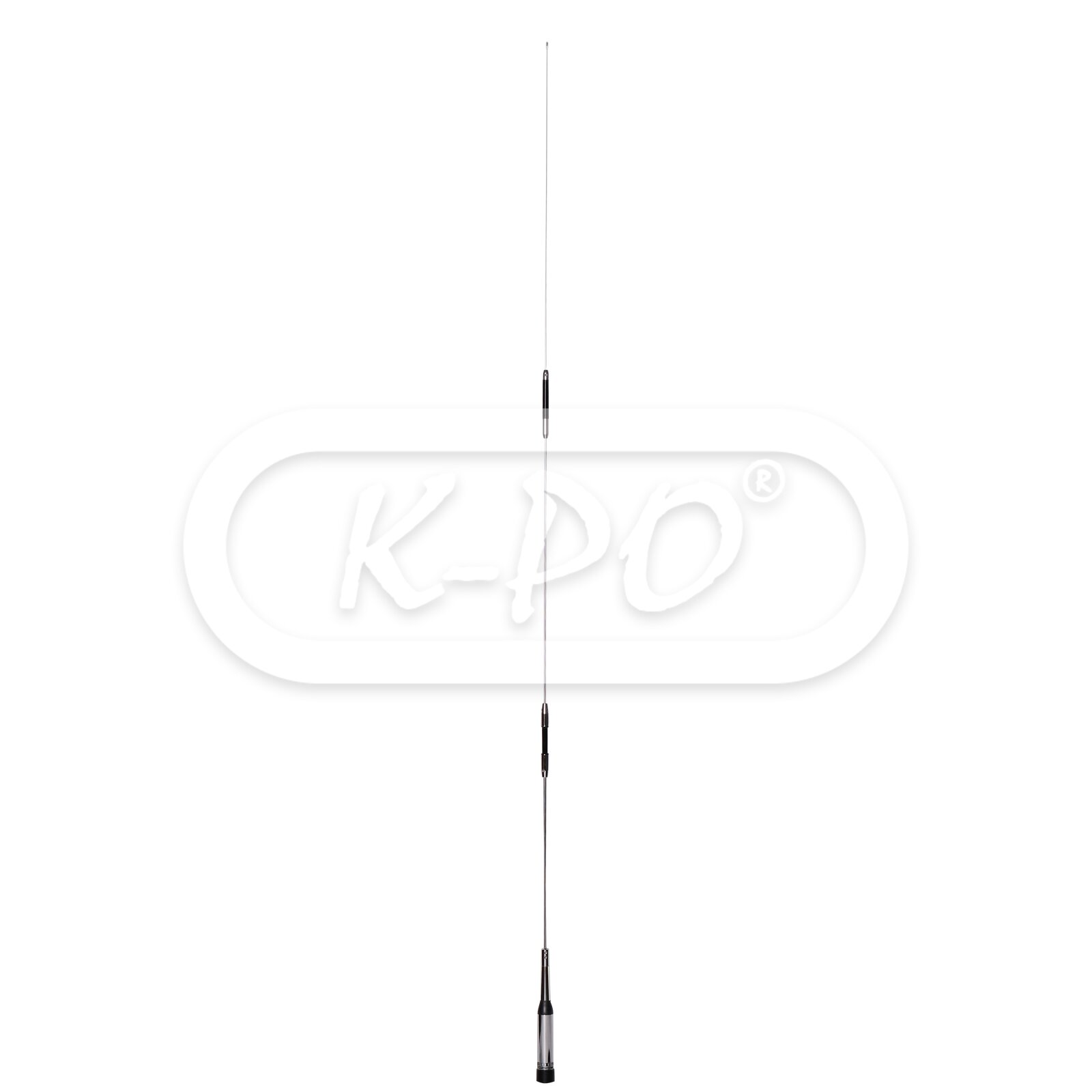

Comet - SB15

Product code: 805015

Barcode: 4932273101800

Tri-band mobile antenna with a foldable element for 50 / 144 / 430 MHz. With 2.15 / 4.5 / 7.2 dBi gain and 120 Watts power handling.

Frequency range: 50 / 144 / 430 MHz

Out of stock - Longer delivery time

€79.94 (66.07 excl. 21% VAT)

Electrical data

• Electrical type: 50 MHz: 1/4 λ / 144 MHz: 6/8 λ C Phase / 430 MHz: 5/8 λ 3-step
• Gain: 50 MHz: 2.15 dBi / 144 MHz: 4.5 dBi / 430 MHz: 7.2 dBi
• Maximum continuous power: 120 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Height: 1530 mm
• Weight: 410 gram
• Mounting type: On UHF-female (PL) connector (not included)

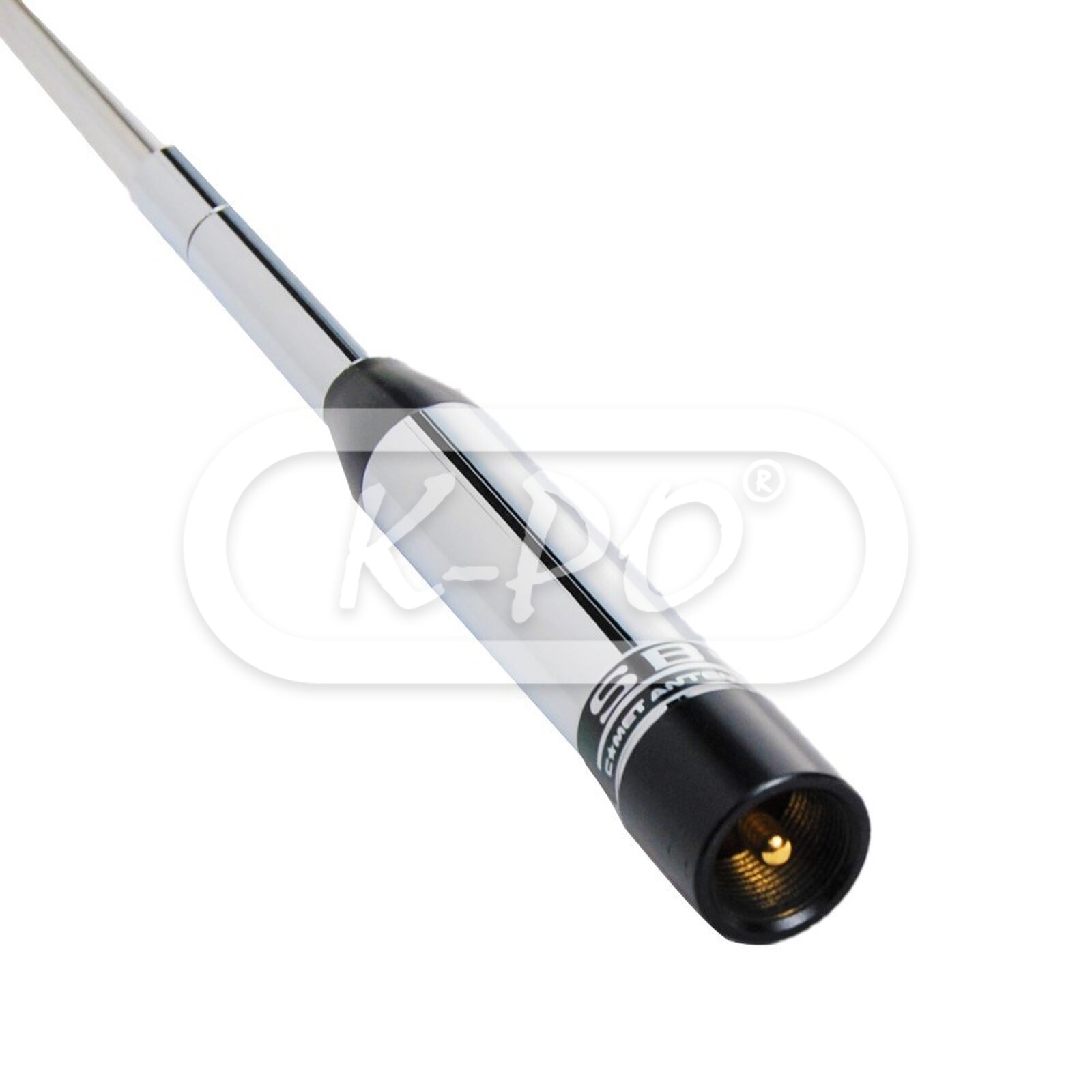

• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
