CRT - 2000H

Product code: 601025
Factory code: TX 001025
Barcode: 3140650022063

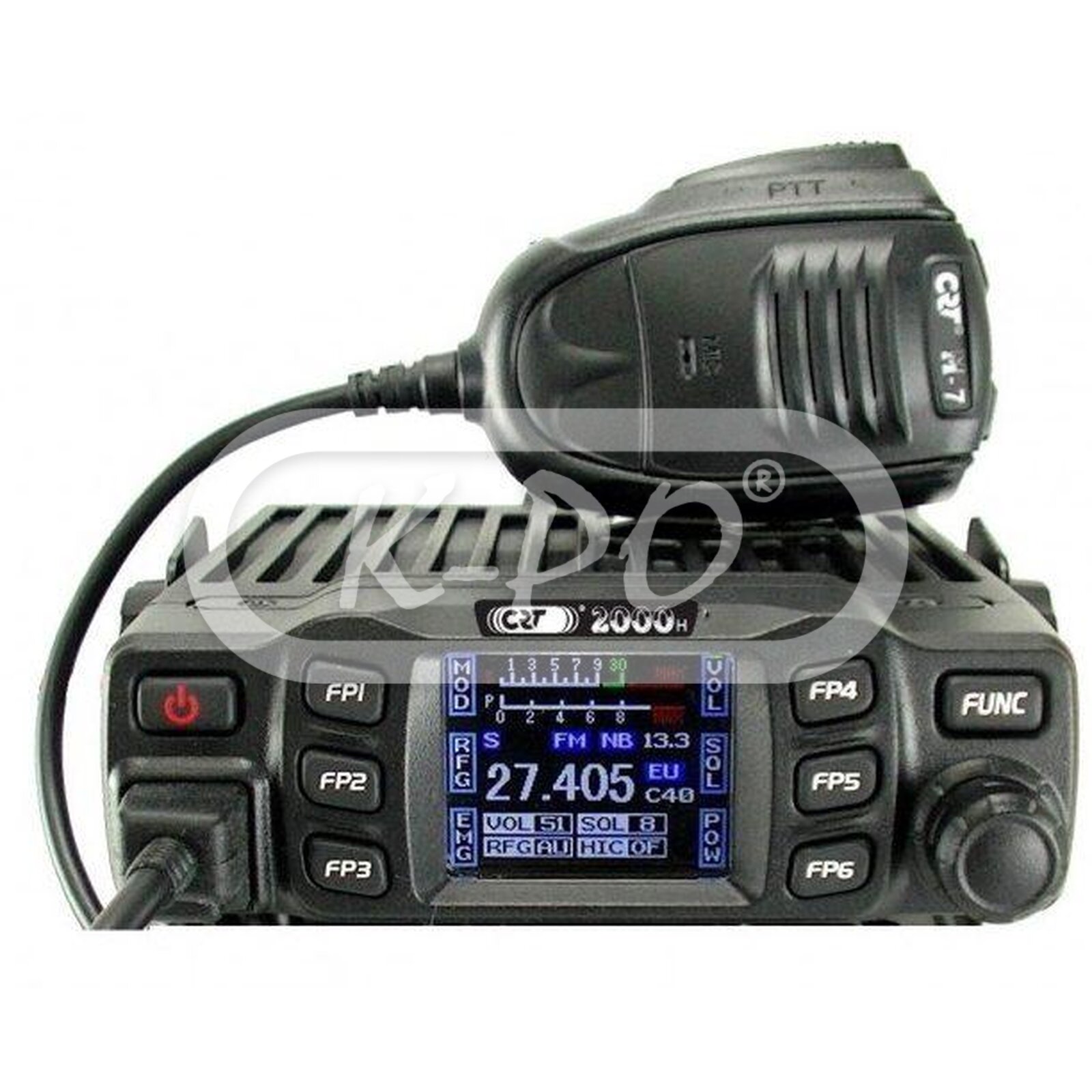

The CRT 2000H is a mobile CB radio suitable for 26.565-27405 MHz. The radio is equipped with a large multifunctional display and a microphone wit Up / Down function. Optional the radio can be programmed via computer with an programming cable.

*Note, the programming cable is optional and not included!

Frequency range: 26.965 - 27.405 MHz
Out of stock - Longer delivery time
€107.40 (107.4 excl. 0% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • Scan function: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • RF gain: Yes
  • TOT (time out timer): Yes
  • Dual watch: Yes
  • CTCSS: yes, 38 CTCSS
  • DCS: Yes, 104 DCS
  • Roger Beep: Yes
  • Memory: Yes, 4 channels

Electrical data

  • Voltage: 13,8 Volt
  • Operating temperature: -20° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer

Transmitter

  • Audio frequency response: 300 Hz - 3.0 kHz
  • Frequency allowance: ± 5.0 ppm
  • Drain: 2.0 A Max / Receive squelched 0.3 A / Vol max 0.8 A

Receiver

  • AM sensitivity: 1.0 µV for 10 dB
  • FM sensitivity: 1.0 µV for 10 dB
  • Frequency response: 300 Hz - 3.0 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 3 Watt
  • Internal speaker: 8 Ohm, round
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Image rejection: 70 dB
  • Squelch: Less then 1 µV

Mechanical data

  • Length: 124 mm
  • Height: 39 mm
  • Width: 163 mm
  • Weight: 675 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: RJ45 connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • User Manual: English, French
