CRT - DMC 520 M4 (E4) CRT - DMC 520 M4 (E4) CRT - DMC 520 M4 (E4)

CRT - DMC 520 M4 (E4)

Product code: 602013
Factory code: MI 002013
Barcode: 3140650020168

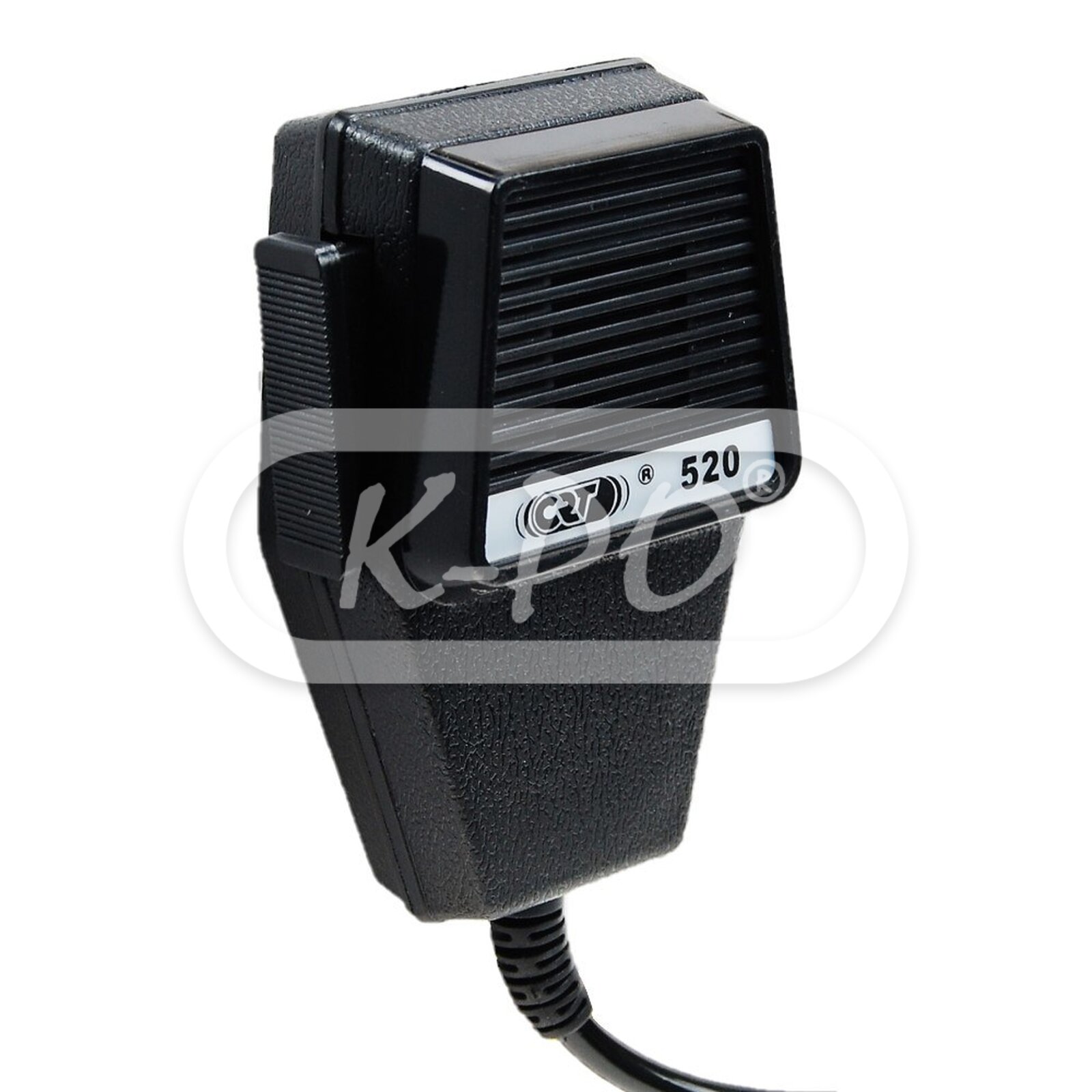

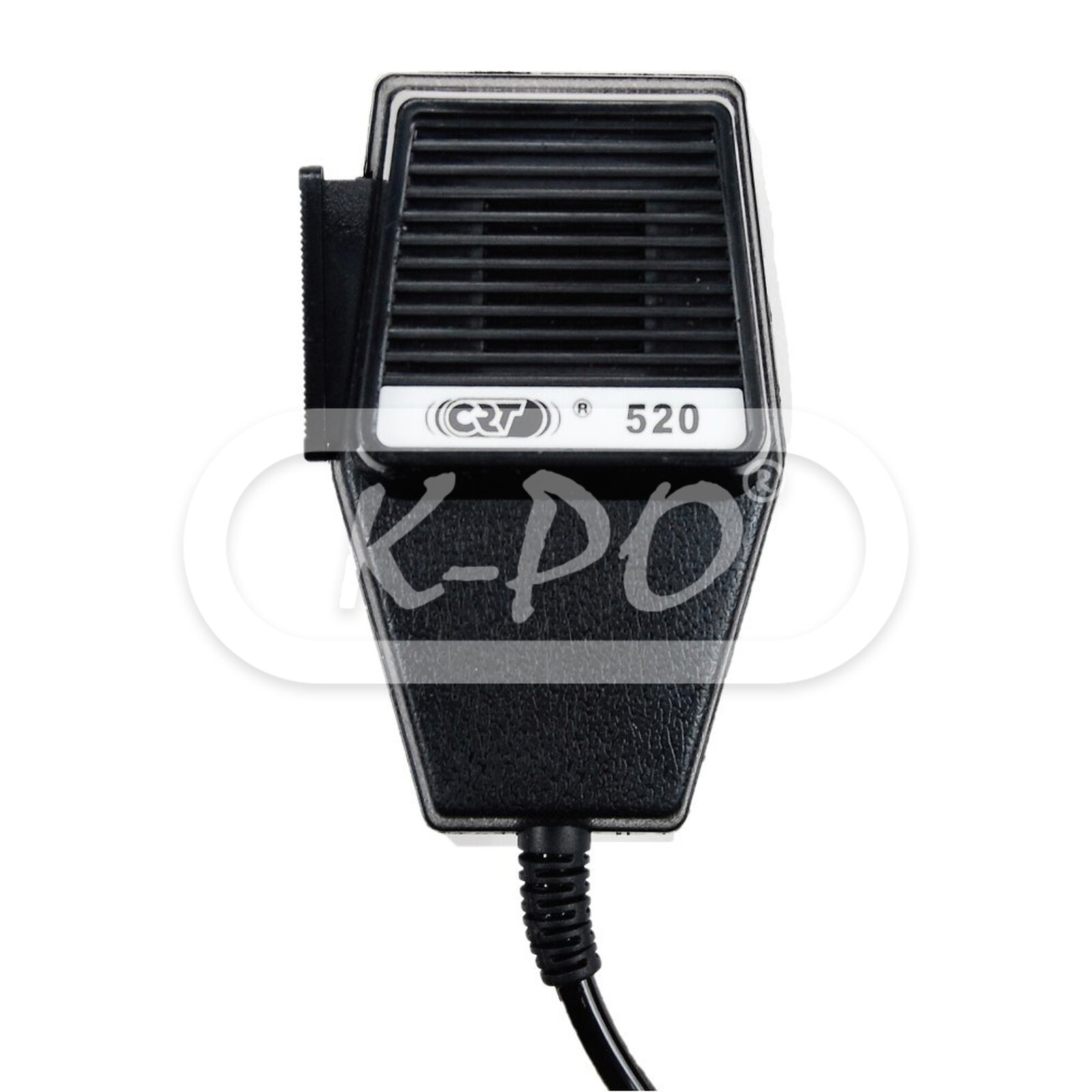

The CRT DMC 520 M4 (E4) is a nice solid and high quality microphone. This is an universal microphone and is suitable for most E4 4-pin CB radios.

Shipped next business day
€13.18 (13.18 excl. 0% VAT)

Features

  • Suitable for: 4-pin E4 connector / Midland Alan 48 / Midland Alan 68 / Midland Alan 68 S / Midland 8001 S / Midland 8001 XT / Midland Alan Quarantotto / Midland Alan Sessantotto /
  • Microphone type: Dynamic microphone

Electrical data

  • Frequency response: 150-3000 Hz
  • Impedance: 600 Ohm
  • Sensitivity: -70 dB (0 dB=1 V/u bar)

Mechanical data

  • Cable Length: 2.2 meter

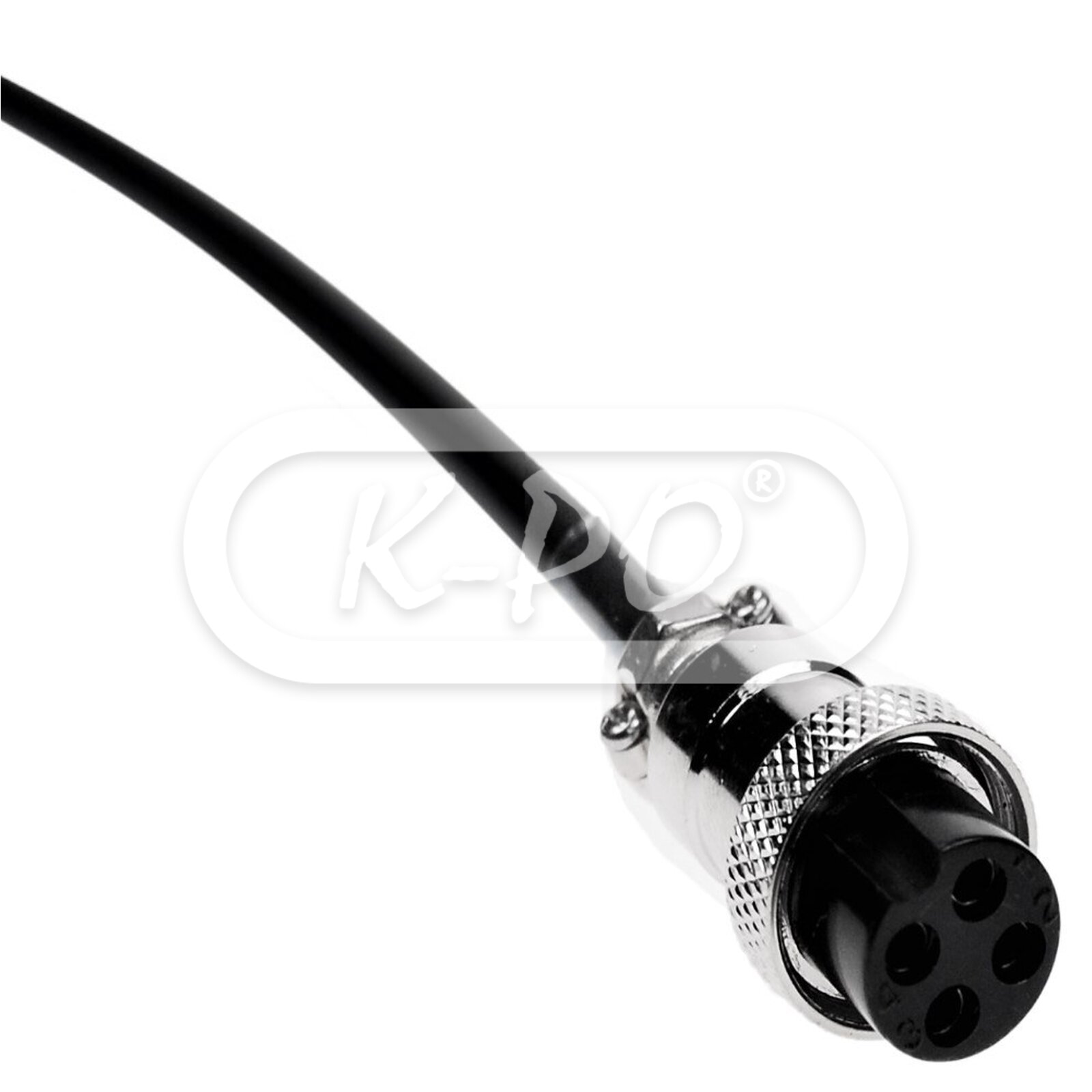

  • Microphone connector: 4-pin

Microphone wiring

  • Receive: Pin 3
  • Transmit: Pin 4
  • Mic Audio: Pin 1
  • Ground: Pin 2
