CRT - DMC 520 P4 CRT - DMC 520 P4 CRT - DMC 520 P4

CRT - DMC 520 P4

Product code: 601705
Factory code: MI 001705
Barcode: 3140650020052

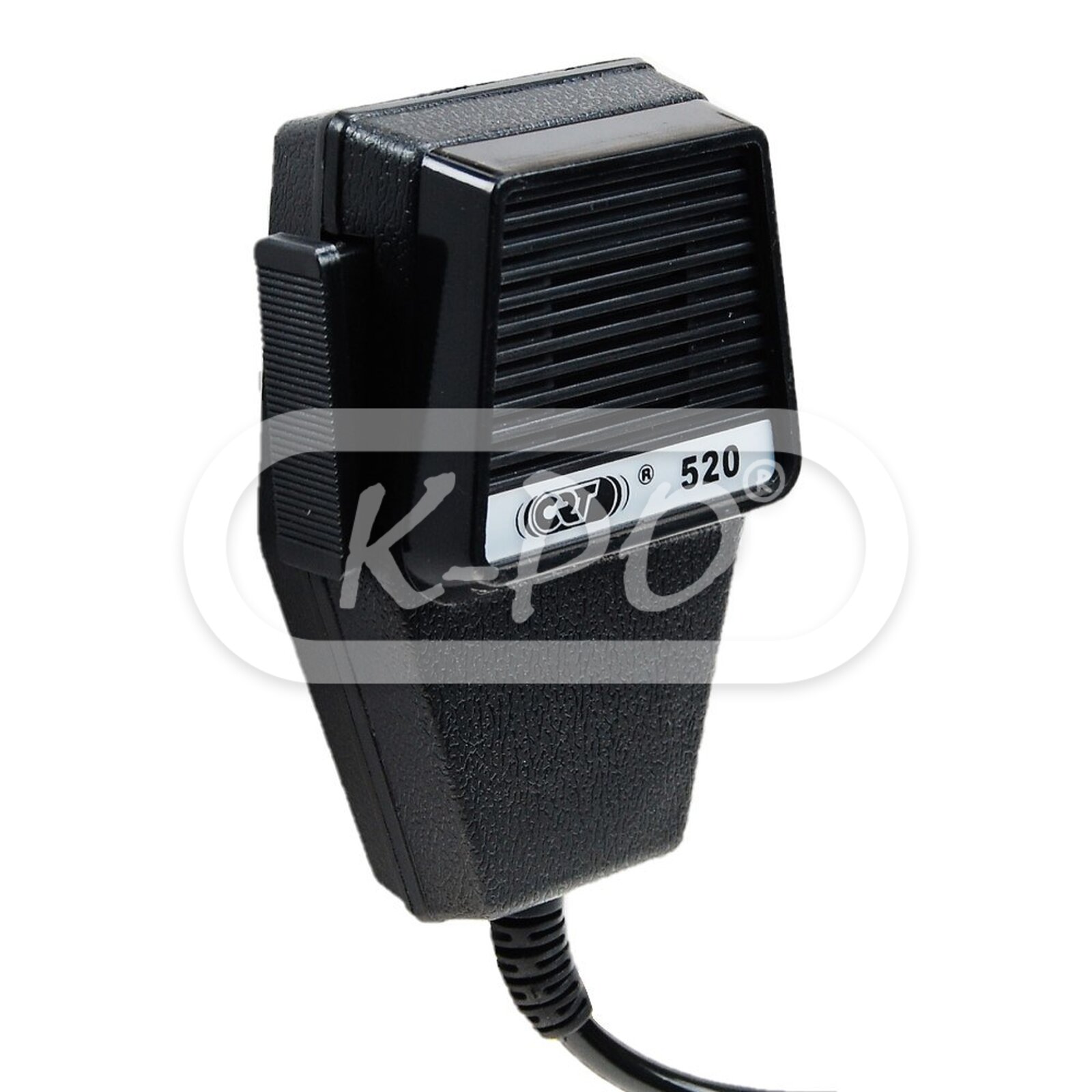

The CRT DMC 520 P4 is a nice solid and high quality microphone. This is an universal microphone and is suitable for most 4-pin CB radios.

Shipped next business day
€13.18 (13.18 excl. 0% VAT)

Features

  • Suitable for: 4-pin standard connector / Danita 640 / Midland Alan 199 / Midland Alan 100 Plus B / Midland Alan 210 DS / Midland M10 / Midland M-Zero / President Grant Classic / President Herbert / President Jackson / President JFK ASC / President JFK II / President Valery Classic / President Wilson /
  • Microphone type: Dynamic microphone

Electrical data

  • Frequency response: 150-3000 Hz
  • Impedance: 600 Ohm
  • Sensitivity: -70 dB (0 dB=1 V/u bar)

Mechanical data

  • Cable Length: 2.2 meter

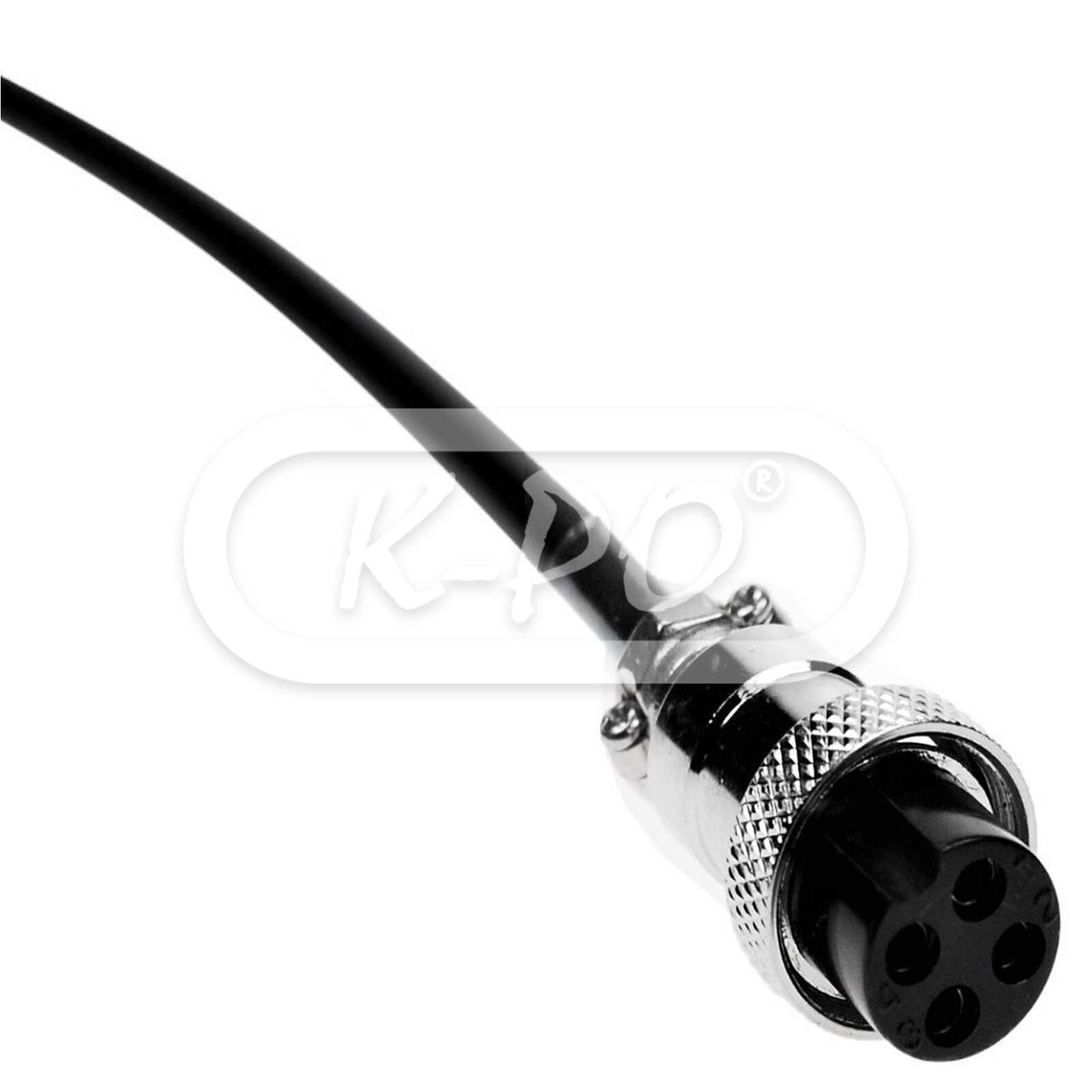

  • Microphone connector: 4-pin

Microphone wiring

  • Receive: Pin 4
  • Transmit: Pin 3
  • Mic Audio: Pin 2
  • Ground: Pin 1
