CRT - S8040

Product code: 600180

Factory code: TX 000180

Barcode: 3140650006490

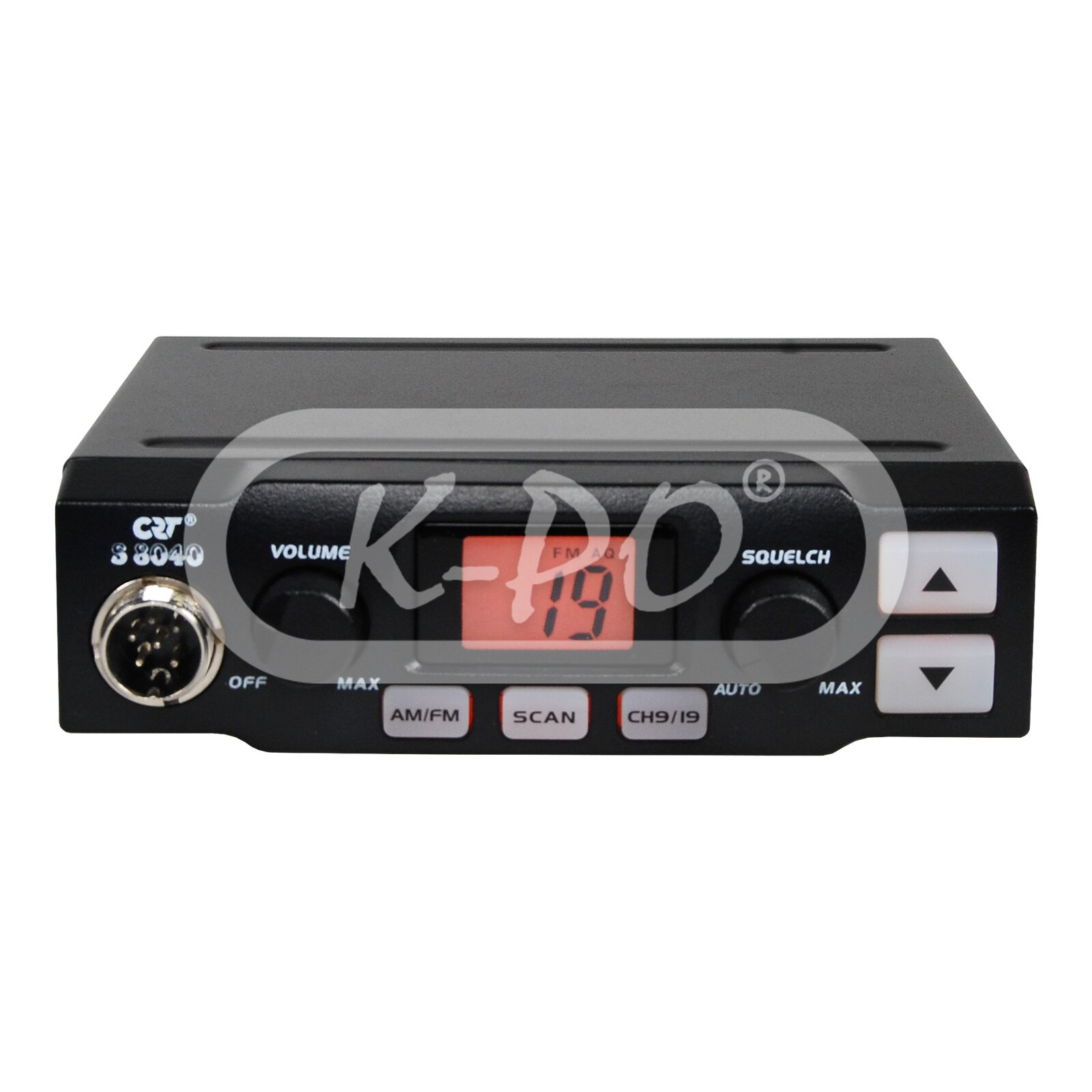

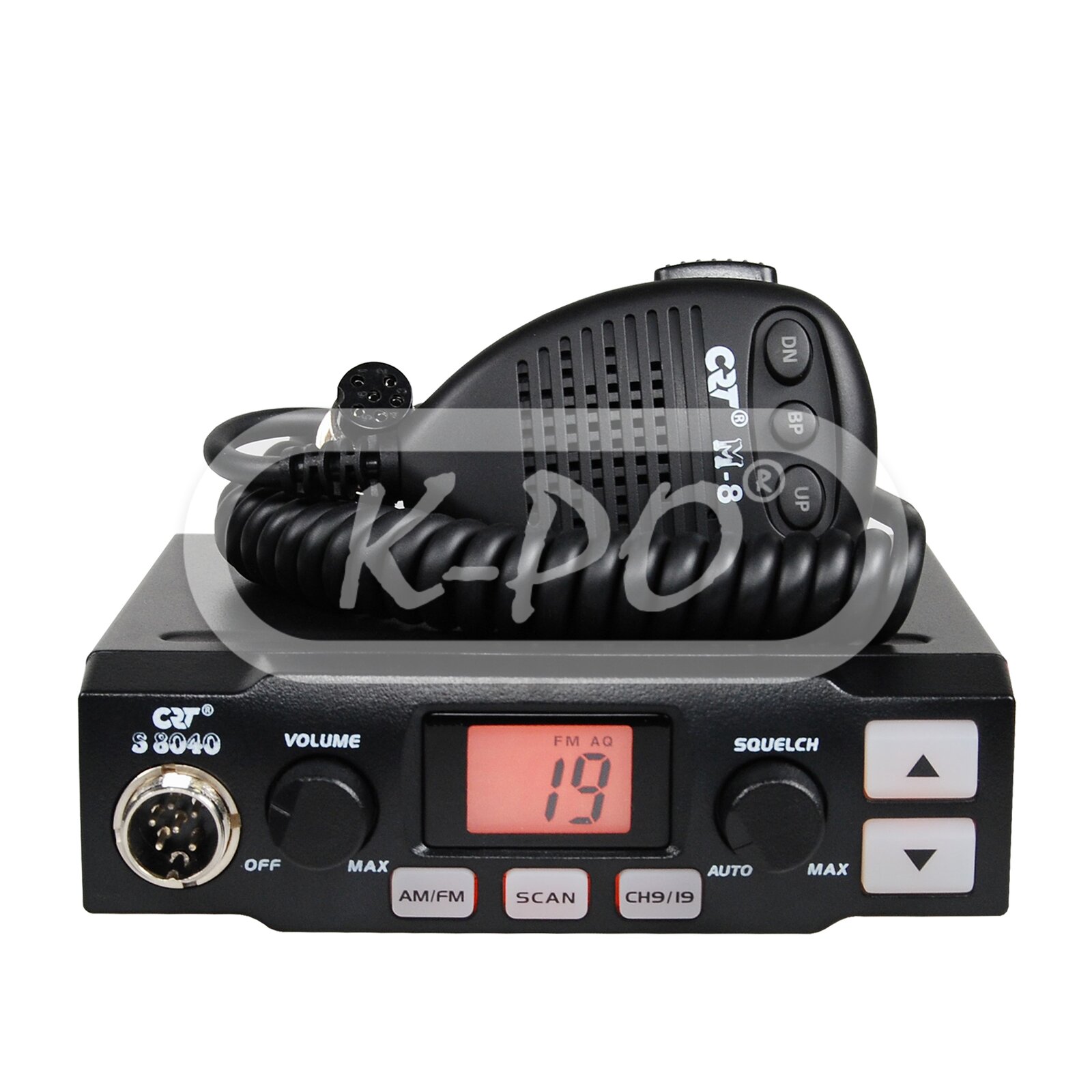

The CRT S8040 is a multi standard CB radio and is one of the simplest entry models on the market. The S8040 is easy to operate and has the most essential functions such as AM / FM, Scan and an Up & Down microfoon. The CB radio is supplied complete including a mounting set.

Frequency range: 26.565 - 27.405 MHz

Note - Discontinued

€ -- (Discontinued)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display type: Backlight
• Display colors: Orange
• Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
• Emergency channel: Yes
• Scan function: Yes
• External speaker socket: Yes
• Roger Beep: Yes

Electrical data

• Voltage: 13,8 Volt
• Operating temperature: -10° to +55° C
• Frequency tolerance: 0.005 %

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Harmonic suppression: Less than -54 dBm
• Drain: 13.8 Volt: 3.0 A max.

Receiver

• AM sensitivity: 1.0 µV for 10 dB
• FM sensitivity: 1.0 µV for 10 dB
• Frequency response: 300 Hz - 3 kHz
• Maximum audio power: 3 Watt
• Squelch: Minimum 0.2 µV -120 dBm / maximum 1 µV

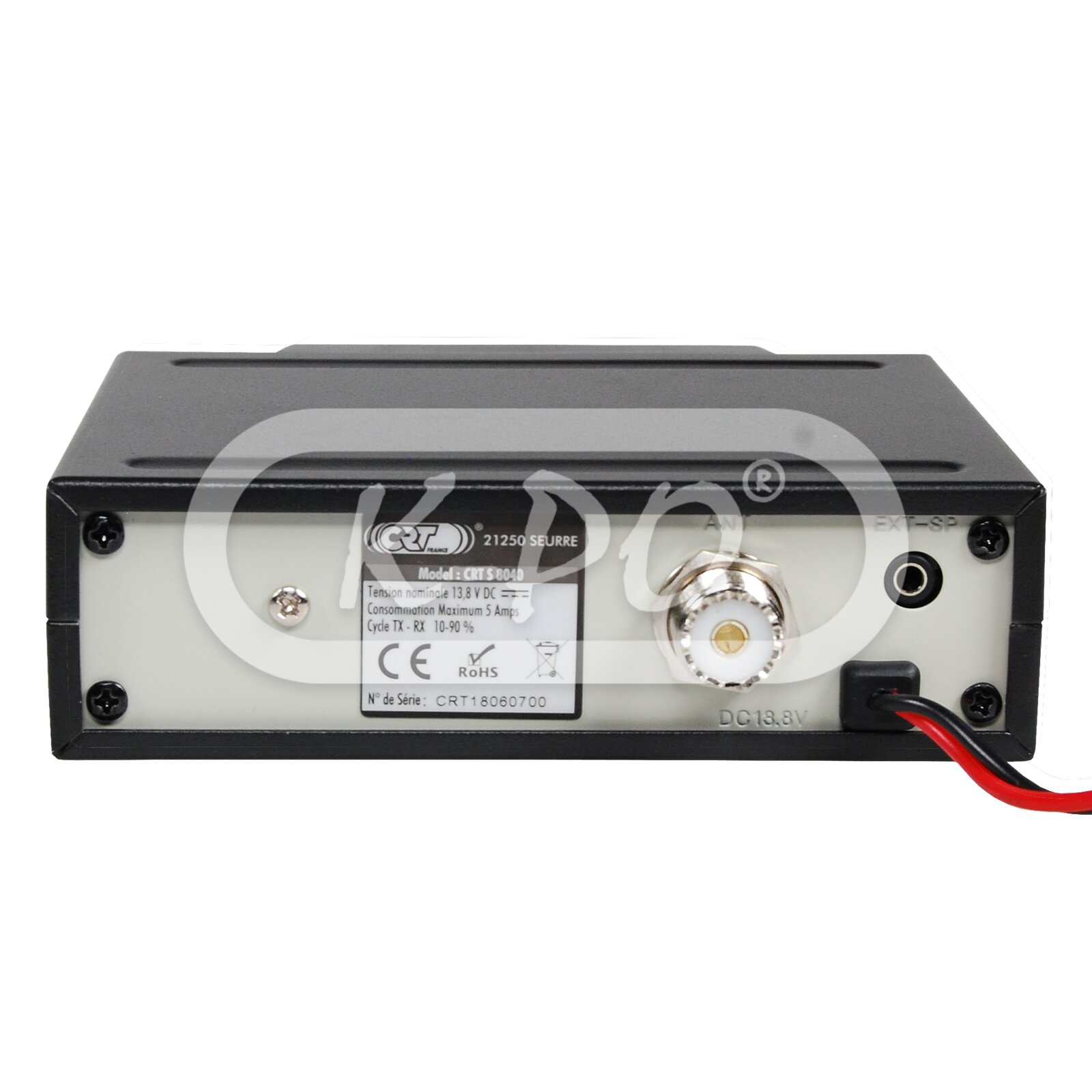

Mechanical data

• Length: 150 mm
• Height: 41 mm
• Width: 140 mm
• Weight: 761 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector

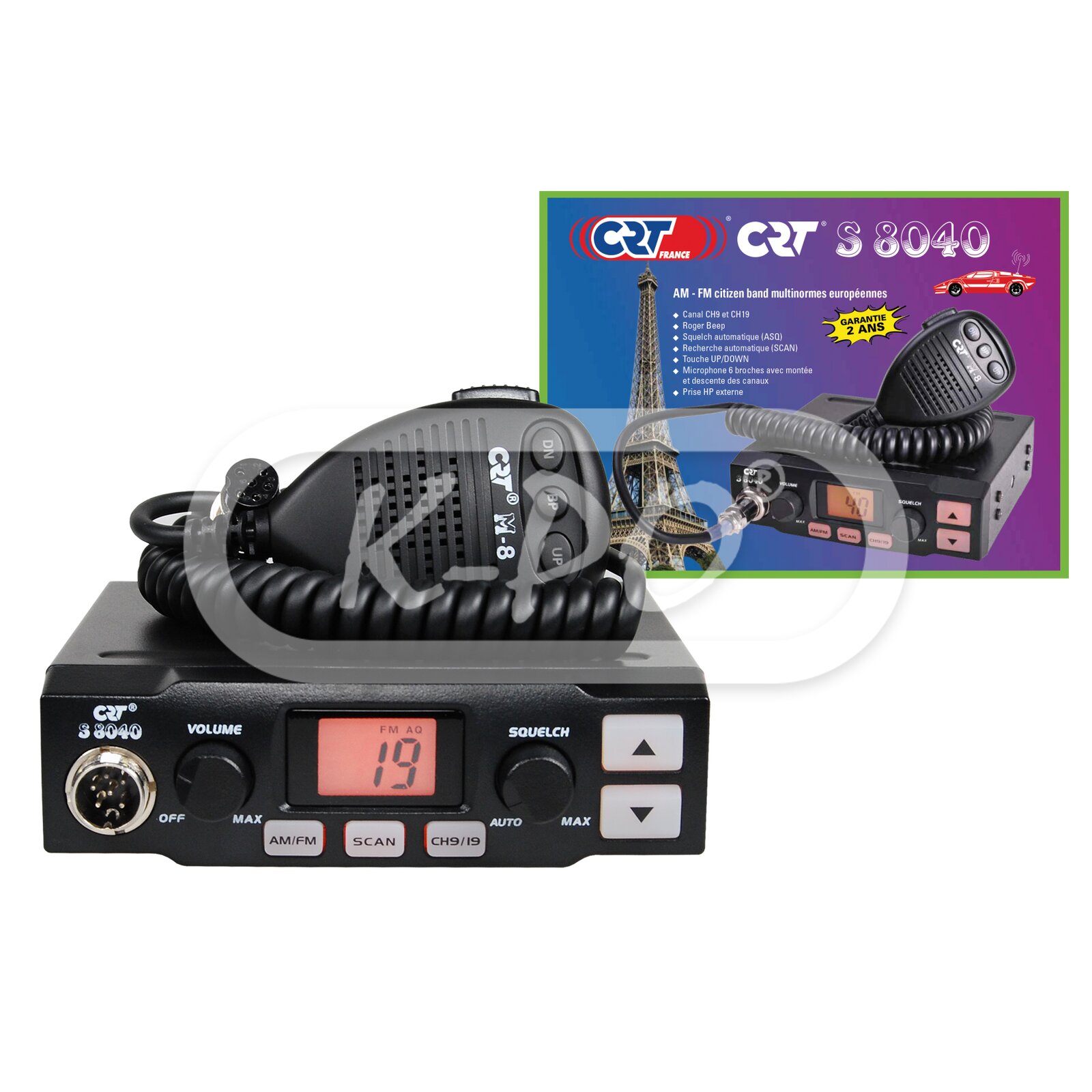

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 1 pcs
• User Manual: English, German, French
