Danita - 840evo

Product code: 11842
Factory code: 11842
Barcode: 5703316118425

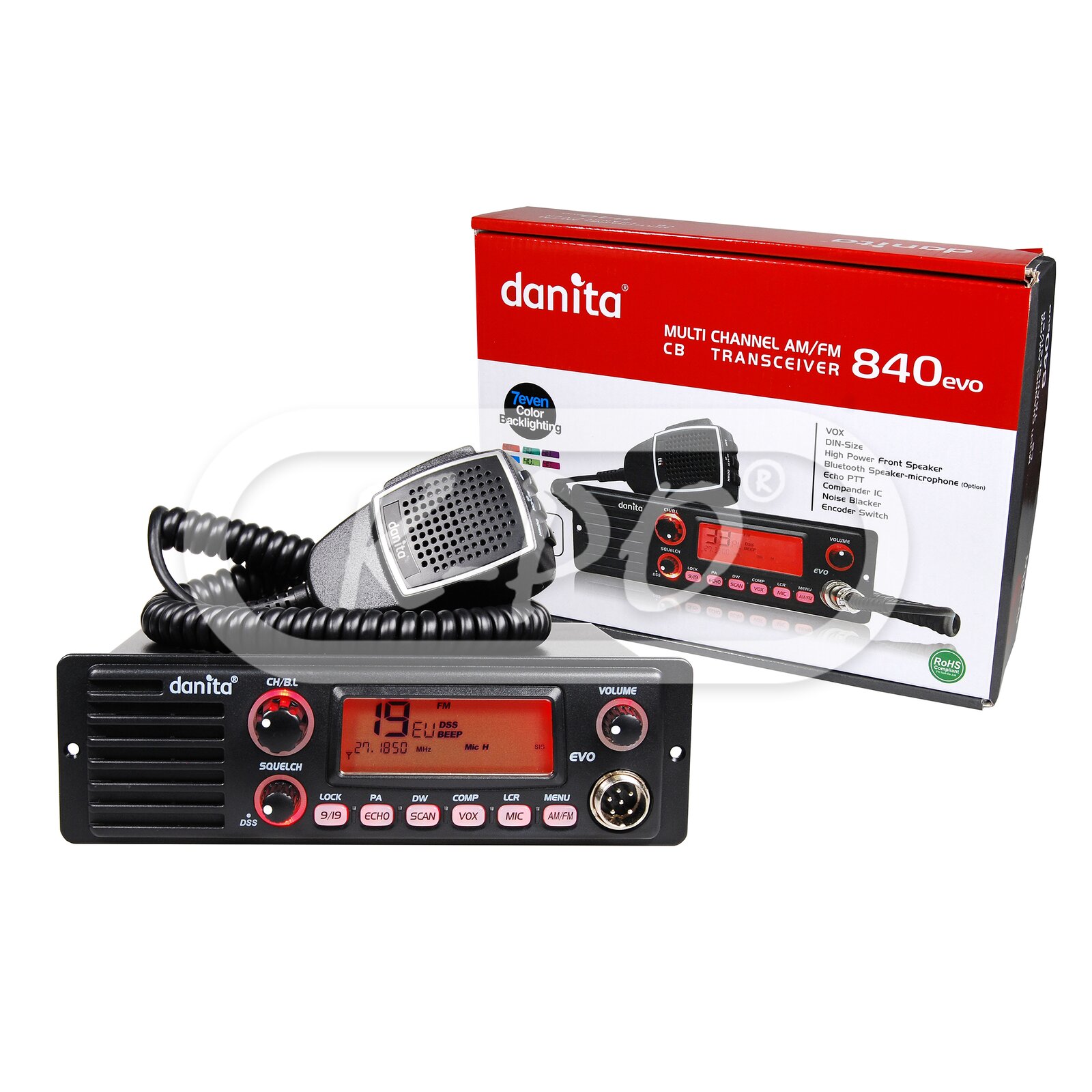

The Danita 840evo is a high quality front speaker CB radio and the successor of the Danita 840.

New features and functions on the Danita 840evo are:

  • 7 display colors
  • Improved VOX function, can be (de)activated directly from the radio or microphone
  • PA function and PA jack on the backside
  • Echo function
  • Mic-PTT jack on the backside
  • Mic-gain, 3 levels
  • Cooling rib on the backside
Frequency range: 26.965 - 27.405 MHz
Shipped today - Stock: 1
€164.95 (136.32 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
  • Channels: 40 AM / FM
  • Front speaker: Yes
  • Display type: Multi-color backlight
  • Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
  • Export version: 10-12 Watts
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / DSS (Dynamic Squelch System) / Manual squelch /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • Quick channel selection: Yes
  • External speaker socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • MIC gain: Yes
  • TOT (time out timer): Yes
  • Dual watch: Yes
  • Din mount: Yes
  • Attenuation: Yes
  • Echo: Yes
  • External bluetooth socket: Yes
  • Extra PTT/MIC jack: Yes, on backside
  • Menu functions: Band selection / Noise Blanker / Beep Tone / Time-out-Timer / Attenuation

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002%

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Harmonic suppression: Less than -36 dBm

Receiver

  • AM sensitivity: 0.7 µV for 10 dB
  • FM sensitivity: 0.7 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 2.5 kHz
  • Adjacent channel selectivity: More than 60 dB
  • Maximum audio power: 2 Watts
  • Internal speaker: 8 Ohm, round
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less then 8% @ 1 kHz
  • Image rejection: More than 60 dB
  • Conducted spurious: Less than -57 dB
  • Squelch: Adjustable, threshold less than 1 µV, DSS less than 2 µV

Mechanical data

  • Length: 190 mm
  • Height: 58 mm
  • Width: 175 mm
  • Weight: 990 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

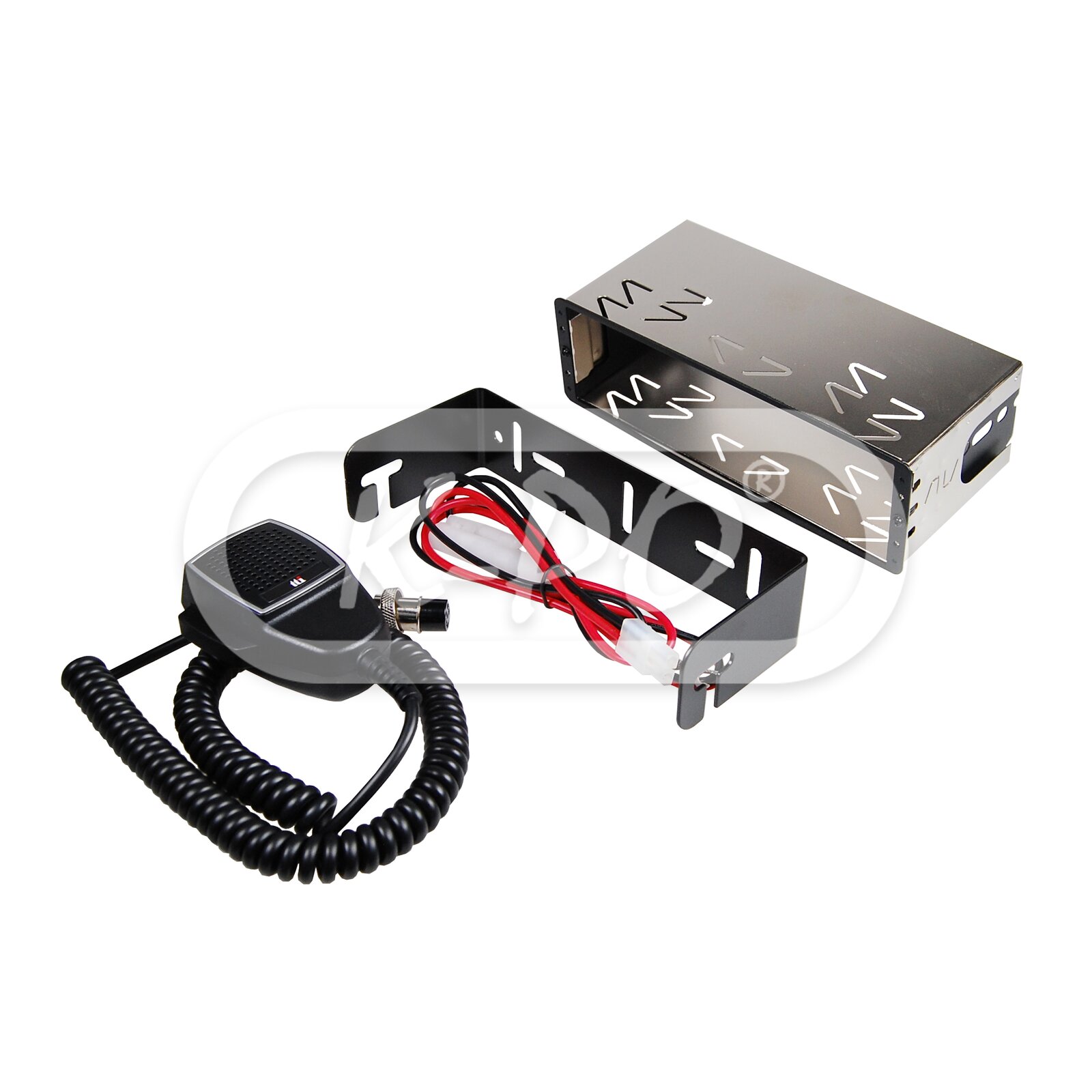

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English
  • DIN mount: 1 pcs
