Danita - S27F

Product code: 34151
Factory code: 34151

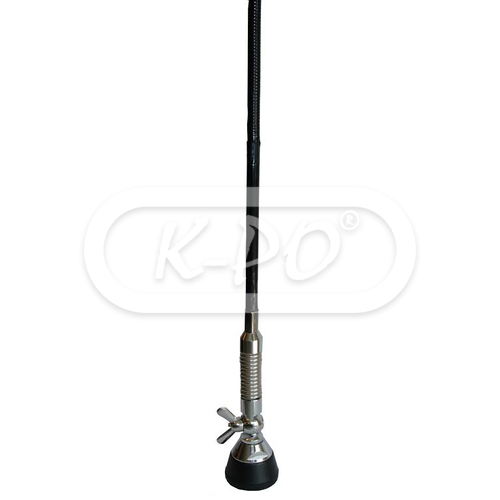

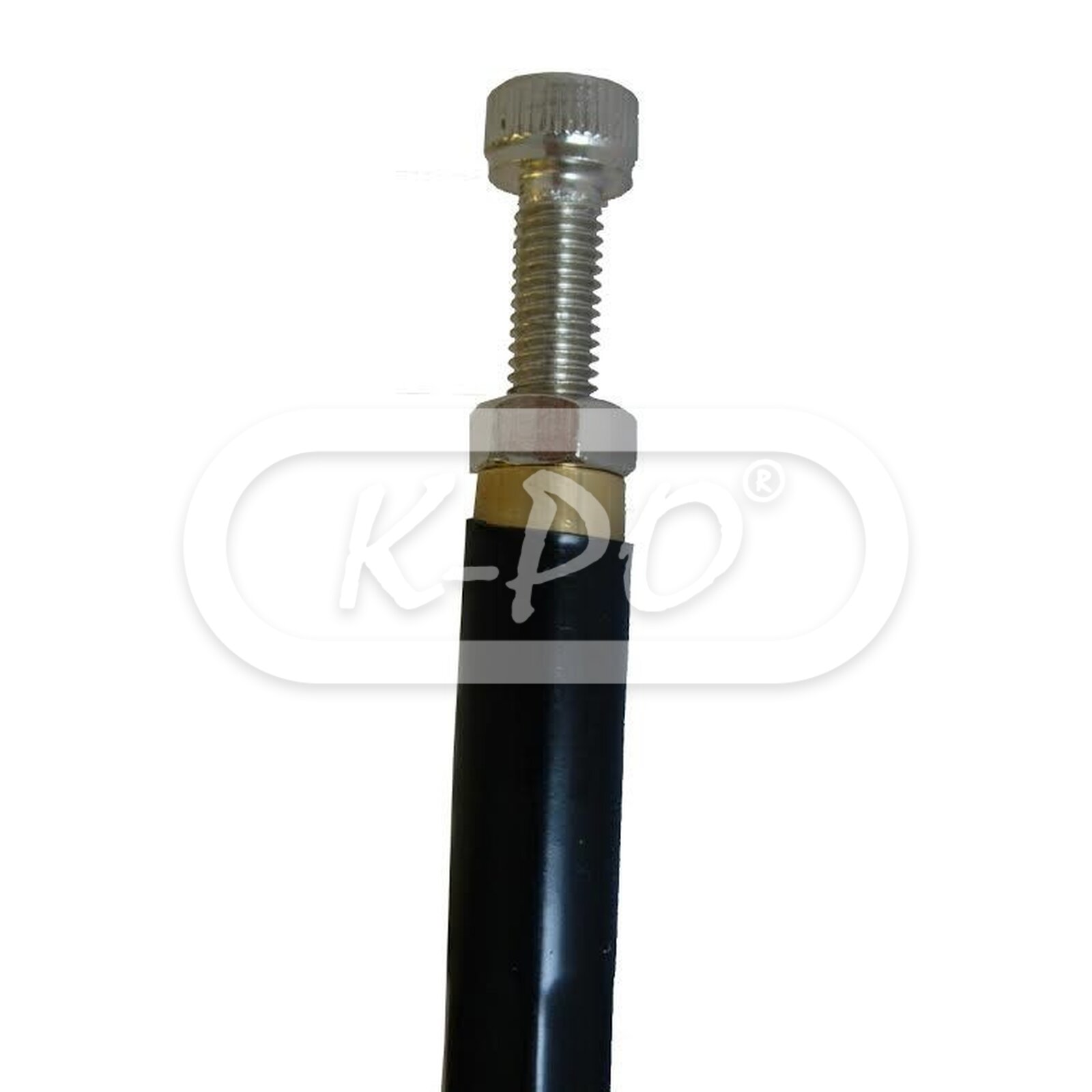

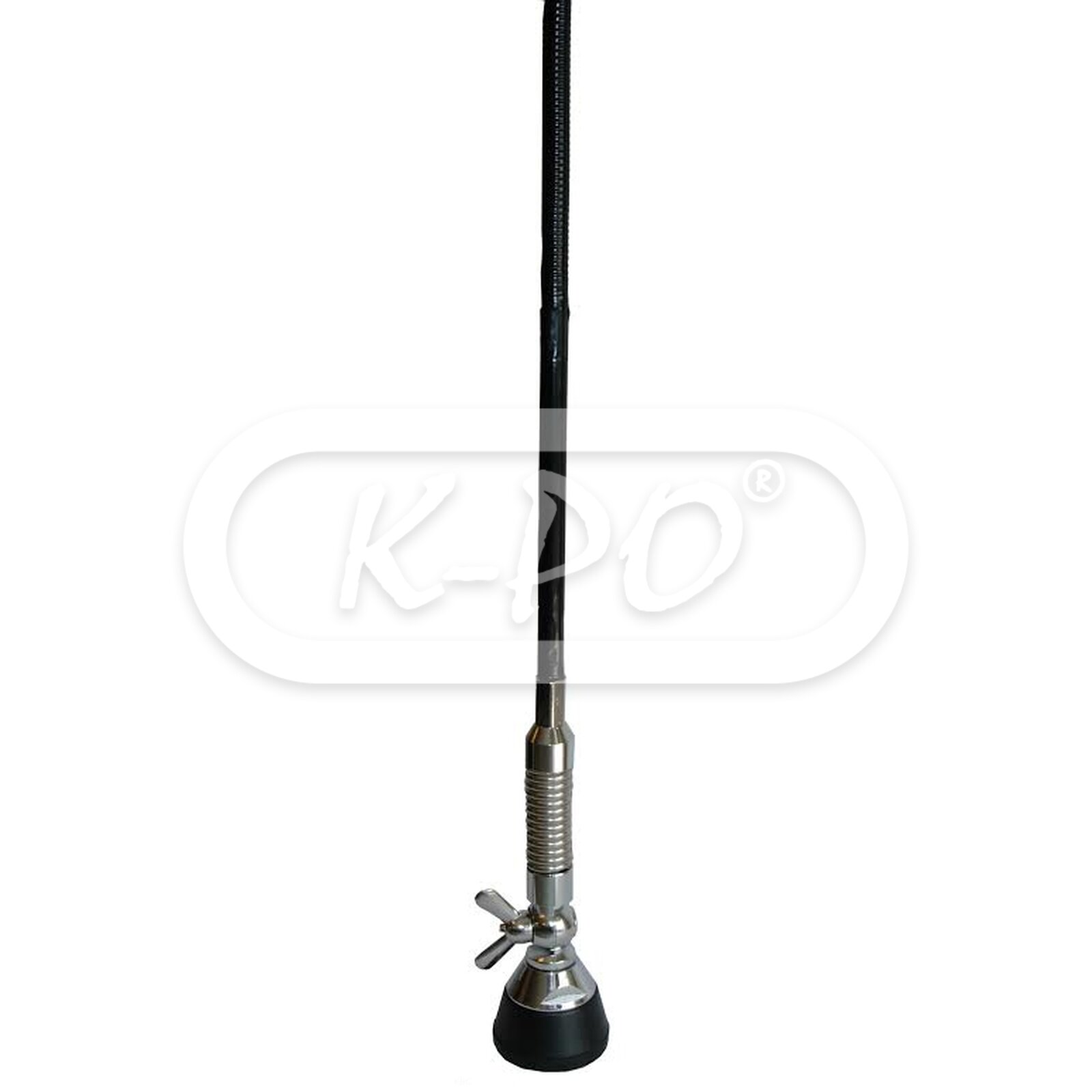

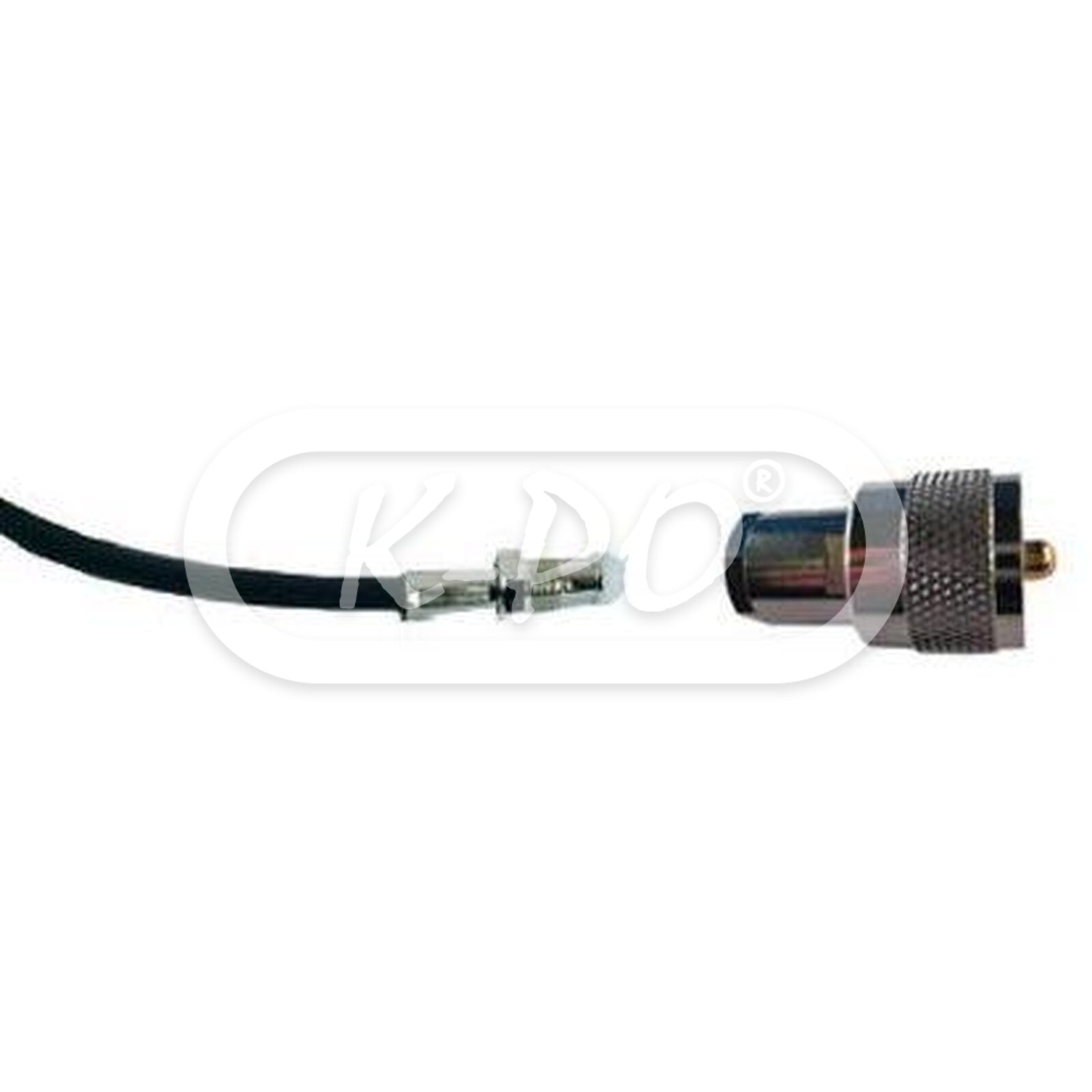

Pre-tuned at 27.2 MHz, can be fine tuned with the top-screw. The cable is angled 90° under the antenna base for easy installation under the vehicle roof. Can be mounted from both inside and outer side. FME-UHF (PL) connector is included, no soldering is needed.

Frequency range: 26.9 - 27.4 MHz
Shipped today
€37.15 (37.15 excl. 0% VAT)

Electrical data

  • VSWR: ≤ 1.2
  • Bandwidth: 500 kHz ≤ 2.0
  • Power peak: 200 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 4 meter / RG 58

Mechanical data

  • Materials: Glass fiber
  • Height: 930 mm
  • Weight: 490 gram
  • Mounting type: Thru-hole

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-male (PL)
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
