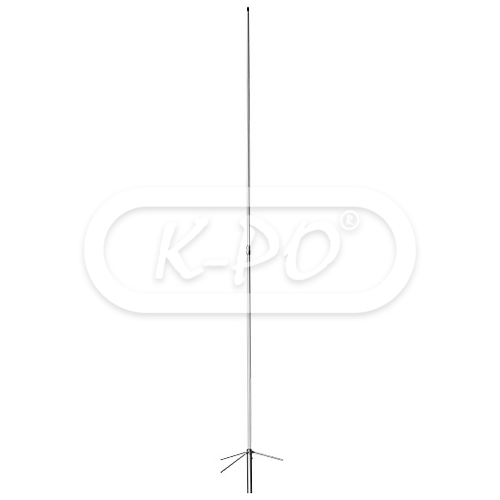

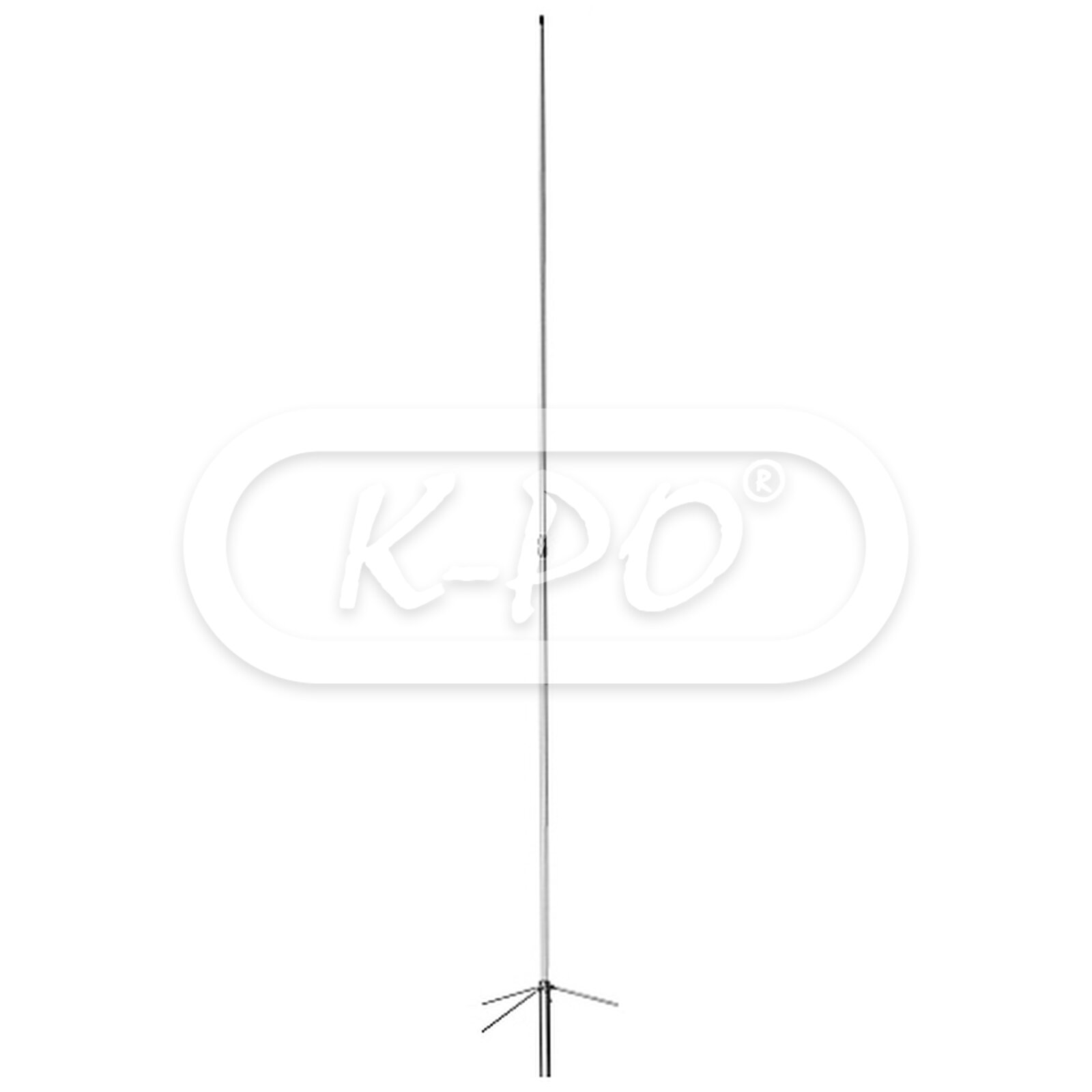

Diamond - X-300N

Product code: 990300

The Diamond X-300N is a premium dual-band antenna designed for the 144 MHz (2 meter) and 430 MHz (70 cm) with a maximum power handling of 200 Watts.

Total length of 3.10 meter, with a two-part FRP (Fiberglass Reinforced Plastic) outer shell for enhanced durability and wind resistance of up to 50 meters per second.

Ideal for both amateur radio enthusiasts and professional use, this antenna ensures reliable, long-distance communication with impressive gain and durability.

Frequency range: 144 / 430 MHz
Shipped today - Stock: 9
€114.95 (95 excl. 21% VAT)

Electrical data

  • Electrical type: 144 MHz: 2x5/8 λ C-load / 430 MHz: 5x5/8 λ C-load
  • Gain: 144 MHz: 6.5 dB / 430 MHz: 9.0 dB
  • VSWR: ≤ 1.5
  • Maximum continuous power: 200 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: FRP (Fiberglass Reinforced Plastic), two parts
  • Mast Ø: 30 - 62 mm
  • Max wind resistance: 180 km/h (50m/sec)
  • Height: 3100 mm
  • Weight: 1500 gram
  • Mounting type: On mast
  • Antenna connector: N-female
  • Radial length: 520 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
