Everhardt - STT-4 Black

Product code: 28005
Factory code: STT-4-BLACKX
Barcode: 8718375102275

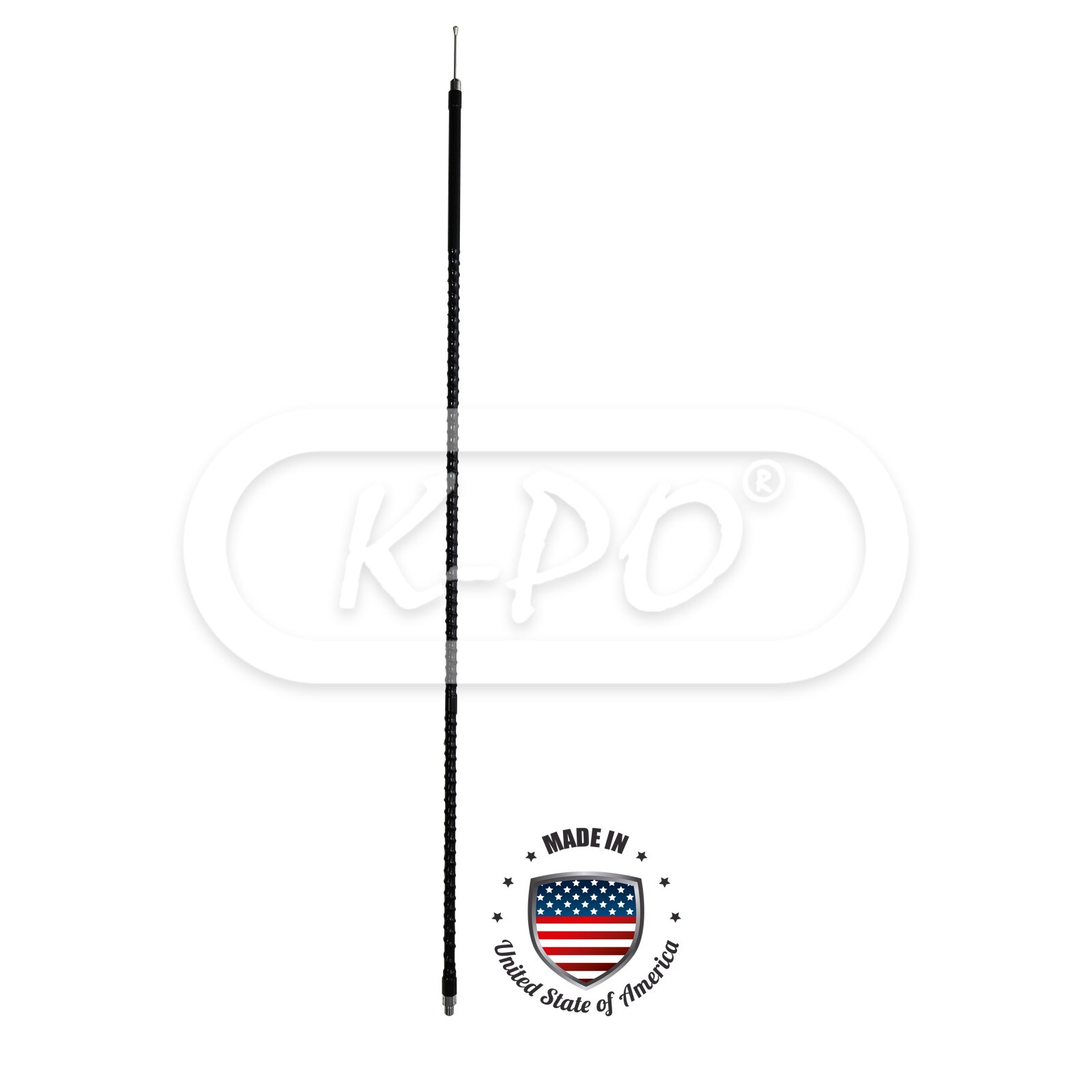

Everhardt 'Super Tiger' series – made in Texas, USA

The STT-series have a tunable tip for tuning between 26-29 MHz. These rugged antennas are top loaded, helically wound around a 3/8 fiberglass rod especially designed for high power radios

Features:

  • Full wave antenna
  • 1500 Watt ‘Talking Power’

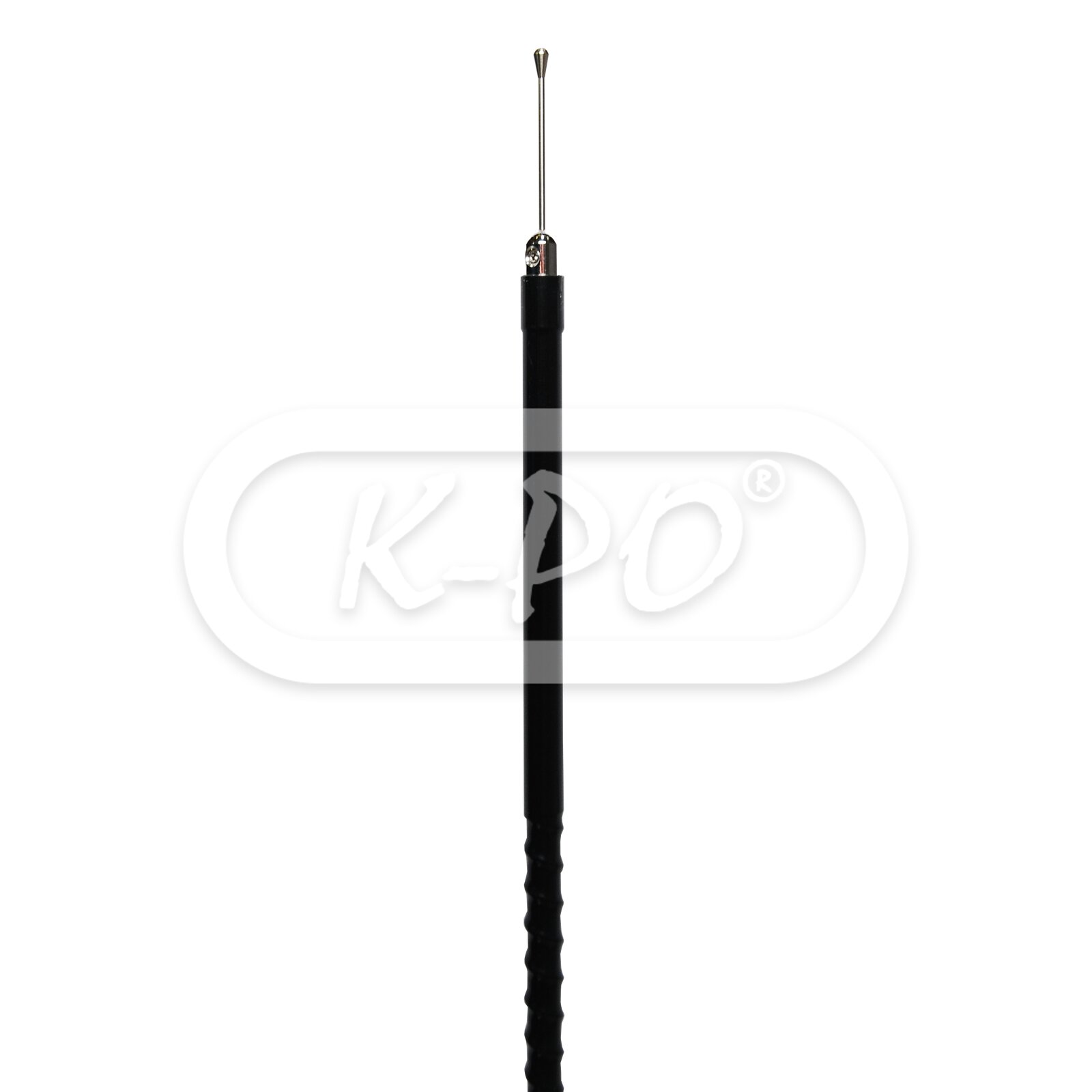

  • 'Tunable tip' tunable between 26 - 29 MHz
  • Exclusive ‘VibraSorb’ anti-breakage design
Frequency range: 26- 29 MHz tunable
Shipped next business day
€22.27 (22.27 excl. 0% VAT)

Electrical data

  • Electrical type: Top loaded / Full wave antenna
  • VSWR: <1.5:1 (40 channels)
  • Power peak: 1500 Watt
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable length: Needs an 18 foot (550 cm) antenna cable for a good SWR (not included)

Mechanical data

  • Materials: Fiberglass
  • Height: 1200 mm
  • Weight: 325 gram

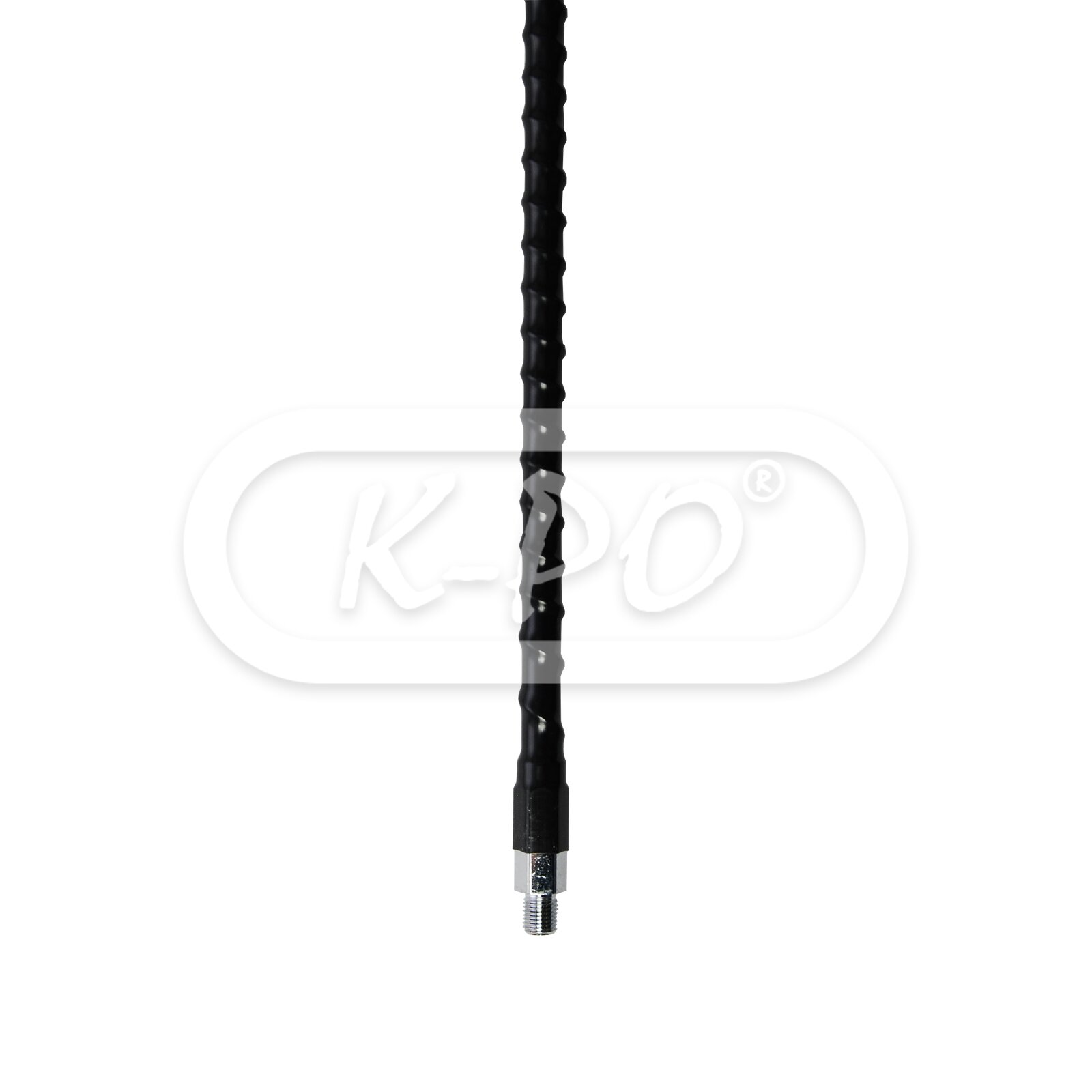

  • Mounting type: On 3/8 female (stud) mount

Inside the box

  • Antenna: Yes
