HamKing - CA-35RS

Product code: 6113
Factory code: 6113
Barcode: 8718375101339

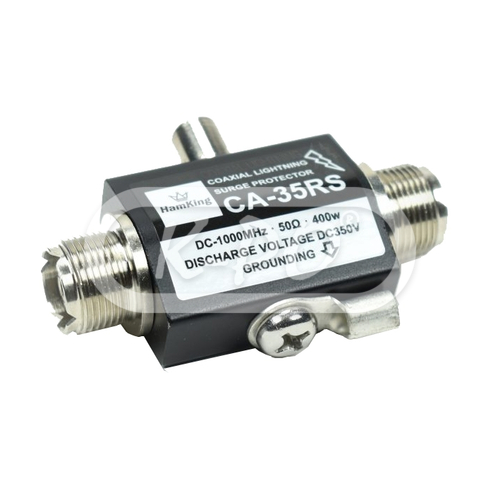

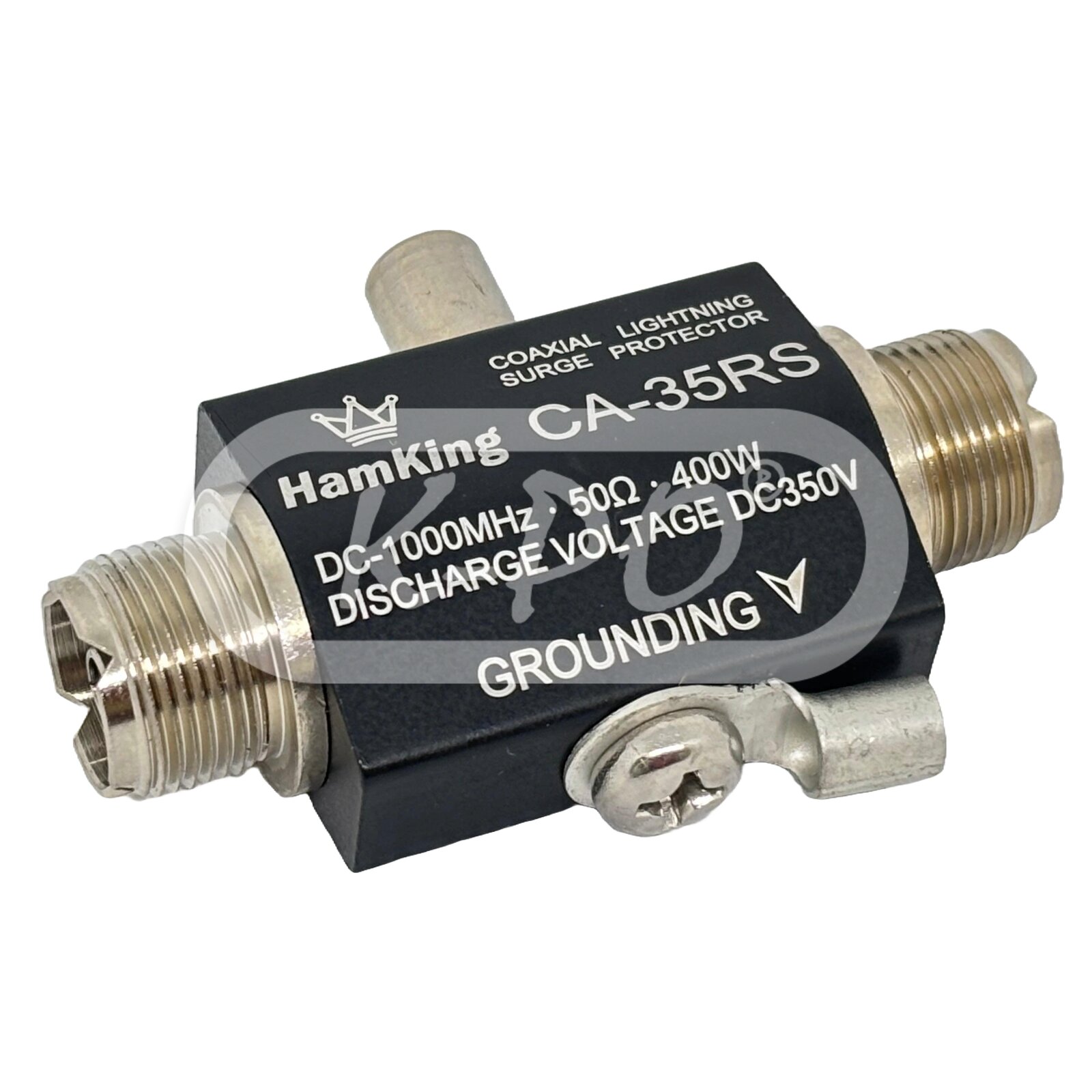

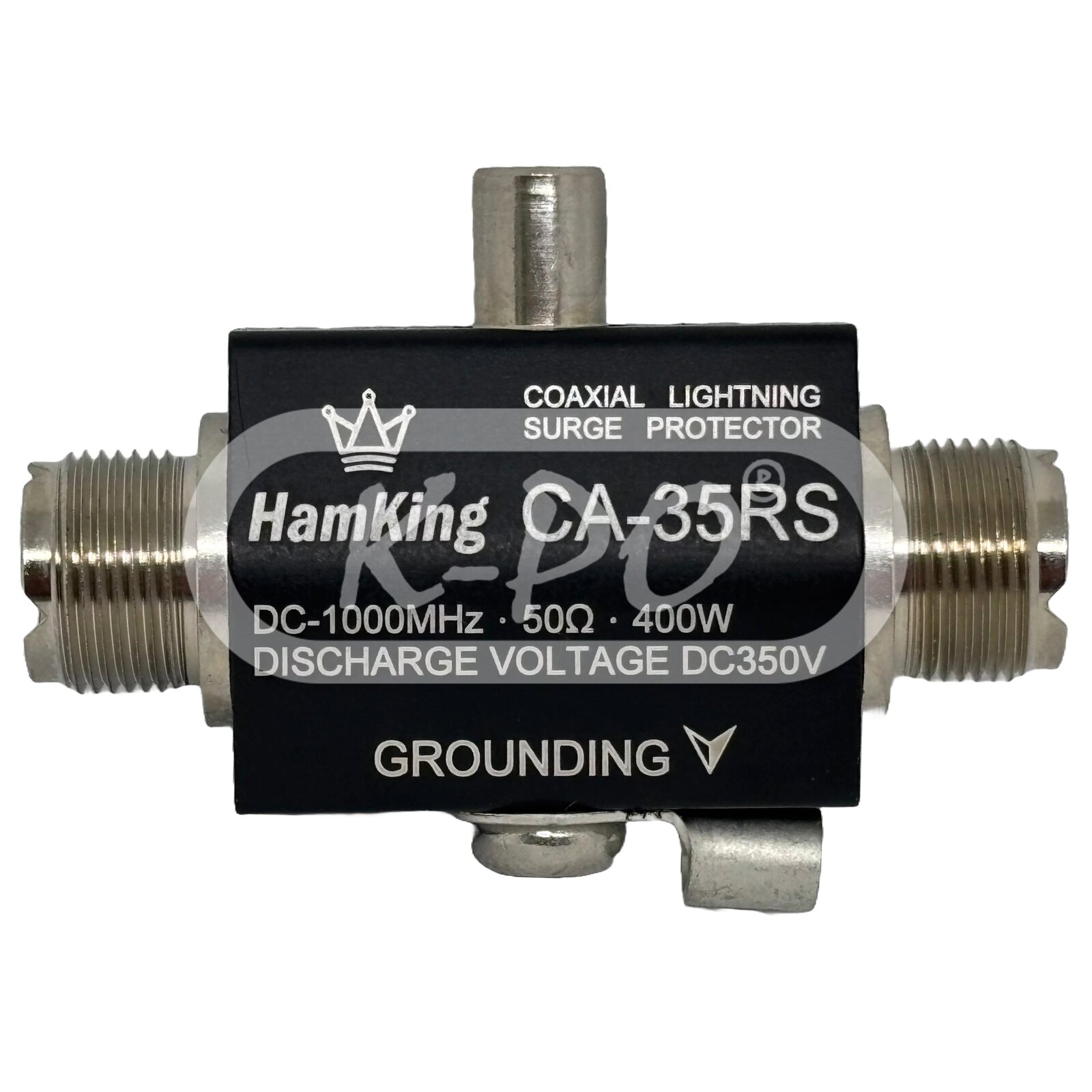

The HamKing CA-35R coaxial lightning surge protector protects your valuable communication equipment against, among other things, lightning strikes. The CA-35R can handle frequencies from DC to 1000 MHz with a maximum power of 400 watts PEP.

Frequency range: Up to 1000 MHz
Out of stock - Longer delivery time
€14.84 (14.84 excl. 0% VAT)

Electrical data

  • Power peak: 500 Watts
  • VSWR: <1.1
  • Impedance: 50 Ohm
  • Insertion loss: 0.2 dB or less

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: UHF (PL) female
  • Length: 65 mm
  • Height: 20 mm
  • Width: 45 mm
  • Weight: 78 gram
