HamKing - CR-8900

Product code: 6106
Factory code: 6106
Barcode: 8718375101261

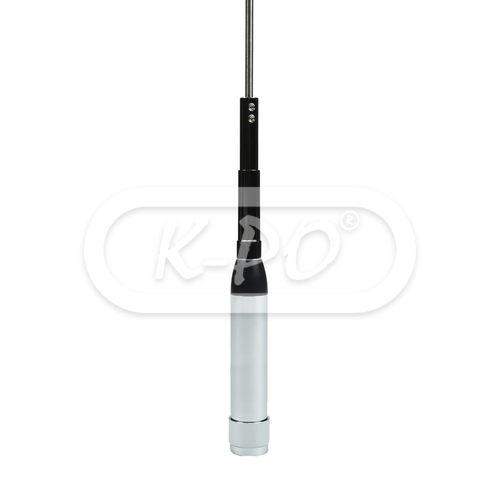

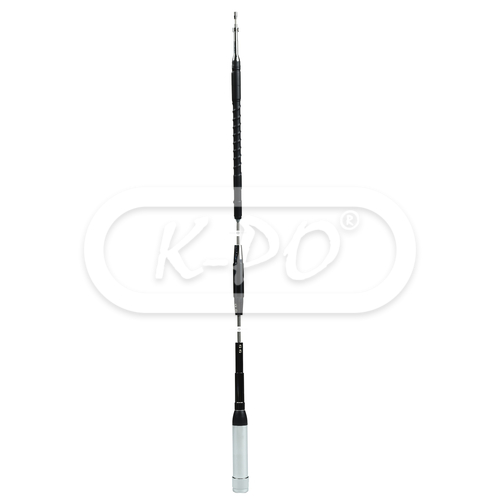

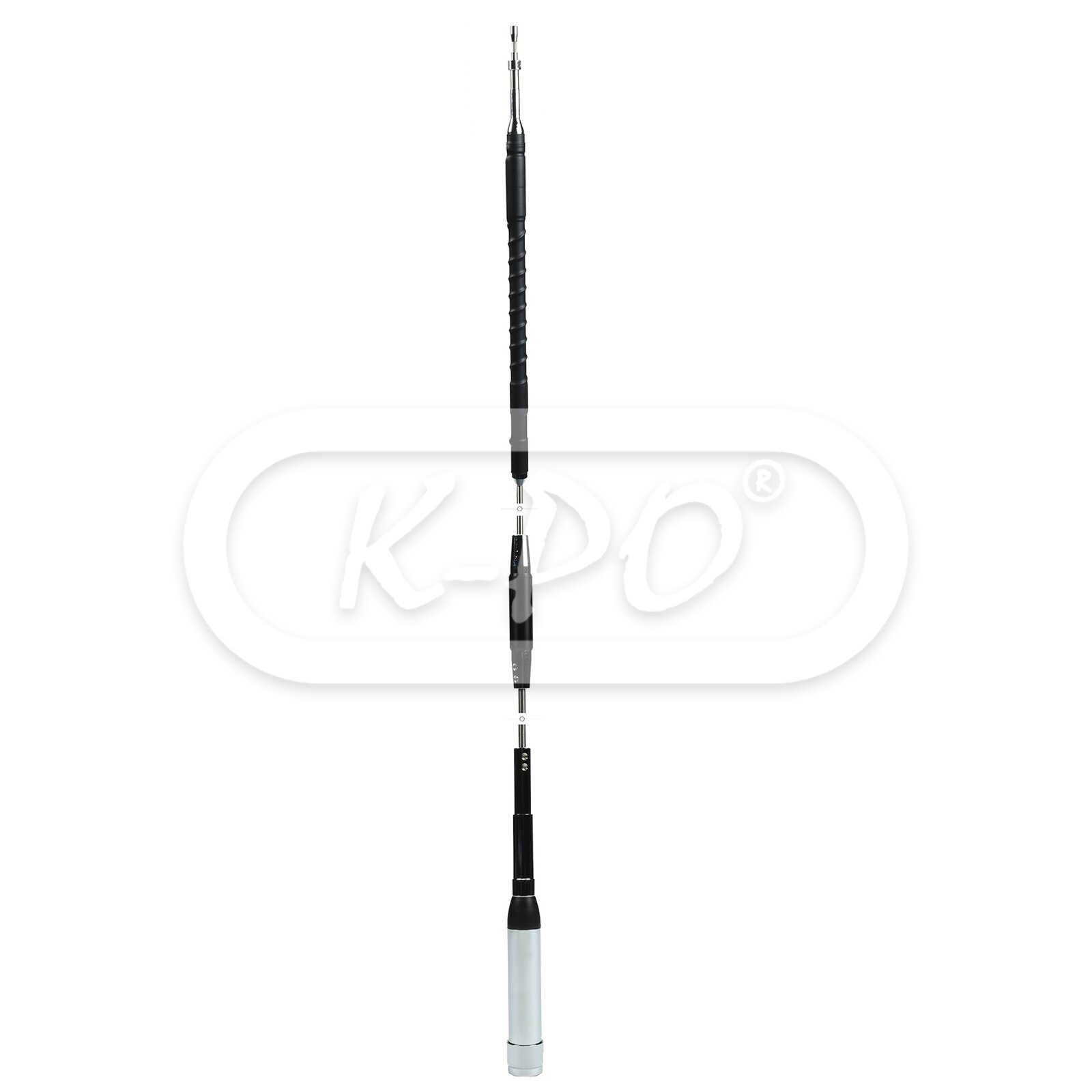

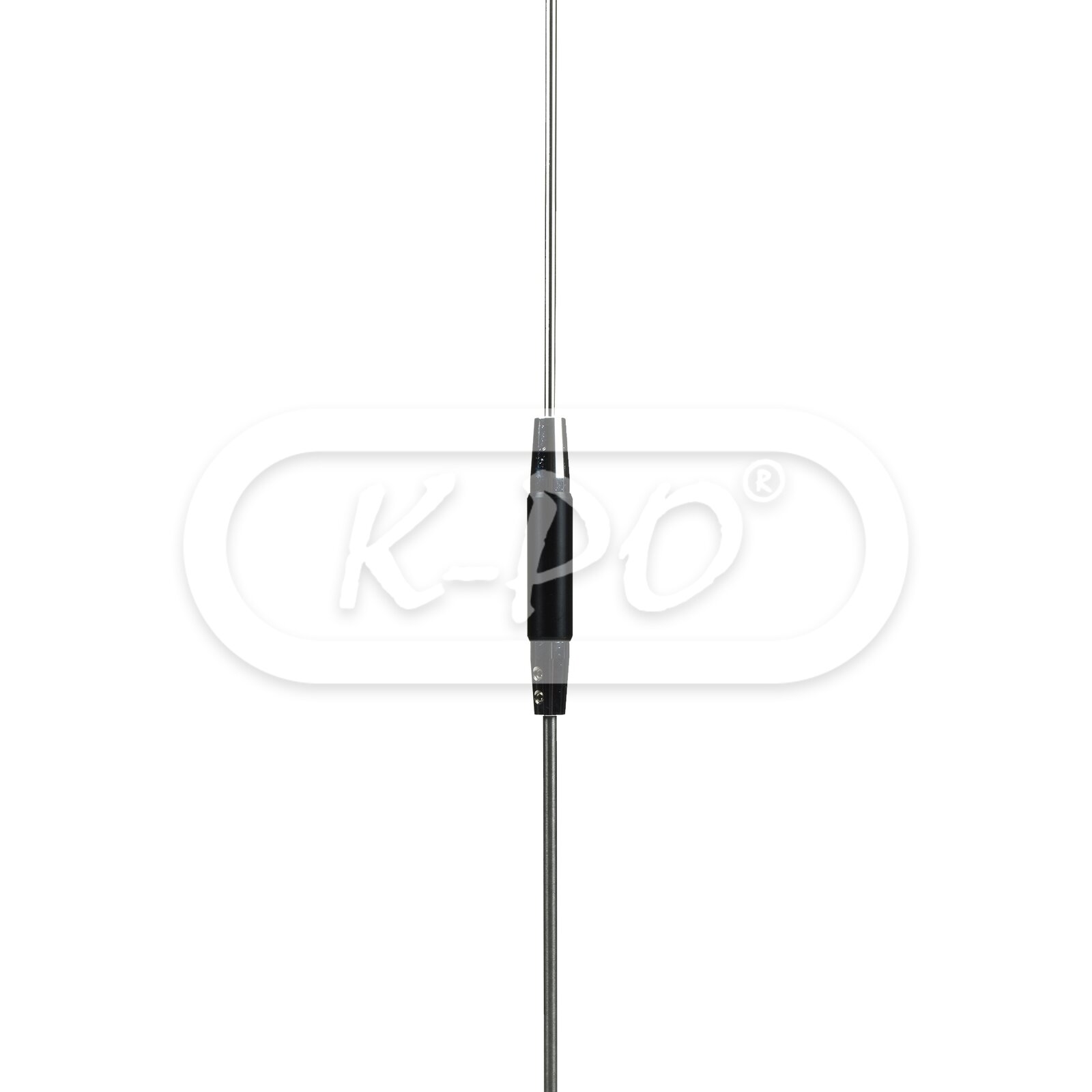

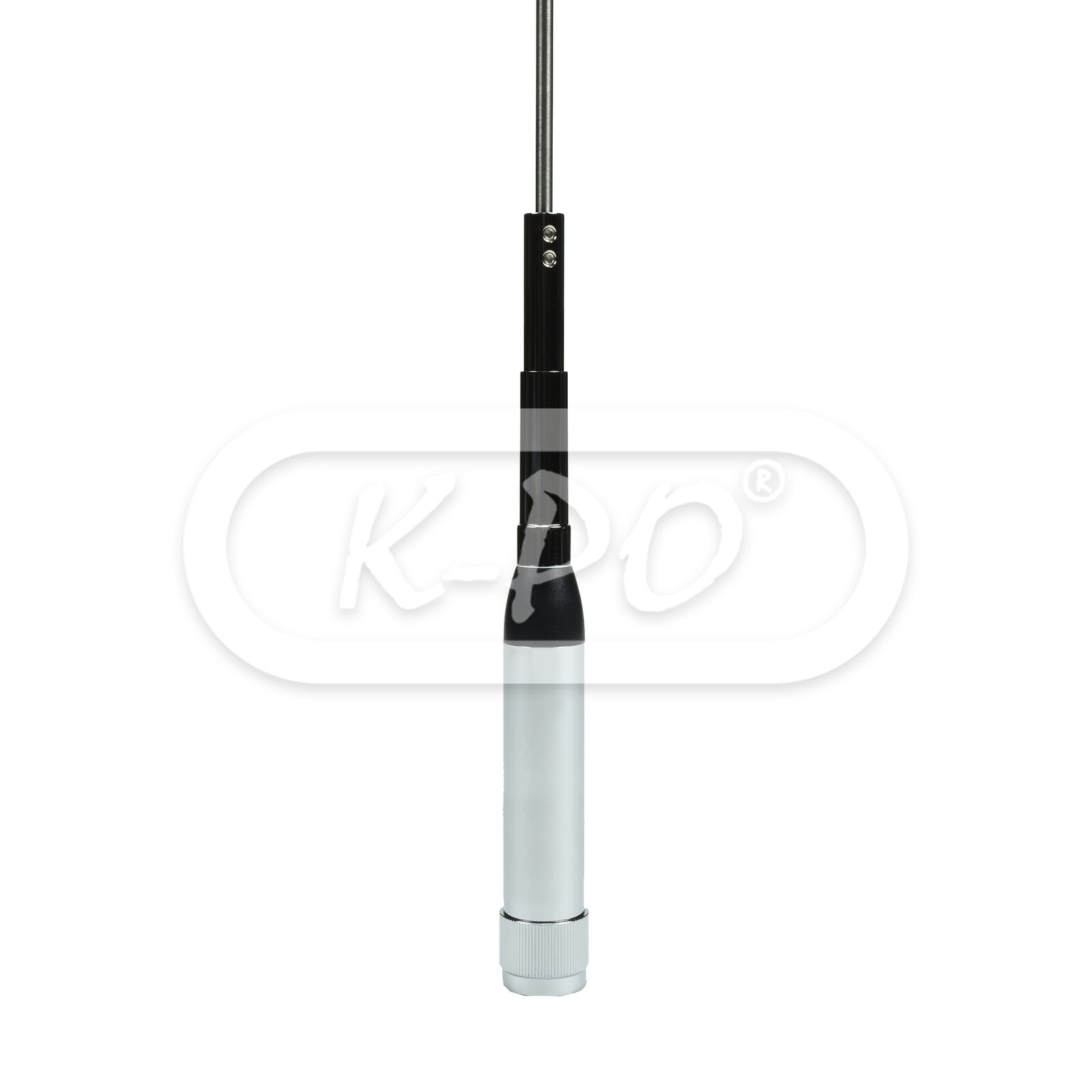

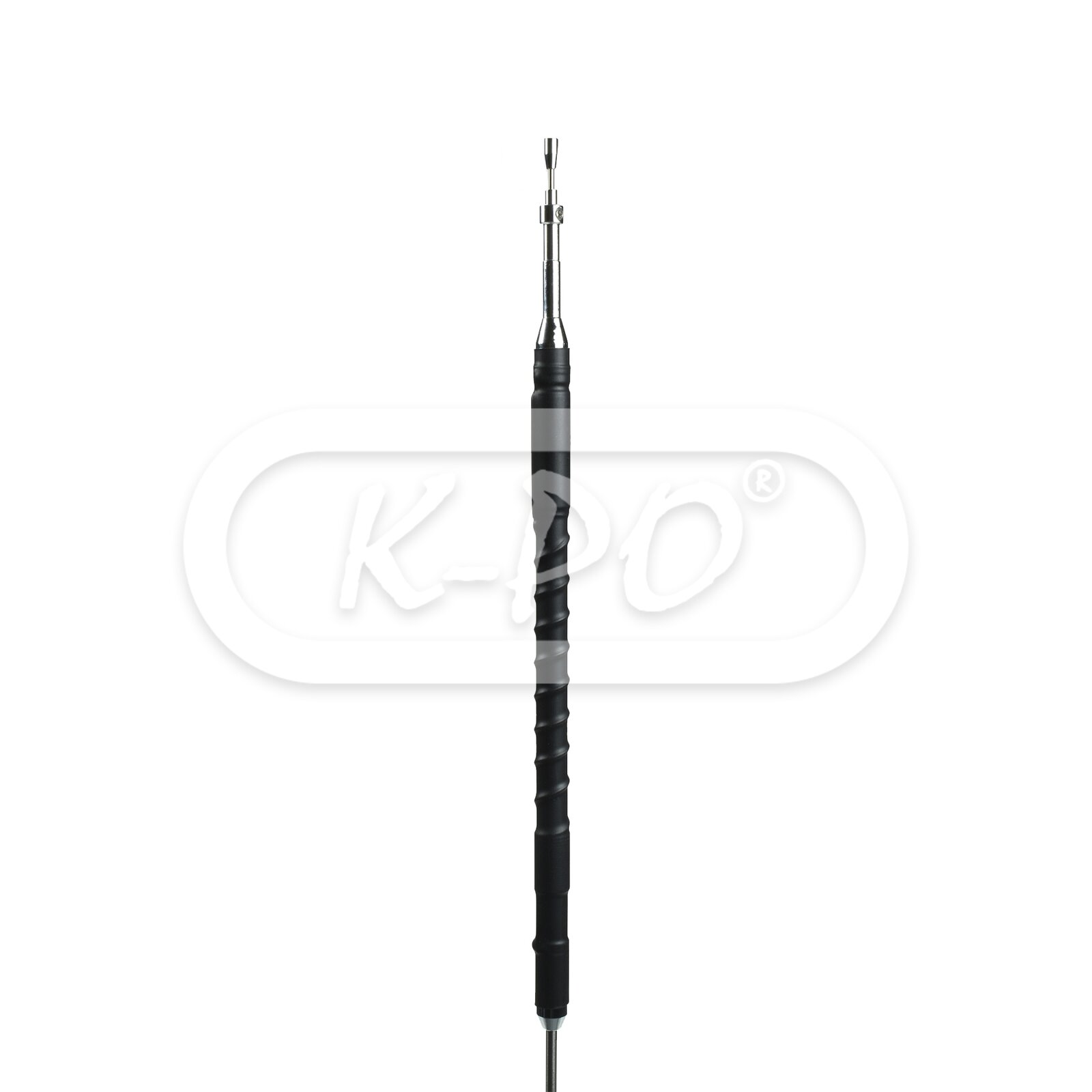

The HamKing CR-8900 is a pre-tuned mobile antenna, for best performance on 29 MHz, 50 MHz, 144 MHz and 430 MHz. Sometimes a minor VSWR adjustment can be useful, which can be done by moving the antenna up/down at the base end. Length: 126 cm (app. 50"). Max. power: 60 Watts.

Frequency range: 29 / 50 / 144 / 430 MHz
Out of stock - Longer delivery time
€57.81 (57.81 excl. 0% VAT)

Electrical data

  • Electrical type: 29 / 50 MHz: 1/4 λ / 144 MHz: 1/2 λ radialless / 430 MHz: 2x 5/8 λ
  • Gain: 144 MHz: 2.15 dBi / 430 MHz: 5.5 dBi
  • VSWR: ≤ 1.5
  • Power continues: 60 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Height: 1260 mm
  • Weight: 490 gram
  • Mounting type: On UHF-female (PL) connector (not included)

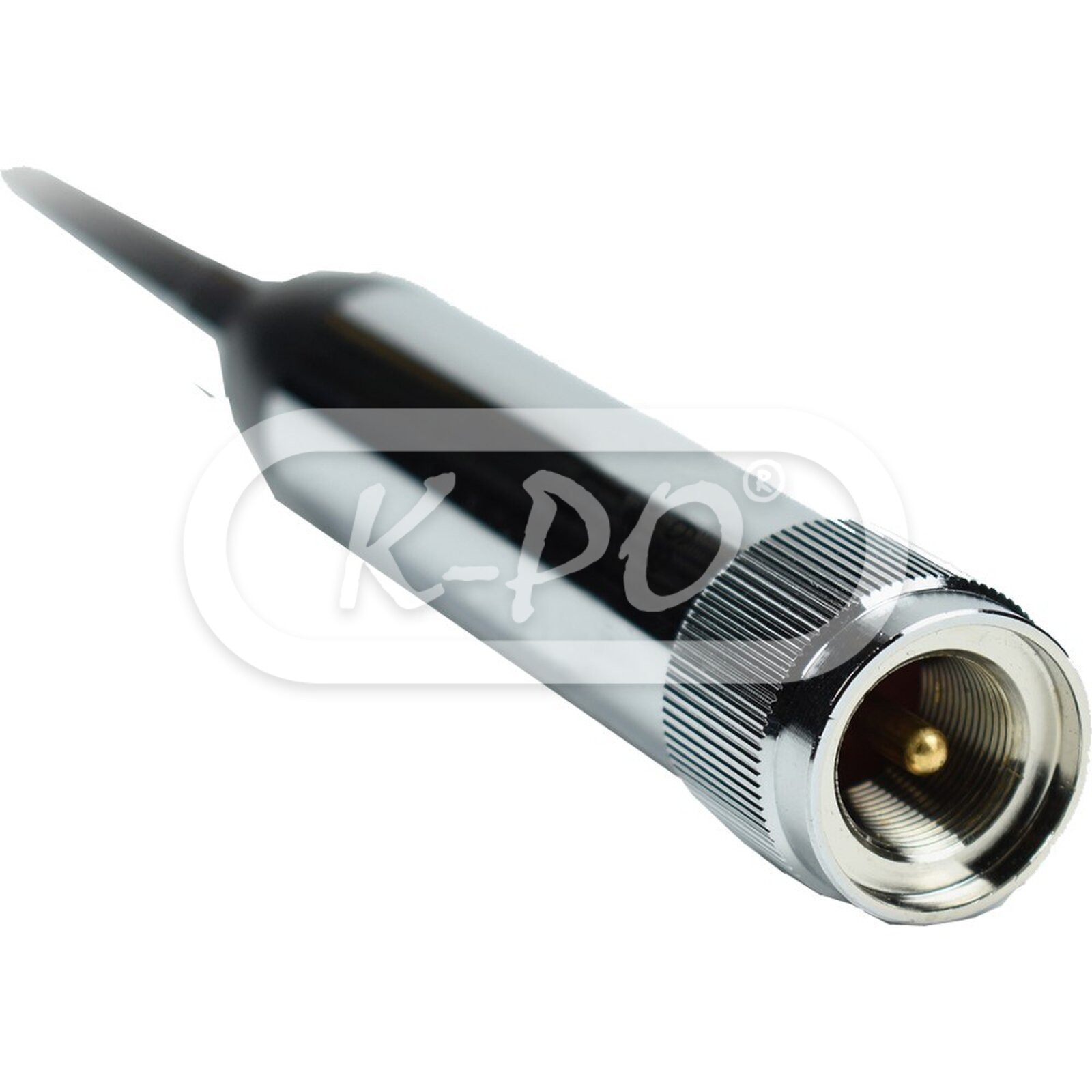

  • Antenna connector: UHF-male (PL)

Inside the box

  • Antenna: Yes
  • Installation manual: English
