HamKing - DX-720D

Product code: 6112
Factory code: 6112
Barcode: 8718375101322

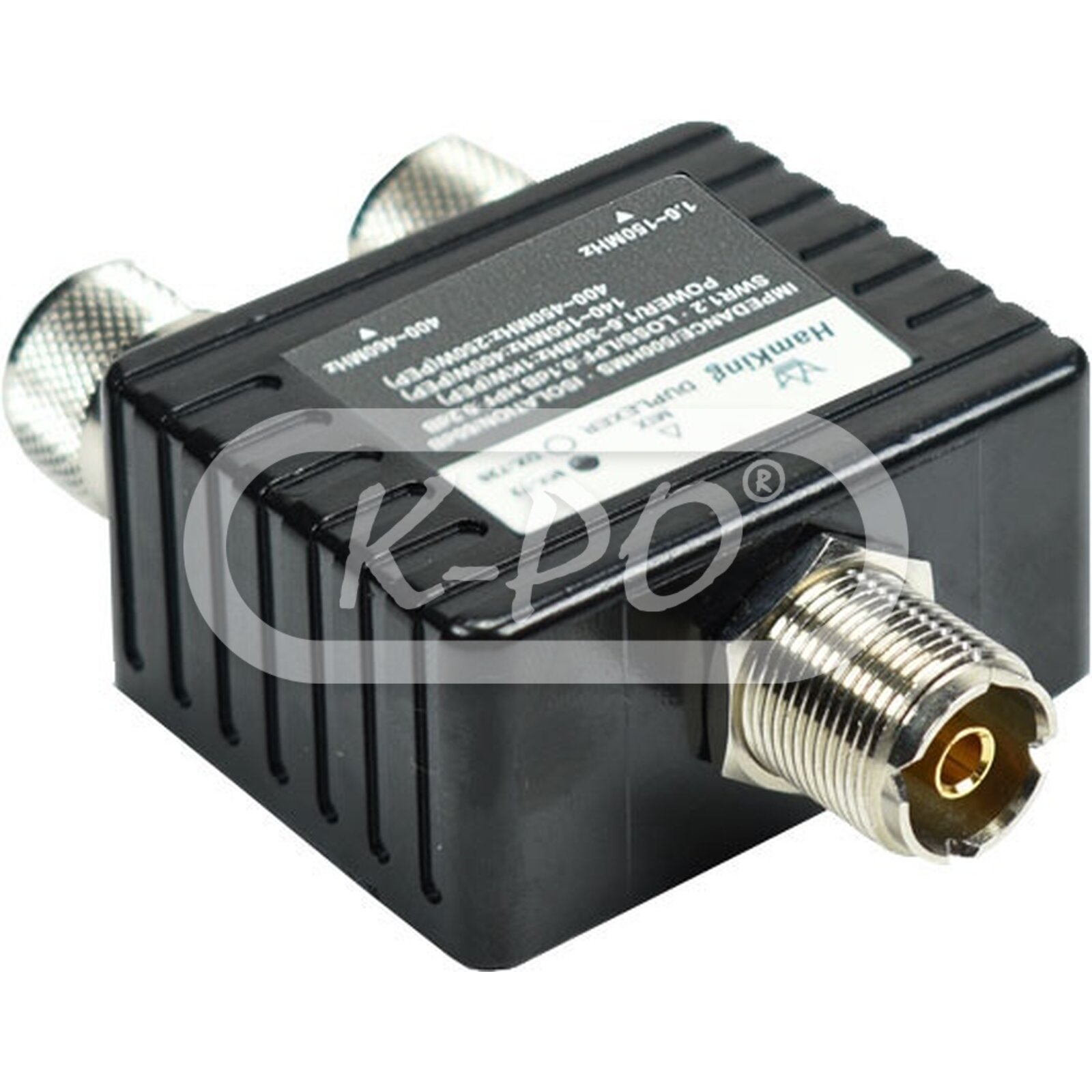

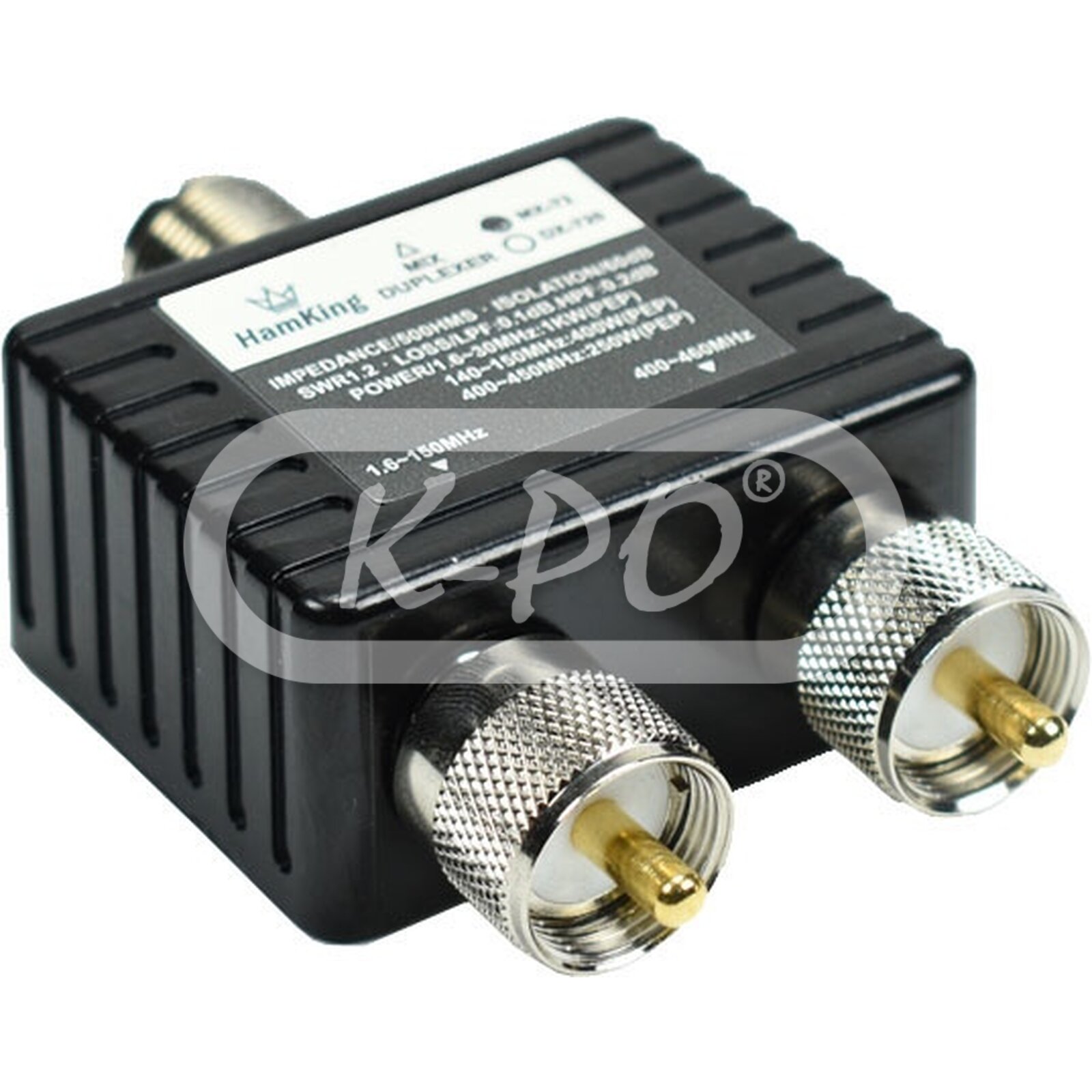

The HamKing DX-720D is a high-quality HF/VHF/UHF duplexer, equipped with one UHF-female connector and two UHF-male connectors for the split frequency bands of 1.6 - 150 MHz and 400 - 460 MHz.

Frequency range: 1.6-30 MHz / 140-150 MHz / 400-460 MHz
Shipped next business day
€27.23 (27.23 excl. 0% VAT)

Electrical data

  • Power continues: 1.6-30 MHz: 400 Watts / 140-150 MHz: 150 Watts / 400-460 MHz: 100 Watts
  • Power peak: 1.6-30 MHz: 1kW (PEP) / 140-150 MHz: 400 Watts (PEP) / 400-460 MHz: 250 Watts (PEP)
  • VSWR: <1.2
  • Impedance: 50 Ohm
  • Insertion loss: 1.6-30 / 140-150 MHz: LPF < 0.1 dB / 400-460 MHz: HPF < 0.2 dB

Mechanical data

  • Connector(s) type in: UHF (PL) male
  • Connector(s) type out: UHF (PL) female
  • Length: 85 mm
  • Height: 55 mm
  • Width: 27 mm
  • Weight: 140 gram
