HamKing - MK-90

Product code: 6121
Factory code: 6121
Barcode: 8718375101759

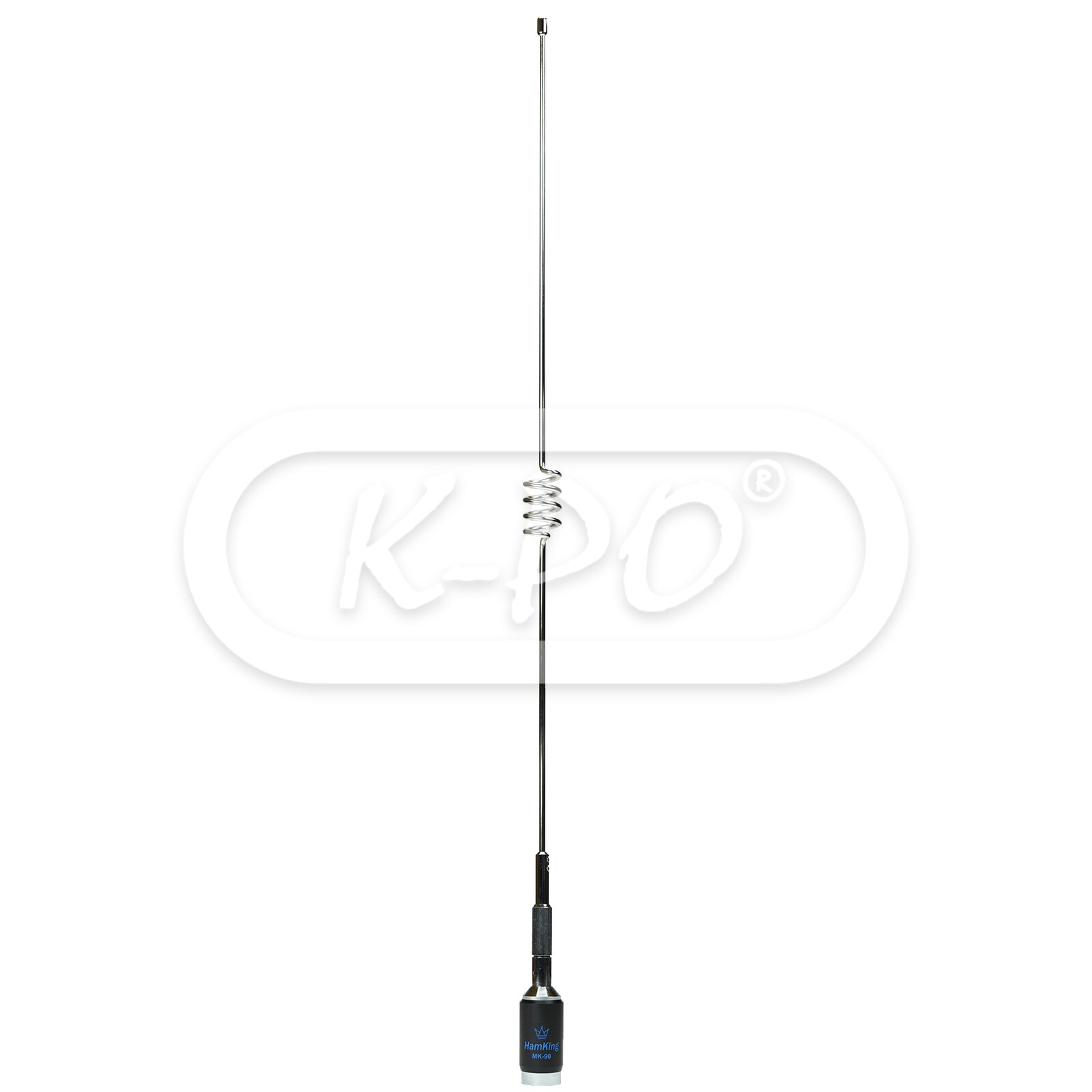

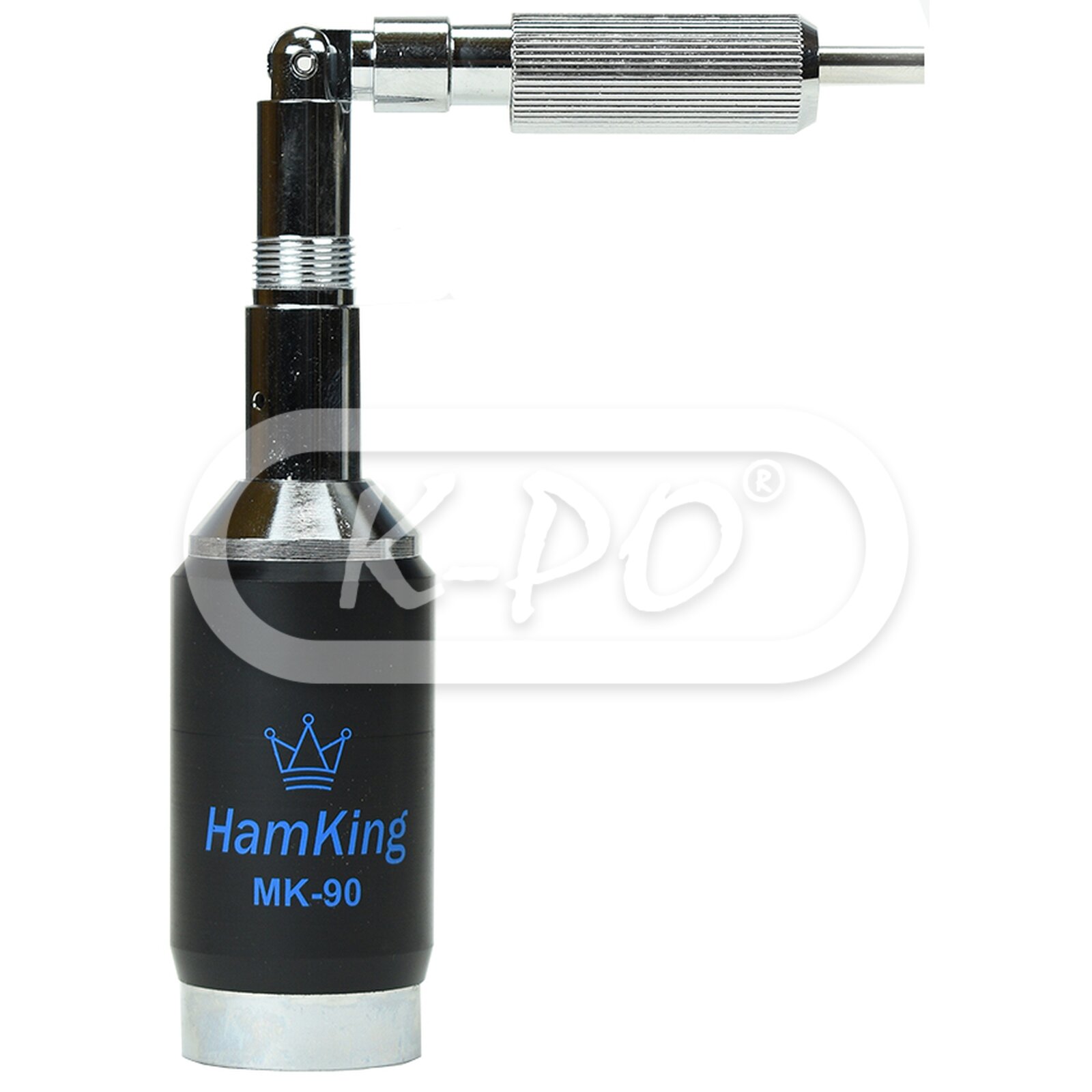

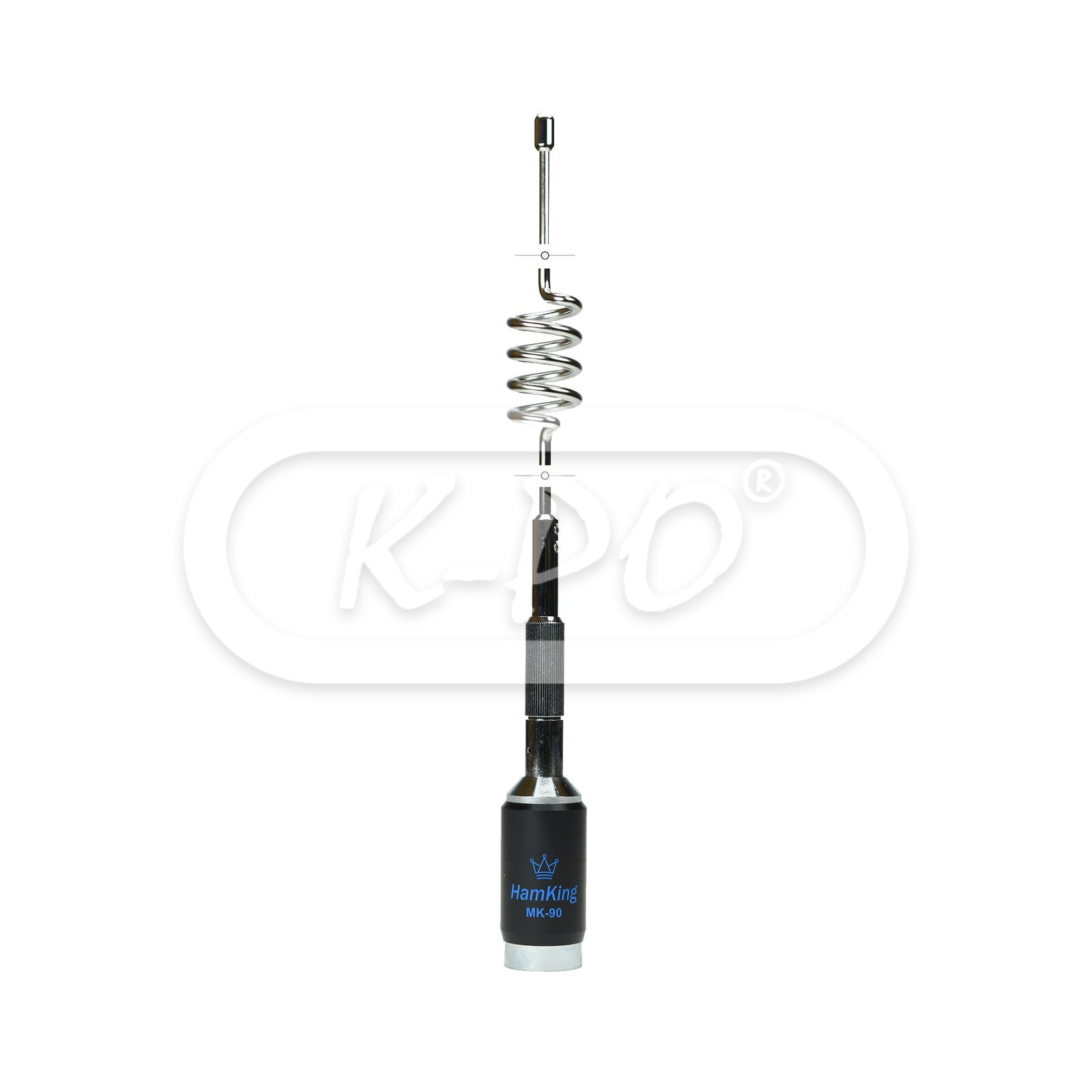

The HamKing MK-90 is a heavy duty pre-tuned mobile antenna, for best performance on 144 MHz and 430 MHz. With a maximum power handling of 350 watts on 144 MHz and 250 watts on 430 MHz. The whip is tiltable above the coil.

Frequency range: 144 / 430 MHz
Shipped next business day
€41.28 (41.28 excl. 0% VAT)

Electrical data

  • Electrical type: 144 MHz: 1/2 λ / 430 MHz: 5/8 λ
  • Gain: 144 MHz: 3.0 dBi / 430 MHz: 5.5 dBi
  • VSWR: ≤ 1.5
  • Bandwidth: 144 MHz: 1/2 λ / 430 MHz: 5/8 λ
  • Power continues: 144 MHz: 350 Watts / 430 MHz: 250 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Height: 890 mm
  • Weight: 470 gram
  • Mounting type: On UHF-female (PL) connector (not included)

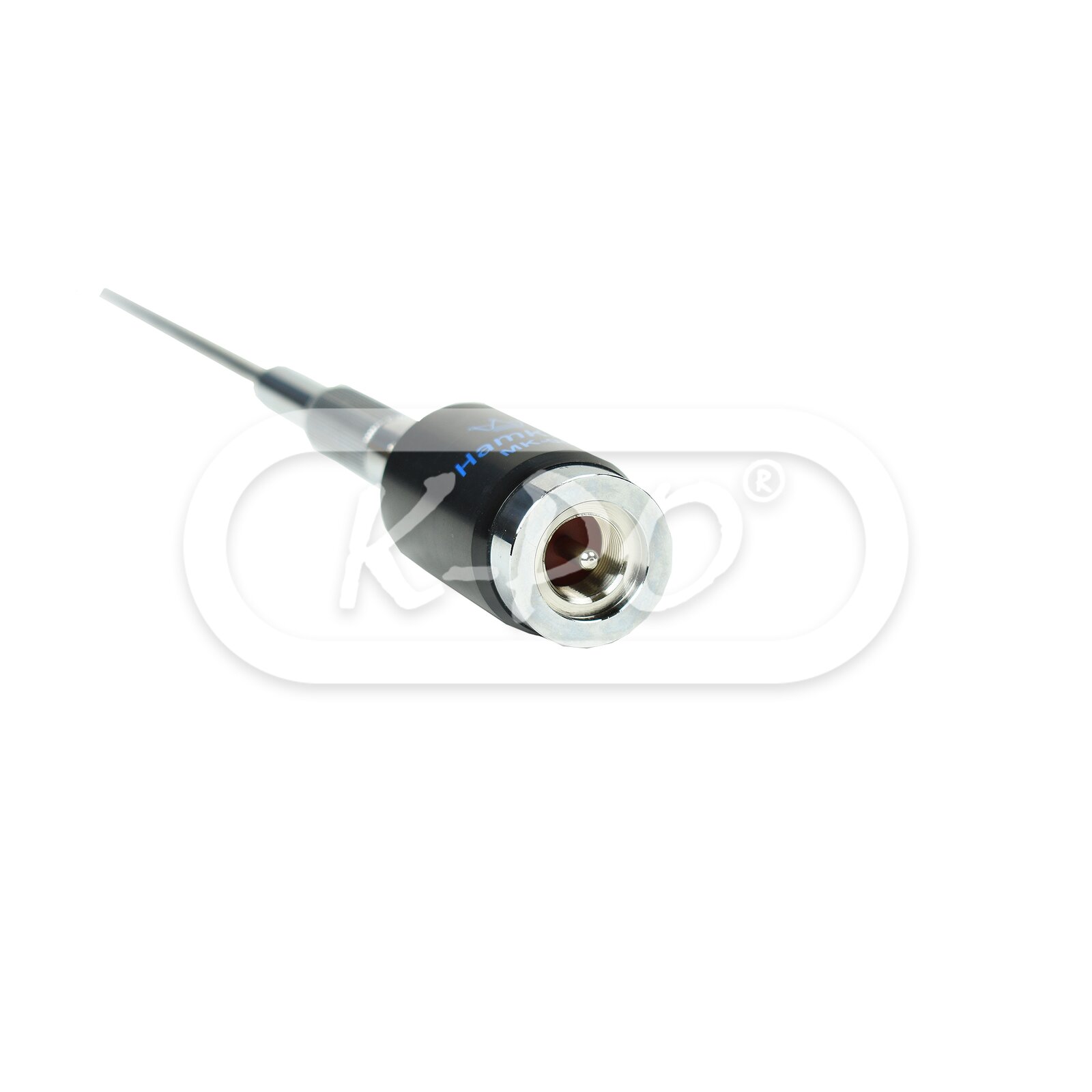

  • Antenna connector: UHF-male (PL)
  • Color: Chrome

Inside the box

  • Antenna: Yes
  • Installation manual: English
