HamKing - MX-72

Product code: 6111
Factory code: 6111
Barcode: 8718375101315

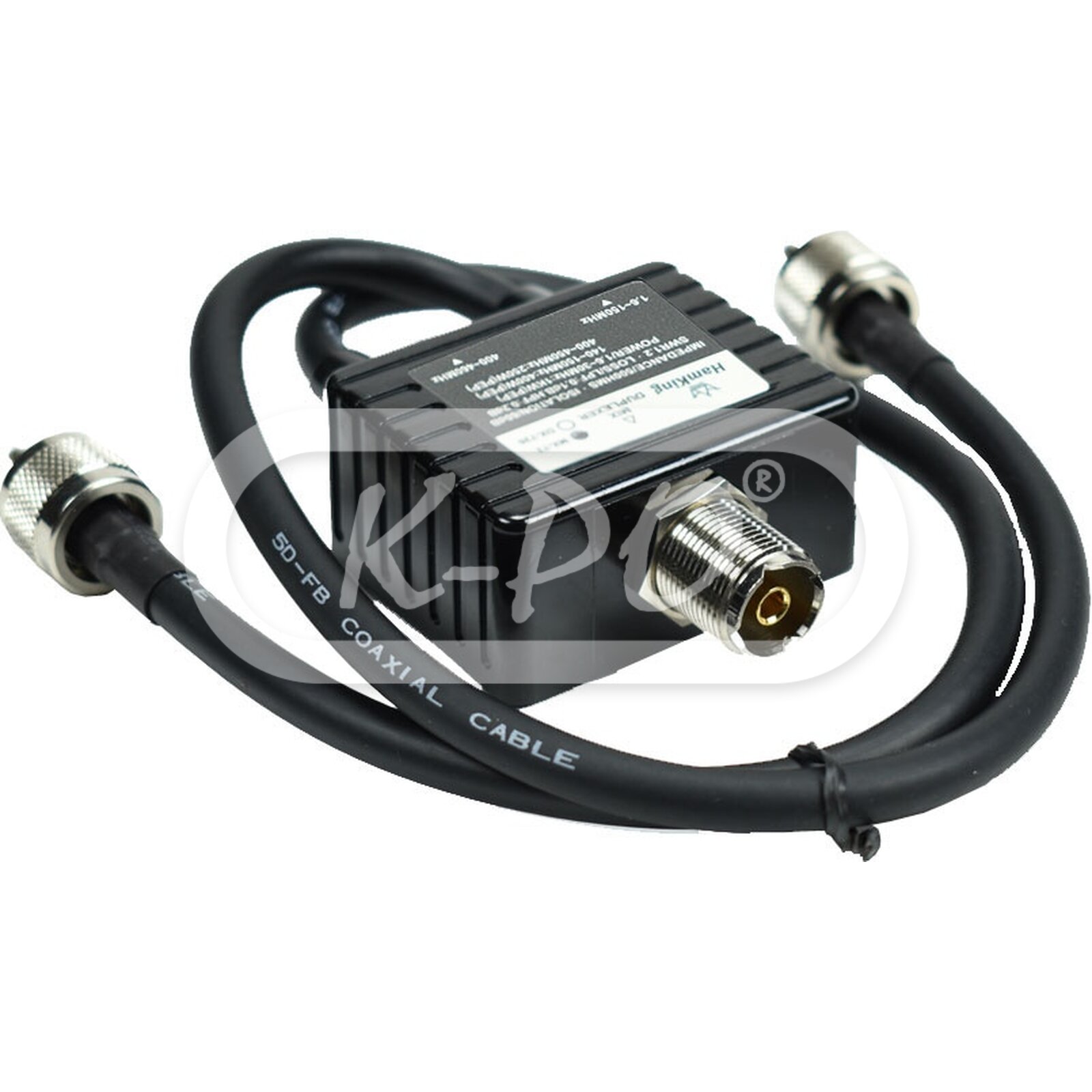

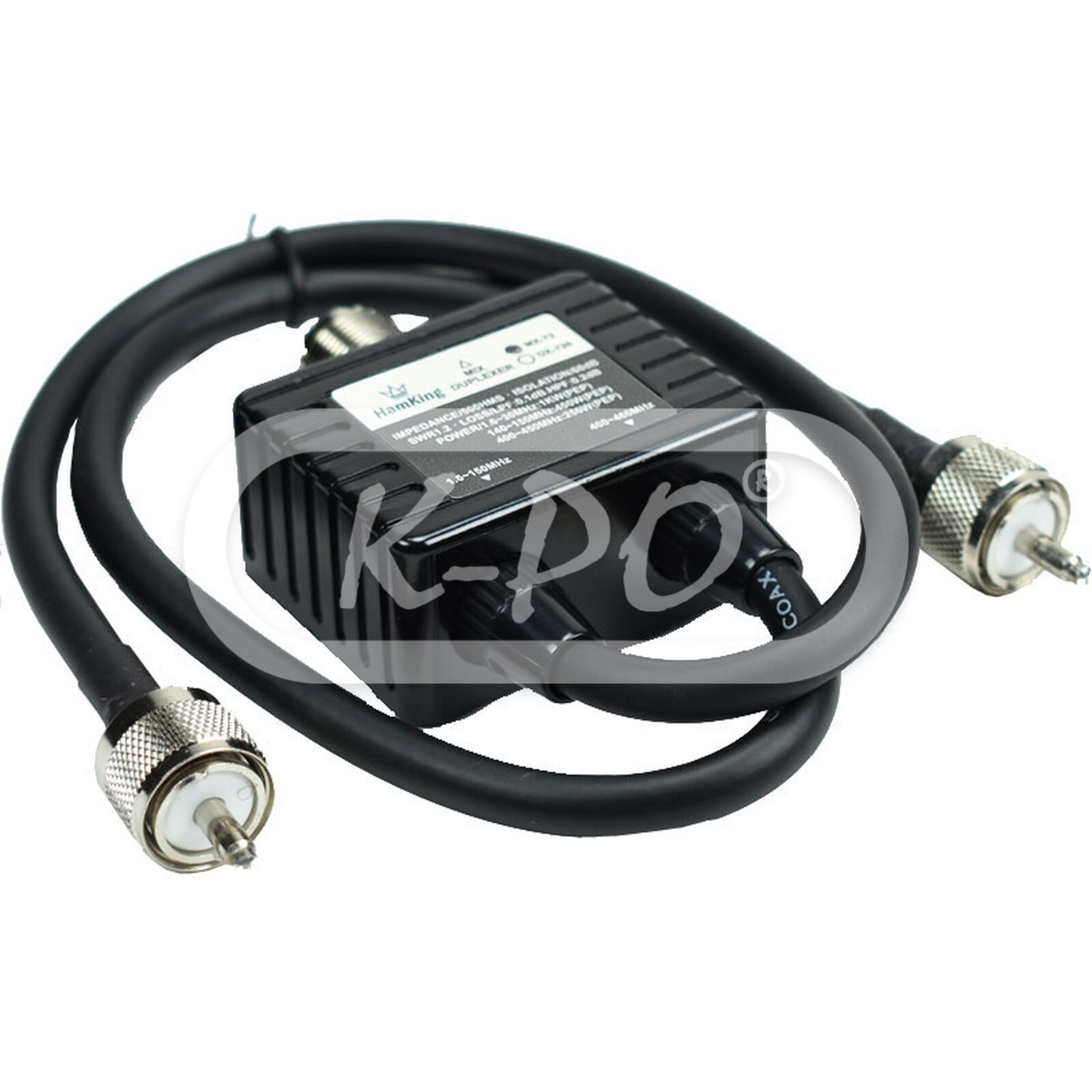

The HamKing MX-72 is a high quality HF/VHF/UHF duplexer with one UHF-female connector for common, and two leads with UHF-male connectors for the split frequency bands of 1.6-30 MHz, 140-150 MHz and 400-460 MHz.

Frequency range: 1.6-30 MHz / 140-150 MHz / 400-460 MHz
Shipped next business day
€29.71 (29.71 excl. 0% VAT)

Electrical data

  • Power continues: 1.6-30 MHz: 400 Watts / 140-150 MHz: 150 Watts / 400-460 MHz: 100 Watts
  • Power peak: u
  • VSWR: <1.2
  • Impedance: 50 Ohm
  • Insertion loss: 1.6-30 / 140-150 MHz: LPF < 0.1 dB / 400-460 MHz: HPF < 0.2 dB

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: 1.6-30 MHz: UHF (PL) male / 140-150 MHz: UHF (PL) male / 400-460 MHz: UHF (PL) male /
  • Length: 60 mm
  • Height: 55 mm
  • Width: 27 mm
  • Weight: 192 gram
