Himunication - HM160 MAX (ATIS) Himunication - HM160 MAX (ATIS) Himunication - HM160 MAX (ATIS) Himunication - HM160 MAX (ATIS) Himunication - HM160 MAX (ATIS) Himunication - HM160 MAX (ATIS)

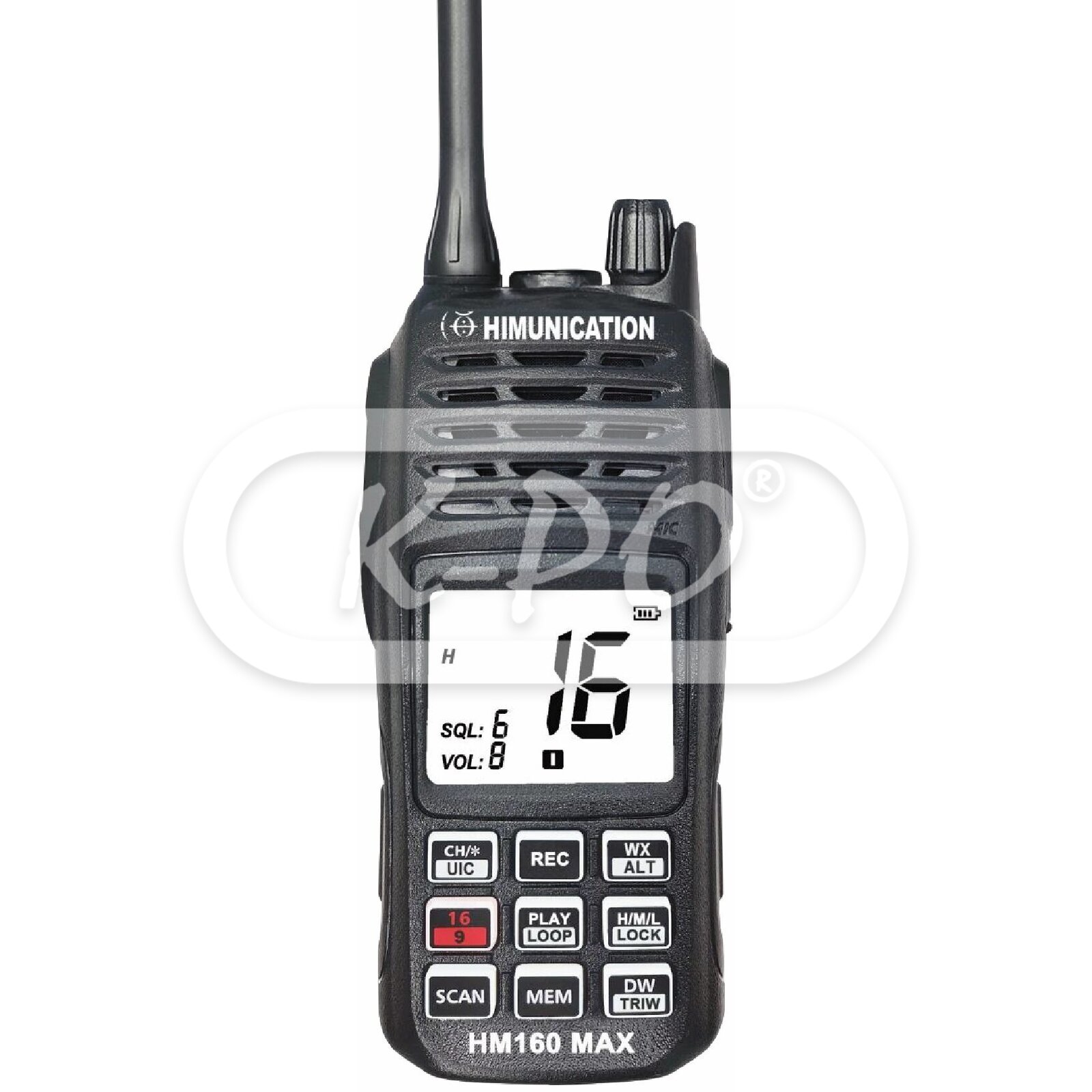

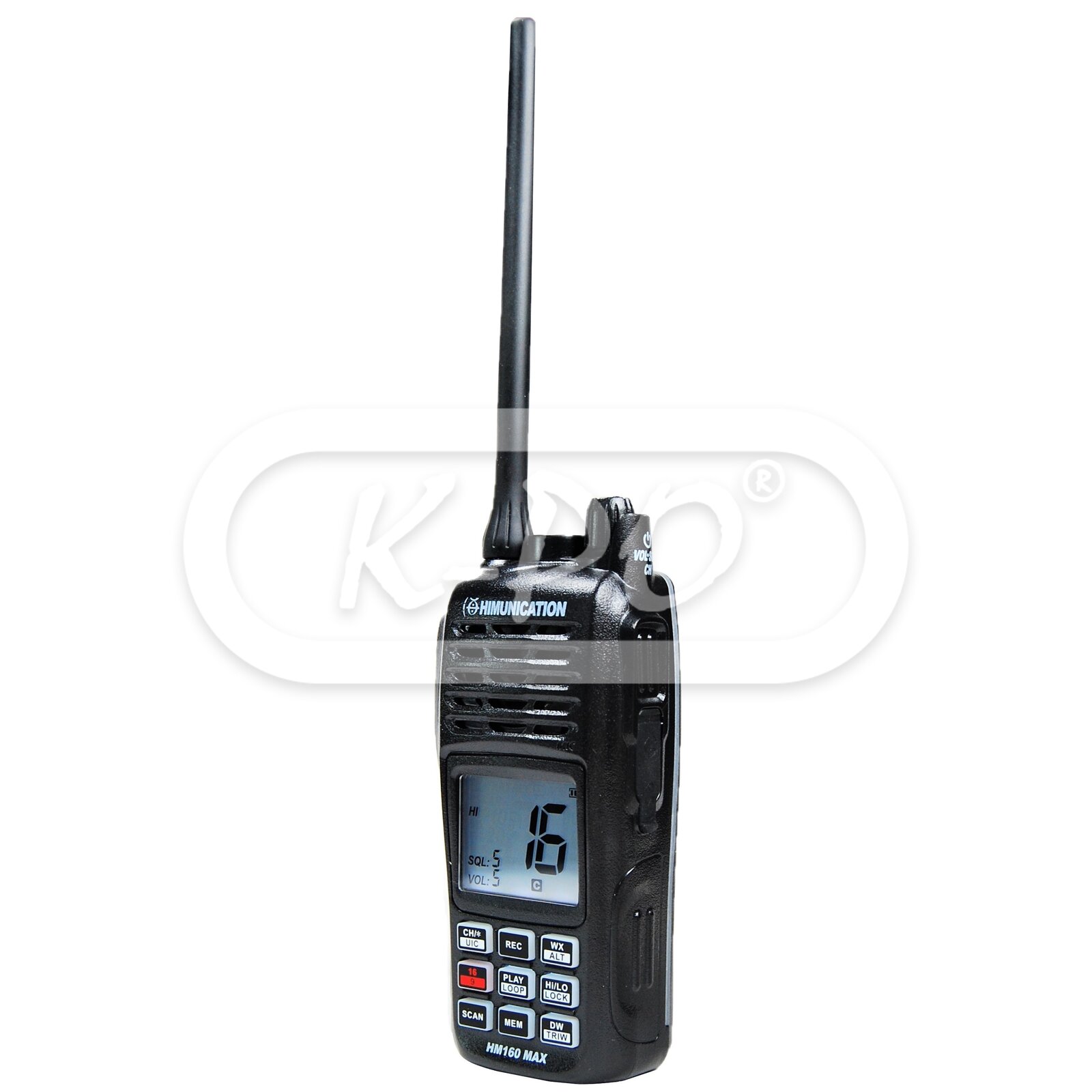

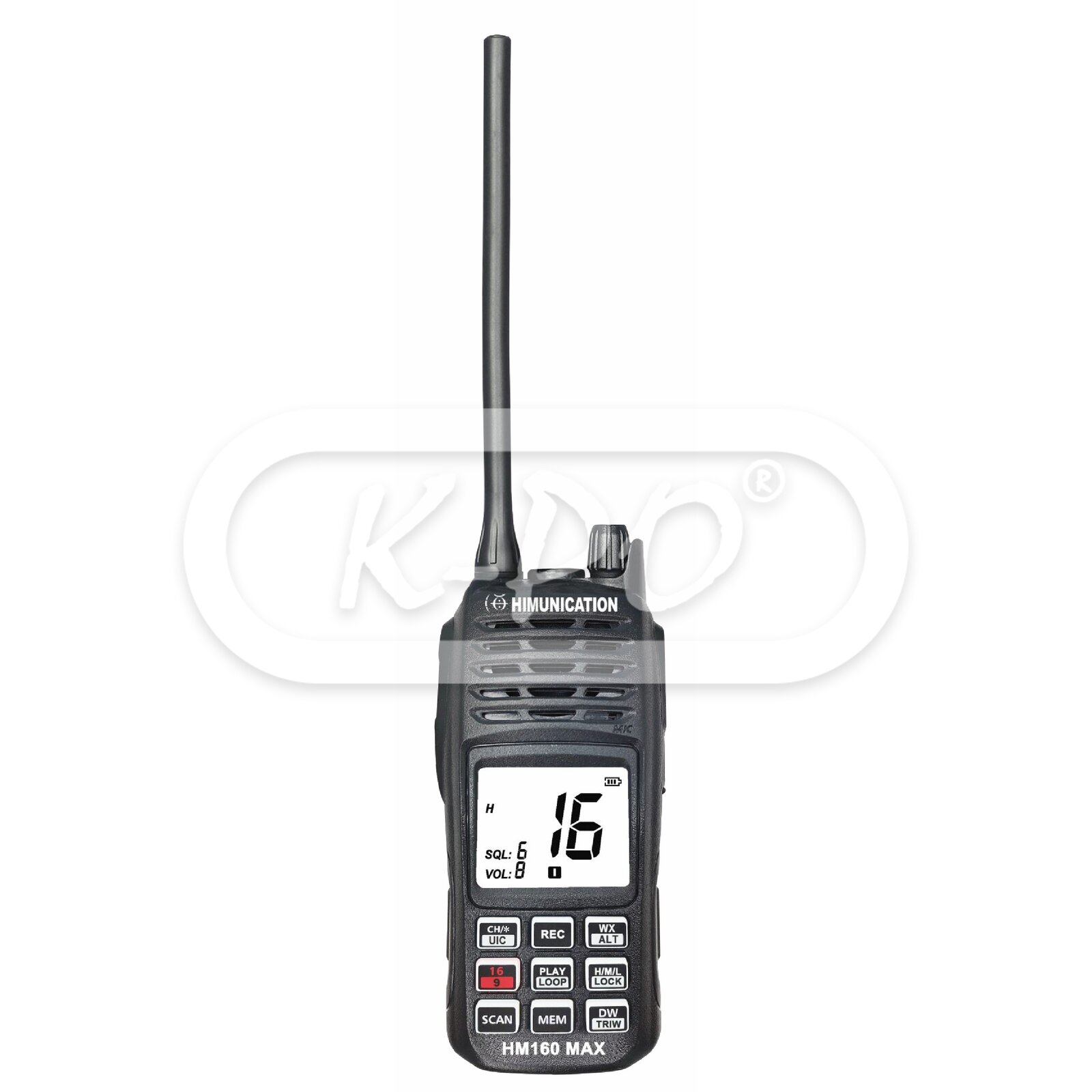

Himunication - HM160 MAX (ATIS)

Product code: 48160
Factory code: 48160
Barcode: 6970344031531

Channels conform VDES (VHF Data Exchange System), International standard. Including private channels 31 + 37 for Belgian and Dutch users.

The Himunication HM160 MAX with ATIS is a mid-range till high-end handheld VHF marine radio for leisure and semi-professional use. On the new white backlit display you can clearly read off all information that you need.

Ultra-long stand-by time of more than 24 hours! With USB-C charging system and a 4000 mAh integrated battery pack.

With features like float and flash, IPX8 waterproof design, dual- and tri watch, marine torch (red & white), WDT (Water Displacement Technology), record voice function (60 seconds) and more makes the HM160 MAX the ideal mid-range handheld VHF marine radio.

Frequency range: TX: 156.025 - 162.425 MHz / RX: 156.050 - 163.275 MHz
Shipped today
€189.95 (156.98 excl. 21% VAT)

Features

  • Float and flash: Yes
  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: LCD white backlit
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • WDT (Water Displacement Technology): Yes
  • ATIS: Yes, one-time programmable by keypad
  • Stand-by time: 24+ hours
  • Voice record function: 60 seconds
  • Key lock: Yes
  • Marine torch: Yes, red & white
  • Scan function: Yes
  • Memory channels: Yes
  • Time out timer: Yes, after 5 minutes TX
  • Power save mode: Yes

Electrical data

  • Channels: Conform VDES (VHF Data Exchange System) including private channels 31 + 37
  • Operating temperature (Celsius): -15 to +55 °C
  • Battery lifetime: 24+ hours (TX 5% / RX 5% / stand-by 90%)

Transmitter

  • Power output (Watts): 6 / 3 / 1 Watt
  • Channel spacing: 25 kHz
  • Oscillate mode: PLL
  • Normal working voltage: 3.7V
  • Low limit working voltage: 3V
  • Built-in speaker: 40 mm, 8 Ohm
  • Memory: EEPROM

Mechanical data

  • Length: 155 mm
  • Height: 40 mm
  • Width: 60 mm
  • Weight: 285 gram
  • Antenna connector: SMA

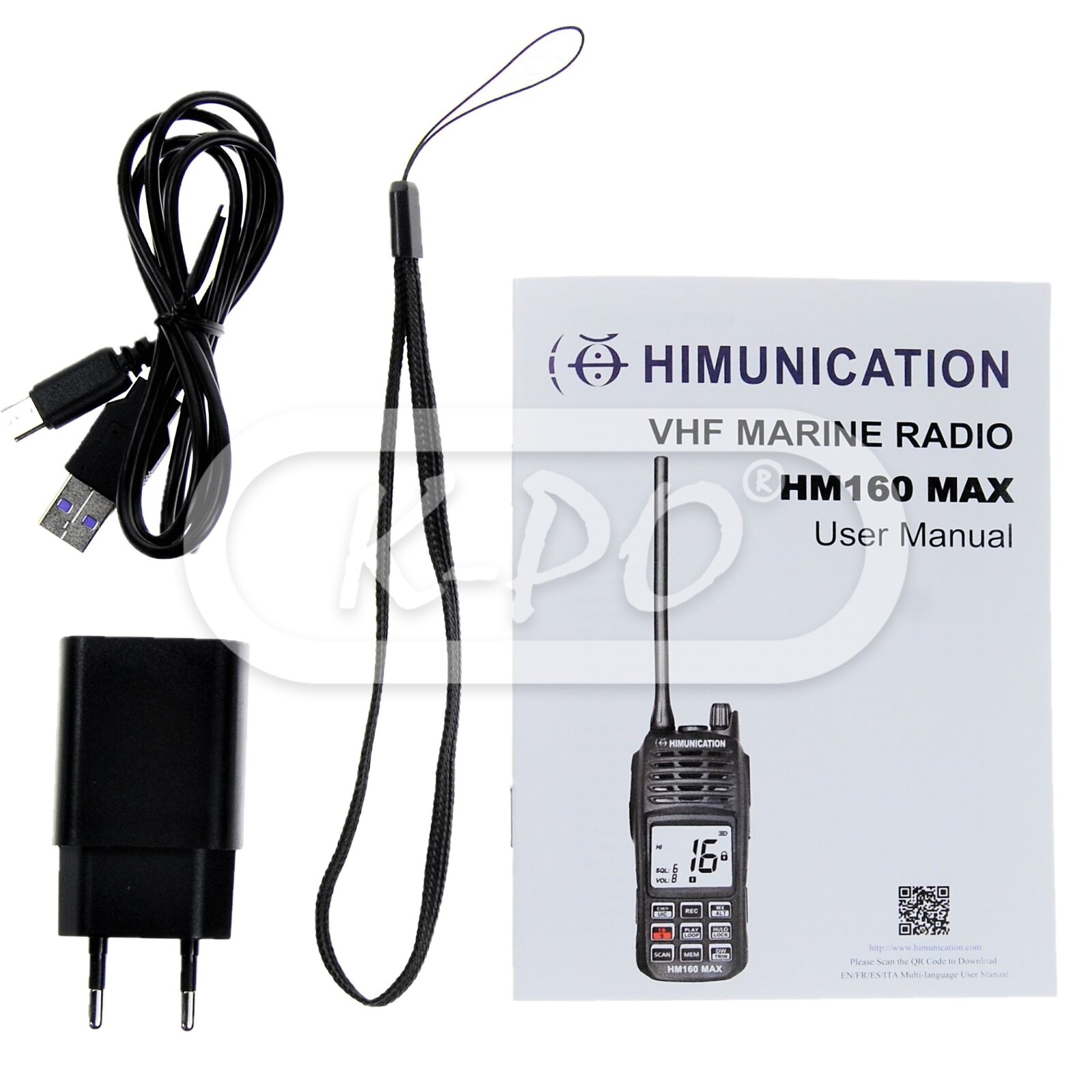

Inside the box

  • Transceiver: Yes
  • Battery: Li-Polymer 4000 mAh
  • Charger: AC 240V / DC 5V wall adapter / USB-C
  • Wrist strap: Yes
  • Installation manual: English (digital download)
  • Hi-gain flexible rubber antenna: Yes
  • Belt clip: Yes
  • USB-C cable: Yes
  • USB-C wall charger: Yes

Downloads
