Himunication - HM365 /DSC/GPS (ATIS) Himunication - HM365 /DSC/GPS (ATIS) Himunication - HM365 /DSC/GPS (ATIS) Himunication - HM365 /DSC/GPS (ATIS) Himunication - HM365 /DSC/GPS (ATIS)

Himunication - HM365 /DSC/GPS (ATIS)

Product code: 48365
Barcode: 6970344030640

Channels conform VDES (VHF Data Exchange System), International standard. Including private channels 31 + 37 for Belgian and Dutch users.

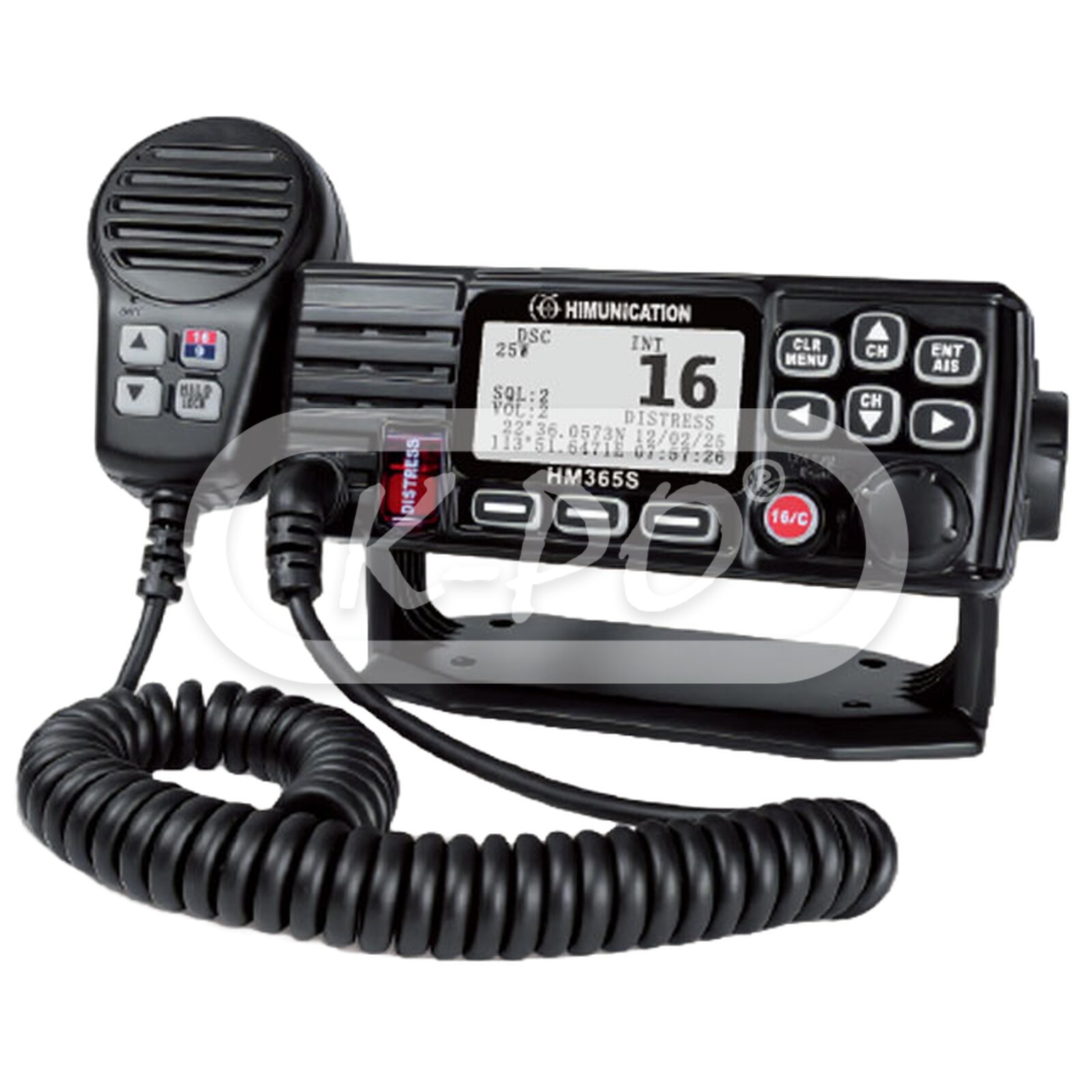

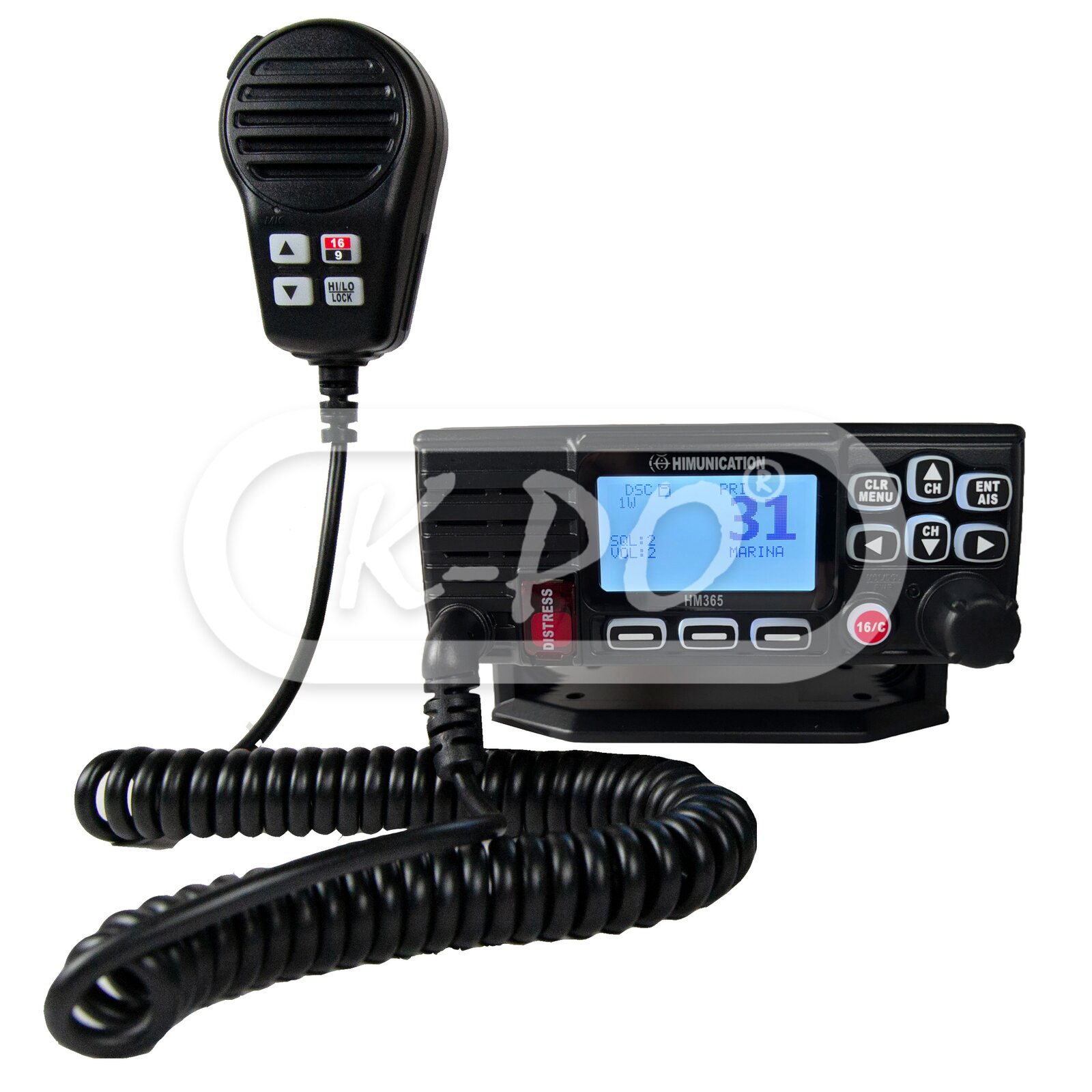

The HM365 is a new generation VHF marine radio with DSC Class-D, and integrated GPS receiver. The HM365S marine radio is equipped with a large LCD monitor which shows clearly all data from most viewing angles and conditions. Standard with features like ATIS, MMSI, MOB function and more.

Simple and easy to operate. Slim and compact design which makes it easy to install with the supplied materials. Despite the compact size the radio is equipped with a large loudspeaker.

Frequency range: TX: 156.025 to 157.425 MHz / RX: 156.300 to 162.000 MHz
Shipped today
€239.96 (198.31 excl. 21% VAT)

Features

  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: Large LCD with full dot-matrix display
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • Distress key: Yes
  • MMSI: Yes
  • ATIS: Yes, one-time programmable by keypad
  • DSC: Yes, Class-D
  • GPS: Yes, integrated GPS receiver + connector for external GPS antenna
  • Time out timer: Yes, after 5 minutes TX
  • RF output power: Low: 1 Watt / High: 25 Watts
  • Foghorn function: Yes
  • Memory channels: Yes
  • Local / DX function: Yes
  • Scan function: Yes

Electrical data

  • Channels: Conform VDES (VHF Data Exchange System) including private channels 31 + 37
  • Frequency stability: ±5 PPM
  • Operating temperature (Celsius): -15 to +55ËšC

Transmitter

  • Power output (Watts): 1 / 25 Watts
  • Channel spacing: 25 kHz
  • Oscillate Mode: PLL

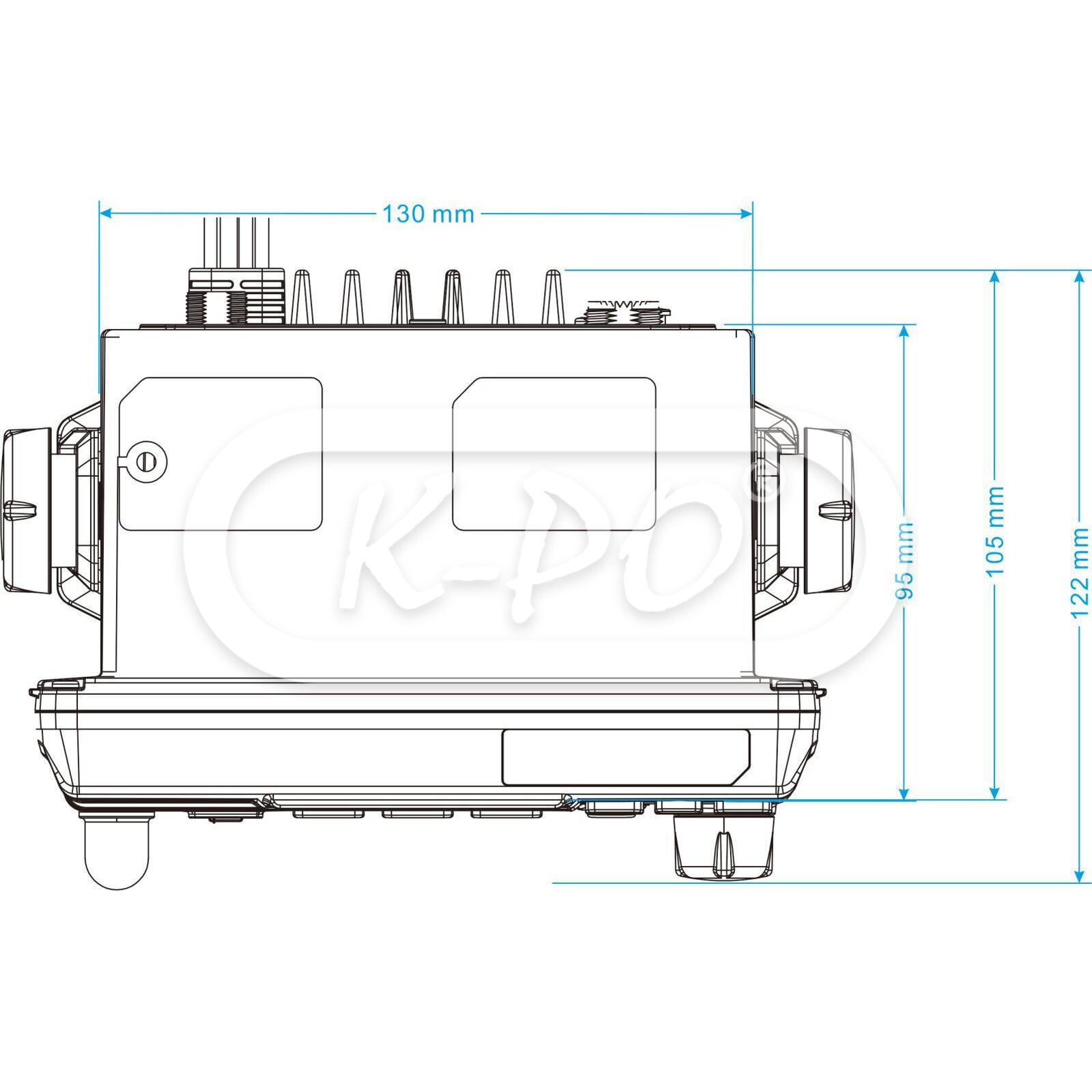

Mechanical data

  • Length: 156 MM
  • Height: 61 mm
  • Width: 105 mm
  • Weight: 950 gram

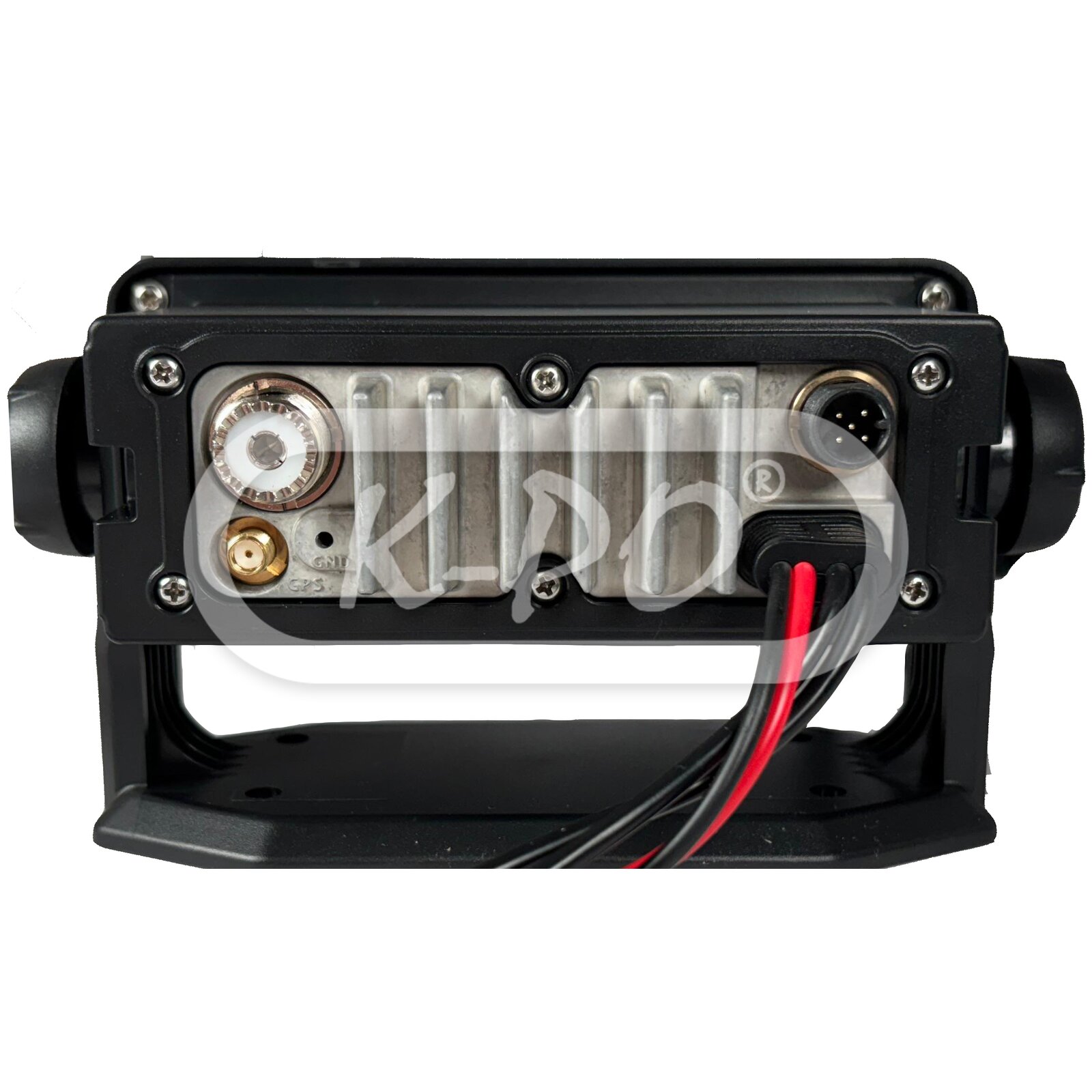

  • Antenna connector: UHF (PL) female
  • NMEA0183 connectors: Yes
  • NMEA2000 connectors: Yes

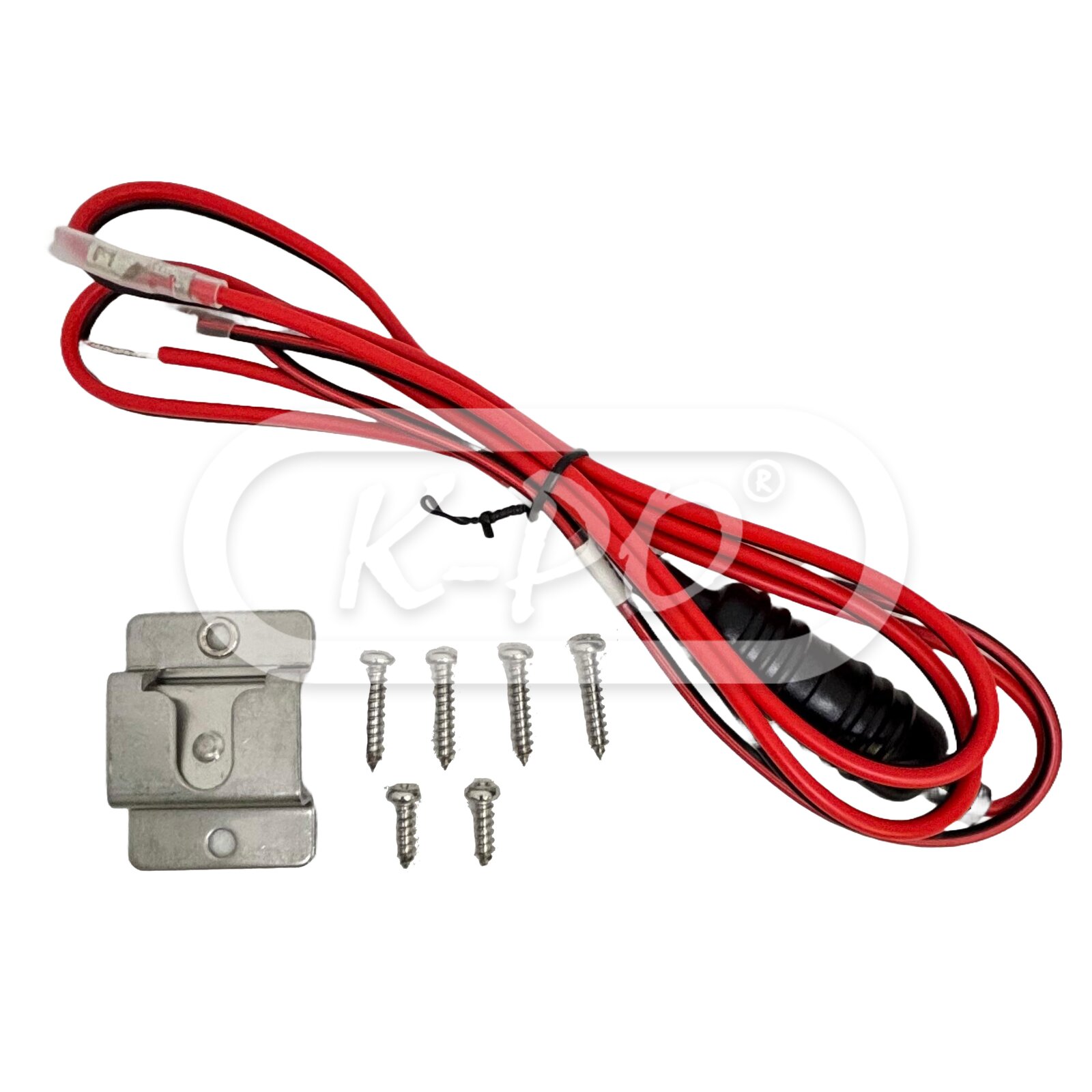

Inside the box

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English (digital download)
  • Microphone holder: Yes
