Himunication - HM380S AIS/DSC/GPS (ATIS)

Product code: 48381
Barcode: 6970344030053

Channels conform VDES (VHF Data Exchange System), International standard. Including private channels 31 + 37 for Belgian and Dutch users.

Promotion - including Smart GPS dongle.

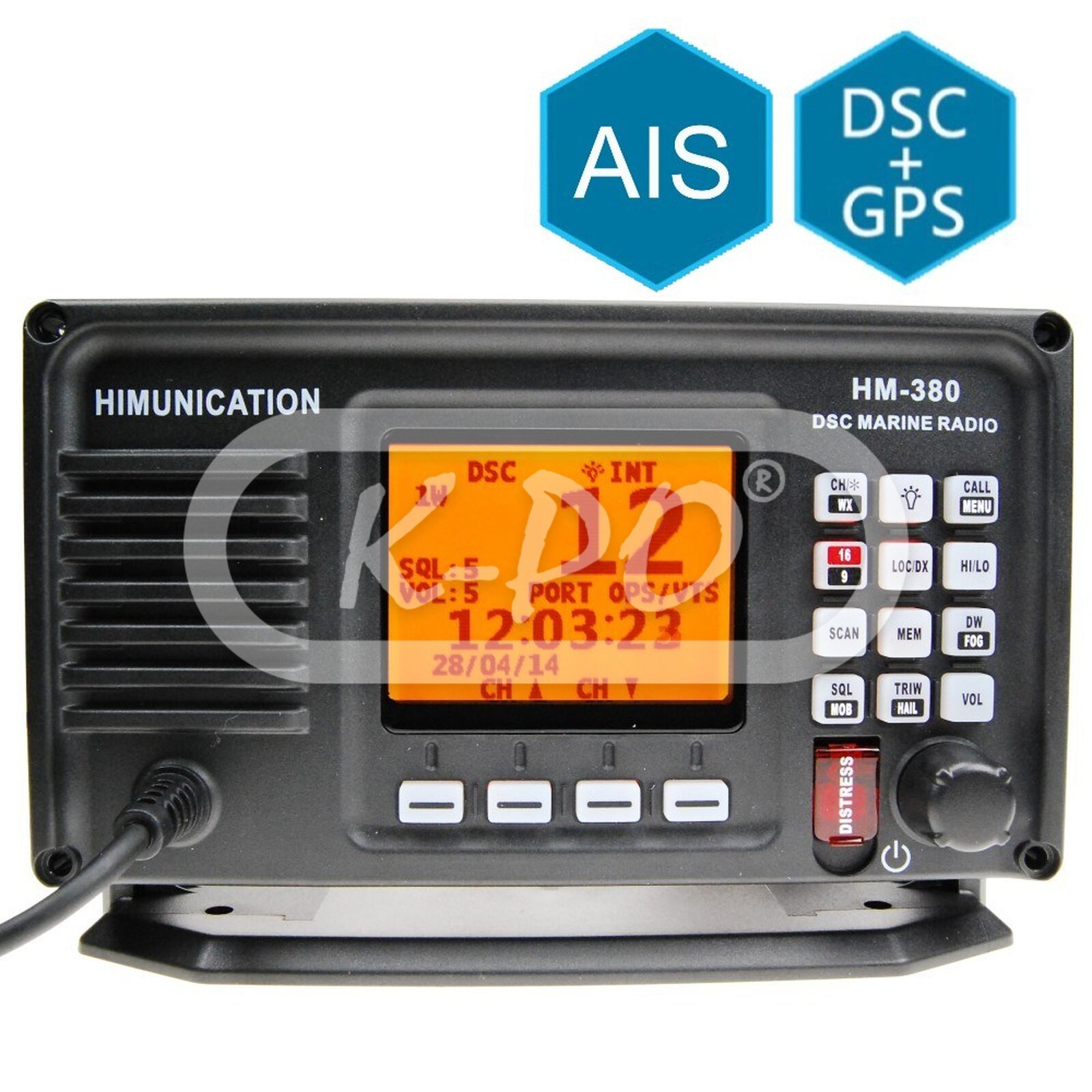

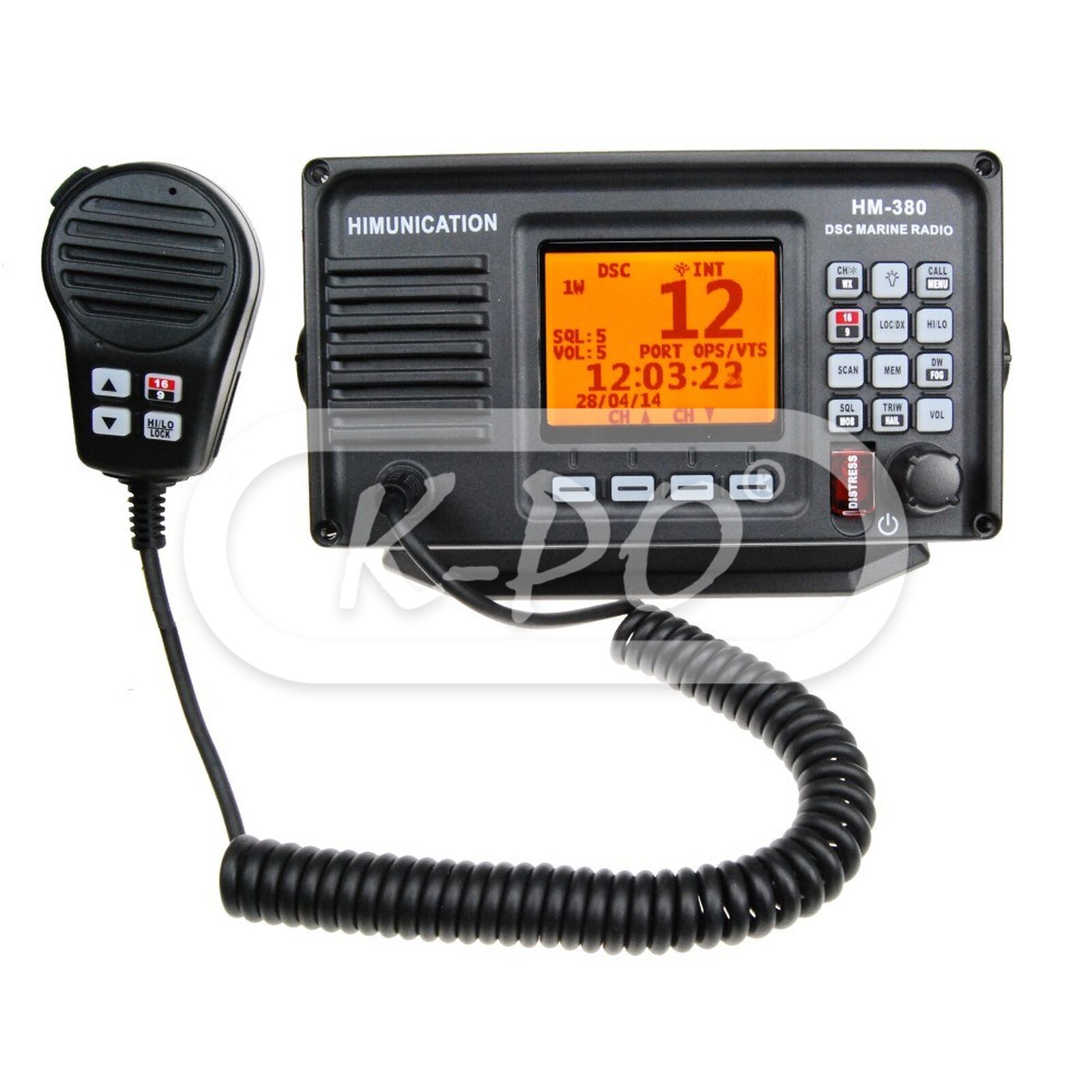

The Himunication HM380S with ATIS and AIS/DSC/GPS is a semi- and professional mobile fixed VHF marine radio. The radio is equipped with a mounting bracket and NMEA0183 and NMEA2000 connectors.

The housing of the HM380 has 4 mounting holes, one in each corner, so that you can easily built it in your dashboard or other places.

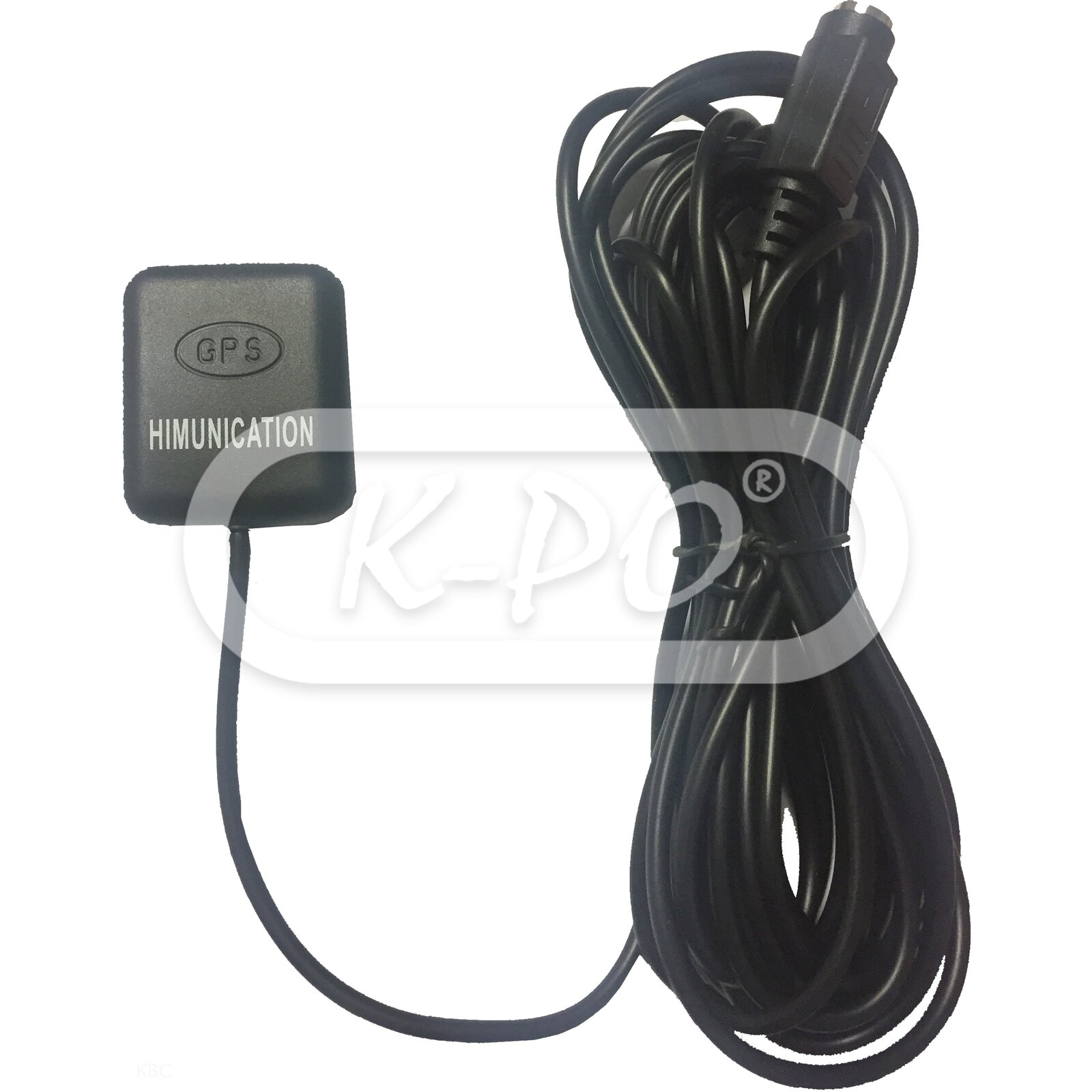

For GPS reception the Himunication HM380S requires the optional Smart GPS dongle or a GPS signal from the NMEA0183/2000 network.

Frequency range: TX: 156.025 To 162.425 MHz / RX: 156.025 To 162.025 MHz
Shipped today - Stock: 7
€379.94 (314 excl. 21% VAT)

Features

  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: Large LCD with full dot-matrix display
  • Bandwidth: TX: 156.025 to 162.425 MHz / RX: 156.025 to 162.025 MHz
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • Automatic Identification System (AIS): Yes
  • Automatic Identification System (AIS) bandwidth: 161.9750 MHz to 162.025 MHz
  • Automatic Identification System (AIS) channels: 2 dual channels
  • Distress key: Yes
  • Digital Selectivity Calling (DSC): Yes, Class 'D'
  • GPS: Yes, built-in GPS receiver* (works with optional GPS receiver)
  • GPS frequency: 2.401 - 2.480 GHz
  • COG & SOG: Yes
  • 1 / 25 Watts switchable power: Yes
  • Weather channel: Yes

Electrical data

  • Channels: Conform VDES (VHF Data Exchange System) including private channels 31 + 37
  • Frequency stability: ±5 PPM
  • Operating temperature (Celsius): -15 to +55˚C

Transmitter

  • Power output (Watts): 1 Watts / 25 Watts
  • Modulation: FM (16K0G3E) / DSC (16K0G2B)
  • Channel spacing: 25 KHz
  • Oscillate mode: PLL
  • Built-in speaker: Yes

Mechanical data

  • Length: 244 mm
  • Height: 114 mm
  • Width: 55 mm
  • Weight: 1500 gram
  • Antenna connector: UHF (PL) female
  • NMEA0183 connectors: Yes
  • NMEA2000 connectors: Yes

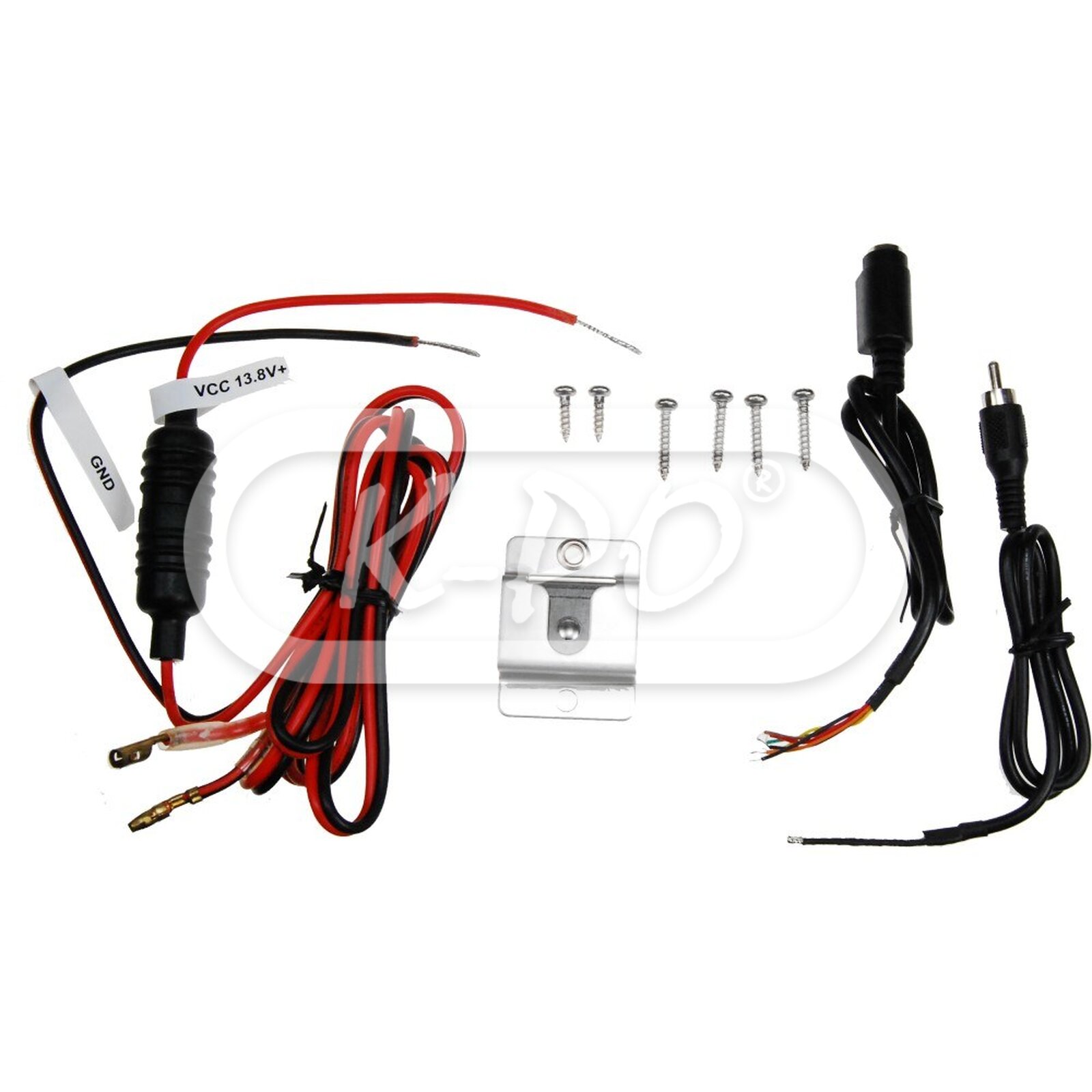

Inside the box

  • Transceiver: Yes

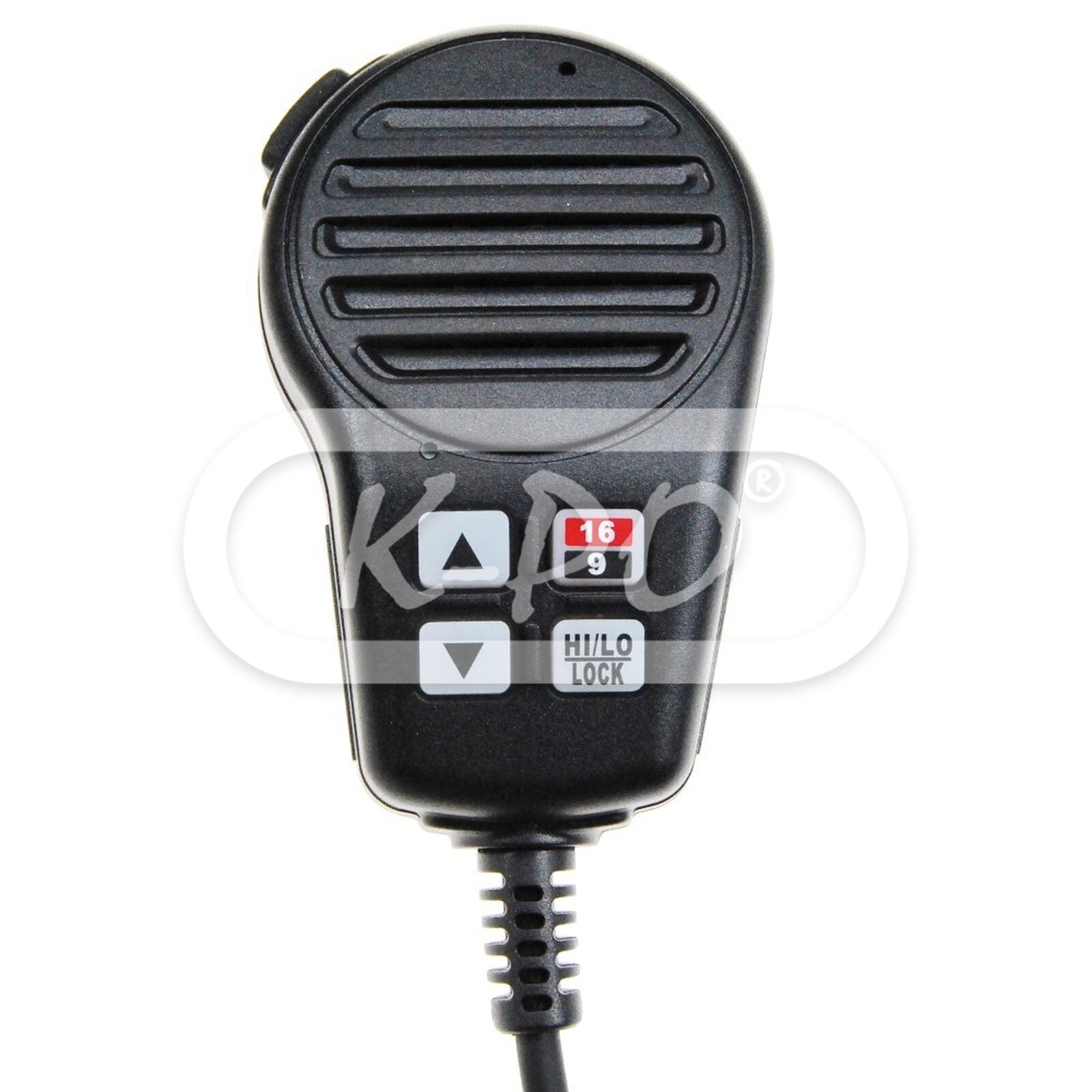

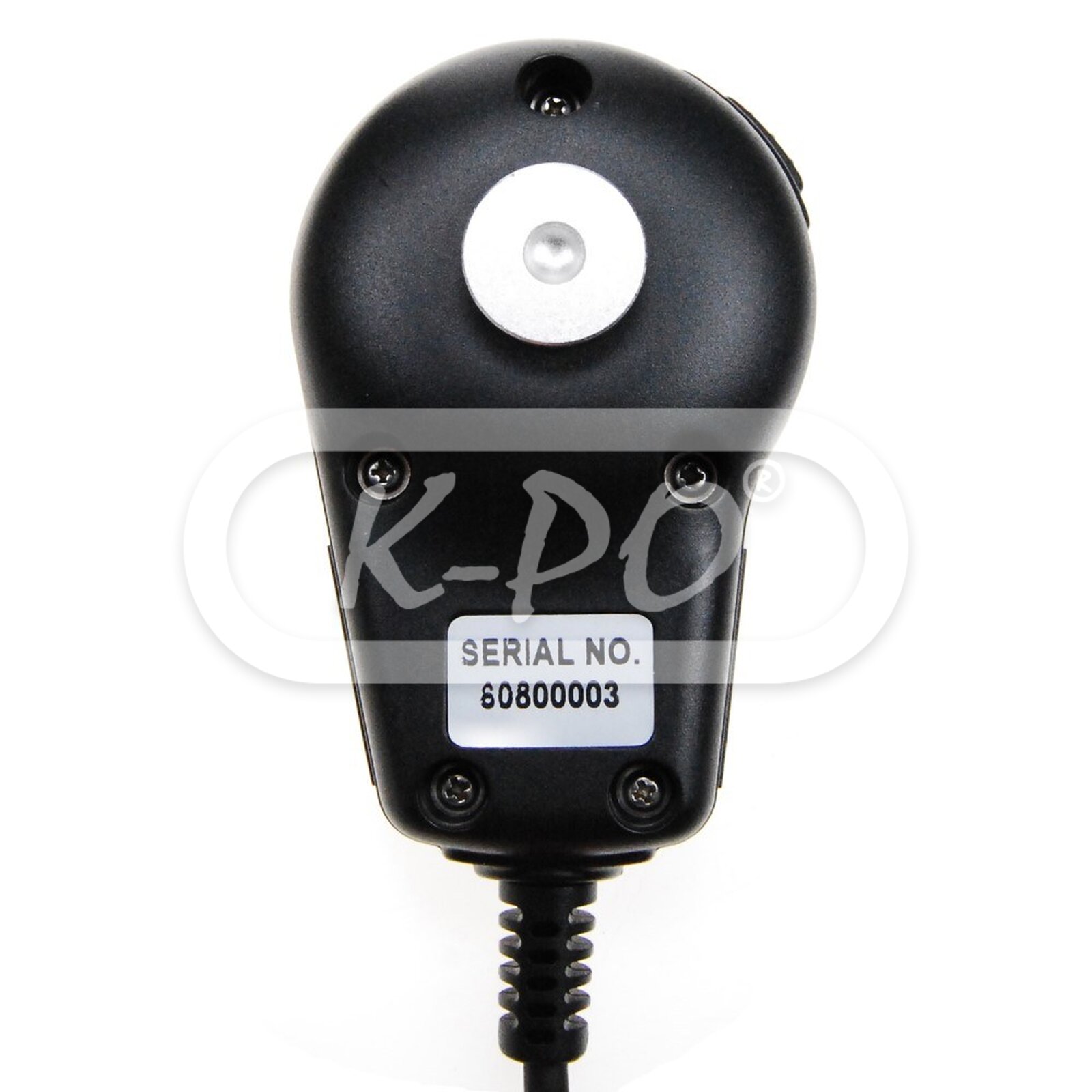

  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English
  • Microphone holder: Yes
