Himunication - HM390S AIS/DSC/GPS (ATIS)

Product code: 48391
Barcode: 6970344030176

Channels conform VDES (VHF Data Exchange System), International standard. Including private channels 31 + 37 for Belgian and Dutch users.

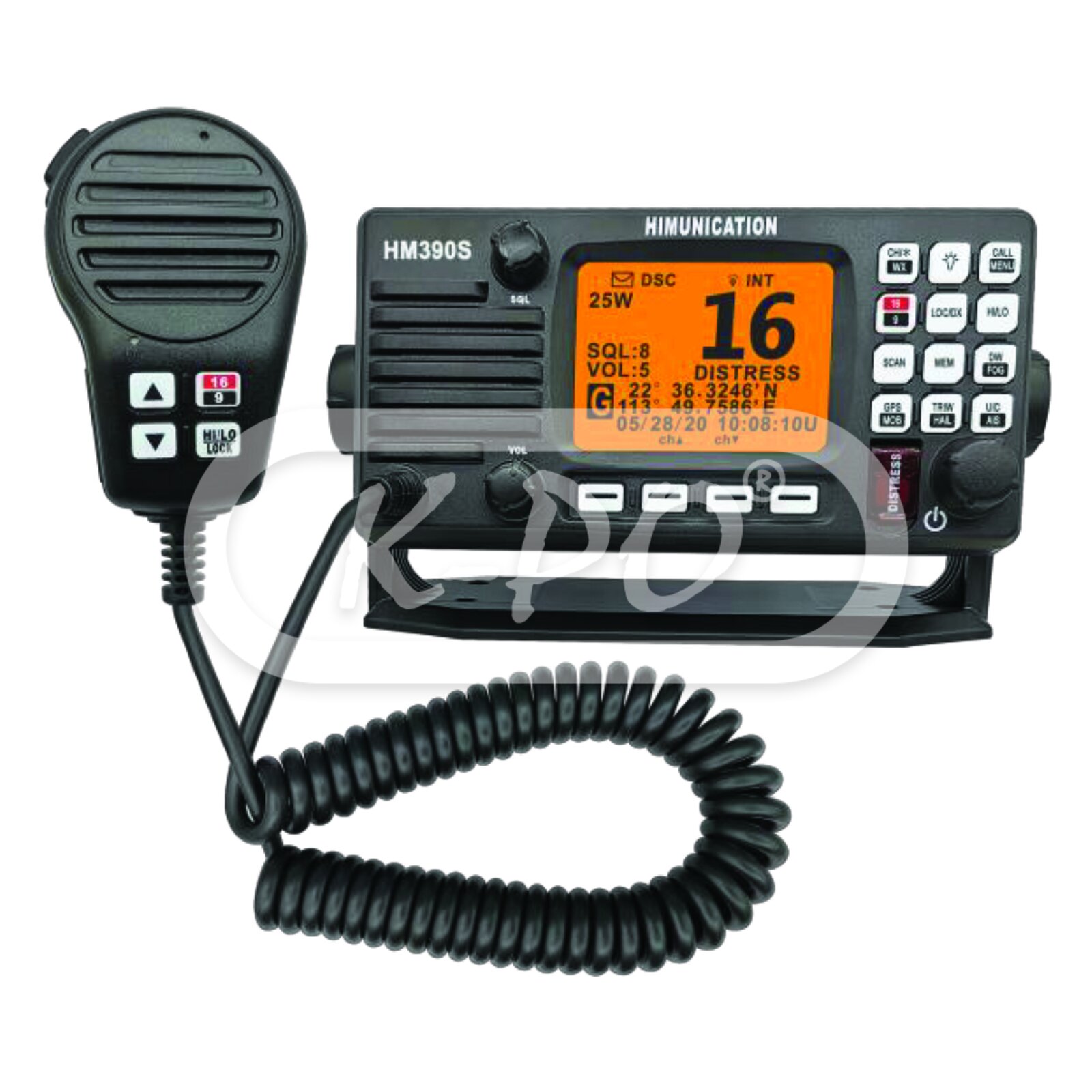

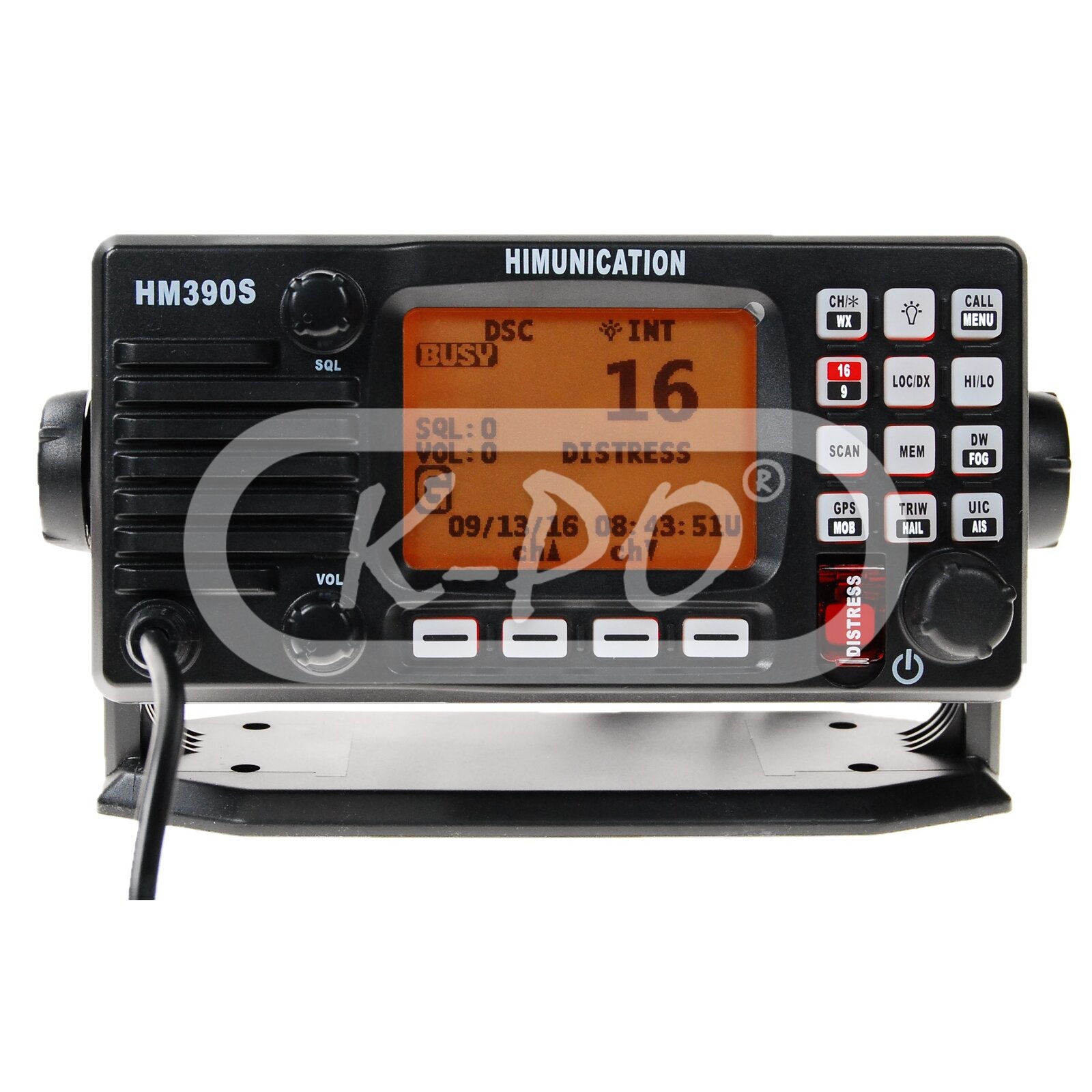

The HM390S is a new generation VHF marine radio with DSC Class-D, internal AIS receiver and integrated GPS receiver. The HM390S marine radio is equipped with a large LCD monitor which shows clearly all data from most viewing angles and conditions. Standard with features like ATIS, MMSI, foghorn, MOB function and more.

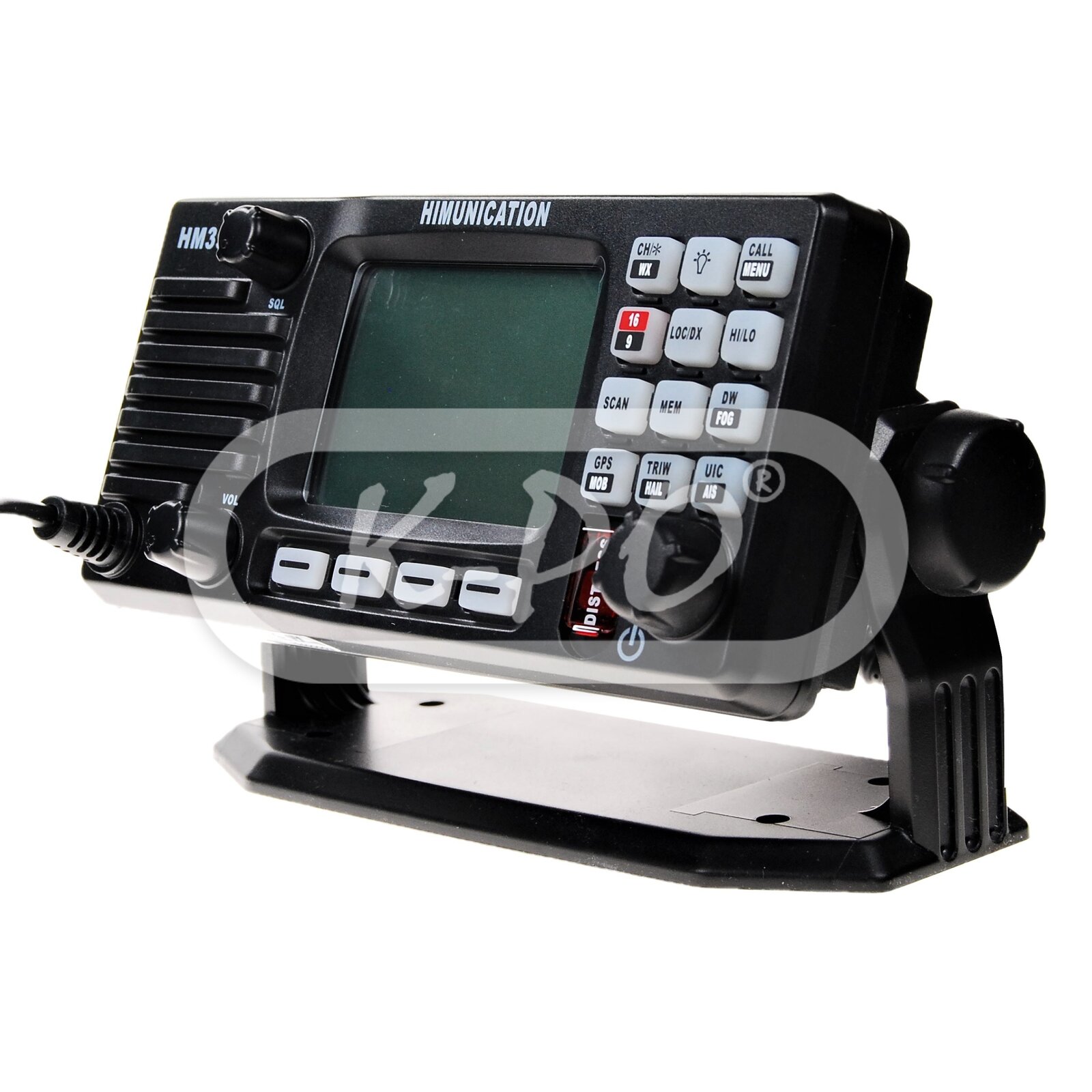

Simple and easy to operate, almost all functions are accessible by using only 4 buttons. Slim and compact design which makes it easy to install with the supplied materials. Despite the compact size the radio is equipped with a large loudspeaker.

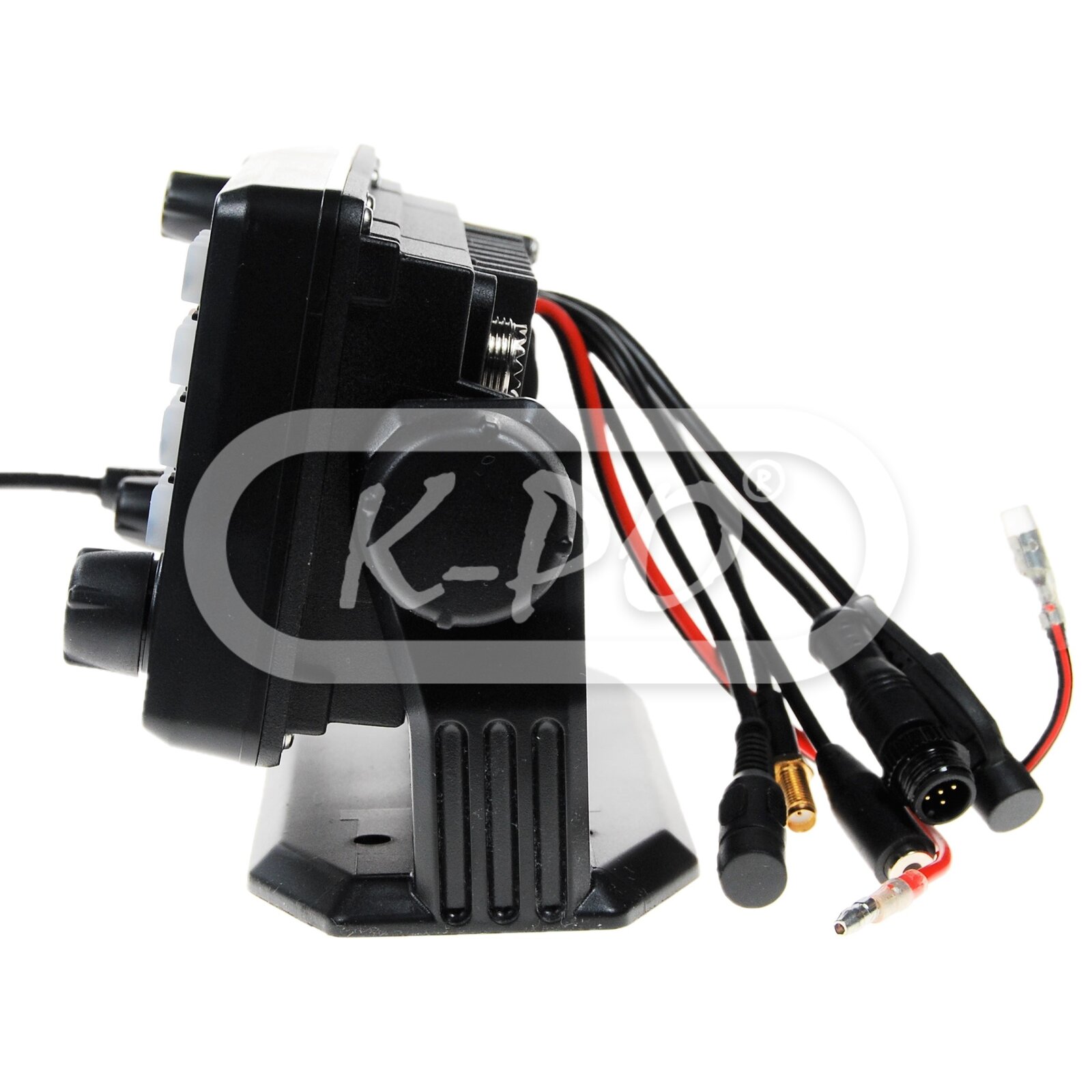

Can be connected to your NMEA0183 or NMEA2000 network with the supplied cable set.

Optional is the Himunication HS20 wired handset, product code: 48025

Frequency range: TX: 156.025 to 157.425 MHz / RX: 156.300 to 162.000 MHz
Shipped today
€347.07 (347.07 excl. 0% VAT)

Features

  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: Large LCD with full dot-matrix display
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • AIS receiver: Yes, internal
  • AIS frequency: 161.975 - 162.025 MHz
  • AIS channels: Two
  • Distress key: Yes
  • MMSI: Yes
  • ATIS: Yes, one-time programmable by keypad
  • DSC: Yes, Class-D
  • GPS: Yes, integrated GPS receiver + connector for external GPS antenna
  • Time out timer: Yes, after 5 minutes TX
  • RF output power: Low: 1 Watt / High: 25 Watts
  • Foghorn function: Yes
  • Memory channels: Yes
  • Local / DX function: Yes
  • Scan function: Yes
  • NMEA0183 and NMEA2000 network compatible: Yes

Electrical data

  • Channels: Conform VDES (VHF Data Exchange System) including private channels 31 + 37
  • Frequency stability: ±5 PPM
  • Operating temperature (Celsius): -15 to +55˚C

Transmitter

  • Power output (Watts): 1 / 25 Watts
  • Channel spacing: 25 kHz
  • Oscillate Mode: PLL

Mechanical data

  • Length: 180 mm
  • Height: 91 mm
  • Width: 55 mm
  • Weight: 970 gram

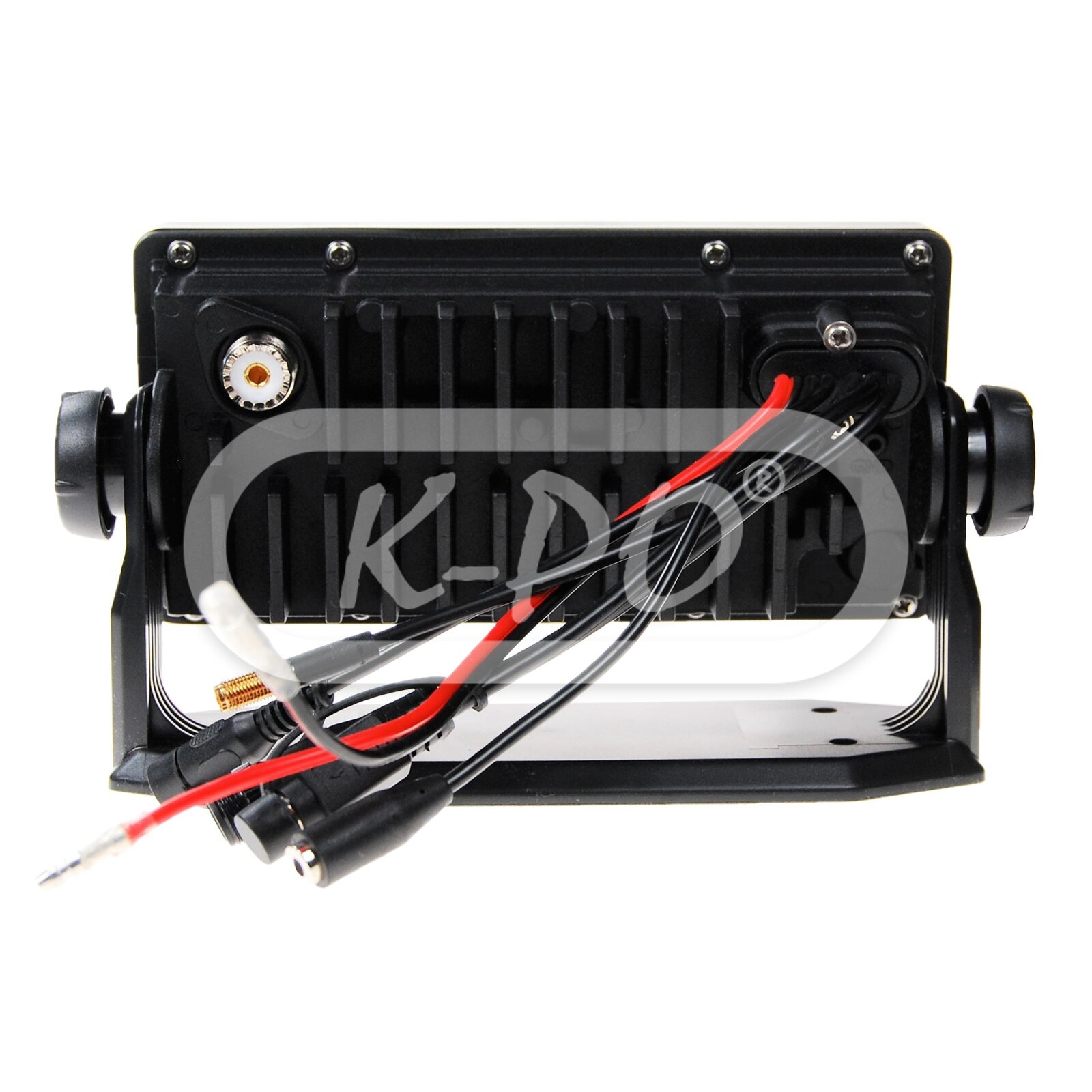

  • Antenna connector: UHF (PL) female
  • NMEA0183 connectors: Yes
  • NMEA2000 connectors: Yes

Inside the box

  • Transceiver: Yes
  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English (digital download)
  • Microphone holder: Yes
