Himunication - TS18 DSC/GPS (ATIS)

Product code: 48018
Barcode: 6970344030183

Channels conform VDES (VHF Data Exchange System), International standard. Including private channels 31 + 37 for Belgian and Dutch users.

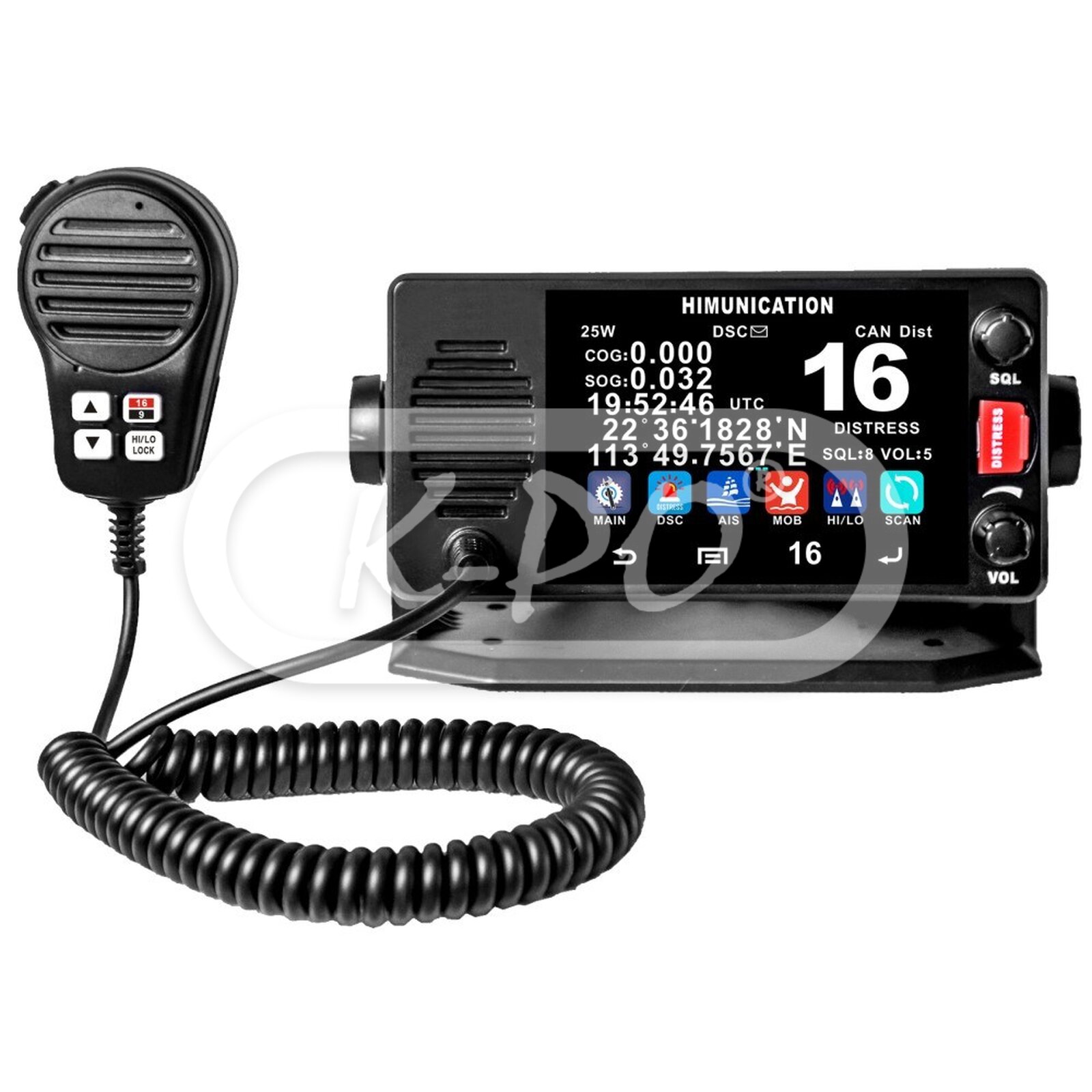

The Himunication TS18 is the first fixed smart touch-screen VHF DSC Class-D marine radio in the market. With integrated GPS receiver and connector for an optional external GPS antenna.

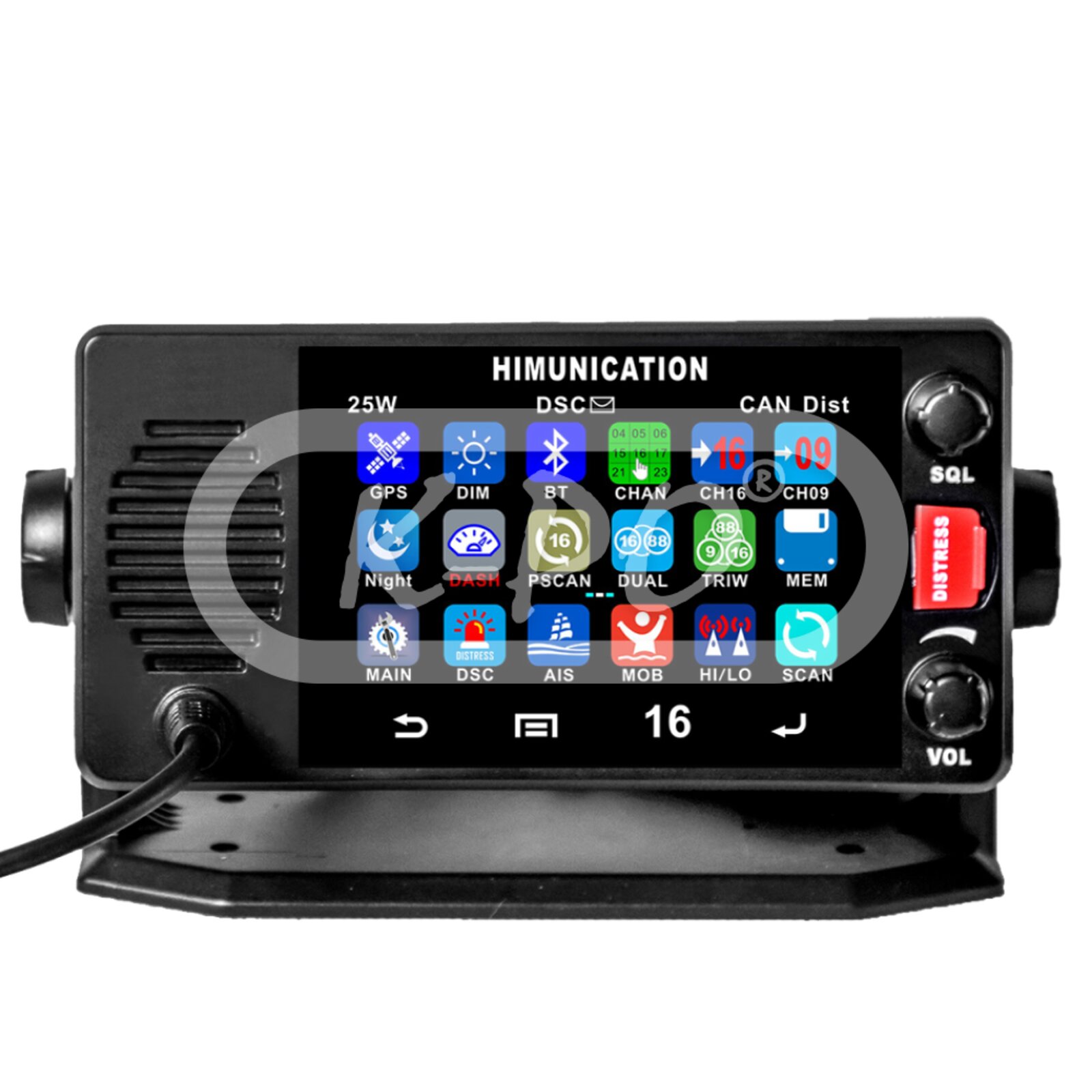

The TS18 has a 4.3 inch HD touch-screen LCD display, which will clearly show all the function icons (applications) one by one, for example VHF, PSCAN, DSC, MOB, FOG and more. All are very simple and convenient to access by touching the screen, just like a smart phone or tablet.

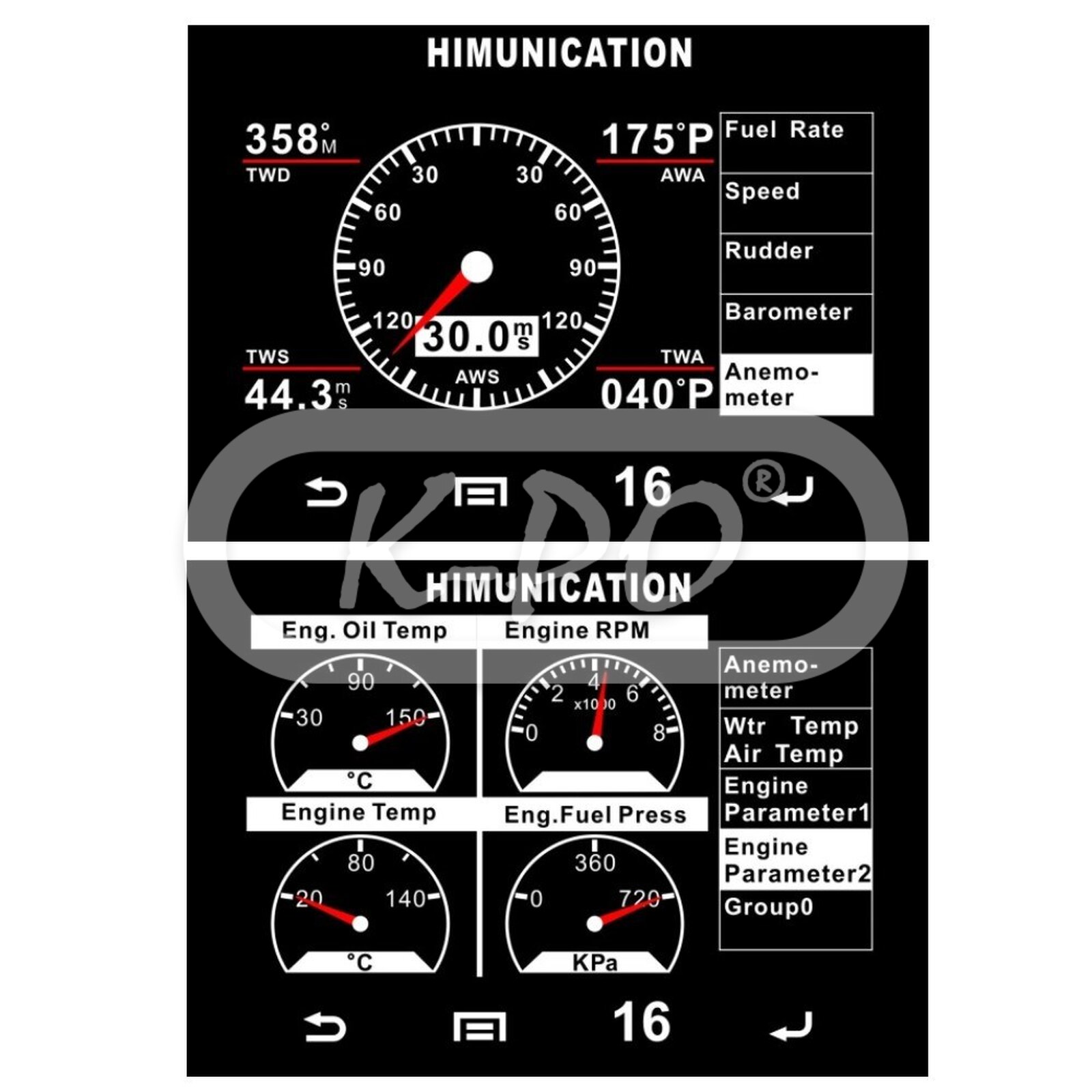

Besides the marine radio functions the TS18 can show the marine instruments that are connected to your NMEA2000 network. That means everyone can save the money of separate marine instruments and save the space on the dashboard.

Equipped with a large loudspeaker which greatly benefits the audio quality of the messages received.

In short, the TS18 is an excellent innovation for both marine communication and navigation industry, that will be a great pleasure for professional daily users who want to have a lot of extra features in one device together.

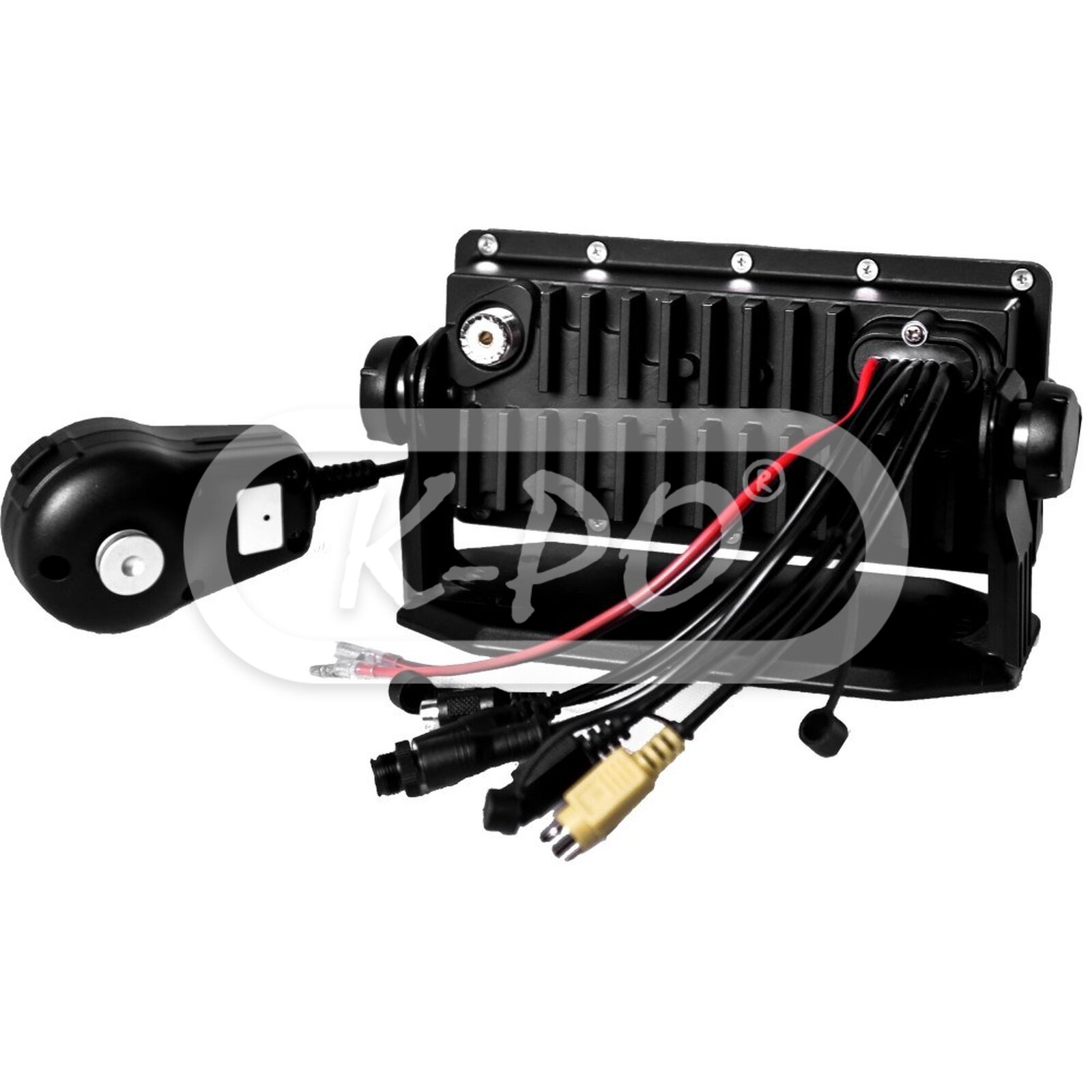

Can be connected to your NMEA0183 or NMEA2000 network with the supplied cable set.

Optional is the Himunication HS20 wired handset, product code: 48025

Frequency range: TX: 156.025 - 162.425 MHz / RX: 156.300 - 162.000 MHz
Shipped today - Stock: 9
€389.95 (322.27 excl. 21% VAT)

Features

  • Channel 31: Yes
  • 16/9 channel switch: Yes
  • Private channel facility: Yes
  • Dual and tri watch: Yes
  • Display: Touchscreen 4.3 inch color TFT LCD (480x272 dots)
  • Priority channel scan: Yes
  • High/low power selection: Yes
  • MOB alert (man overboard): Yes
  • Distress key: Yes
  • MMSI: Yes
  • ATIS: Yes, one-time programmable by keypad
  • DSC: Yes, Class-D
  • GPS: Yes, integrated GPS receiver + connector for external GPS antenna
  • Dashboard instrument function: Yes, NMEA2000 only
  • Time out timer: Yes, after 5 minutes TX
  • RF output power: Low: 1 Watt / High: 25 Watts
  • Foghorn / Hailer function: Yes
  • Memory channels: Yes
  • Local / DX function: Yes
  • Scan function: Yes
  • NMEA0183 and NMEA2000 network compatible: Yes

Electrical data

  • Channels: Conform VDES (VHF Data Exchange System) including private channels 31 + 37
  • Frequency stability: ±5 PPM
  • Operating temperature (Celsius): -15 to +55ËšC

Transmitter

  • Power output (Watts): 1 / 25 Watts
  • Channel spacing: 25 KHz
  • Oscillate mode: PLL

Mechanical data

  • Length: 180 mm (195 mm with bracket)
  • Height: 91 mm (115 mm with bracket)
  • Width: 38 mm
  • Weight: 1000 gram
  • Antenna connector: UHF (PL) female
  • NMEA0183 connectors: Yes
  • NMEA2000 connectors: Yes

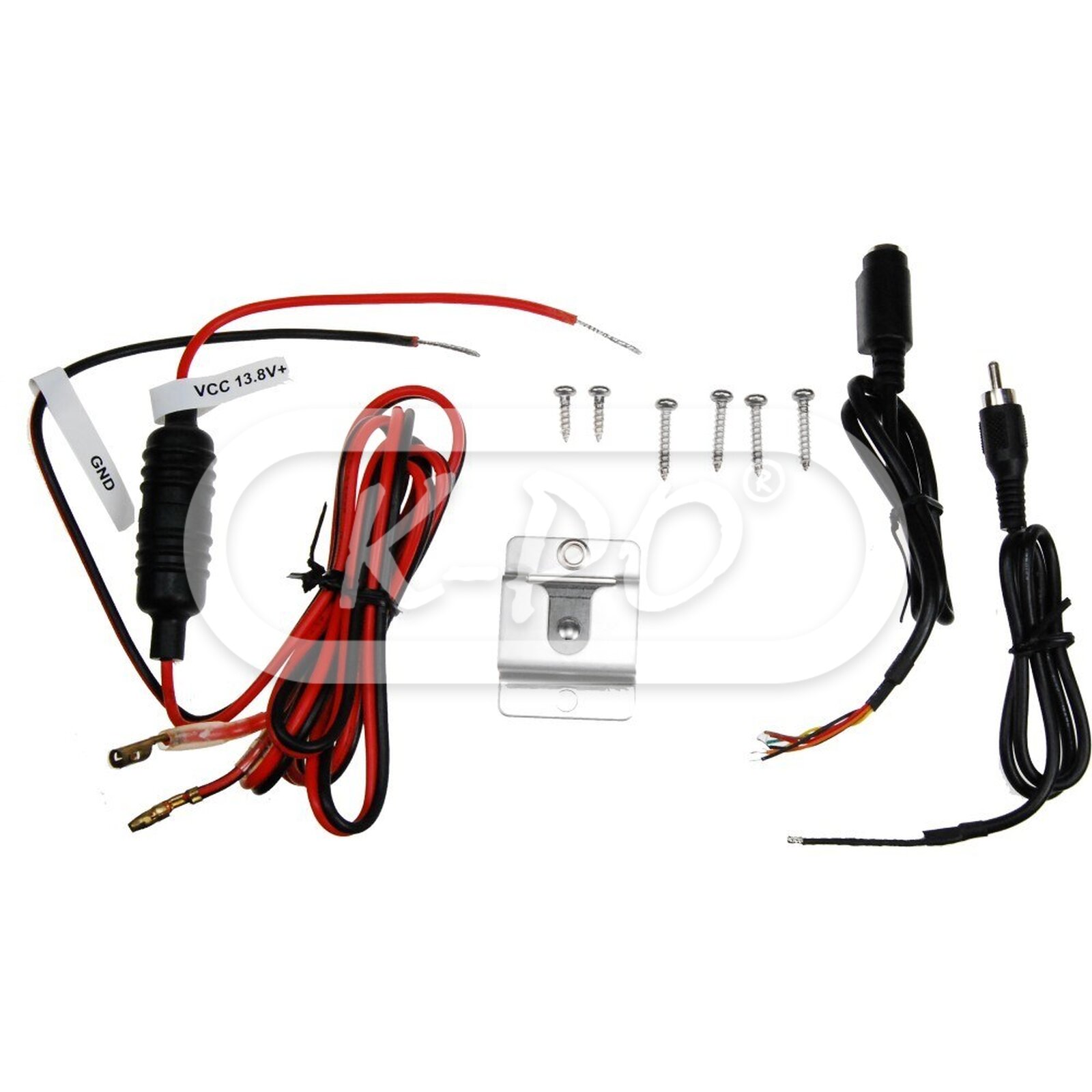

Inside the box

  • Transceiver: Yes

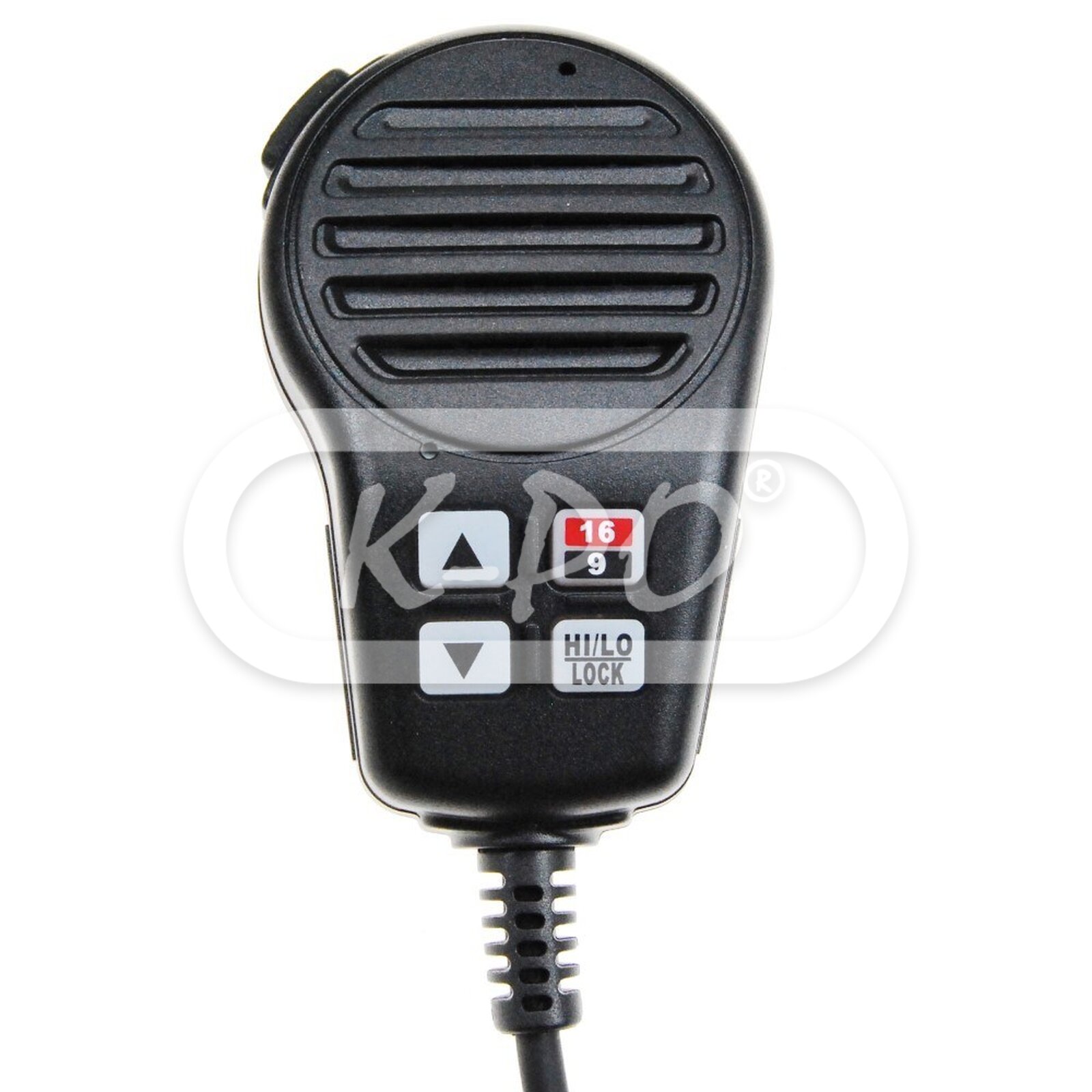

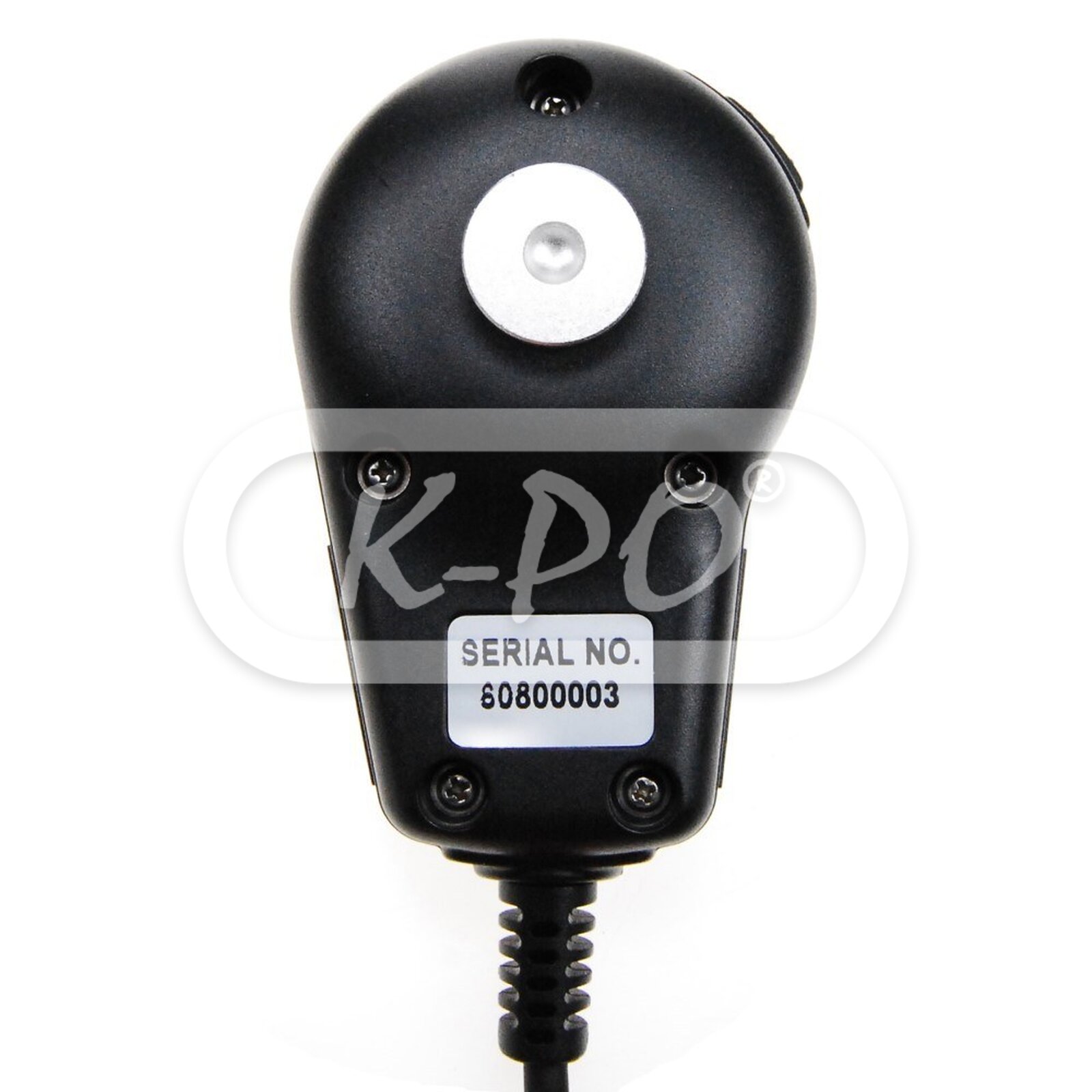

  • Microphone: Yes
  • Mounting bracket: Yes
  • Mounting parts: Yes
  • DC power cable: Yes
  • Installation manual: English (digital download)
  • Microphone holder: Yes
