JCD - 201M Echo P6

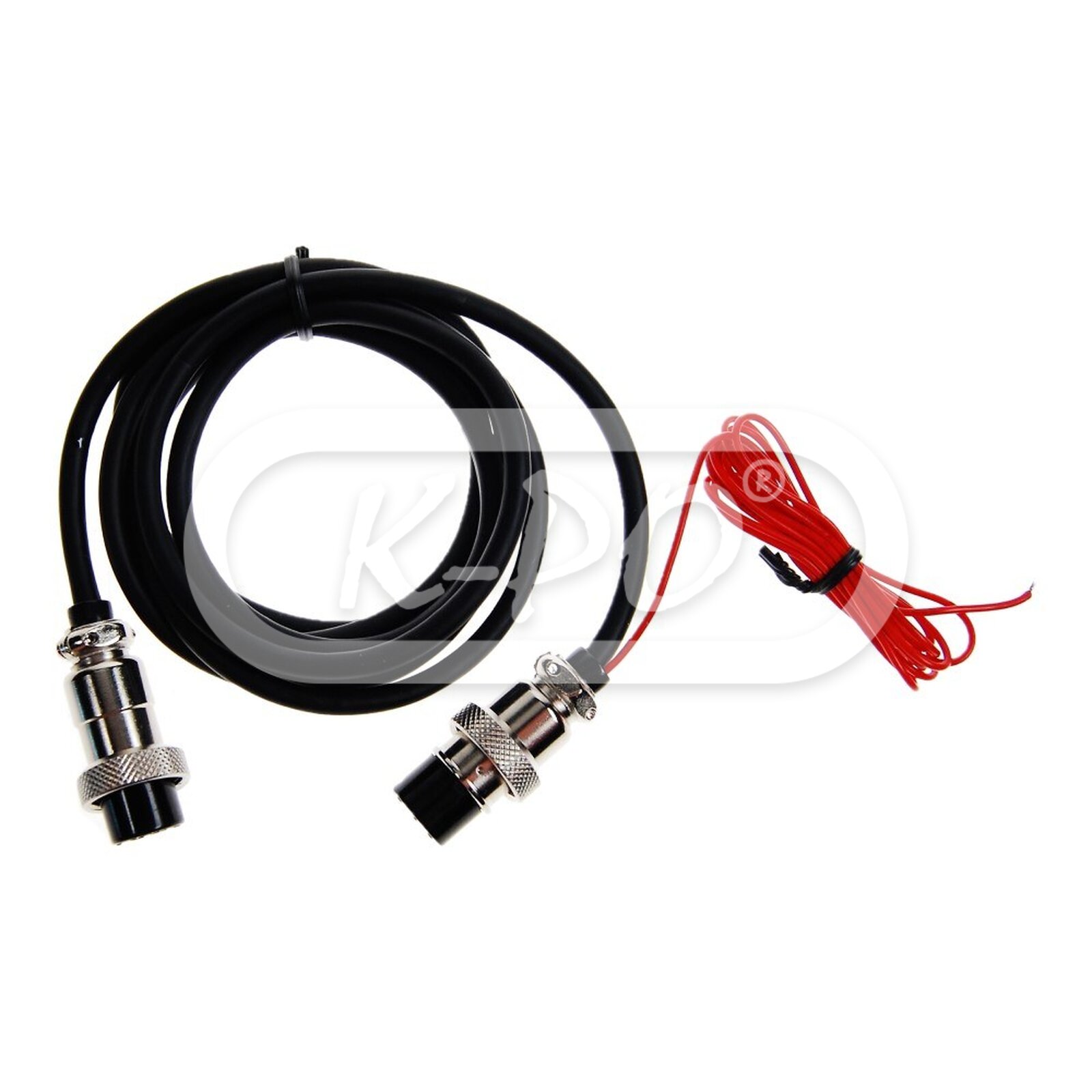

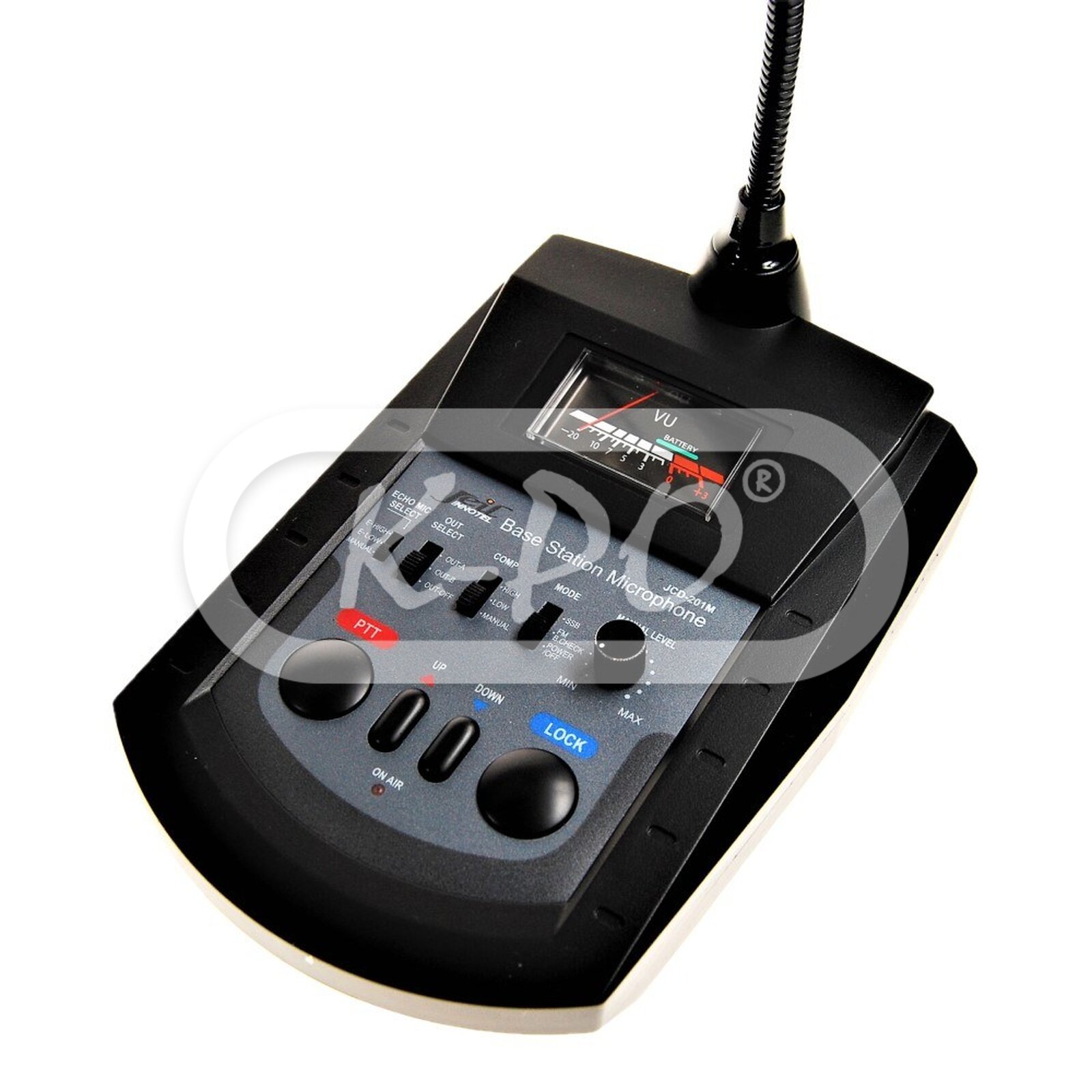

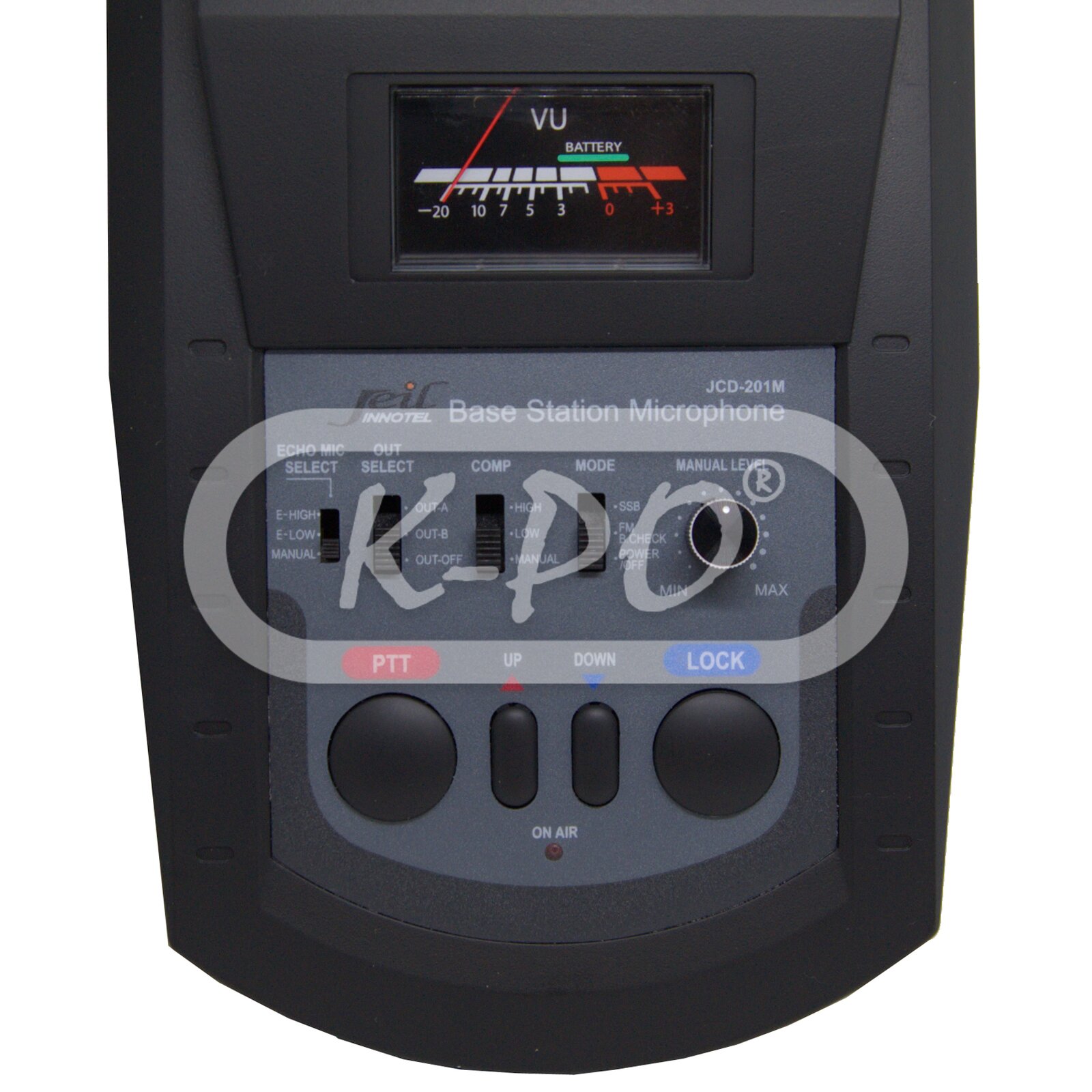

The JCD 201M 6P Echo is a very solid desk microphone and will be delivered with a free adapter cable for standard CB 6 pin radios. The JCD 201M has many functions to set and it is possible to connect 2 radios on the microphone.
We only confirm the full operation with the Midland 48 PRO.
Always check carefully if your transceiver is compatible with your version of the JCD-201M microphone. We are not responsible for any damage caused due wrong usage (or wiring) of the microphone to your microphone or transceiver.
- Suitable for: Midland Alan 48 PRO
- Up down: Yes
- Lock button: Yes
- Echo Function: Yes
- TX warning: Yes
- Connector for optional PTT: Yes
- Microphone type: Power microphone / Echo microphone
- Microphone connector: 6-pin
- Up: Pin 4
- Down: Pin 4
- Receive: Pin 2
- Transmit: Pin 3
- Mic Audio: Pin 1
- Ground: Pin 5
