K-PO - AV-CN600

Product code: 902600

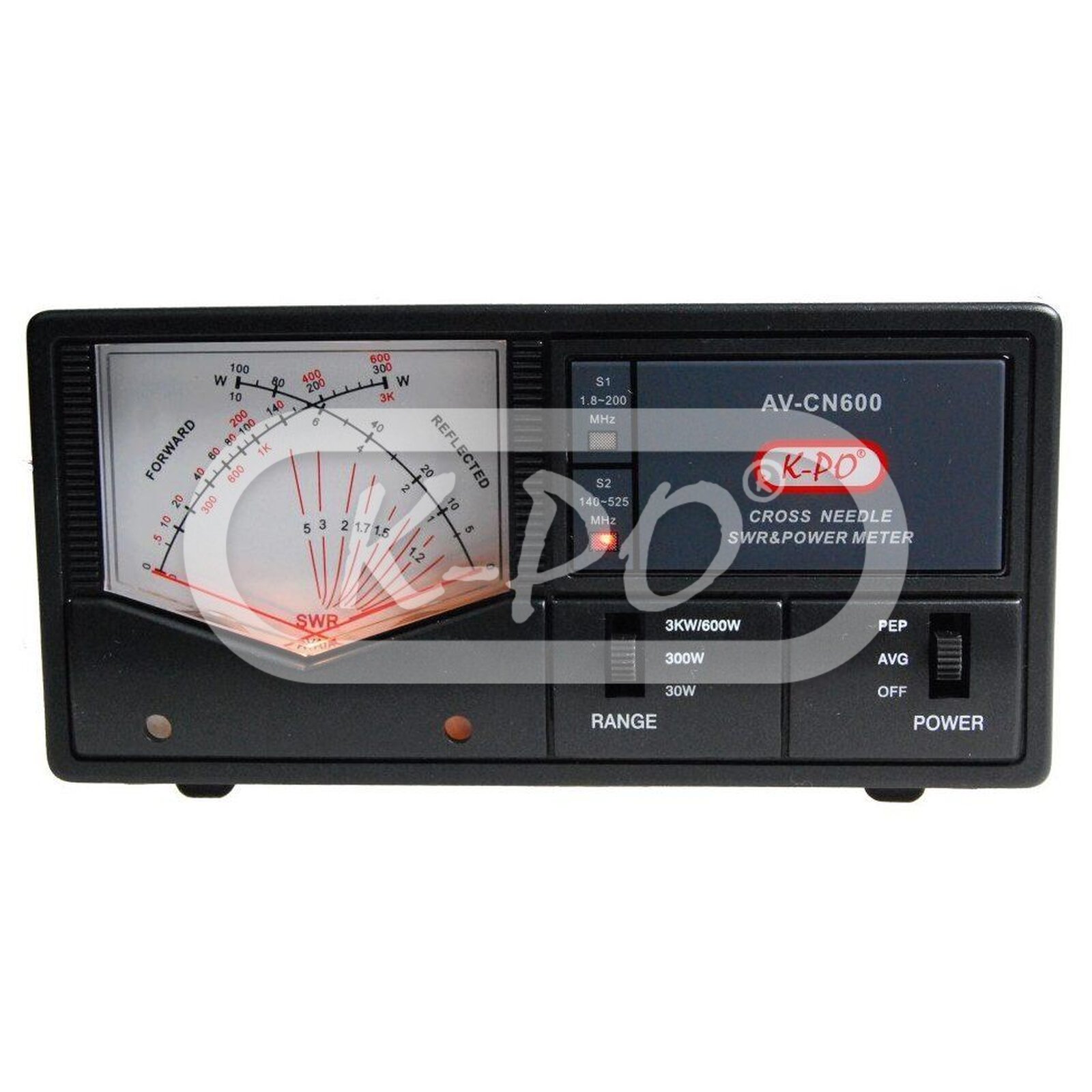

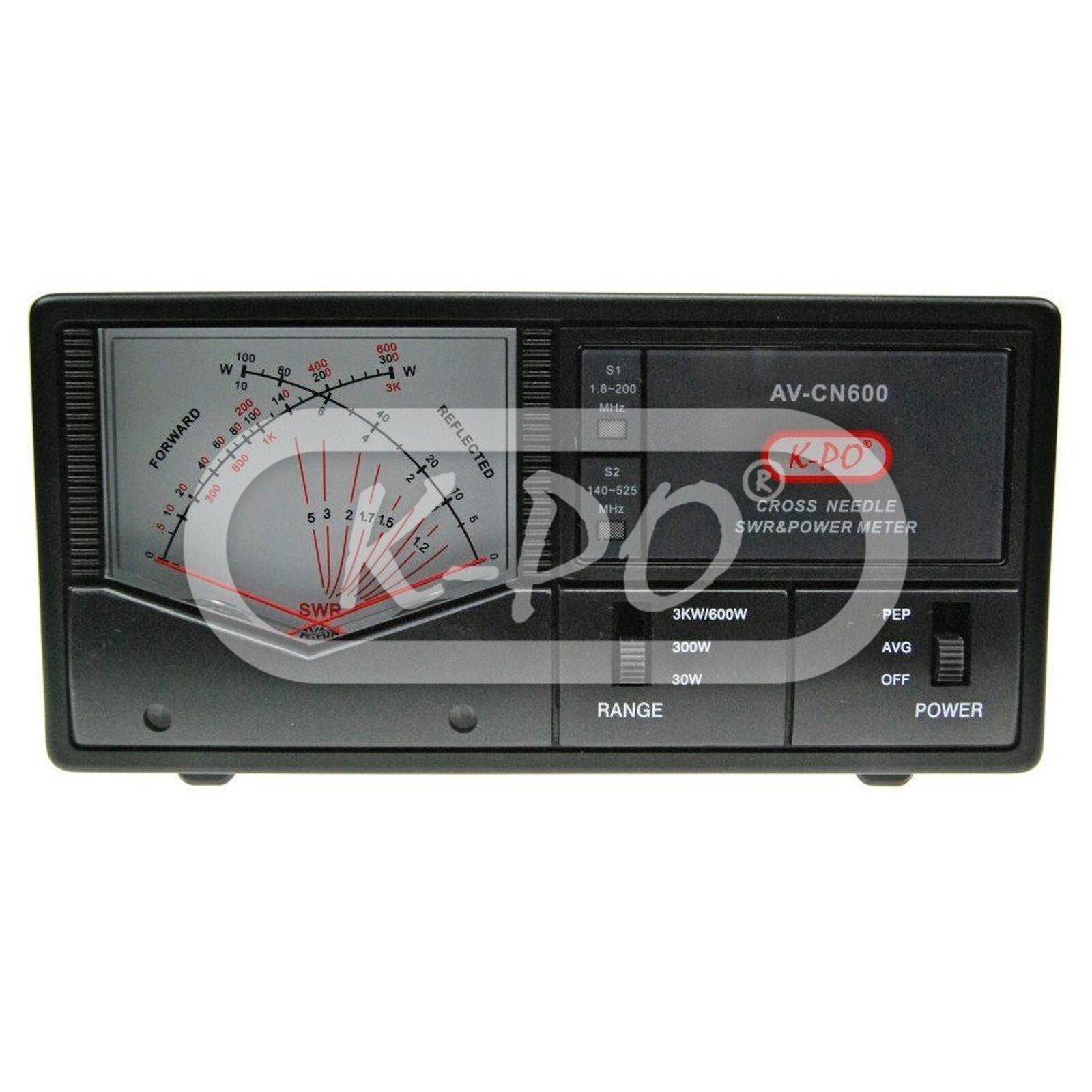

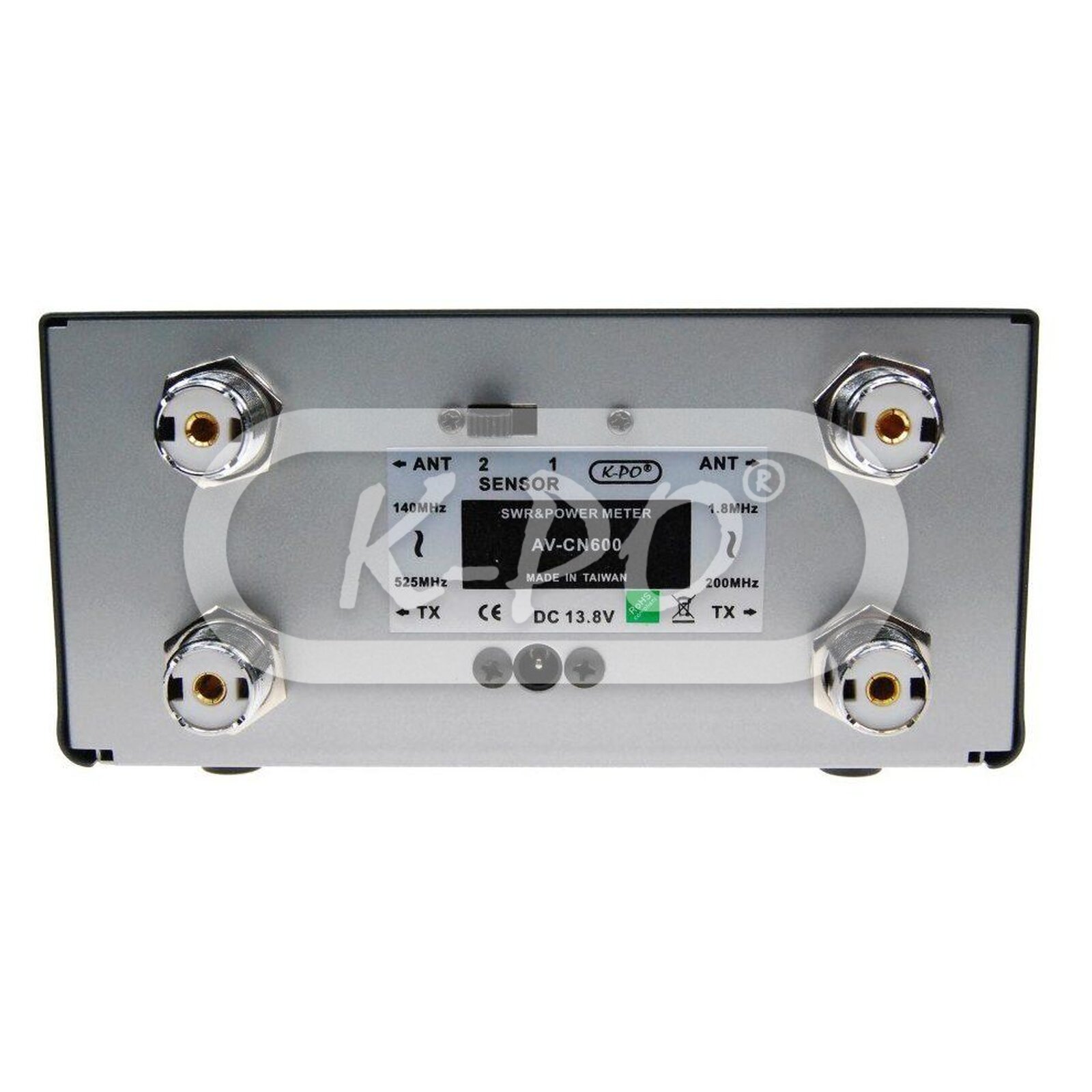

The K-PO AV-CN600 is a cross needle meter and measures Forward Power, Reflected Power and SWR simultaneously. Two frequency modes, S1: 1.8 - 160 and S2: 140 - 525 MHz, each with their own set of UHF-female connectors on the backside. AVG / PEP switch to select average power or SSB / PEP.

The meter is very user-friendly which makes it useful for testing both base and mobile installations and for permanent installation in your setup.

Frequency range: 1.8 - 160 / 140 - 525 MHz
Out of stock - Longer delivery time
€103.26 (103.26 excl. 0% VAT)

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 1.8 - 160 MHz: 30 / 300 / 3000 Watts / 140 - 525 MHz: 30 / 300 / 600 Watts
  • Accuracy: 30 Watts: ±5% / 300 Watts: ±5% / 600 Watts: ±7.5% / 3000 Watts: ±7.5%
  • Minimum Power for SWR: 0.5 Watt
  • Insertion loss: 0.2 dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only
  • Continuous power rating 1.8 - 160 / 140 - 525 MHz: 300 Watts CW / SSB
  • Maximum power handling 1.8 - 160 MHz: 3 kW 15 sec / 2 kW 30 sec / 1 kW 60 sec
  • Maximum power handling 140 - 525 MHz: 600 Watts CW / SSB 25 sec on, 35 sec off

Mechanical data

  • Input connector: 2x UHF (PL) female
  • Output connector: 2x UHF (PL) female
  • Length: 150 mm
  • Height: 65 mm
  • Width: 100 mm
  • Weight: 720 gram

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
