K-PO - AV-SW-M-4M0N (SW4M)

Product code: 905204

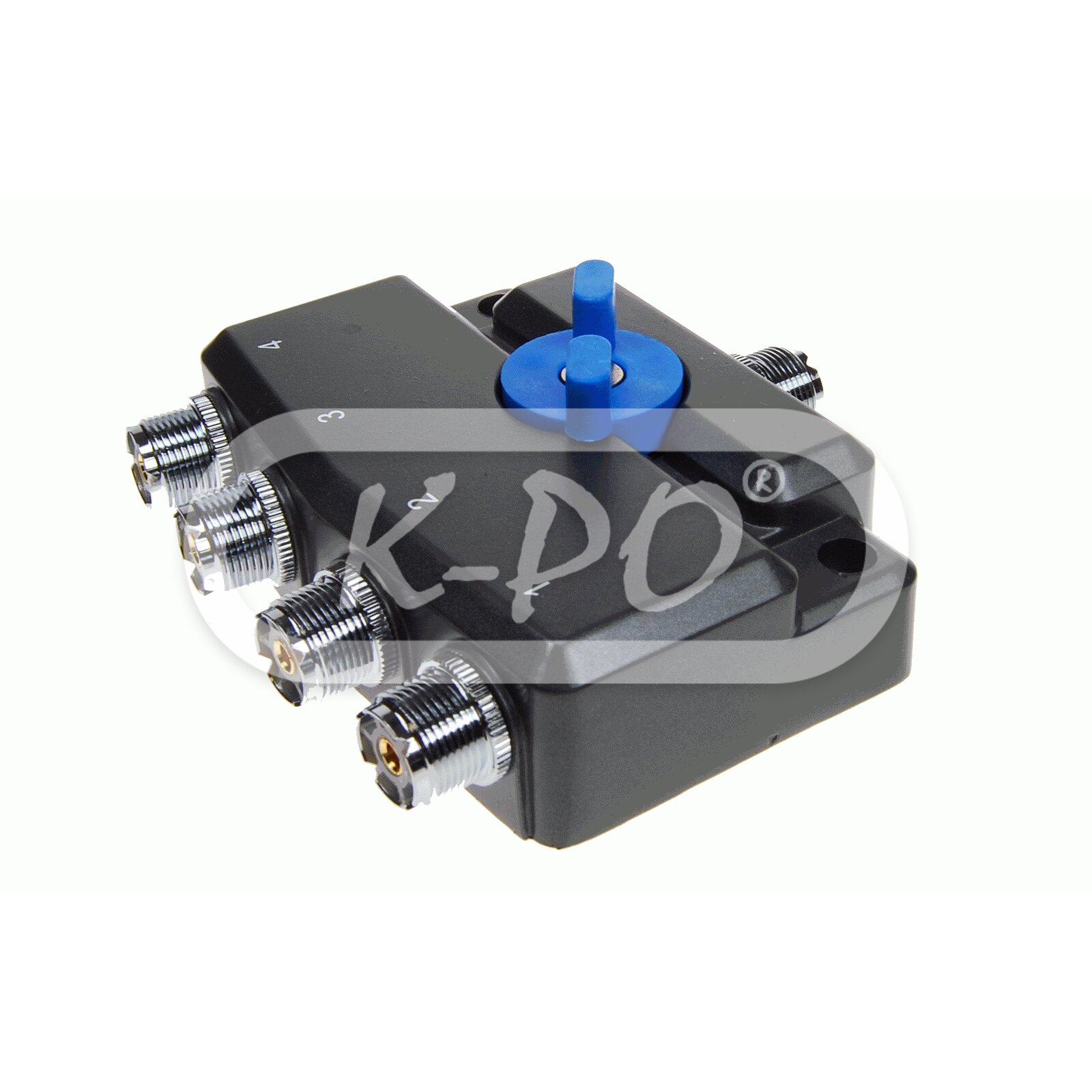

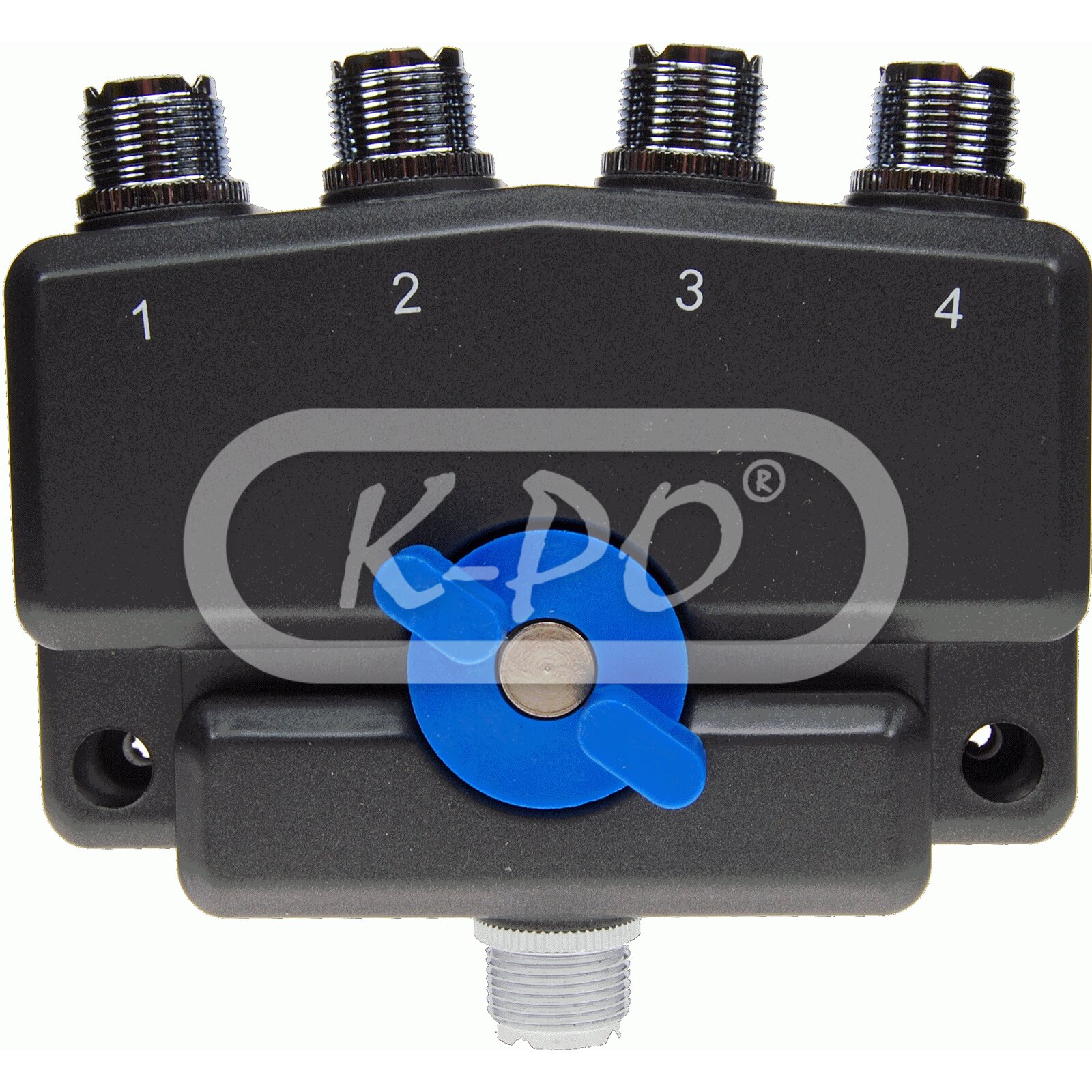

The K-PO AV-SW-M-4M0N (SW4M) is a 4 way antenna switch with a UHF (PL) female input connector and 4x UHF (PL) female output connectors.

Frequency range: Up to 900 MHz
Shipped next business day
€76.82 (76.82 excl. 0% VAT)

Electrical data

  • VSWR: 0-500 MHz: >=1.15 / 500-900 MHz: >=1.20
  • Impedance: 50 Ohm
  • Insertion loss: 0-500 MHz: >=0.1dB / 500-900 MHz: >=0.2dB
  • Isolation: 0-500 MHz: <=60dB / 500-900 MHz: <+55dB
  • Power range: 0-30 MHz: 1.5 kW / 30-200 MHz: 1.0 kW / 200-500 MHz: 500 W / 500-900MHz: 250 W

Mechanical data

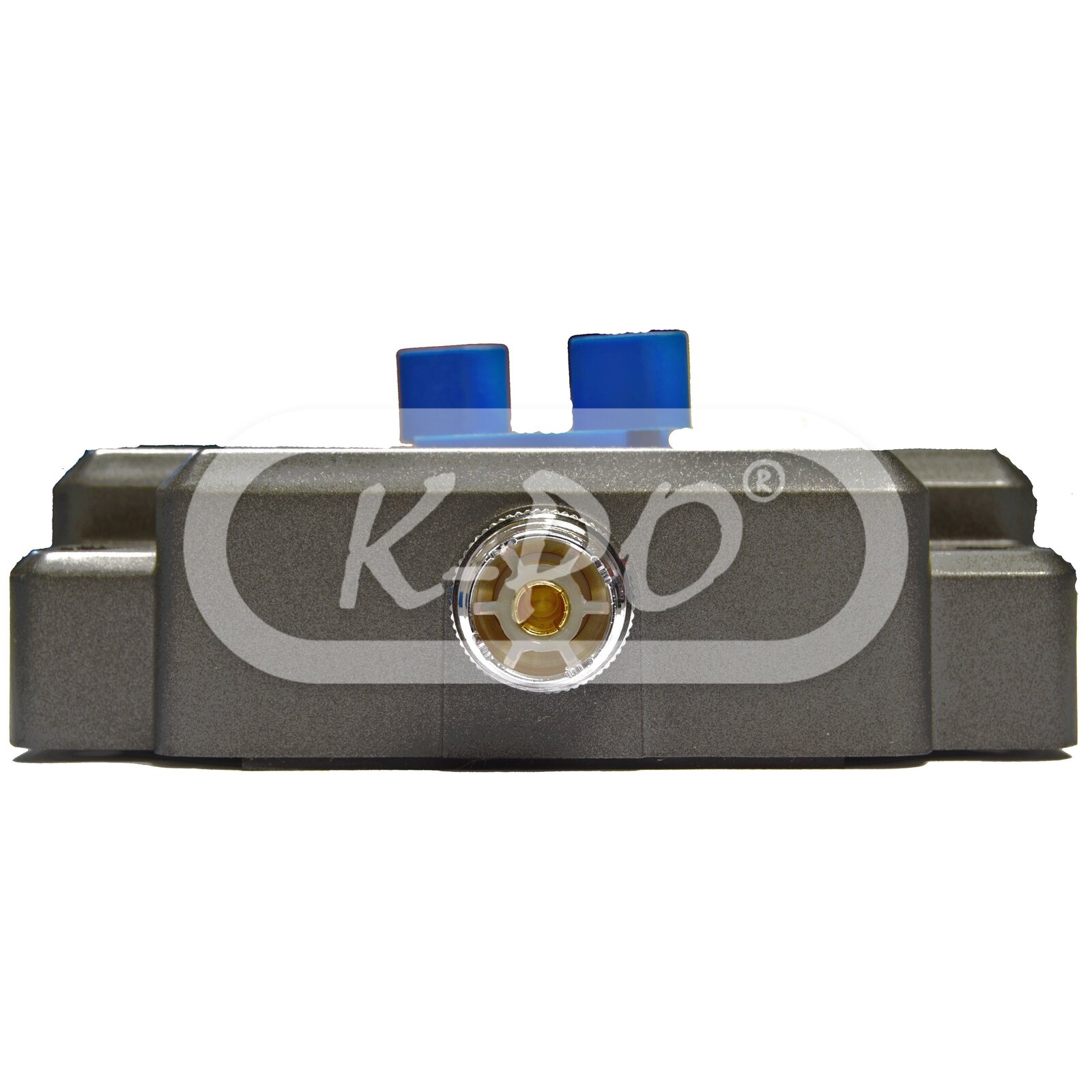

  • Connector(s) type in: UHF (PL) female

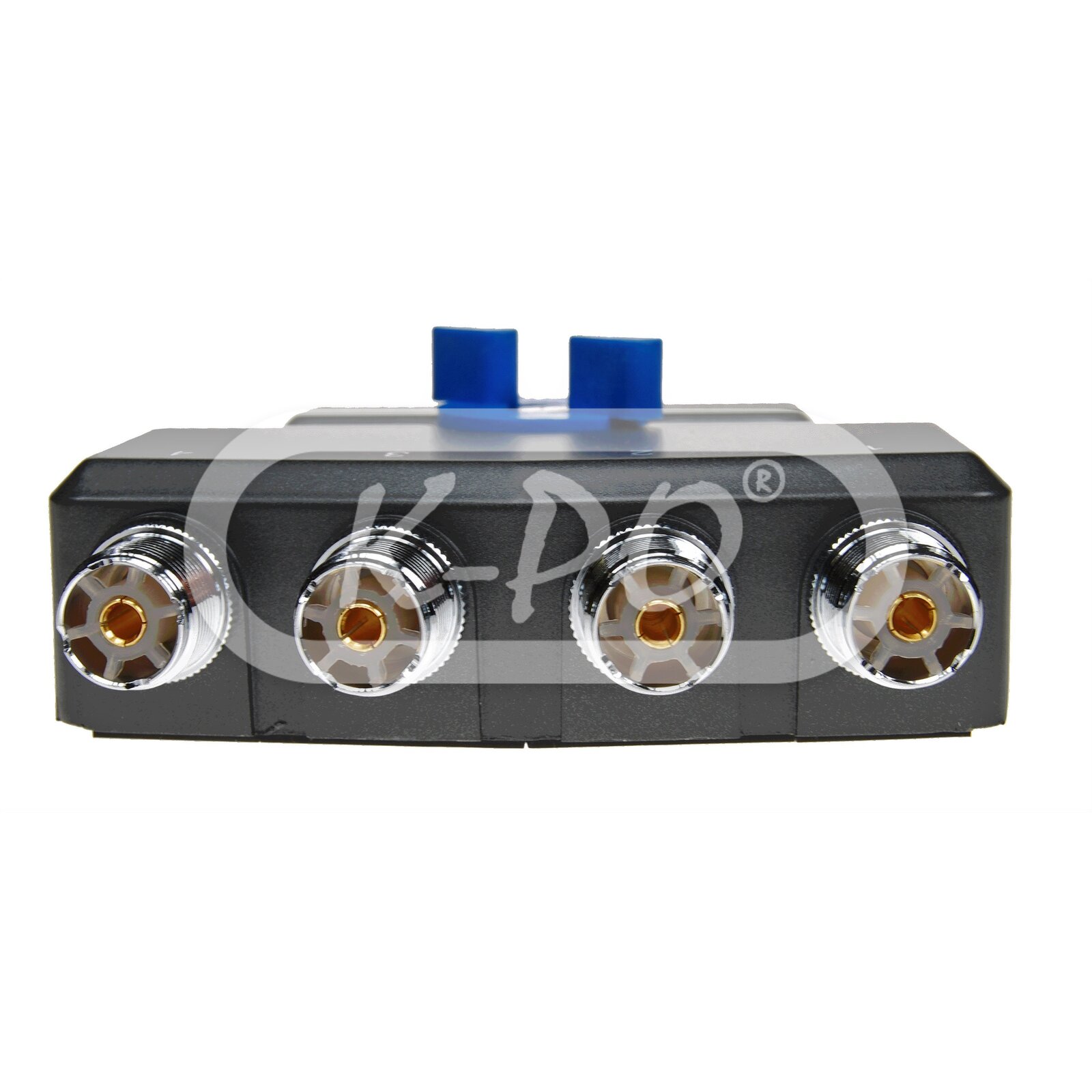

  • Connector(s) type out: UHF (PL) female
  • Length: 110 mm
  • Height: 35 mm
  • Width: 110 mm
  • Weight: 905 gram
