K-PO - DMC 110 E4

Product code: 910110

Barcode: 8718375100141

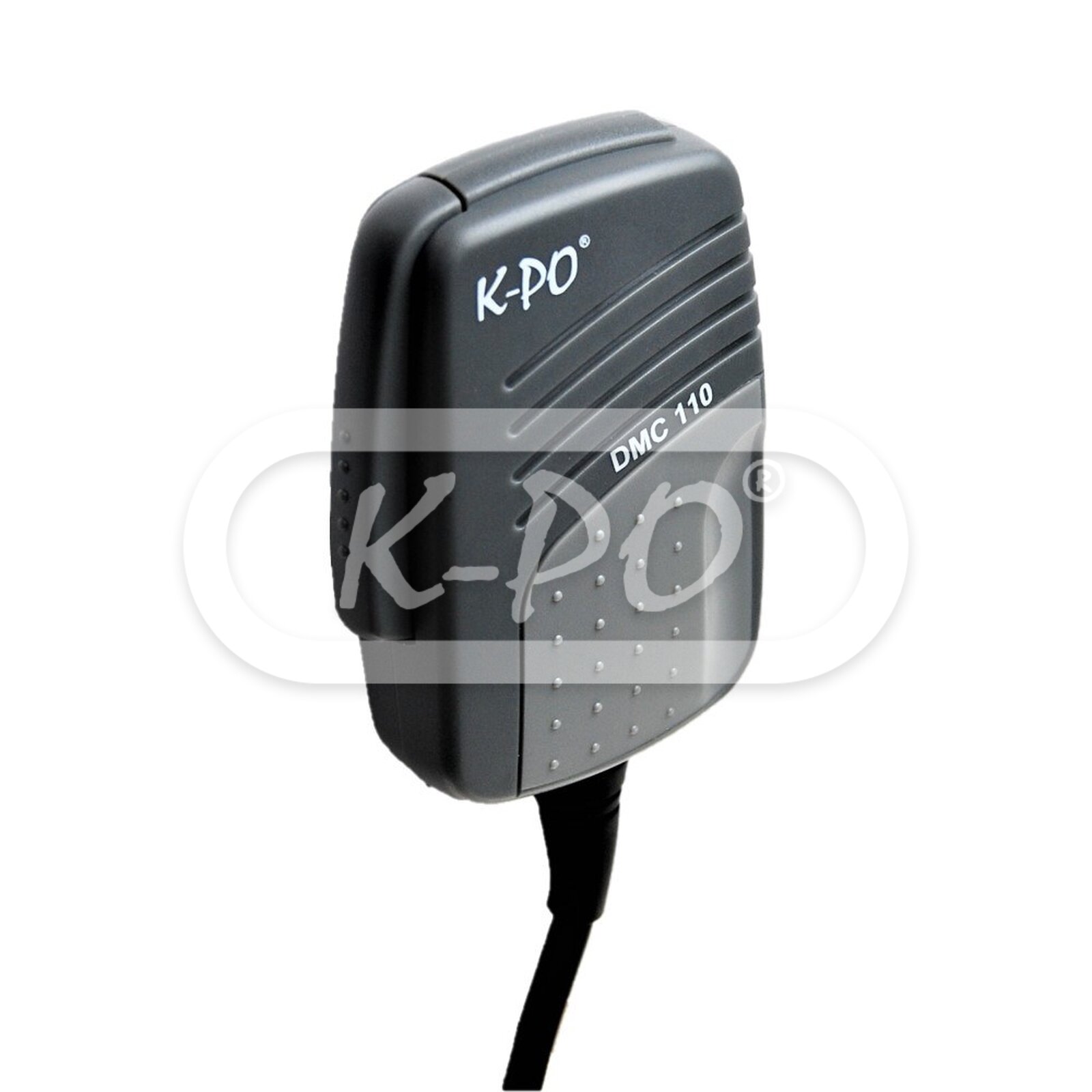

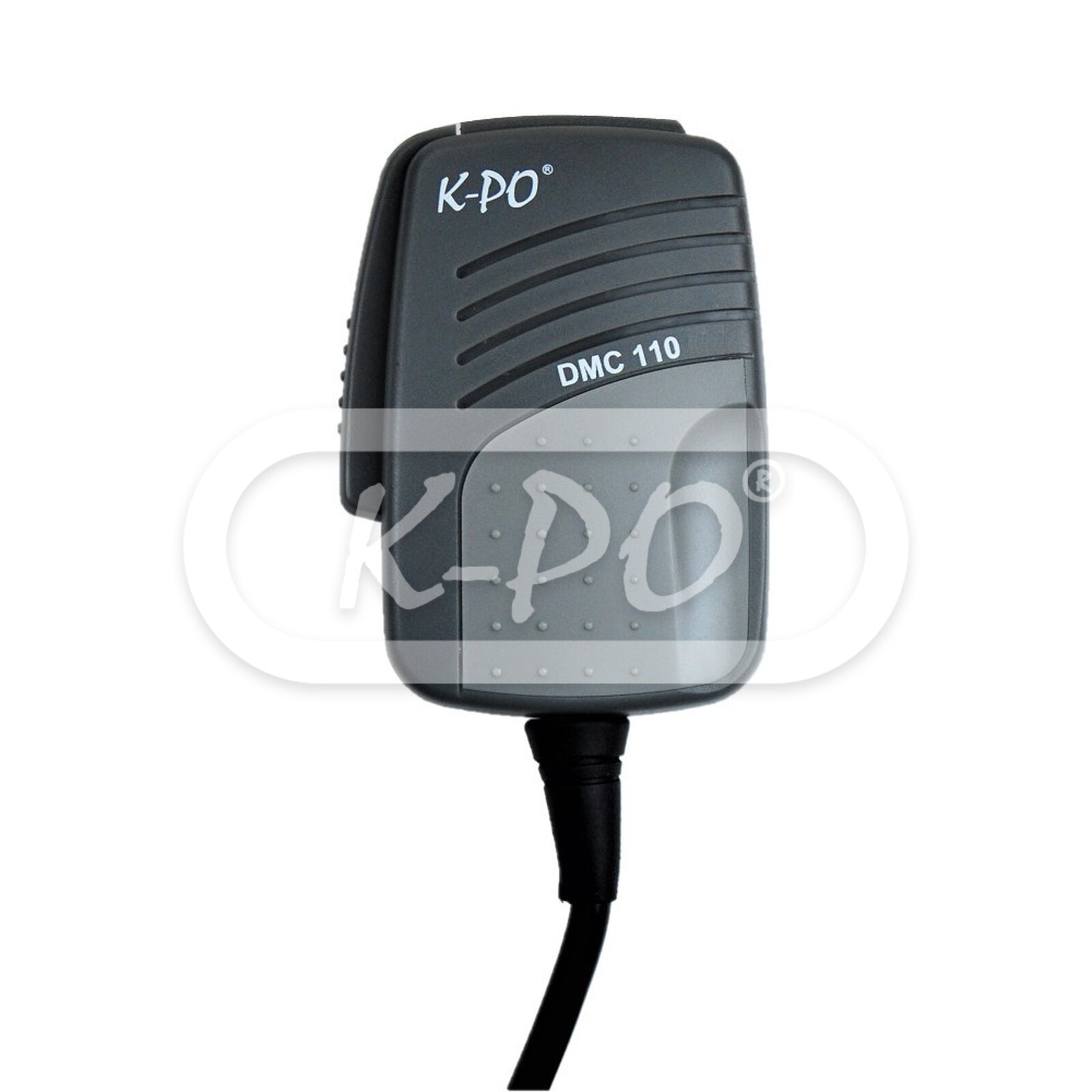

The K-PO DMC 110 E4 is a nice small, high quality microphone. This is an universal microphone and is suitable for most 4 pin CB radios.

Shipped today

€18.95 (15.66 excl. 21% VAT)

Features

• Suitable for: 4-pin E4 connector / Midland Alan 48 / Midland Alan 68 / Midland Alan 68 S / Midland 8001 S / Midland 8001 XT / Midland Alan Quarantotto / Midland Alan Sessantotto /
• Microphone type: Dynamic microphone

Electrical data

• Frequency response: 300 - 8000 Hz
• Impedance: 500 Ohm
• Sensitivity: -72dB ± 3dB (at 1kHz)

Mechanical data

• Cable Length: 2.4 meter

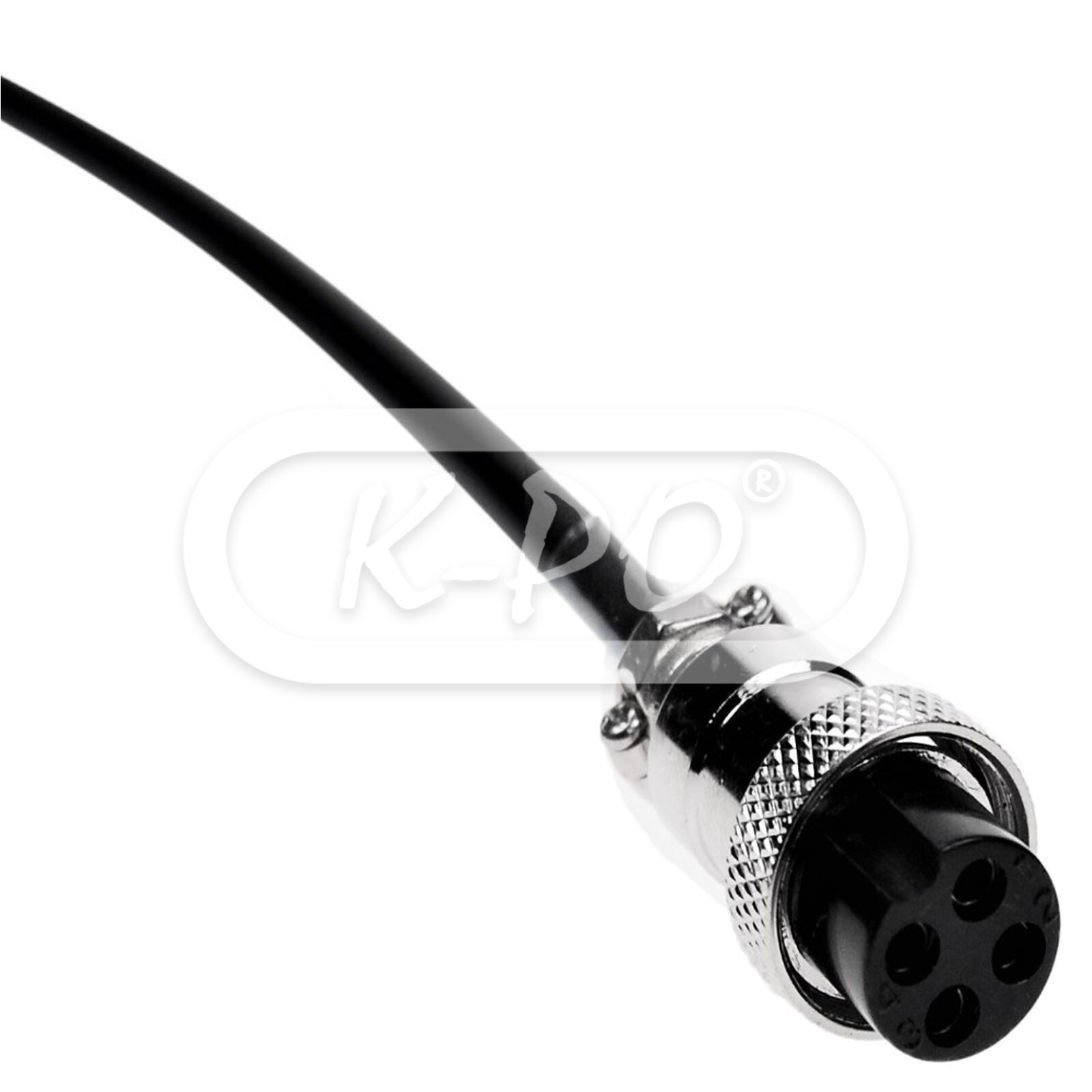

• Microphone connector: 4-pin

Microphone wiring

• Receive: Pin 3
• Transmit: Pin 4
• Mic Audio: Pin 1
• Ground: Pin 2
