K-PO - DMC 110 P6

Product code: 910111

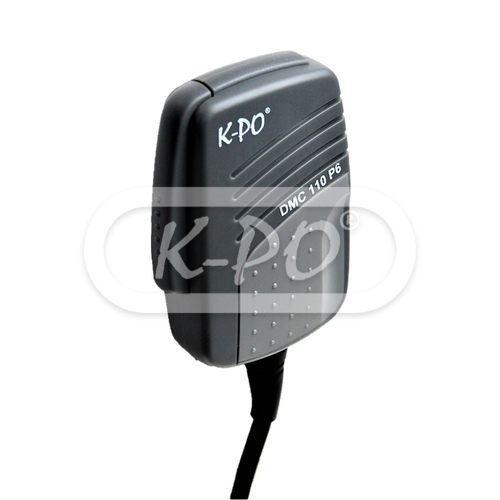

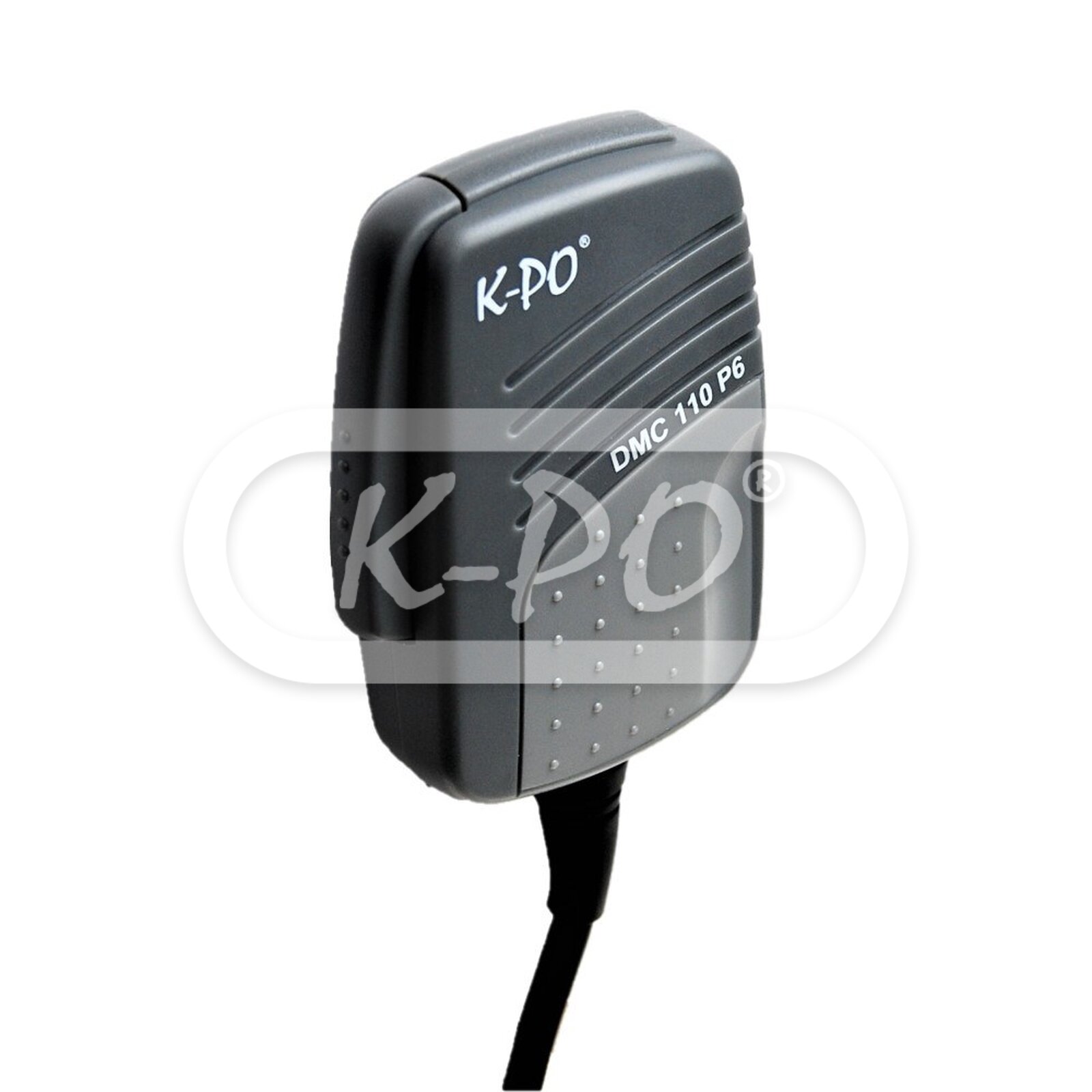

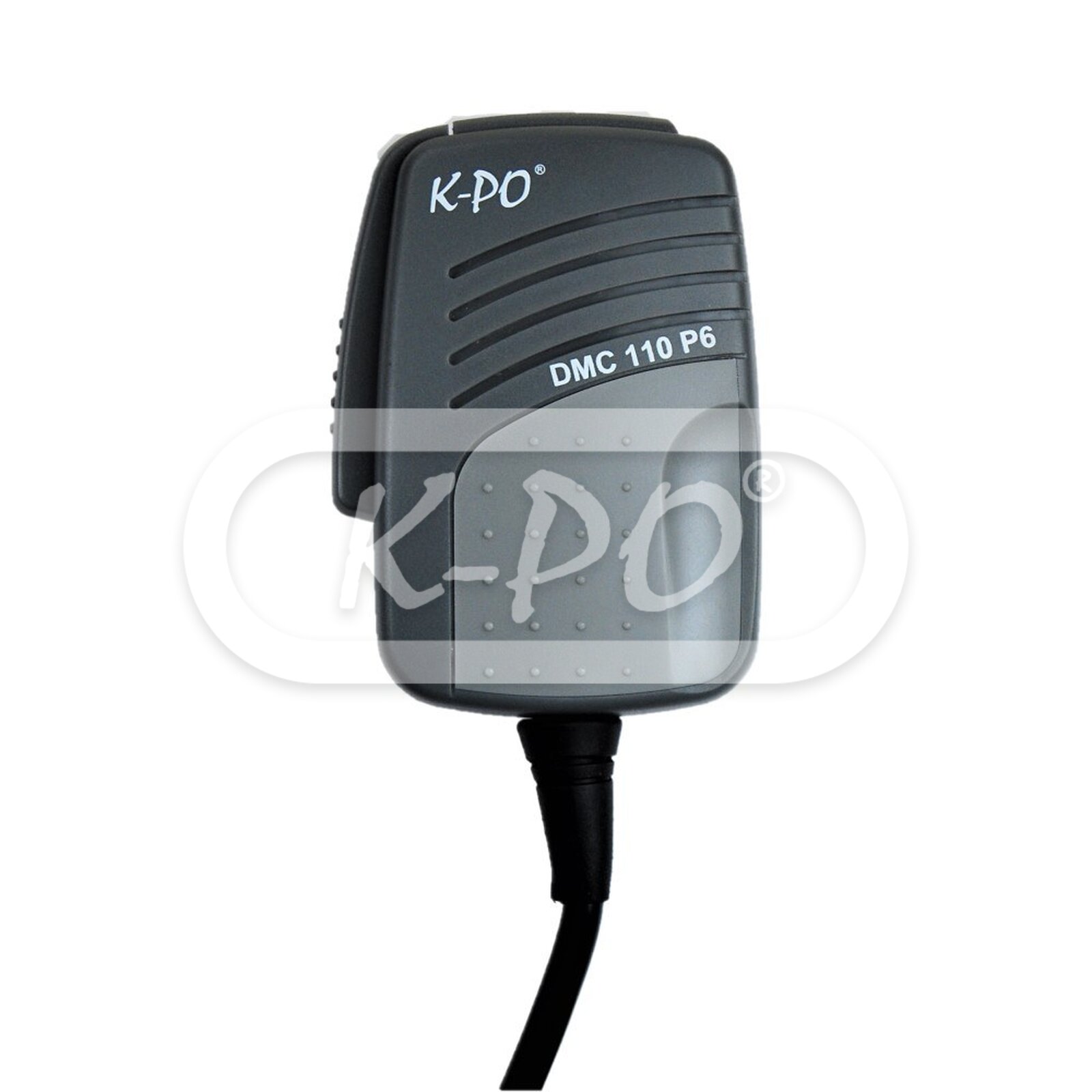

The K-PO DMC 110 P6 is a nice small, high quality microphone. This is an universal microphone and is suitable for most 6 pin CB radios.

Shipped next business day
€15.66 (15.66 excl. 0% VAT)

Features

  • Suitable for: 6-pin standard connector / Midland Alan 48 Excel / Midland Alan 48 Plus / Midland Alan 48 PRO / Midland Alan 78 Plus / Midland Alan 78 PRO / President Andy / President Barry ASC / President Barry II ASC / President Bill ASC / President Bill II ASC / President Grant Classic / President Harry ASC / President Harry II ASC / President Harry III ASC / President Jackson II / President JFK II / President Jimmy II ASC / President Johnny / President Johnny ASC / President Johnny II / President Johnny III / President Johnson II / President Johnson II VOX / President Martin ASC / President MC Kinley / President Richard / President Ronald / President Taylor II Classic / President Taylor III ASC / President Taylor IV ASC / President Teddy / President Teddy II ASC / President Tommy / President Truman / President Walker / President Walker II ASC /
  • Microphone type: Dynamic microphone

Electrical data

  • Frequency response: 300-8000 Hz
  • Impedance: 500 Ohm
  • Sensitivity: -72dB ± 3dB (at 1kHz)

Mechanical data

  • Cable Length: 2.40 m

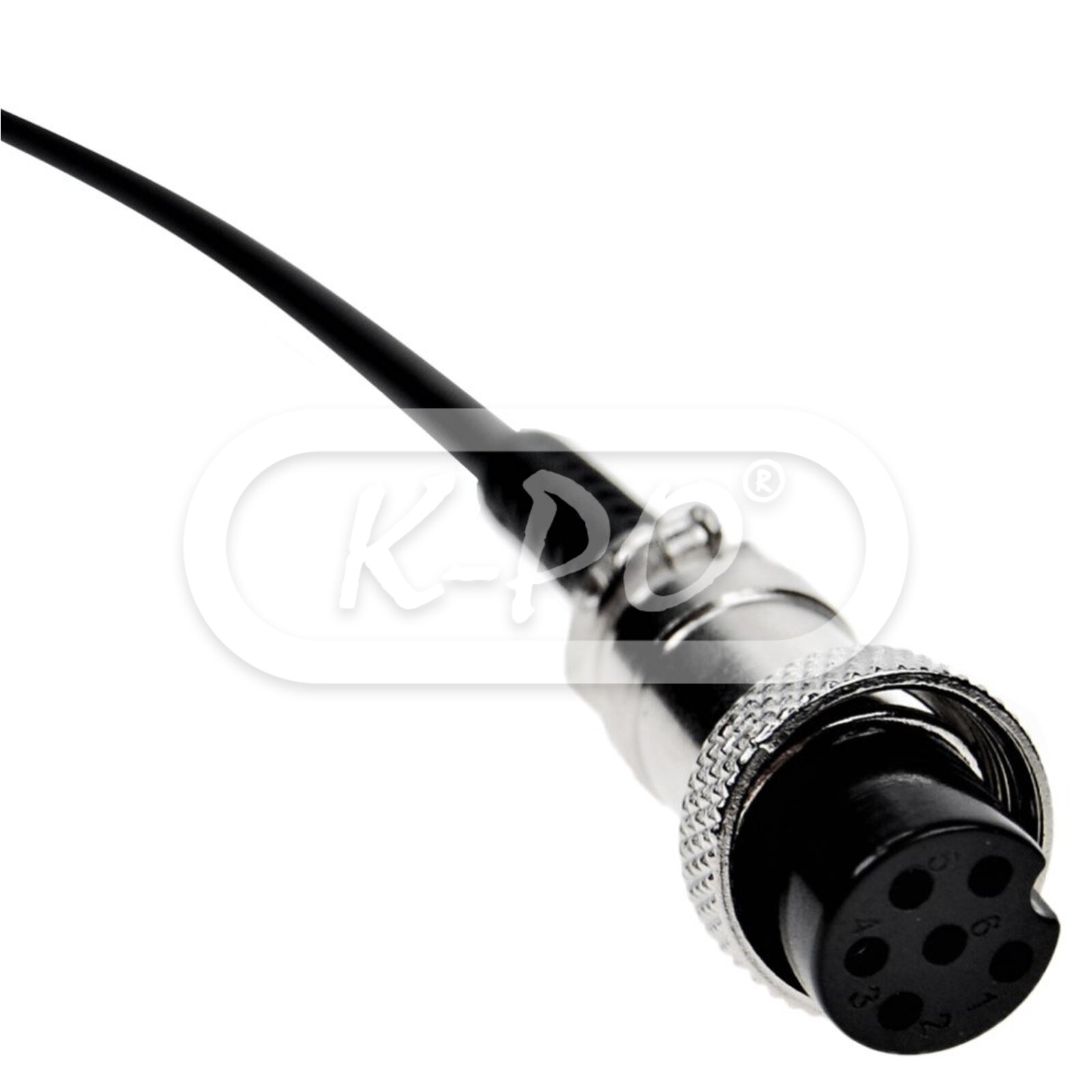

  • Microphone connector: 6-pin

Microphone wiring

  • Receive: Pin 2
  • Transmit: Pin 3
  • Mic Audio: Pin 1
  • Ground: Pin 5
