K-PO - DMC 520 E4

Product code: 910006

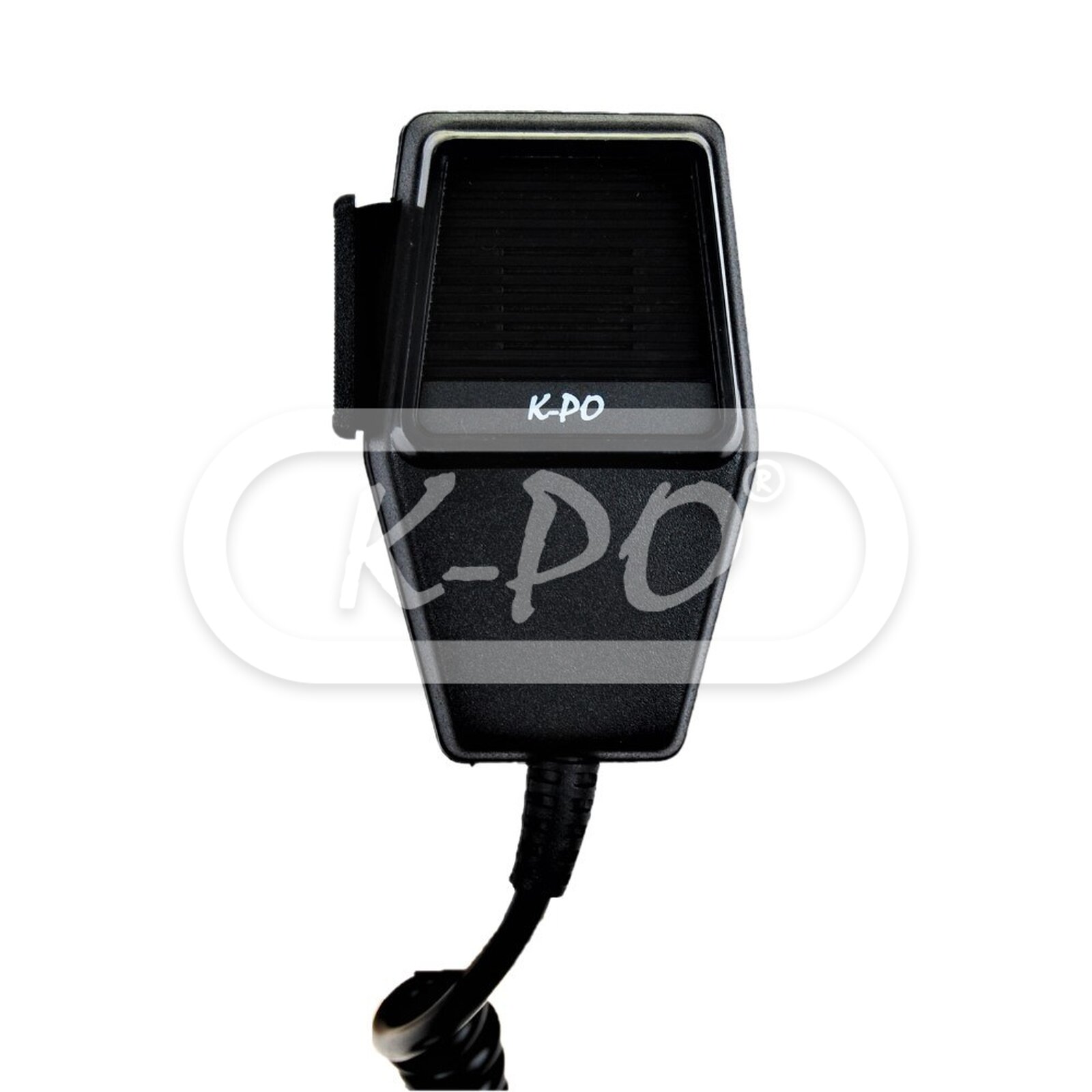

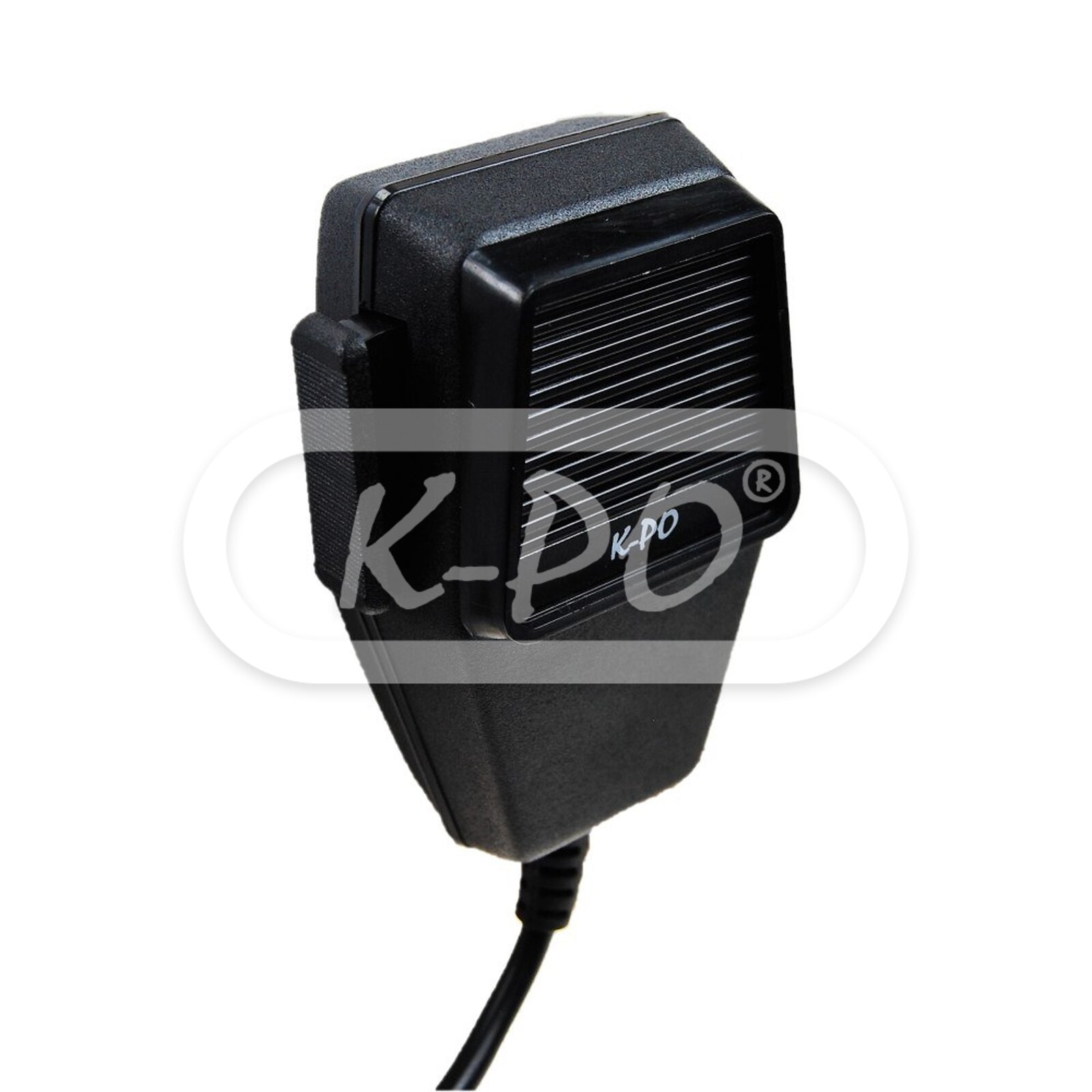

The K-PO DMC 520 E4 is a nice solid and high quality microphone. This is an universal microphone and is suitable for most 4 pin CB radios.

Note - Discontinued

€ -- (Discontinued)

Features

• Suitable for: 4-pin E4 connector / Midland Alan 48 / Midland Alan 68 / Midland Alan 68 S / Midland 8001 S / Midland 8001 XT / Midland Alan Quarantotto / Midland Alan Sessantotto /
• Microphone type: Dynamic microphone

Electrical data

• Frequency response: 200 - 5000 Hz
• Impedance: 500 Ohm
• Sensitivity: -76 dB (0 dB=1 V/u bar)

Mechanical data

• Cable Length: 2.20 m

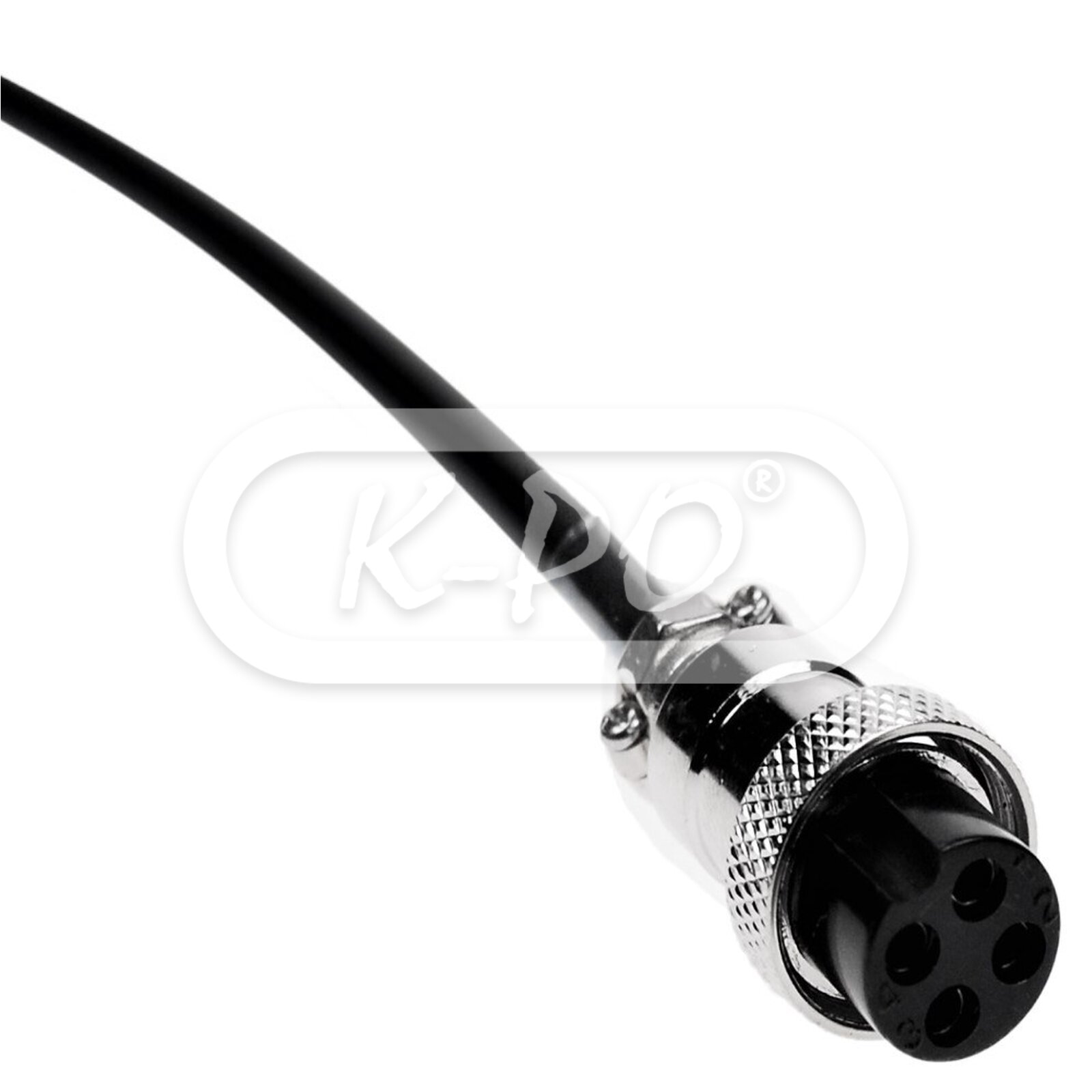

• Microphone connector: 4-pin

Microphone wiring

• Receive: Pin 3
• Transmit: Pin 4
• Mic Audio: Pin 1
• Ground: Pin 2
