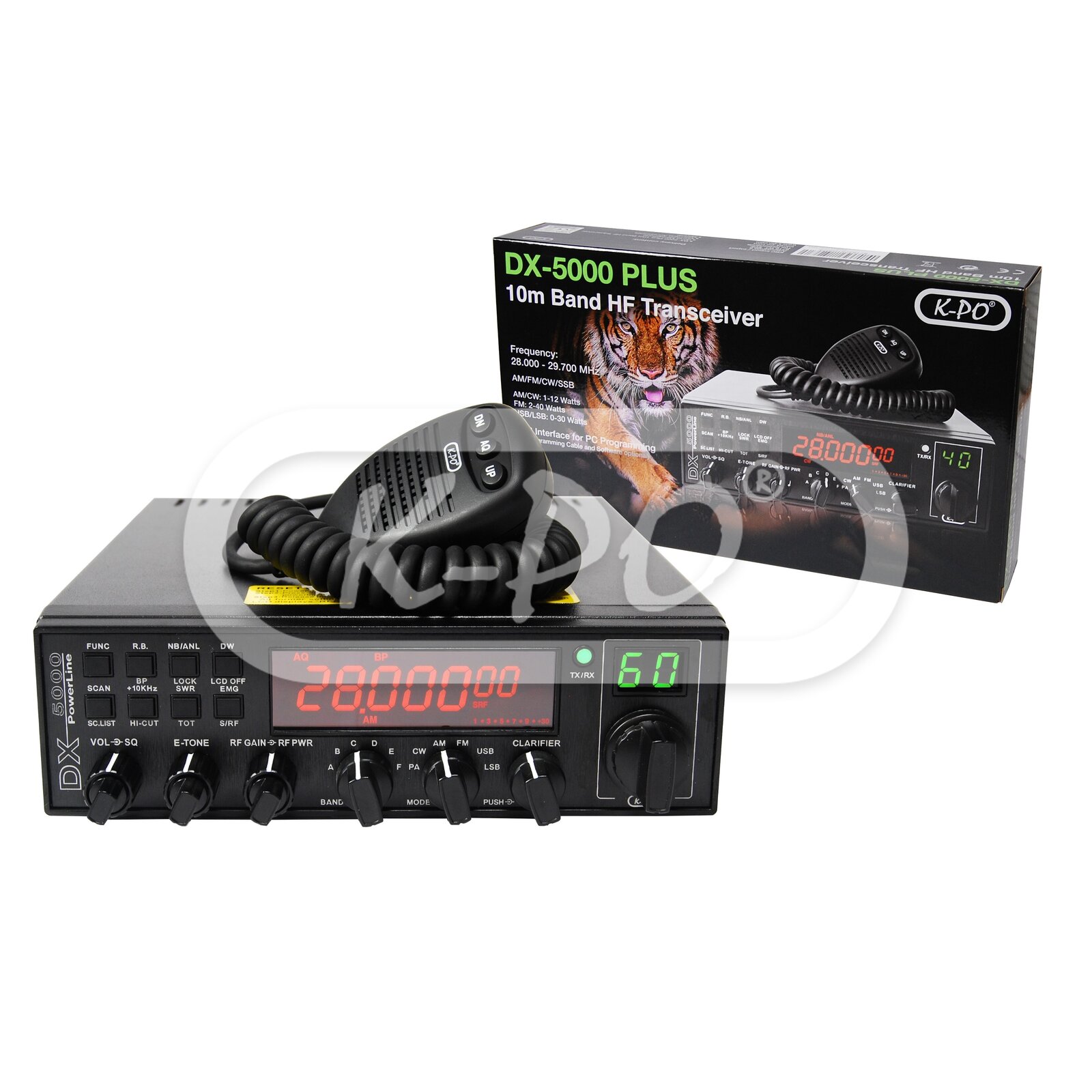

K-PO - DX-5000 VFO

Product code: 2714

Factory code: 2714

Barcode: 8718375100028

We expect the first batch in mid to late October 2026!

The K-PO DX-5000 VFO is the latest version of our popular DX-5000 series, based on the PLUS (V8.0) platform.

It is the only version in this series to feature an additional true VFO mode. When VFO mode is selected in the radio menu, you can directly enter your desired frequency into the radio.

Other and new key features are:

Dimmable backlight
Shorter radio body
RX noise reduction, NRC (extra PCB inside the radio)
5 kHz step
VOX
CTCSS/DCS codes
RX compander
Noise gate
Microphone type selection: electret or dynamic

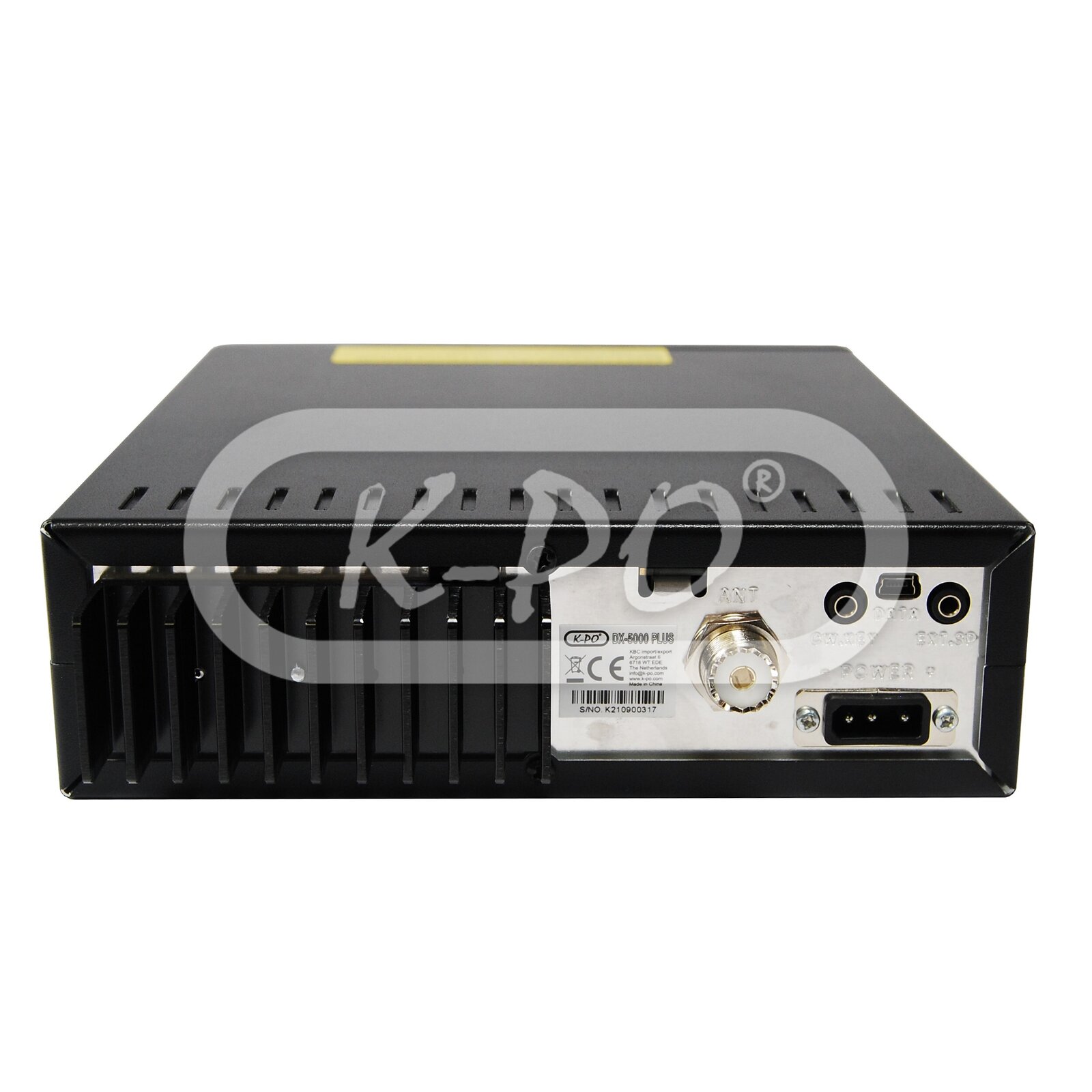

Program cable connector on the back of the radio (program cable is optional)
Extra ventilation holes on the top and bottom covers

Amateur radio HF mobile transceiver, covers the 28 MHz frequency band reserved to Amateur Radio communication. Frequency range 28.000-29.700 kHz, adjustable frequency steps (10Hz, 100Hz, 5kHz, 1kHz or 10KHz). Adjustable TX RF power, 12W max AM/CW, 40W max FM, 35W max SSB. Multiple Clarifier operating modes. Flexible menu functions and PC programming software to fit radio to each operator’s demand. Large backlighted amber color LCD Display with digital S/RF Meter, shows full 7-digit frequency readout,plus 2- digit LED display. RF Gain, RF Power, Clarifier, Dual Watch,Scan, TOT, NB/ANL, LOCK, LCD Off, +10KHz, SQ/ASQ functions.

High quality Dynamic microphone with UP/DN frequency and AQ controls. DC Voltage display function. SWR protection and power supplied voltage protection. Software allows to program frequency range limits, frequency channels, Mic Gain limits, factory reset function, CW side tone frequency and volume, RB holding time and much more.

Frequency range: 28.000 - 29.700 MHz

Shipped next business day - Stock: 4

€209.95 (173.51 excl. 21% VAT)

Features

Modulation: AM / FM / SSB / CW
Output power: AM/CW: 12 Watt / FM: 40 Watt / SSB: 40 Watt
Channels: 360
Display type: LED display
Display colors: Red
Export version: 24.715 - 30.105 MHz (programmable)
VOX Function: Yes
Noise blanker: Yes
Squelch: Automatic squelch / Manual squelch /
Scan function: Yes
Memory channels: Yes
External speaker socket: Yes
External S-meter socket: Yes
External PA socket: Yes
S-meter: Yes
MIC gain: Yes
RF gain: Yes
TOT (time out timer): Yes
Dual watch: Yes
CTCSS codes: Yes
DCS codes: Yes
RX Compander: Yes
Noise gate: Yes
RX Noise reduction: Yes
NRC Filter: Yes, RX/TX noise reduction -adjustable 5 levels- particularly effective in SSB
VFO mode: Yes

Electrical data

Voltage: 13,8 Volt
Frequency step: 1 kHz / 5 kHz / 10 kHz / 10 Hz / 100 Hz /
Frequency stability: 0.001%
Operating temperature: -30° to +55° C
Frequency control: PLL synthesizer
Frequency tolerance: 0.005%

Transmitter

Audio frequency response: 450 Hz - 2.5 kHz
SSB Carrier Suppression: 55 dB
Unwanted sideband: 50 dB
Modulation AM: High and low level class B amplitude
Modulation FM: Varied capacitance frequency
Inter modulation distortion SSB: 3rd order, more than -25 dB / 5th order, more than -35dB

Receiver

Frequency response: 300 Hz - 2.8 kHz
Maximum audio power: 4 Watt
Internal speaker: 8 Ohm, round
SSB sensitivity: 0.25 µV for 10 dB (S+N)/N at greater than 1/2 Watt of audio output.
AM sensitivity: 1.0 µV for 10 dB (S+N)/N at greater than 1/2 Watt of audio output.
FM sensitivity: 1.0 µV for 20 dB (S+N)/N at greater than 1/2 Watt of audio output.
IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
Image rejection: More than 65 dB
ANL: Yes, switchable
Squelch: Adjustable, threshold less than 0.5 μV Automatic Squelch Control (only AM/FM)
Automatic Gain Control (AGC): Less than 10 dB change in audio output for inputs from 10 to 100,000 mV
Noise Blanker: RF type, effective on AM/FM and SSB
AM/FM selectivity: 6 dB at 3 kHz / 50 dB at 9 KHz
SSB selectivity: 6 dB at 2.1 kHz / 60 dB at 3.3 KHz
Adjacent channel selectivity AM/FM: 60 dB
Adjacent channel selectivity SSB: 70 dB
