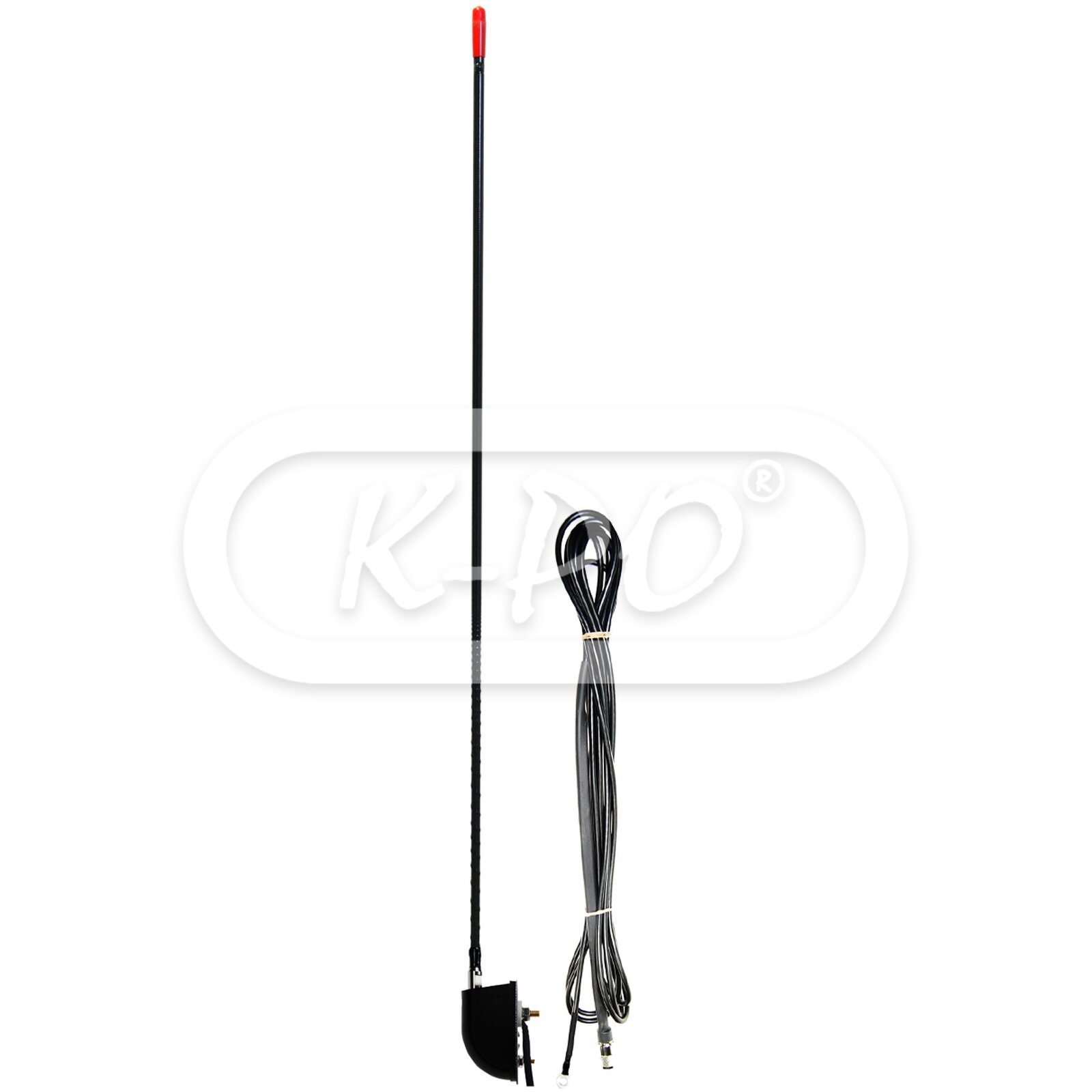

K-PO - Flex 3 M2 NGP

Product code: 300812
Factory code: 300812
Barcode: 8781375102132

A flexible high power no ground plane antenna with 3/8 side mount. Can be placed on plastic surfaces or any other surface that don't give enough ground to the antenna. Can be used on agricultural machines, trucks, campers, 4x4 and others.

Frequency range: 26.965 – 27.405 MHz
Out of stock - Longer delivery time
€79.94 (66.07 excl. 21% VAT)

Electrical data

  • Electrical type: Logarithmic loaded
  • VSWR: ≤ 1.4
  • Maximum continuous power: 100 Watts (CW)
  • Power peak: 300 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes

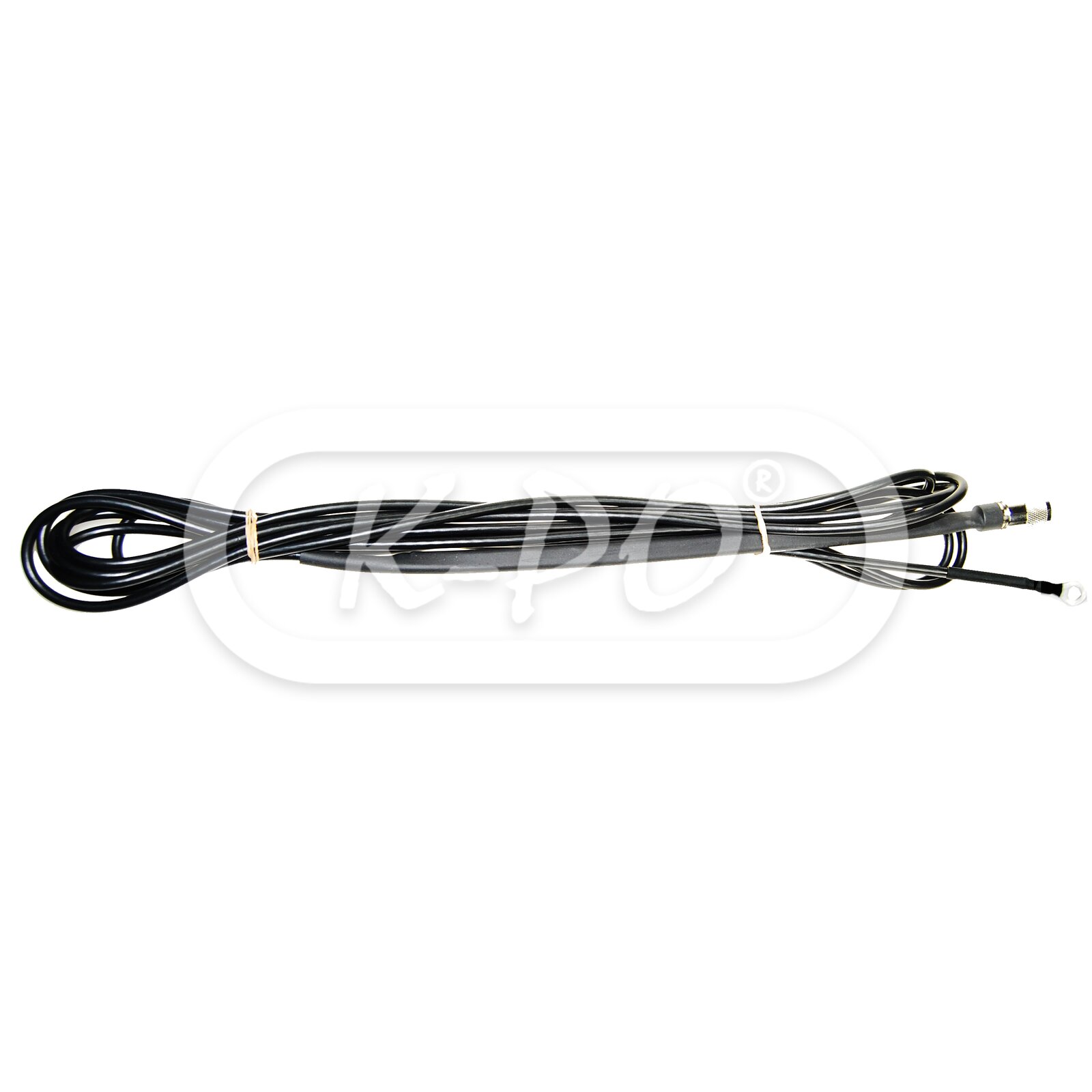

  • Cable length: 5.15 meter / RG 58

Mechanical data

  • Materials: Copper, chromed brass, fiberglass
  • Height: 900 mm
  • Weight: 135 gram

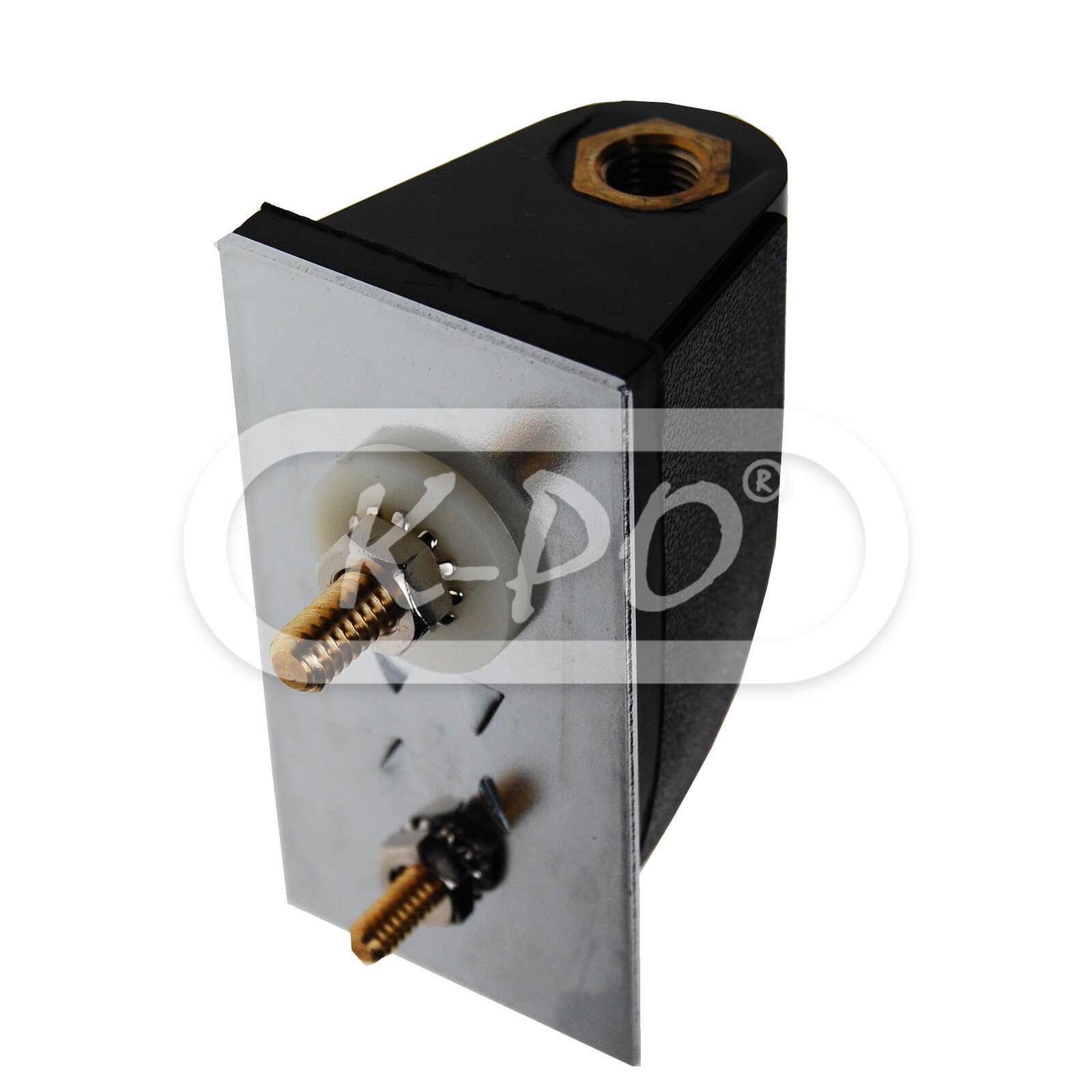

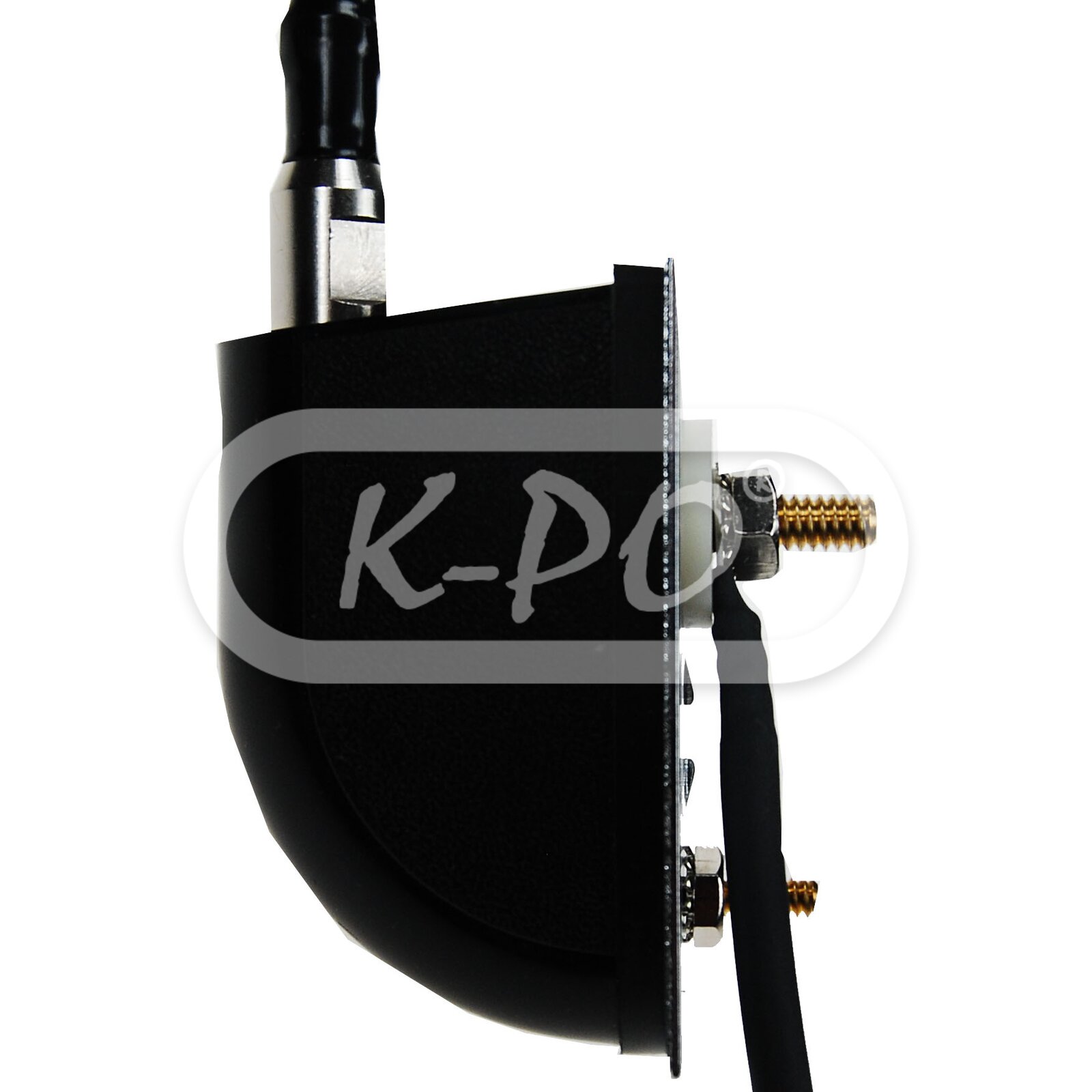

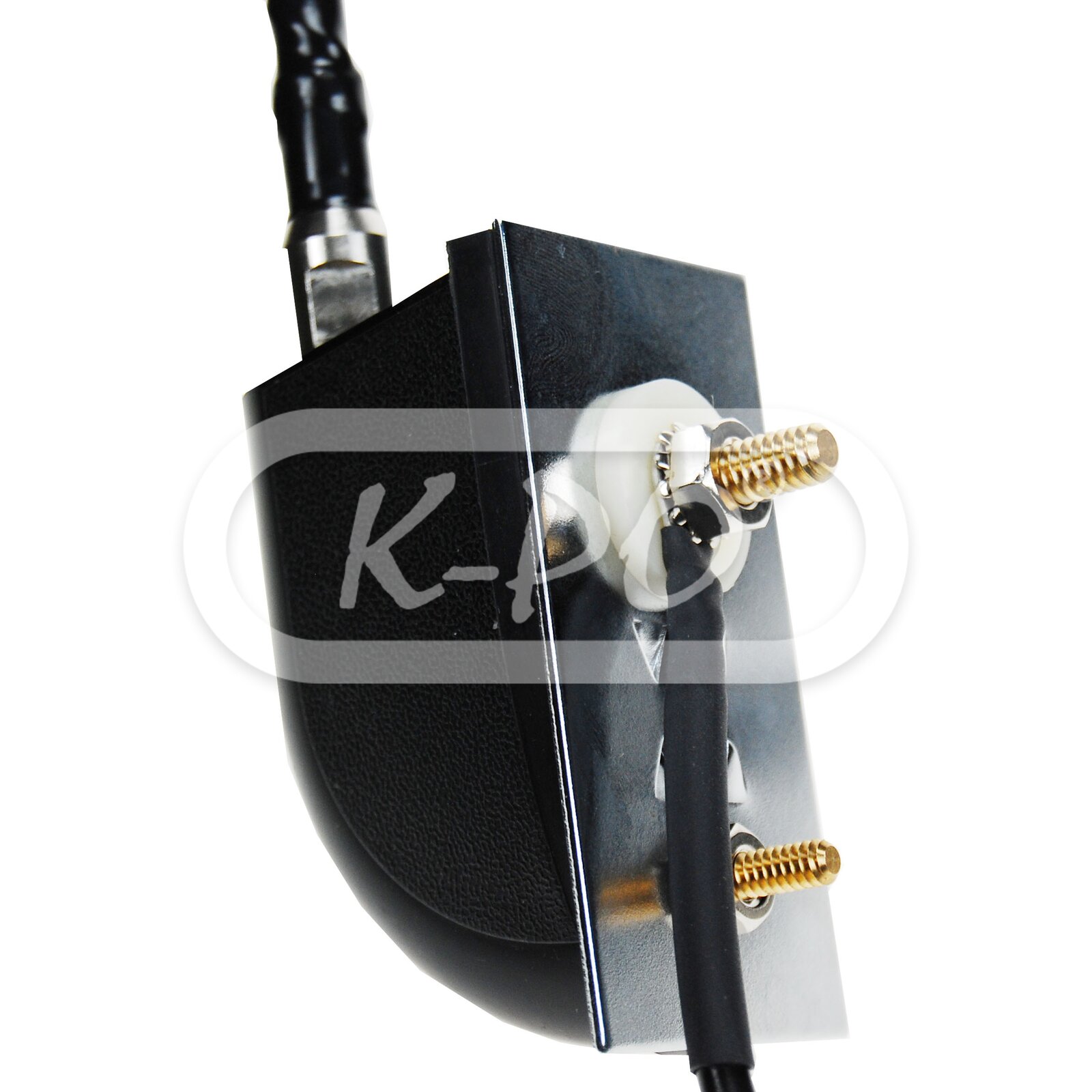

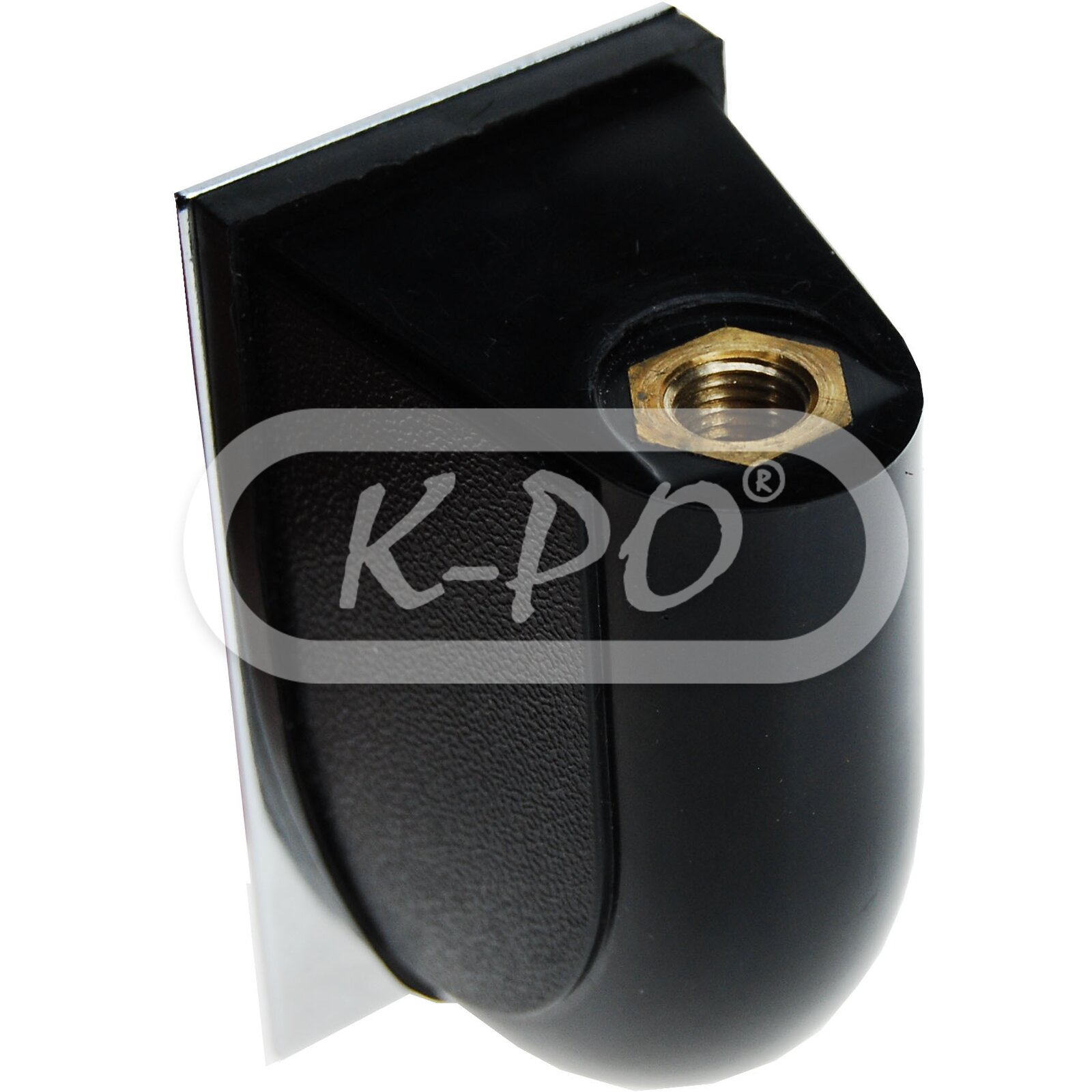

  • Mounting type: 3/8 side mount

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-male (PL)

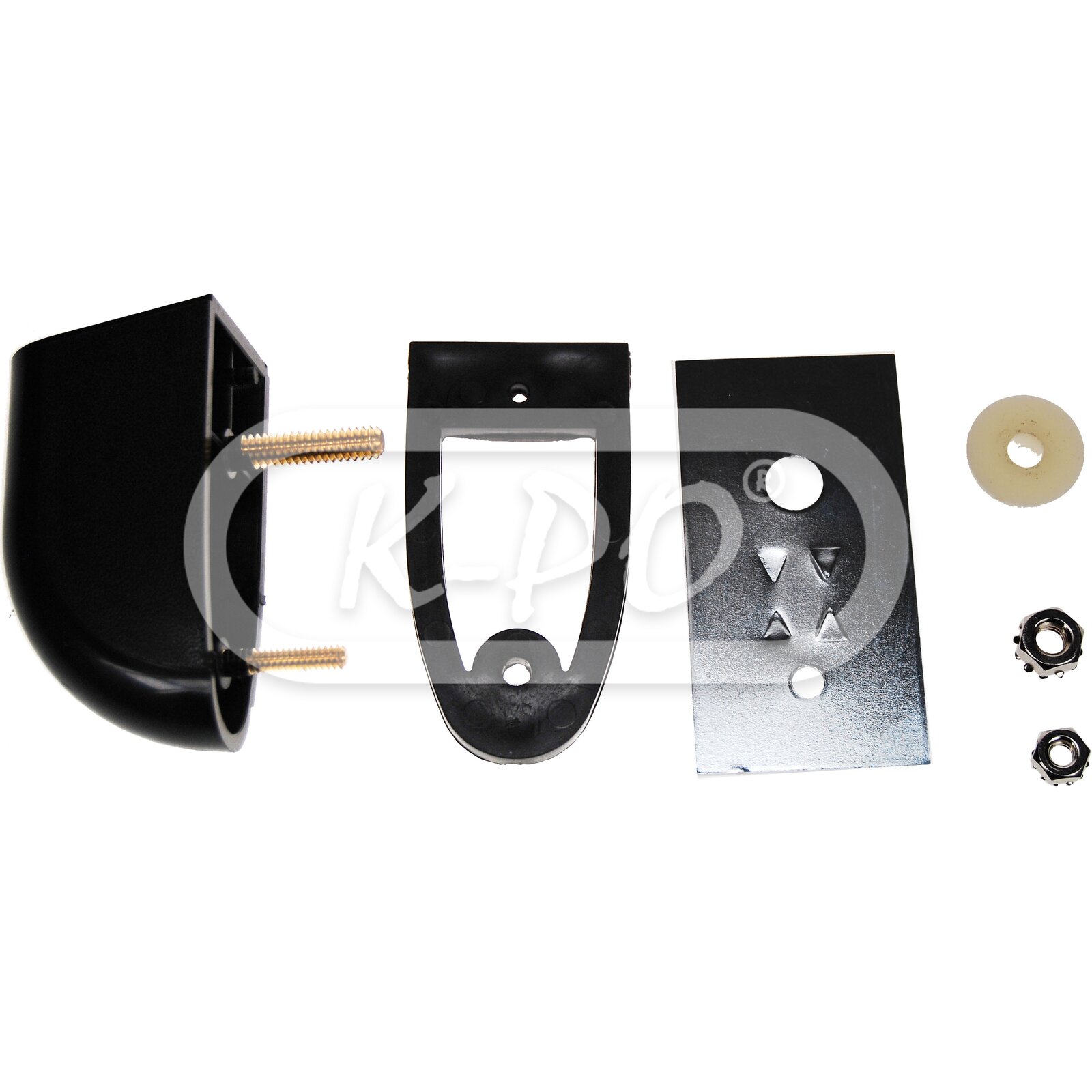

  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
