K-PO - HF 240 PVC (RF 240 LTA)

Product code: 960240
Factory code: 960240

The K-PO HF 240 PVC (RF 240 LTA) is a military quality coax cable with CPR/ECA classification.

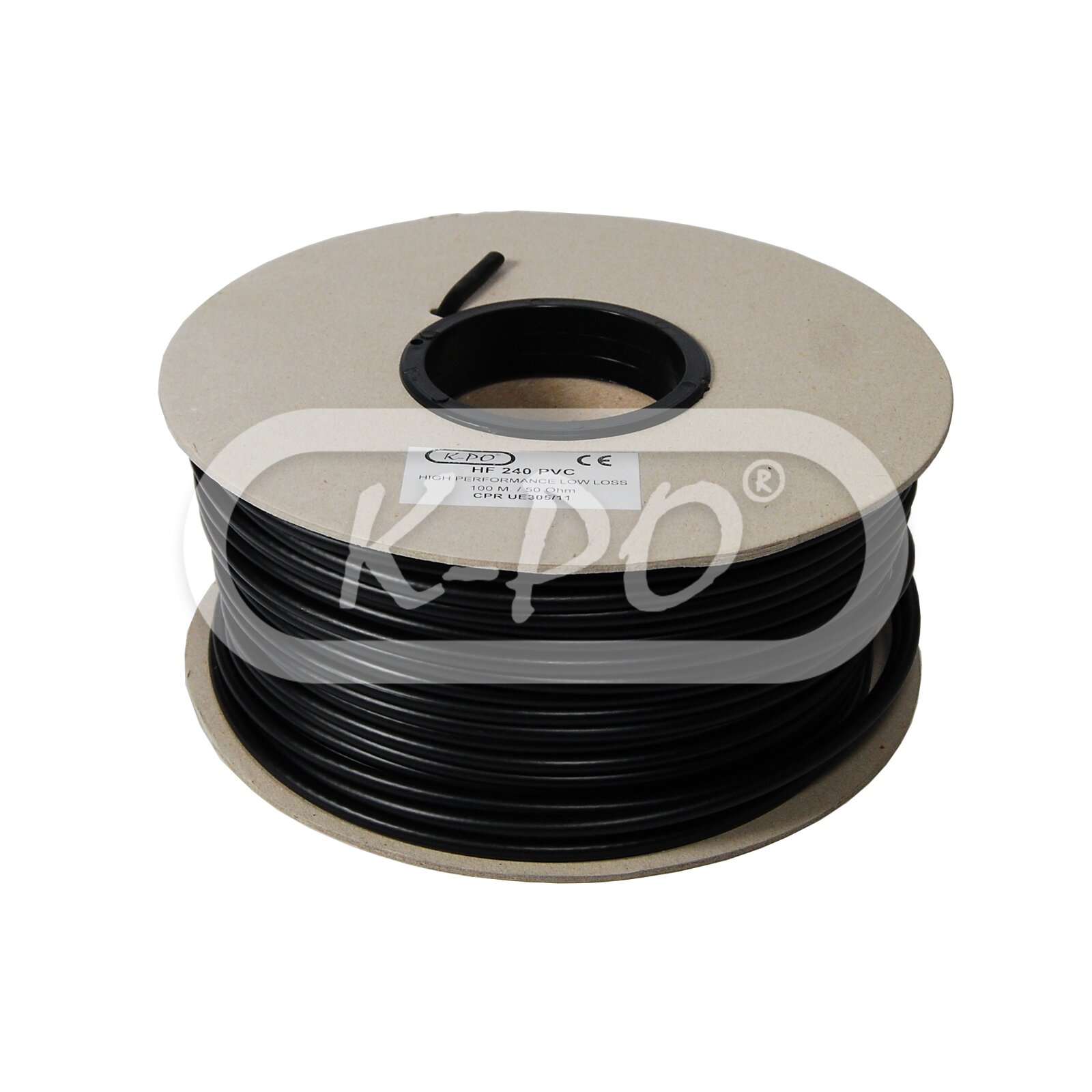

100 meter on roll, plastic package.

Shipped next business day
€90.86 (90.86 excl. 0% VAT)

Features

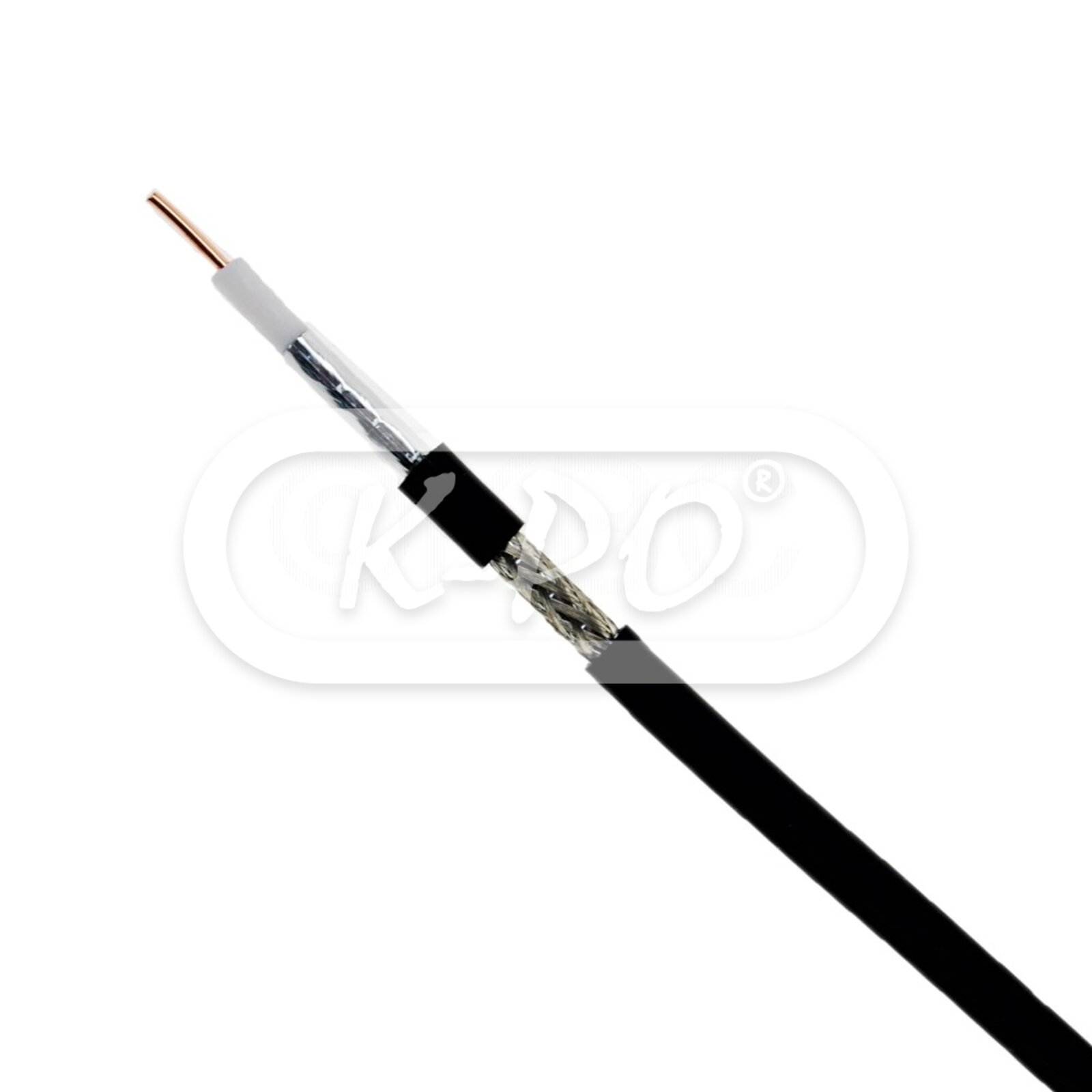

  • Plain copper inner conductor: ø 1,40 mm
  • Percentage coverage: 80%
  • Non-contaminating polyvinyl-chloride sheath: ø 6,10 ± 0,10 mm
  • Sheath color: Black - RAL 9004
  • Copper weight: 2.59 kg (100m)
  • Cable weight: 5.3 kg (100m)
  • Impedance: 50 ± 3 Ohm
  • Capacitance: 80 pF/m
  • Velocity ratio: 84%
  • Inner conductor resistance: 11,5 Ohm/Km
  • Temperature range: -30°C to +70°C
  • Tinned copper outer conductor: 112 x 0,12 mm
  • Foam polyethylene: ø 3,80 ± 0,10 mm

    Attenuations db/100m.

  • 5 MHz: 1.9 dB
  • 10 MHz: 2.7 dB
  • 30 MHz: 4.4 dB
  • 50 MHz: 5.6 dB
  • 150 MHz: 9.5 dB
  • 220 MHz: 11.7 dB
  • 450 MHz: 17.4 dB
  • 600 MHz: 20.2 dB
  • 800 MHz: 23.5 dB
  • 900 MHz: 24.7 dB
  • 1000 MHz: 26.4 dB

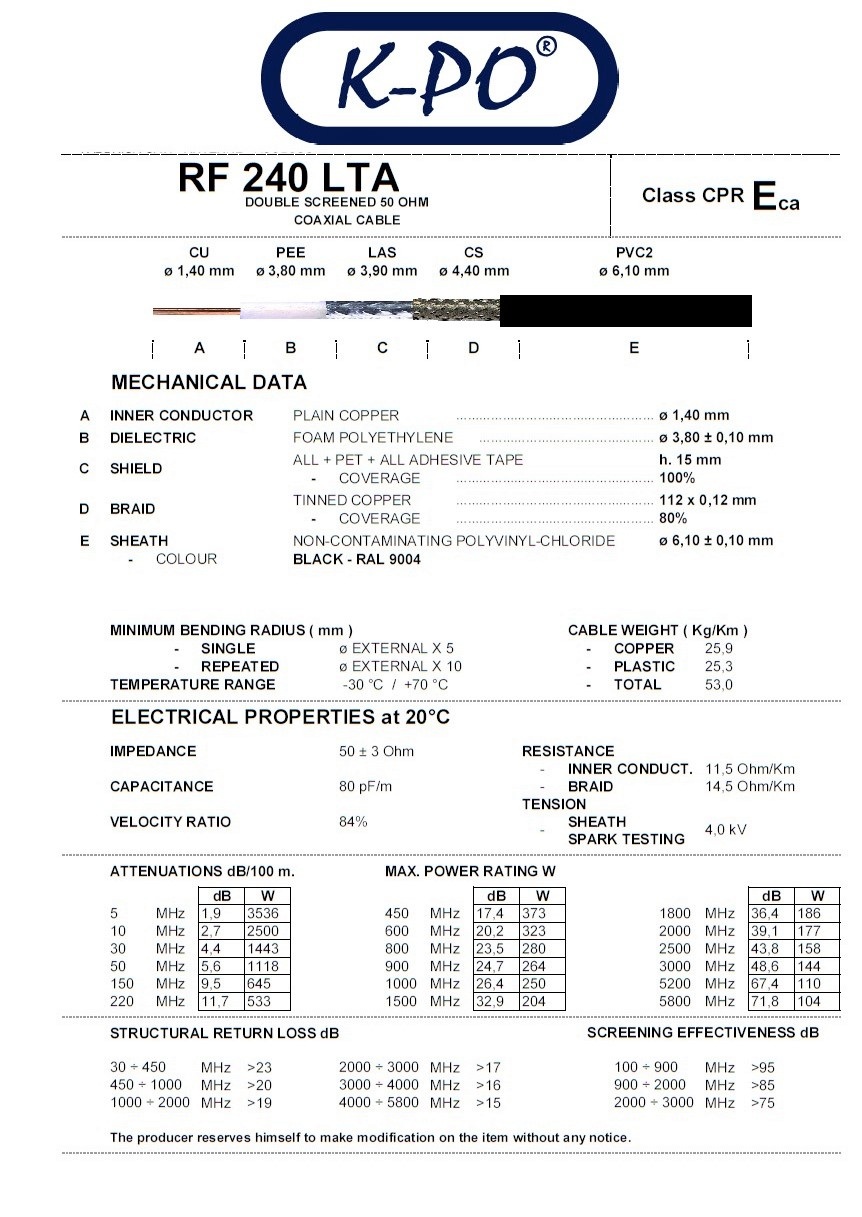

Downloads
