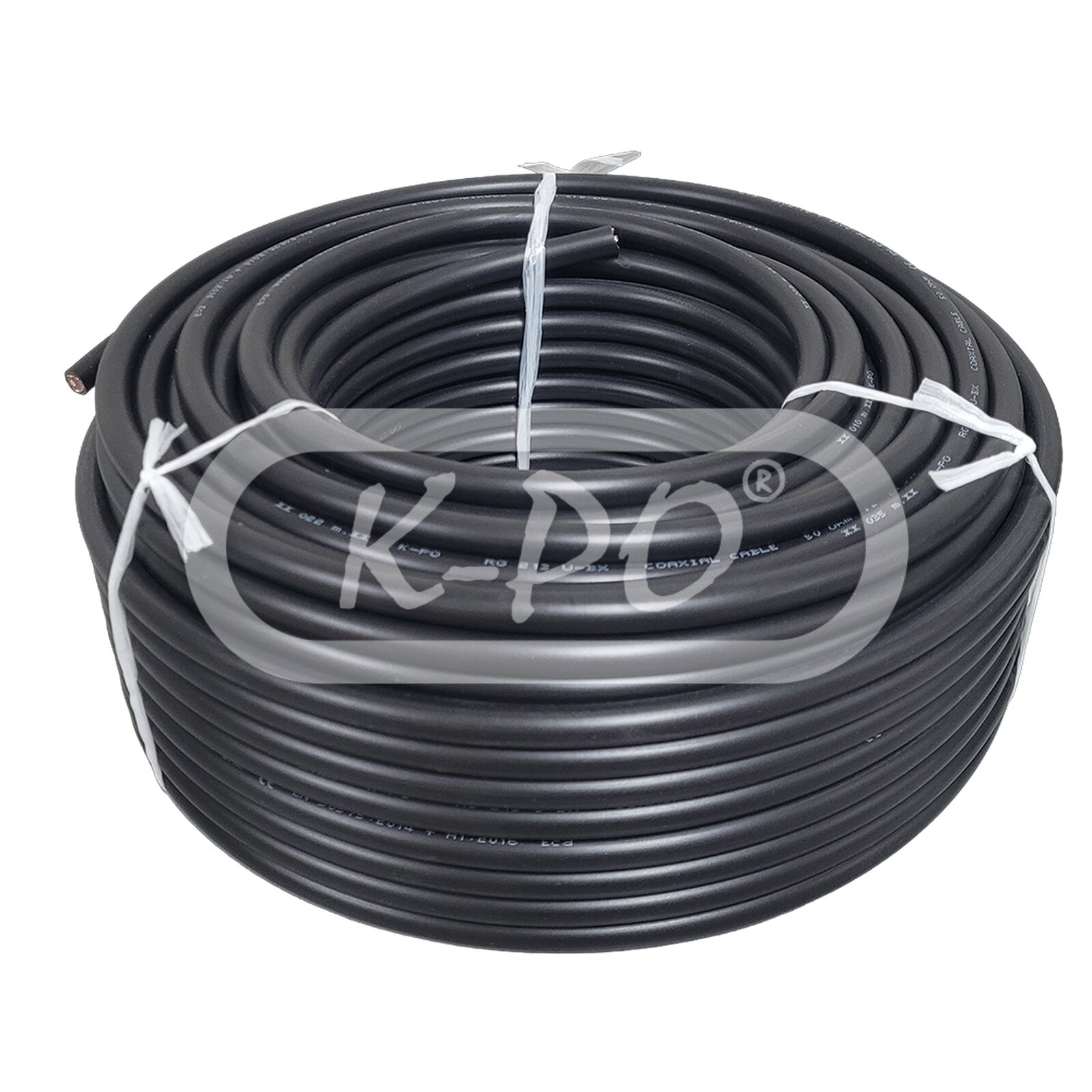

K-PO - HF-5000 / 50 meter

Features

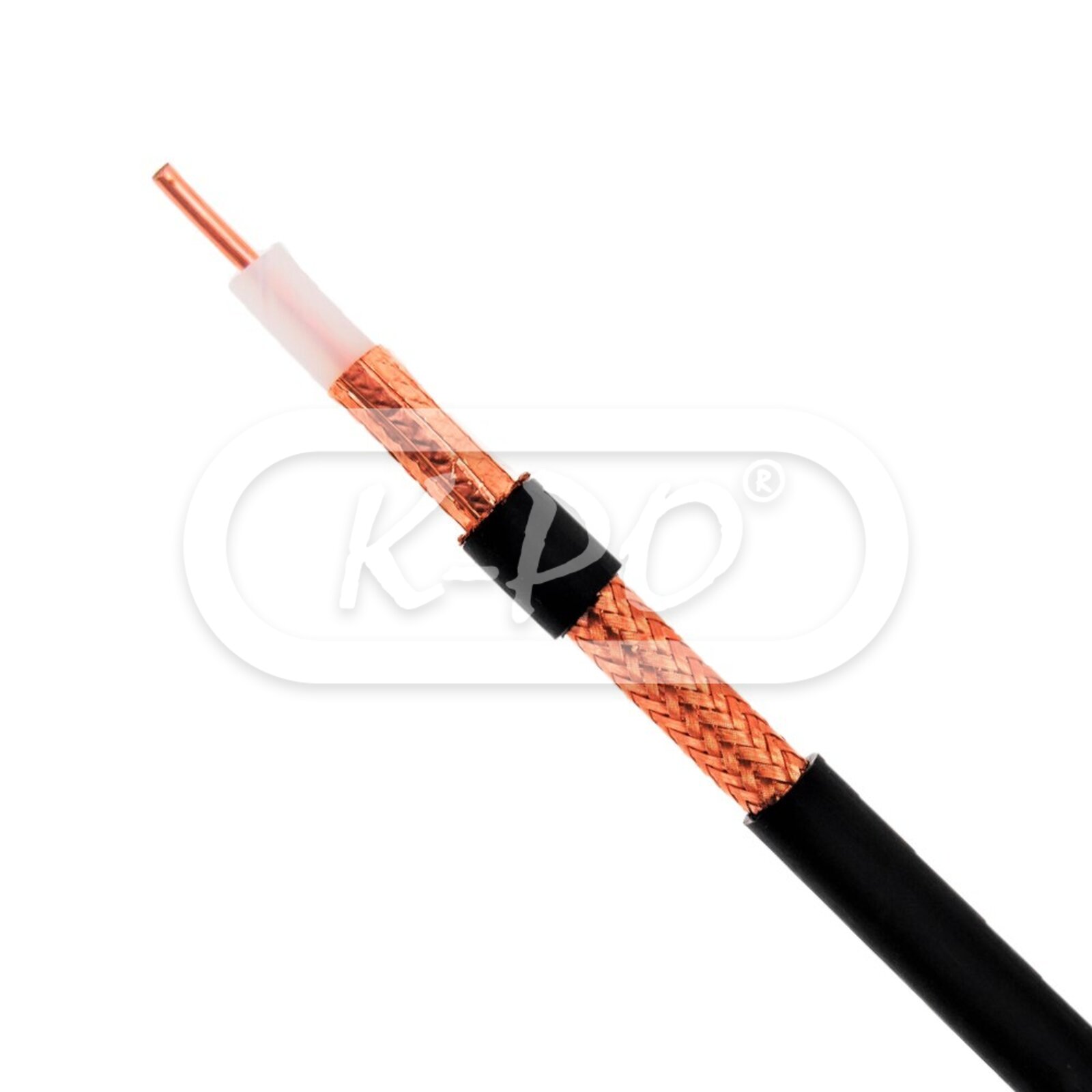

• Plain copper inner conductor: ø 2,50 mm
• Low density polyethylene dielectric: ø 6,90 ± 0,20 mm
• Plain copper outer conductor: 192 x 0,15 mm
• Percentage coverage: 96%
• Sheath color: BLACK - RAL 9004
• Copper weight: 8.85 kg (100m)
• Cable weight: 14.8 kg (100m)
• Impedance: 50 ± 3 Ohm
• Capacitance: 80 pF/m
• Velocity ratio: 84%
• Inner conductor resistance: 3,7 Ohm/Km
• Outer conductor resistance: 5,5 Ohm/Km
• Temperature range: -40°C to +75°C

Attenuations dB/100m

• 5 MHz: 1.0 dB
• 10 MHz: 1.3 dB
• 50 MHz: 2.8 dB
• 100 MHz: 3.6 dB
• 220 MHz: 5.8 dB
• 500 MHz: 9.0 dB
• 600 MHz: 10.2 dB
• 800 MHz: 11.8 dB
• 900 MHz: 12.6 dB
• 1000 MHz: 13.4 dB
