K-PO - MB+5 P6

Product code: 930001

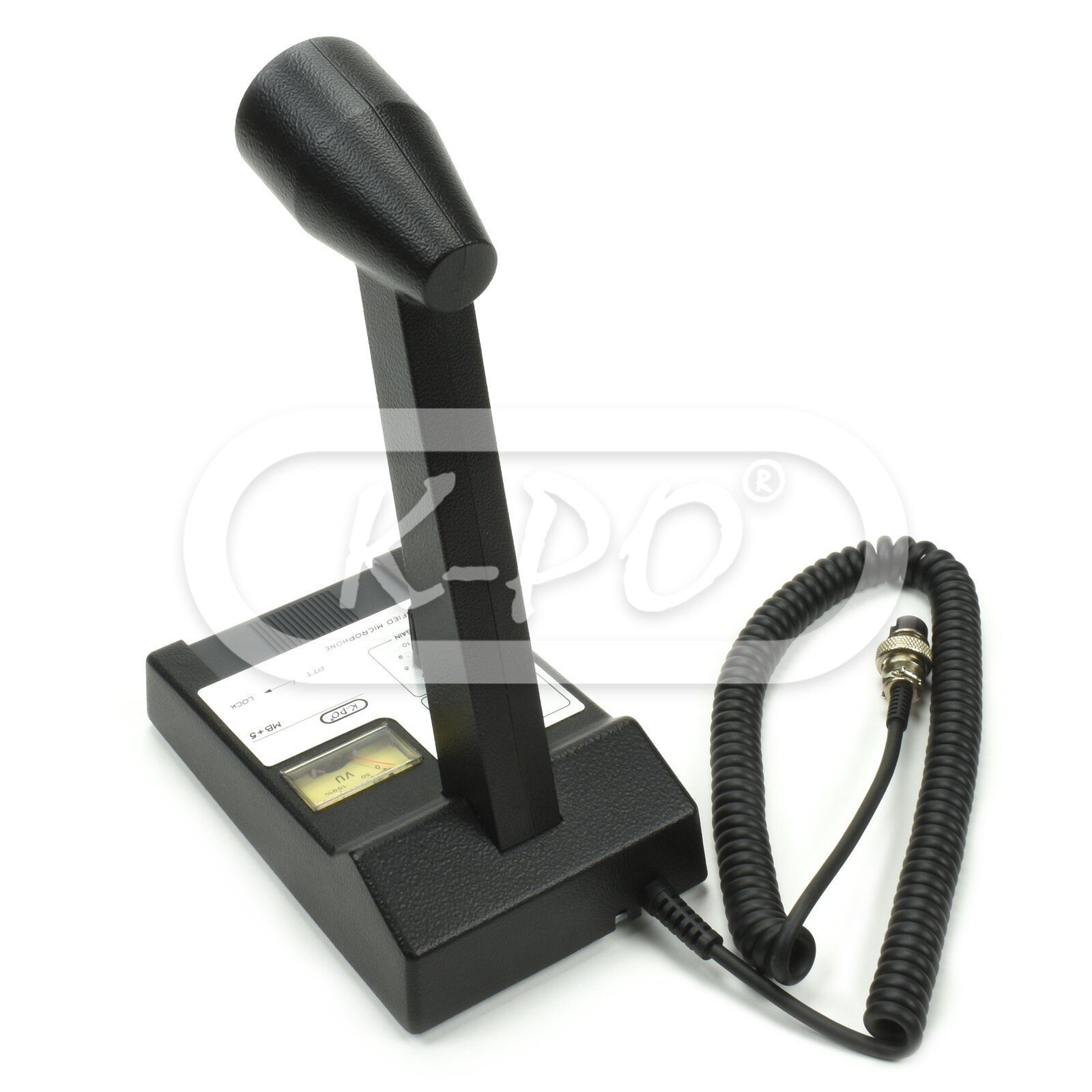

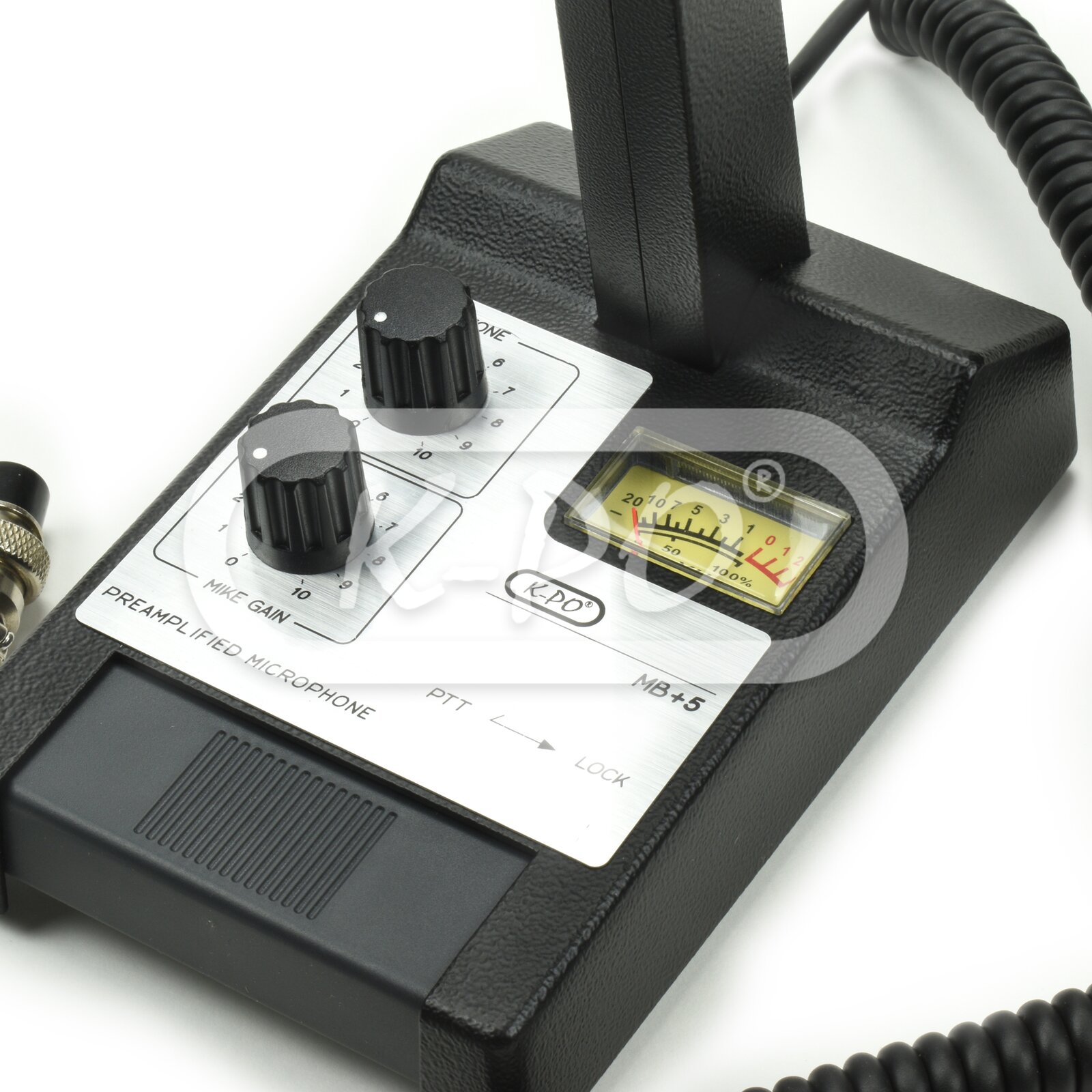

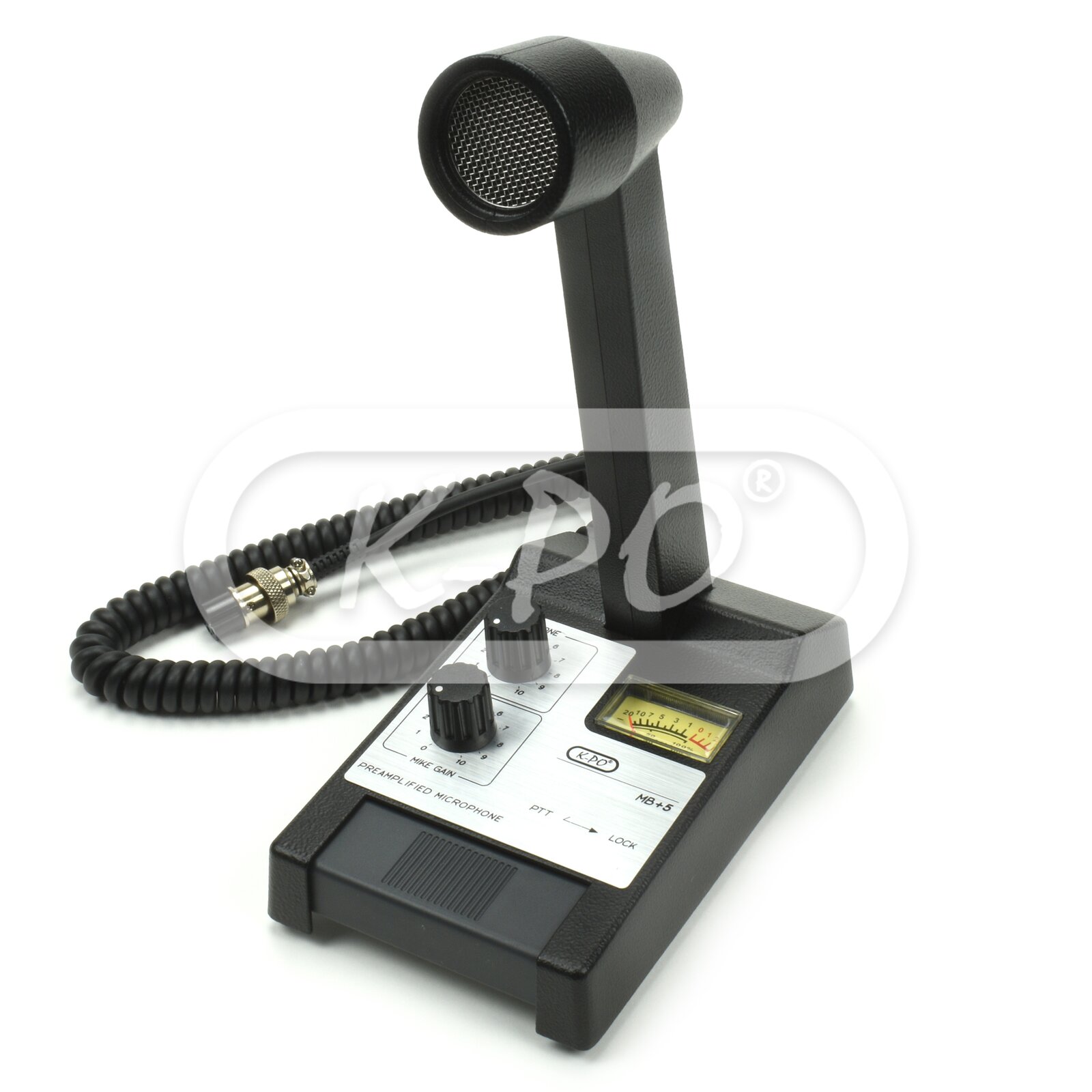

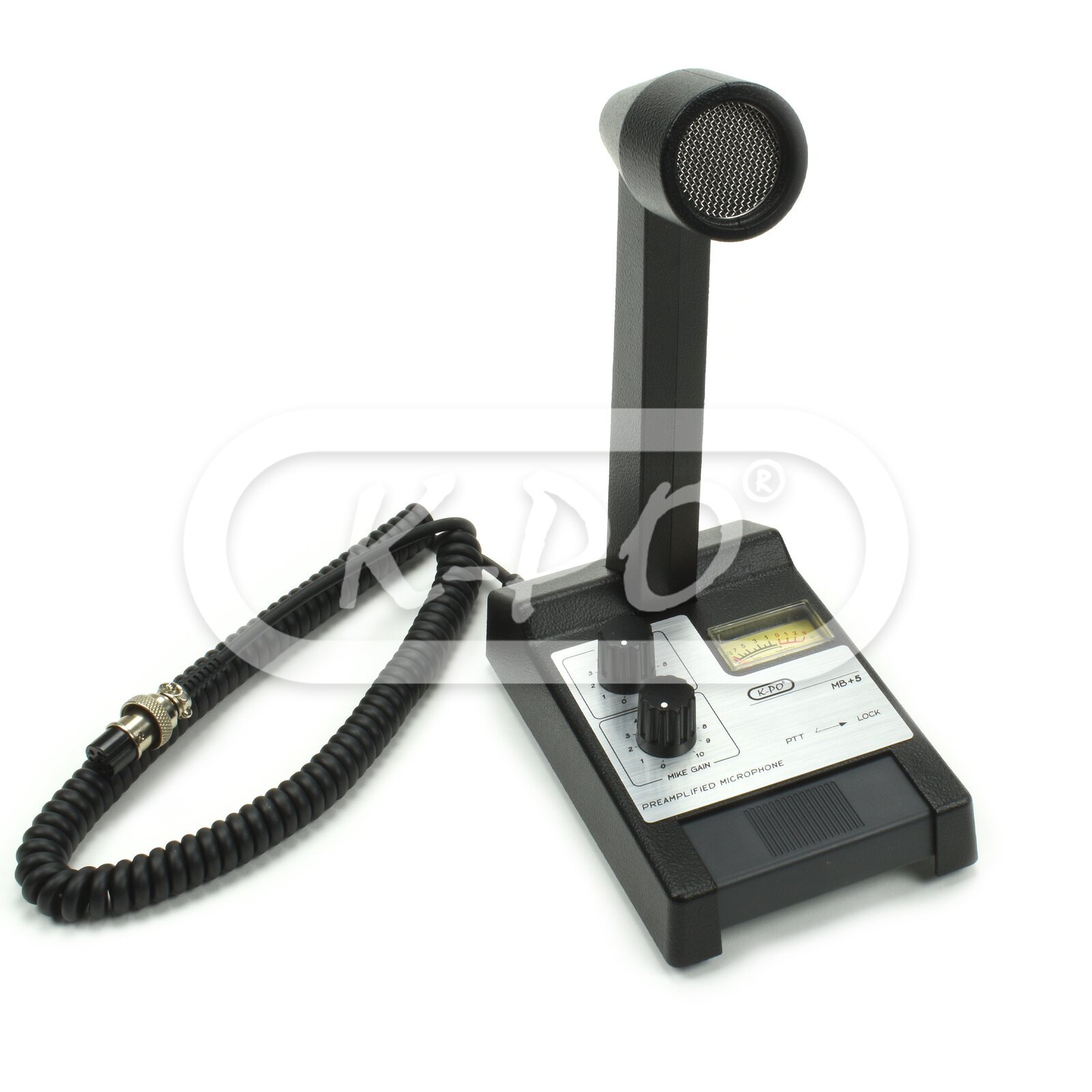

The K-PO MB+5 P6 is a robust desk microphone designed for CB and amateur radio use. It features rotary controls for precise adjustment of volume and tone, allowing you to set the audio to your personal preference.

The microphone connector is pre-wired for use with most standard 6-pin CB radio's, for example the Midland Alan 48 PRO, President Barry II+ and other radios that use the same standard 6-pin wiring.

A built in high gain amplifier of approximately 35 dB delivers a strong and clear audio signal, while the integrated volume compressor ensures consistent modulation during transmission. The output level can be accurately matched to virtually any transmitter, and the internal equalizer allows fine tuning of the sound characteristics.

The microphone operates on a 9 Volt battery, which is not included. An integrated analogue VU meter provides continuous visual feedback of the modulation level, helping you maintain optimal audio performance at all times.

Always check carefully if your transceiver is compatible with your version of the MB+5 microphone. We are not responsible for any damage caused due wrong usage (or wiring) of the microphone to your microphone or transceiver.

Shipped next business day
€99.95 (82.6 excl. 21% VAT)

Features

  • Mike gain function: Yes
  • Tone function: Yes
  • Microphone type: Power microphone

Electrical data

  • Frequency response: 250 – 3500 Hz
  • Output level: -23 (0 dB = 1V/μB)
  • Impedance: 0 – 5000 Ohm
  • Battery: 9 Volt battery 6LR61 (not included)

Mechanical data

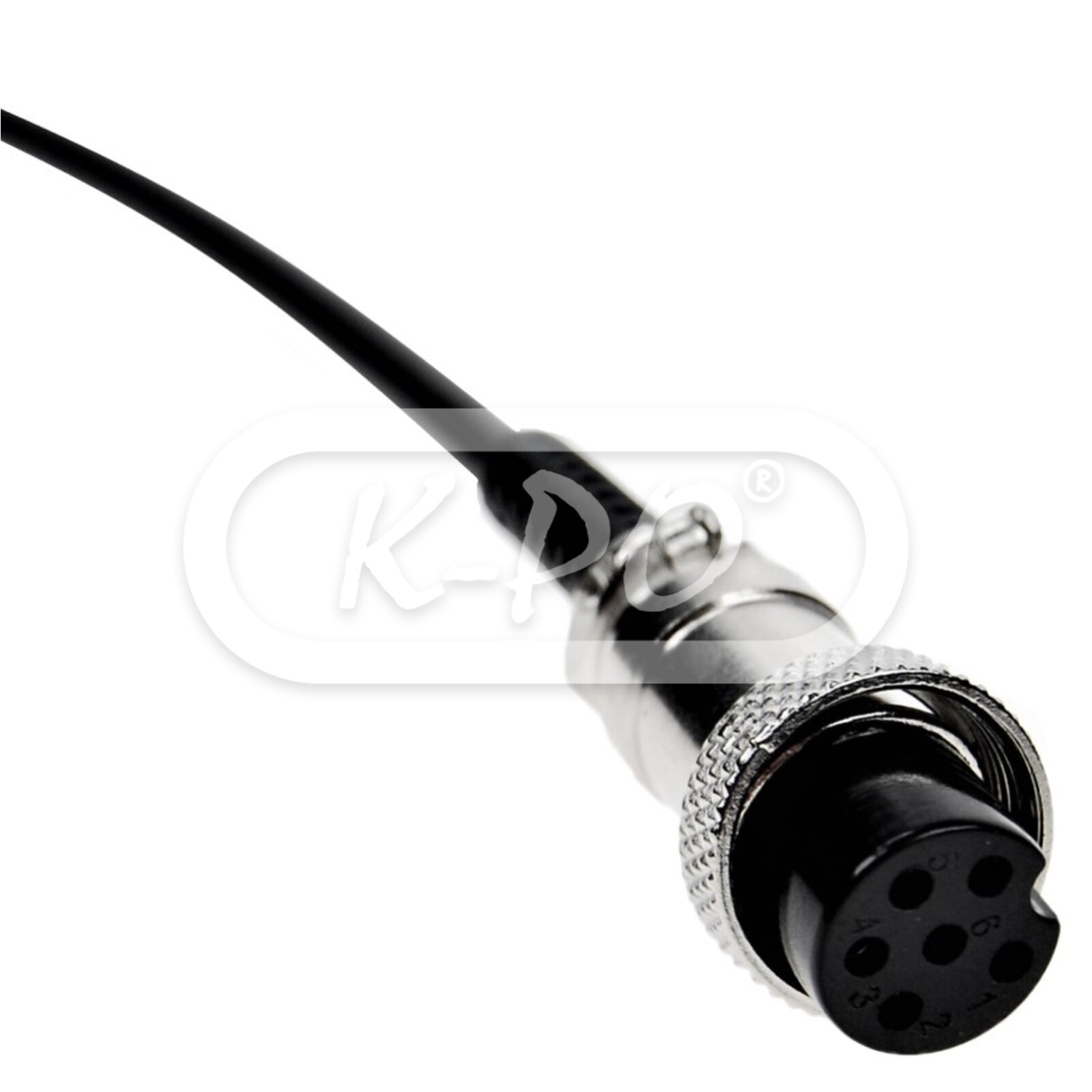

  • Microphone connector: 6-pin
  • Length: 95 mm
  • Height: 230 mm
  • Width: 160 mm
  • Weigth: 1100 gram

Microphone wiring

  • Mic Audio: Pin 1
  • Receive: Pin 2
  • Transmit: Pin 3
  • Not connected: Pin 4
  • Ground: Pin 5
  • Not connected: Pin 6
