K-PO - New KBC 27 NGP

Product code: 33327
Factory code: 33327
Barcode: 8718375101421

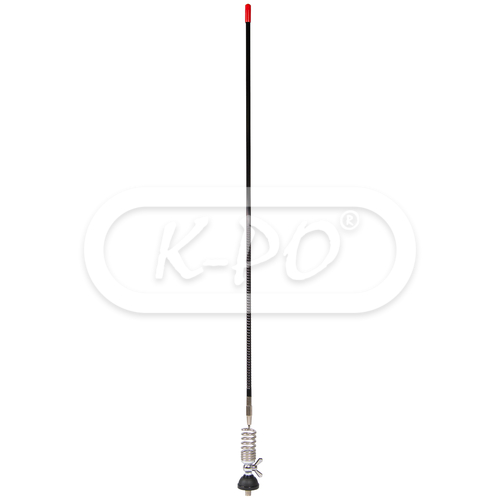

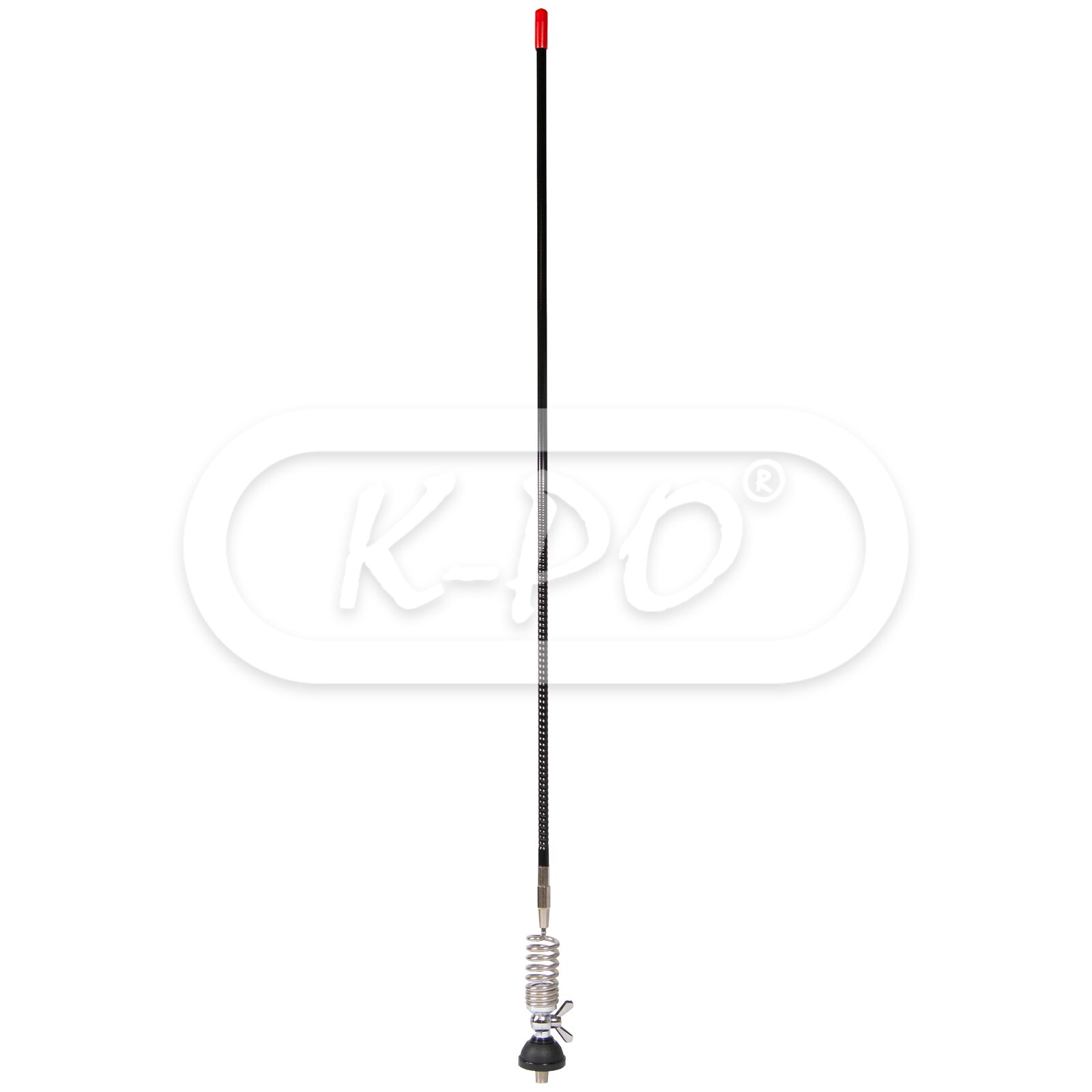

Together with the K-PO T3 NGP one of the most used no ground plane antennas. Can be placed on plastic surfaces or any other surface that don't give enough ground to the antenna. Can be used on agricultural and construction machines, trucks, campers, 4x4 and others.

Frequency range: 26.9 - 27.4 MHz
Shipped next business day
€66.07 (66.07 excl. 0% VAT)

Electrical data

  • Electrical type: Helical loaded
  • VSWR: < 1.4
  • Bandwidth: 800 kHz
  • Power peak: 100 Watts (CW)
  • Impedance: 50 Ohm

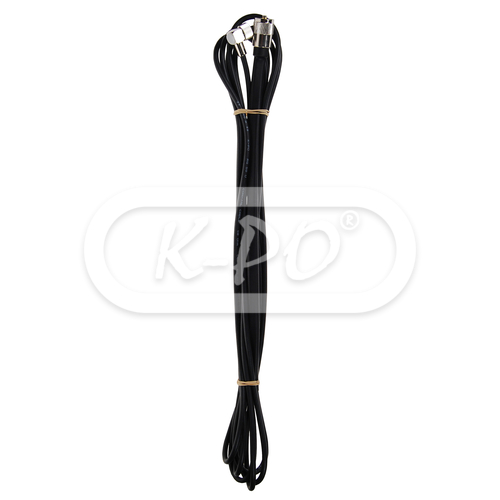

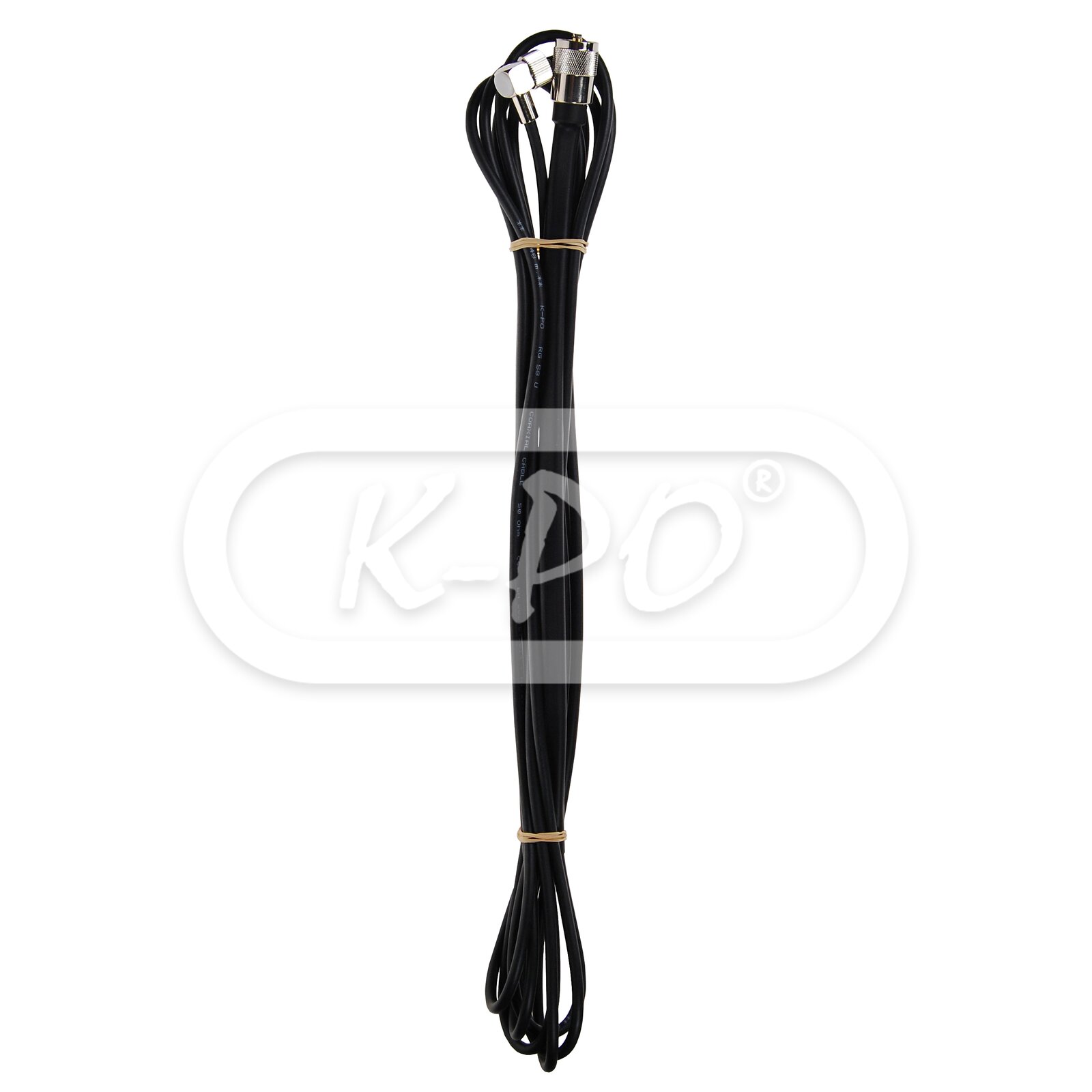

  • Cable: Yes

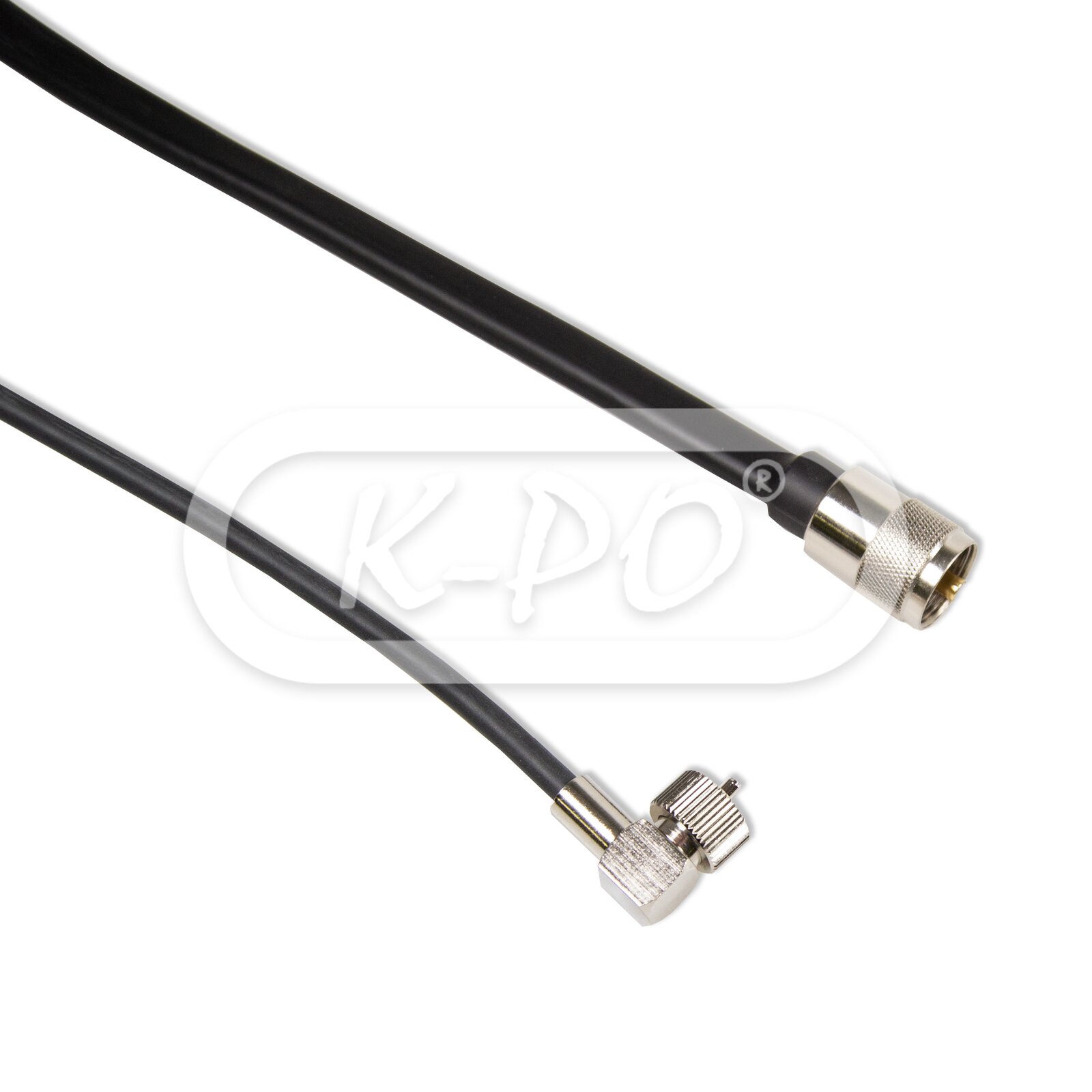

  • Cable length: 5.15 meter / RG 58

Mechanical data

  • Materials: Copper, chromed brass, fiberglass
  • Height: 950 mm
  • Weight: 500 gram
  • Mounting type: Thru-hole

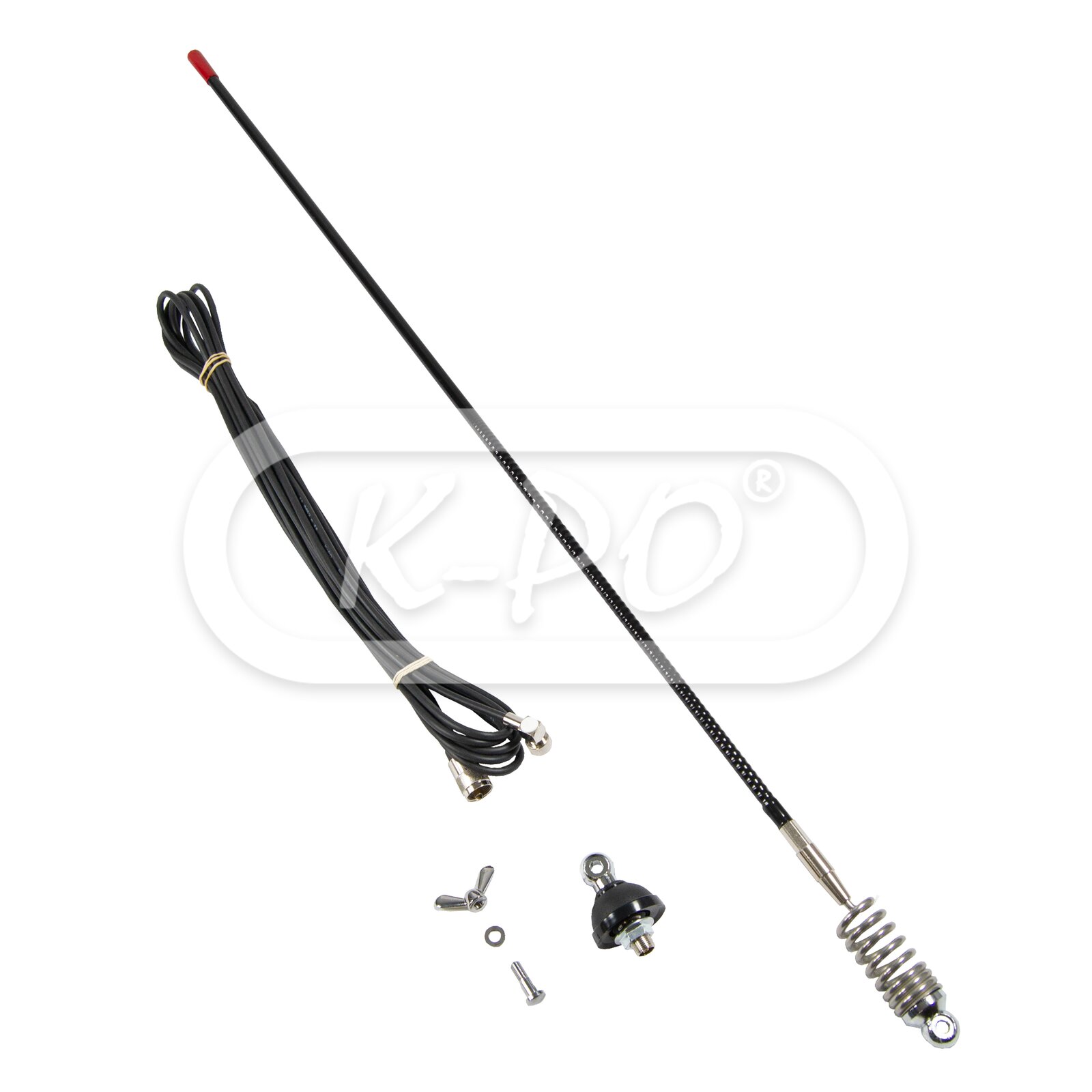

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-maie (PL)

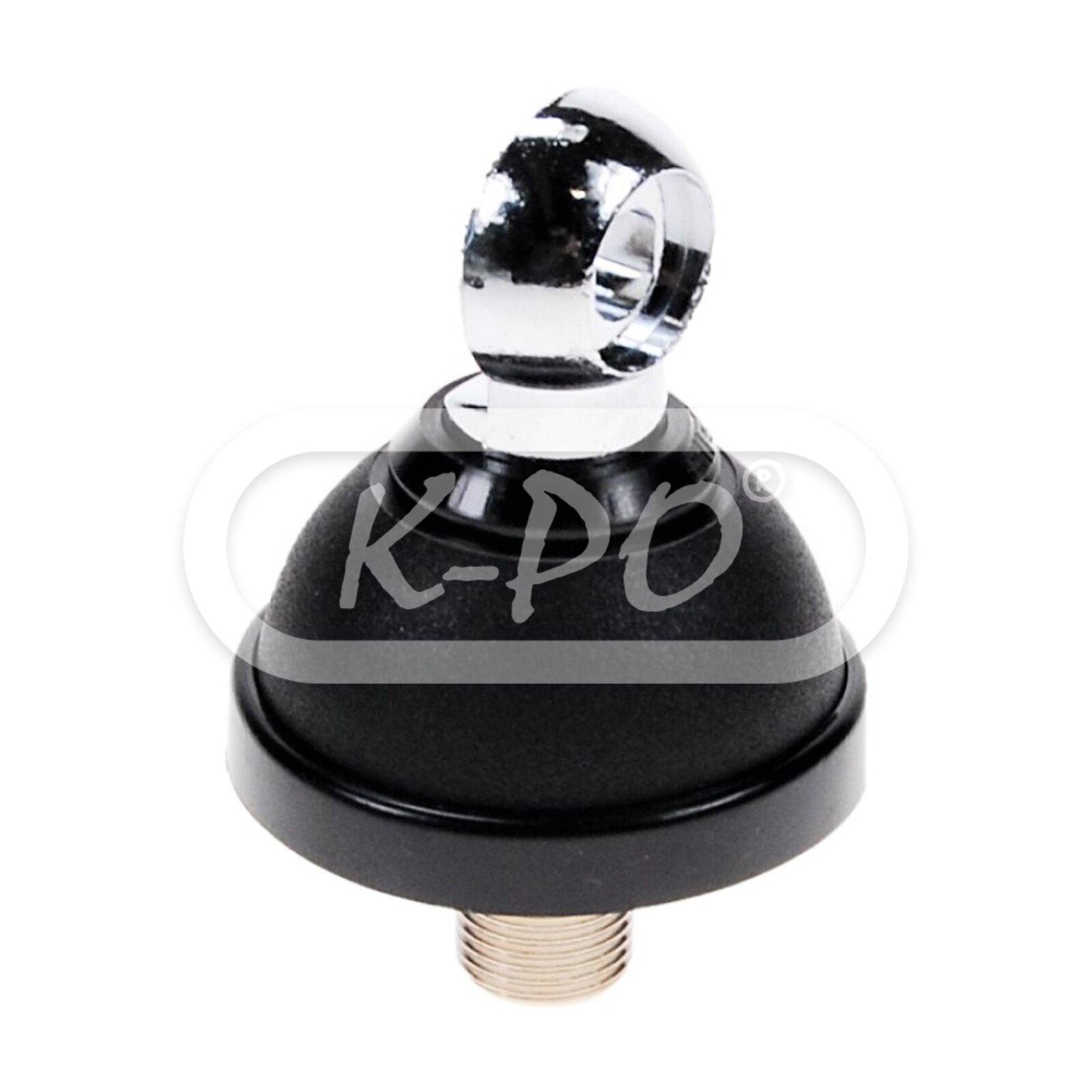

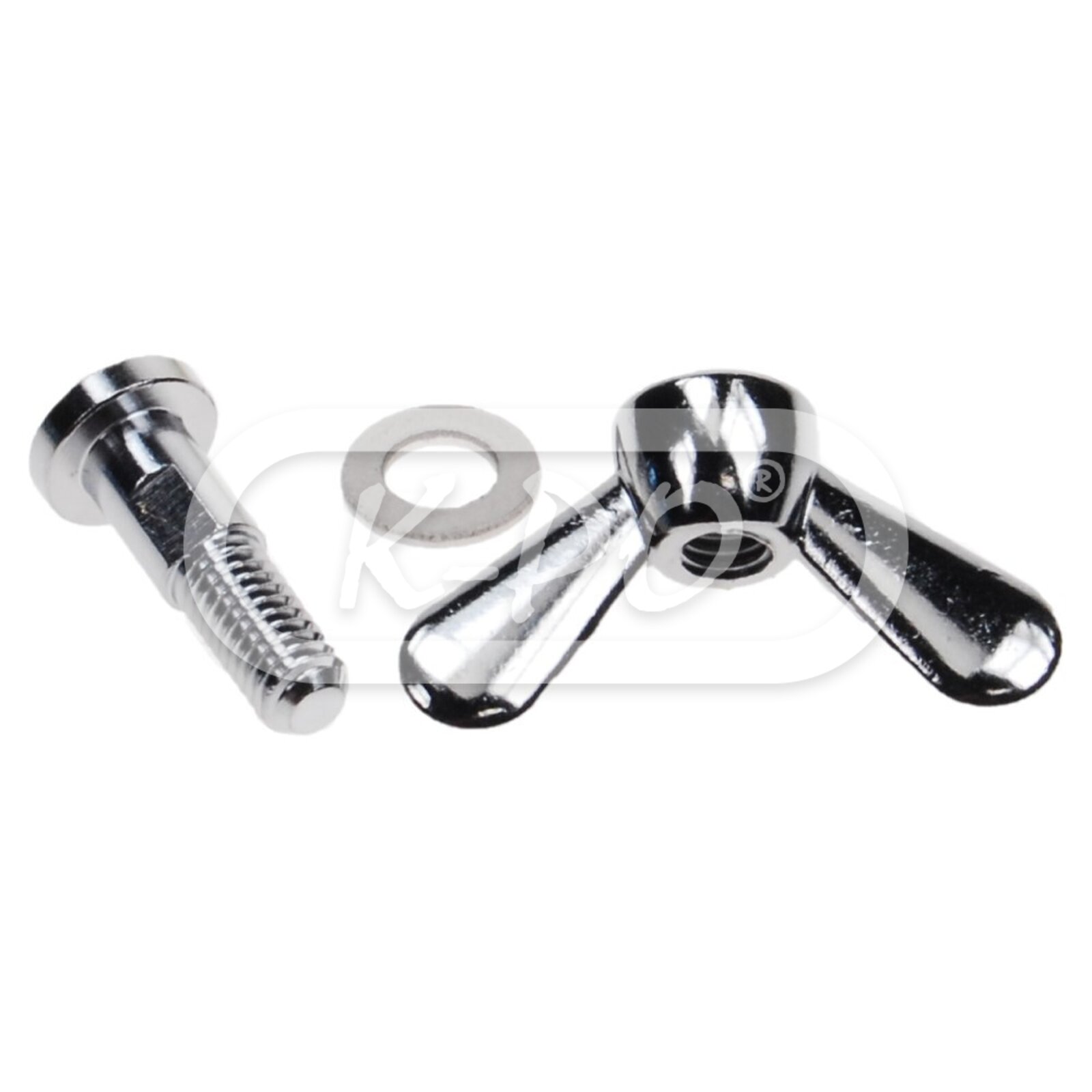

  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
