K-PO - Omega 27 NGP

Product code: 200170
Factory code: 200170
Barcode: 8718375101438

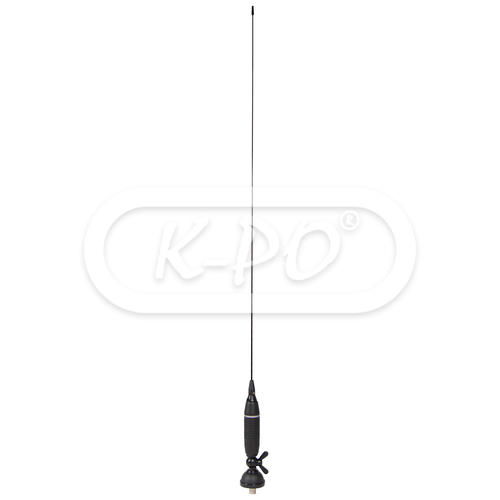

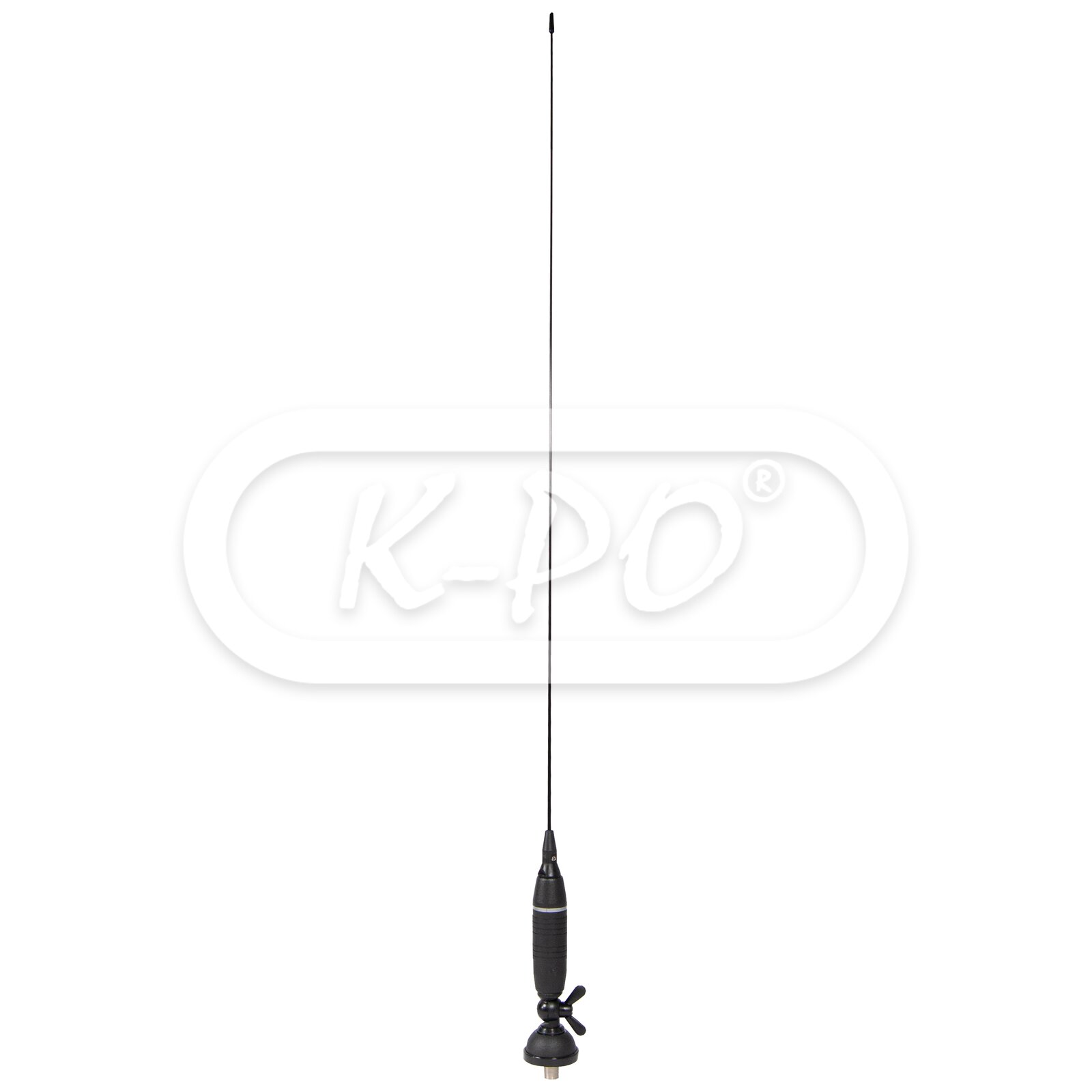

Base loaded no ground plane antenna with a black flexible stainless steel whip. Can be placed on plastic surfaces or any other surface that don't give enough ground to the antenna. Can be used on agricultural and construction machines, trucks, campers, 4x4 and others.

Frequency range: 26.9 - 27.4 MHz
Shipped today
€74.34 (74.34 excl. 0% VAT)

Electrical data

  • Electrical type: Base loaded
  • VSWR: < 1.4
  • Bandwidth: 800 kHz
  • Power continues: 15 Watts (CW)
  • Power peak: 150 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes

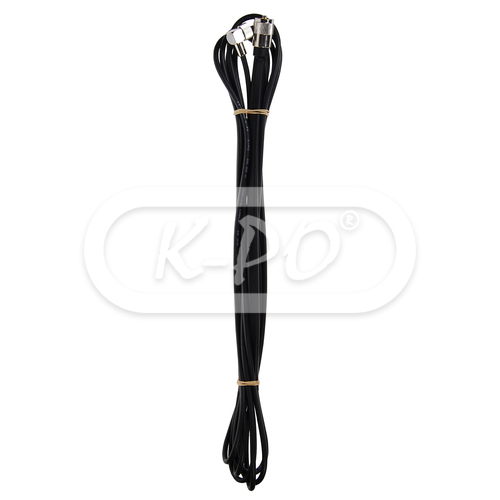

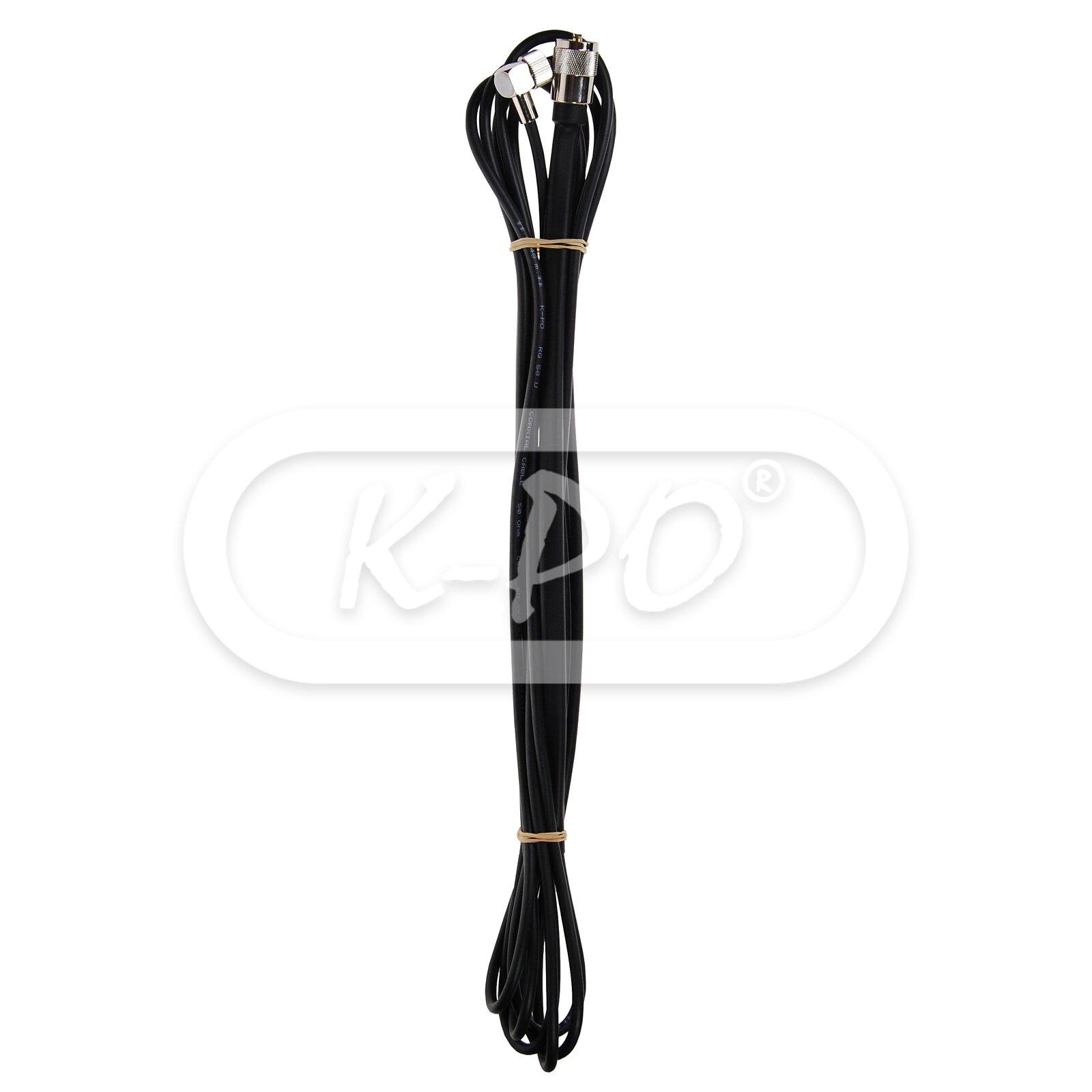

  • Cable length: 5.20 meter / RG 58

Mechanical data

  • Materials: Copper, brass, stainless steel 17/7 PH, nylon
  • Height: 950 mm
  • Weight: 500 gram
  • Mounting type: Thru-hole

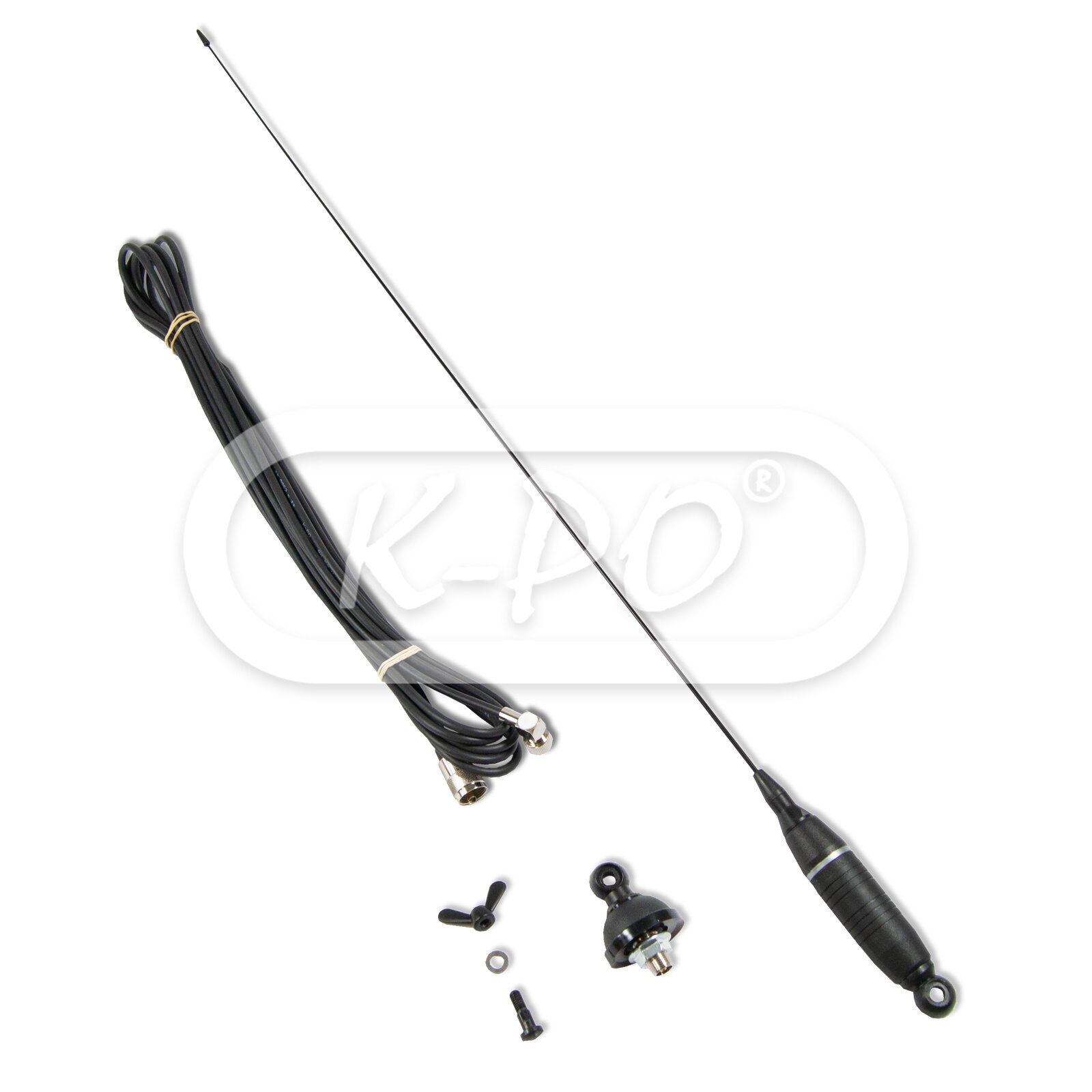

Inside the box

  • Antenna: Yes

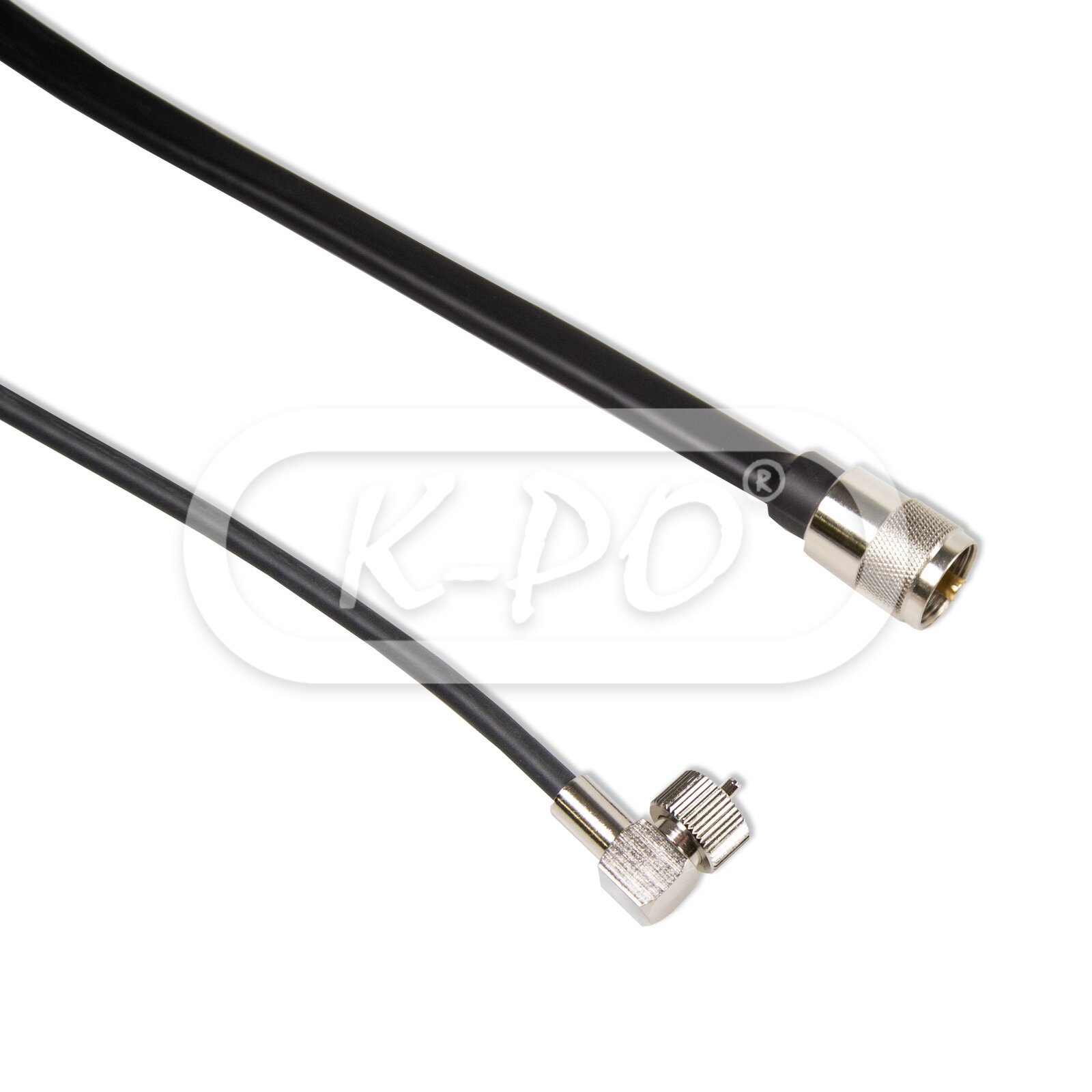

  • Radio connector: UHF-male (PL)

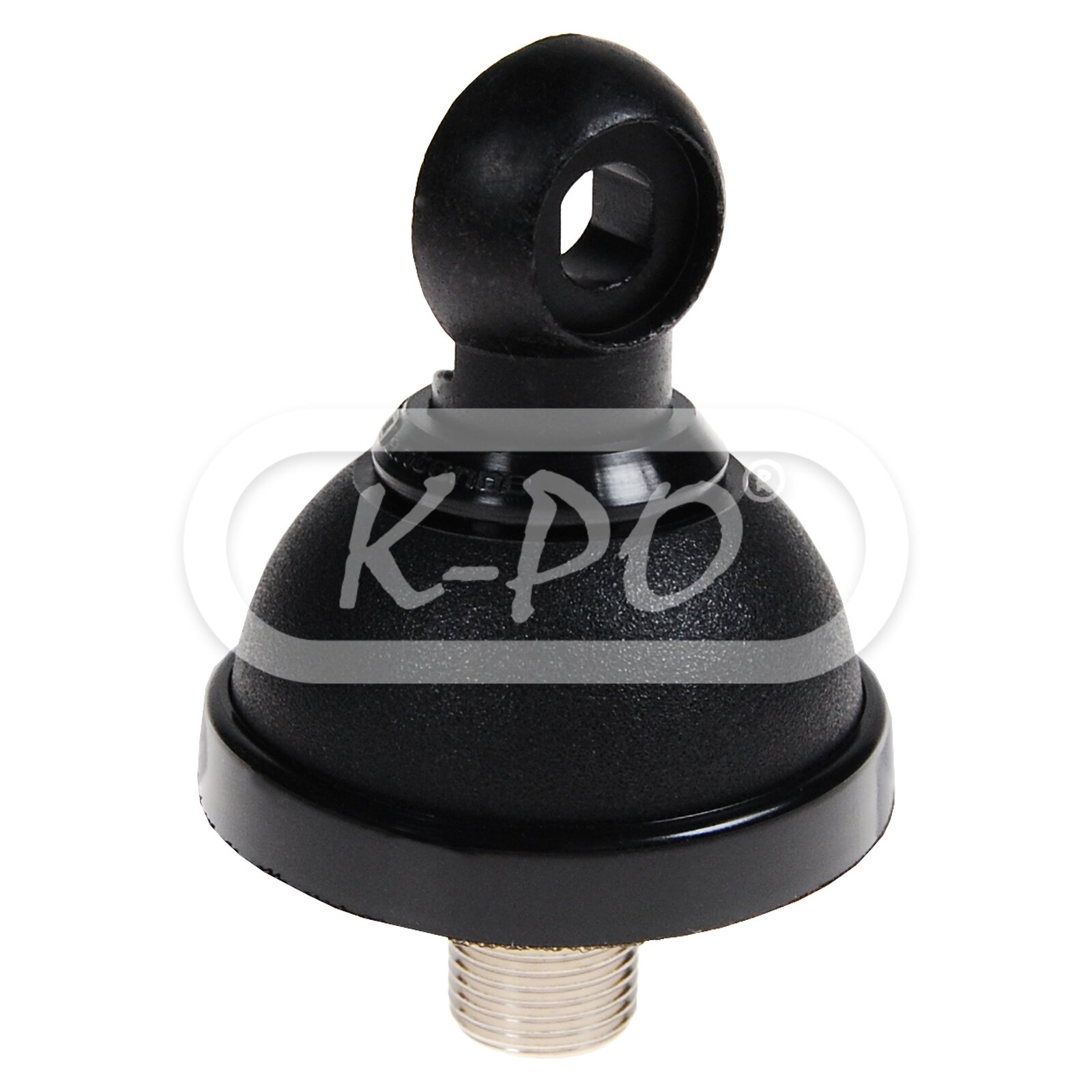

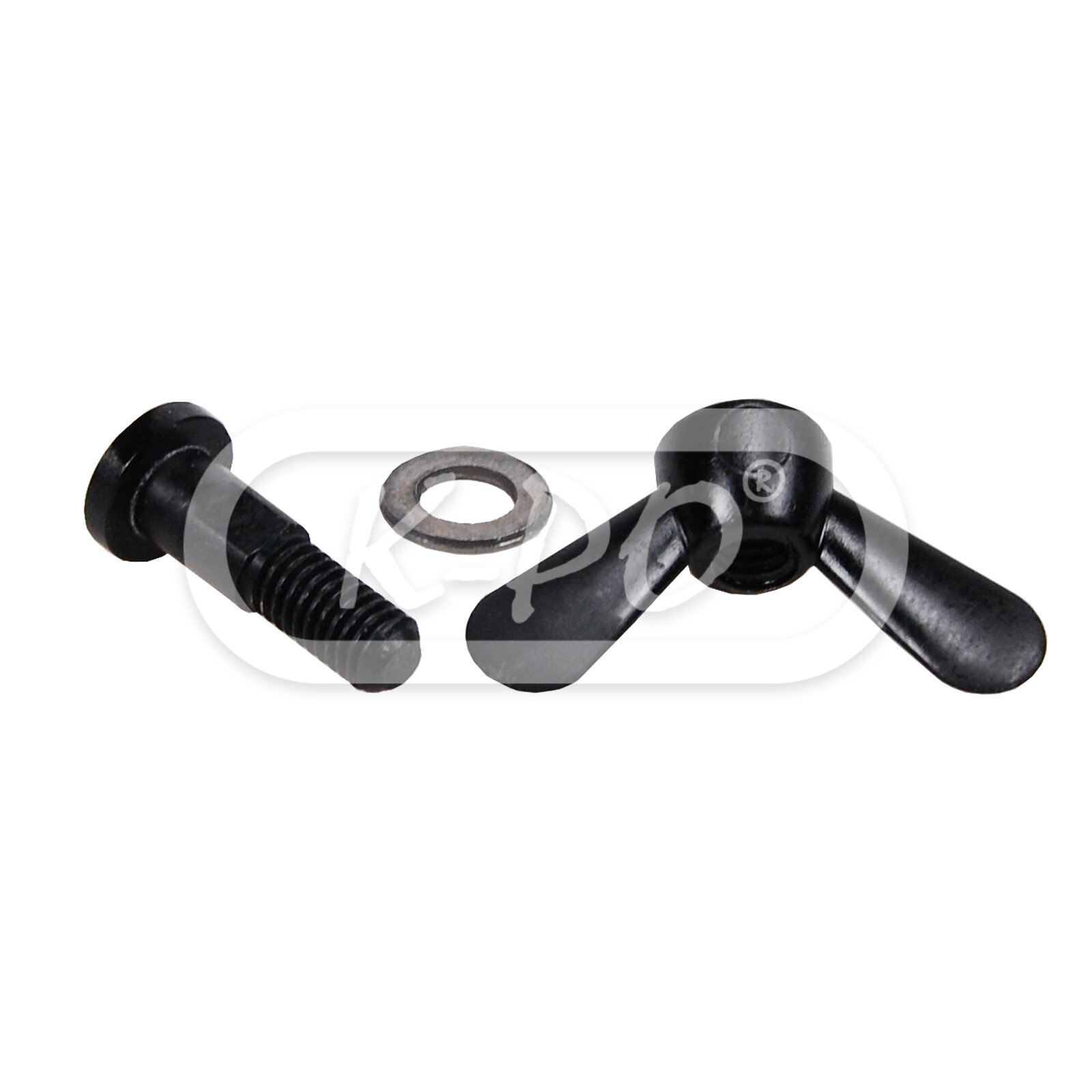

  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
