K-PO - RS-101 K-PO - RS-101 K-PO - RS-101 K-PO - RS-101 K-PO - RS-101

K-PO - RS-101

Product code: 600101
Barcode: 8718375102404

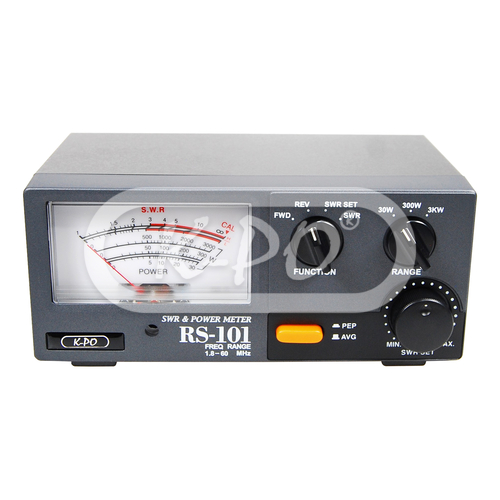

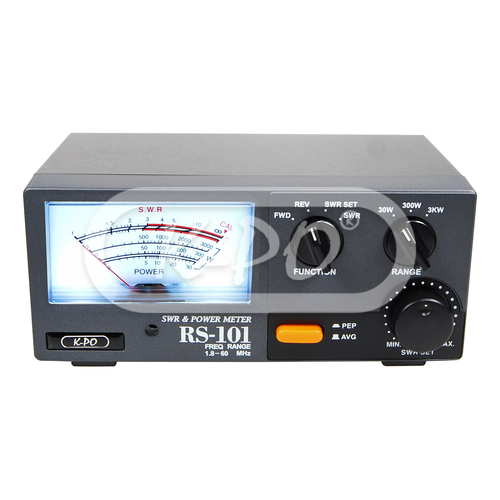

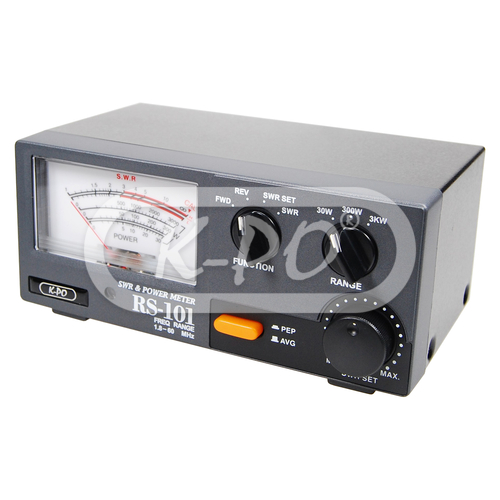

The K-PO RS-101 is a highly accurate SWR and Power meter for 1.6 - 60 MHz. For measuring Forward Power, Reflected Power and SWR. AVG / PEP switch to select average power or SSB / PEP. Maximum power handling of 3 kW, short time.

Made by Nissei, Taiwan.

Frequency range: 1.6 - 60 MHz
Shipped next business day - Stock: 7
€85.45 (70.62 excl. 21% VAT) - €89.95

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 30 / 300 / 3000 Watts
  • Accuracy: 30 Watts: (AVG) ± 10%, (PEP) ± 15% / 300 - 3000 Watts: (AVG) ± 5%, (PEP) ± 10%
  • Minimum Power for SWR: 1 Watt
  • Insertion loss: less than 0.1dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 13.8 Volt, for display lightning only

Mechanical data

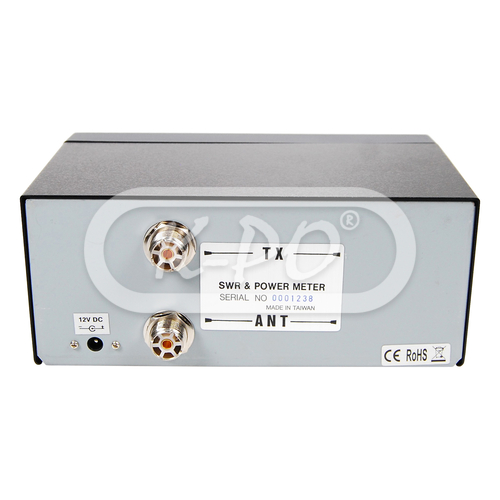

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 135 mm
  • Height: 85 mm
  • Width: 90 mm
  • Weight: 780 gram

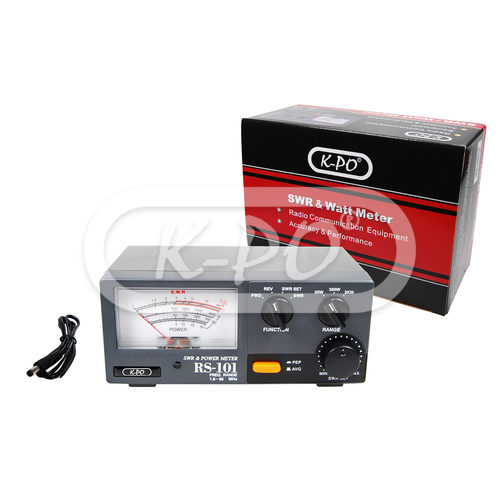

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English

Downloads
