K-PO - RS-27

Product code: 900527
Barcode: 8781375102156

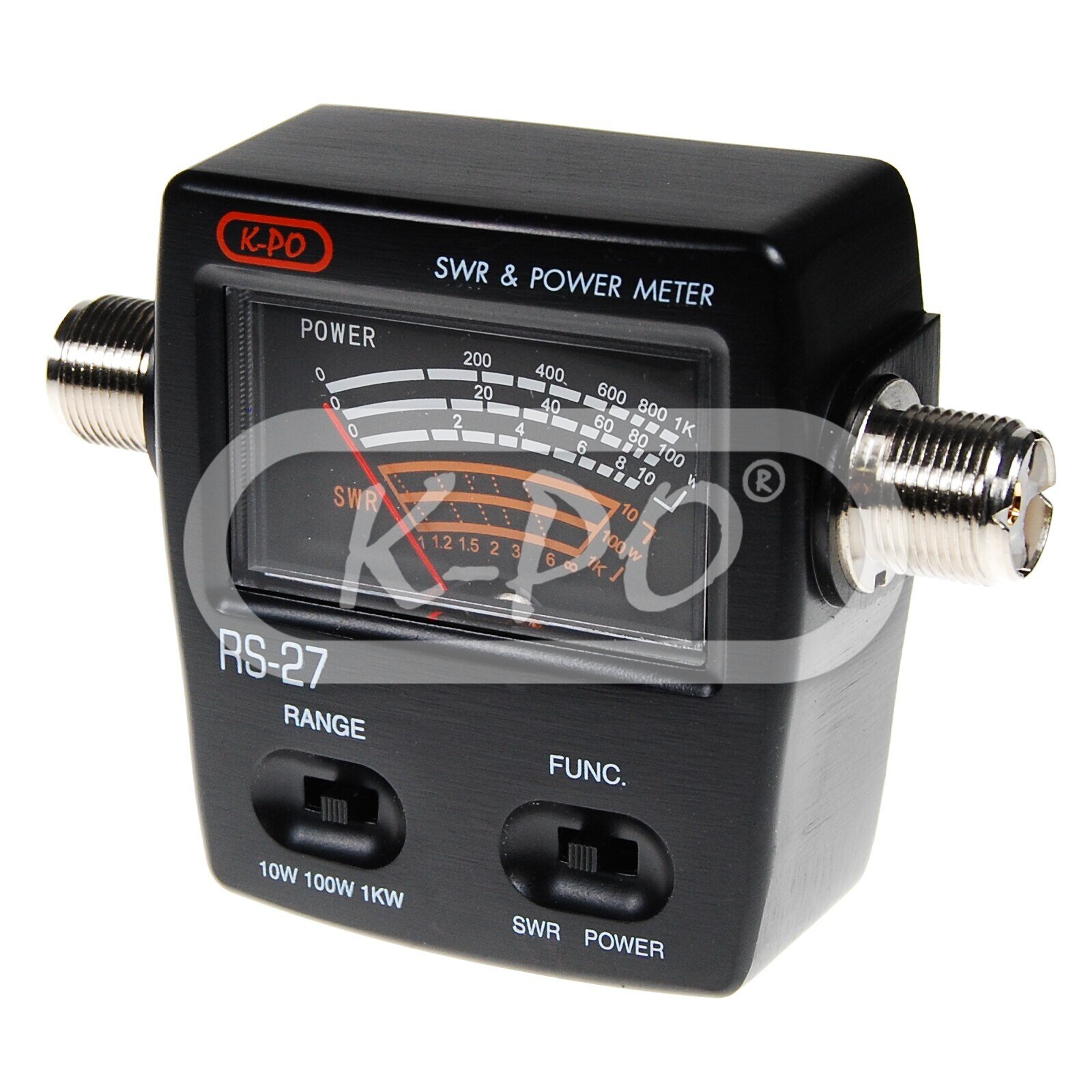

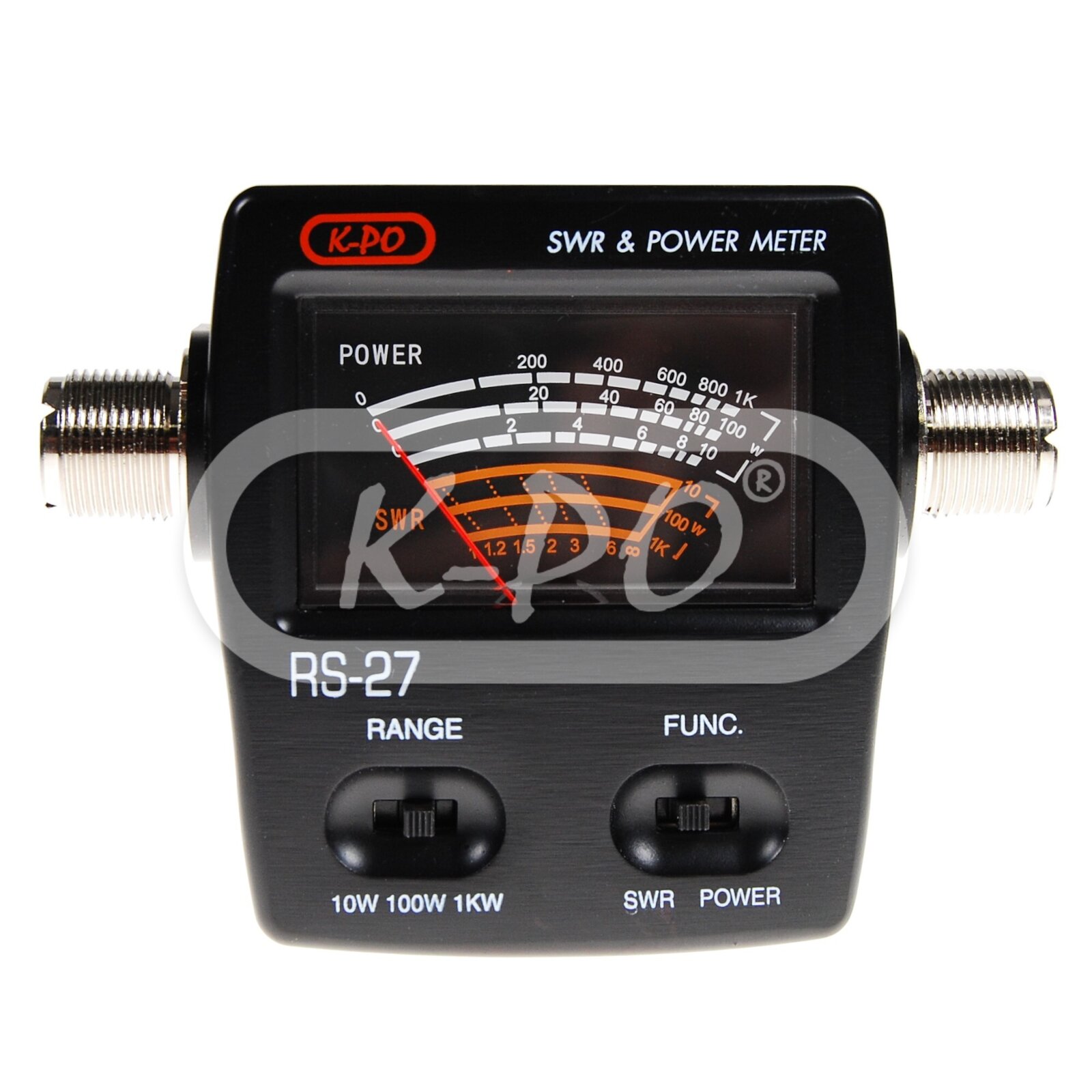

The K-PO RS-27 is a compact SWR and Power meter for the CB and 10 meter band. On the clear analogue meter you can read out easily the SWR of your antenna or the output power of your radio. Output power measuring till 1 kW.

Frequency range: 26 - 30 MHz
Shipped next business day
€42.10 (42.1 excl. 0% VAT)

Features

  • Meter: Clear analogue meter
  • Reading: Direct read out without calibration
  • Insertion loss: Low insertion loss structure, can be connected permanently in your setup. 1 kW for short time measuring only.

Electrical data

  • Impedance: 50 Ohm
  • Power range: 10 / 100 / 1000 Watts
  • Accuracy: 10 Watts: ± 10% (AVG) / 100 - 1000 Watts: ± 5% (AVG)
  • Minimum Power for SWR: 3 Watts
  • Insertion loss: 0.3 dB or lower
  • Testing function: SWR and Power (FWD)
  • Maximum power: 1000 Watts (short time)

Mechanical data

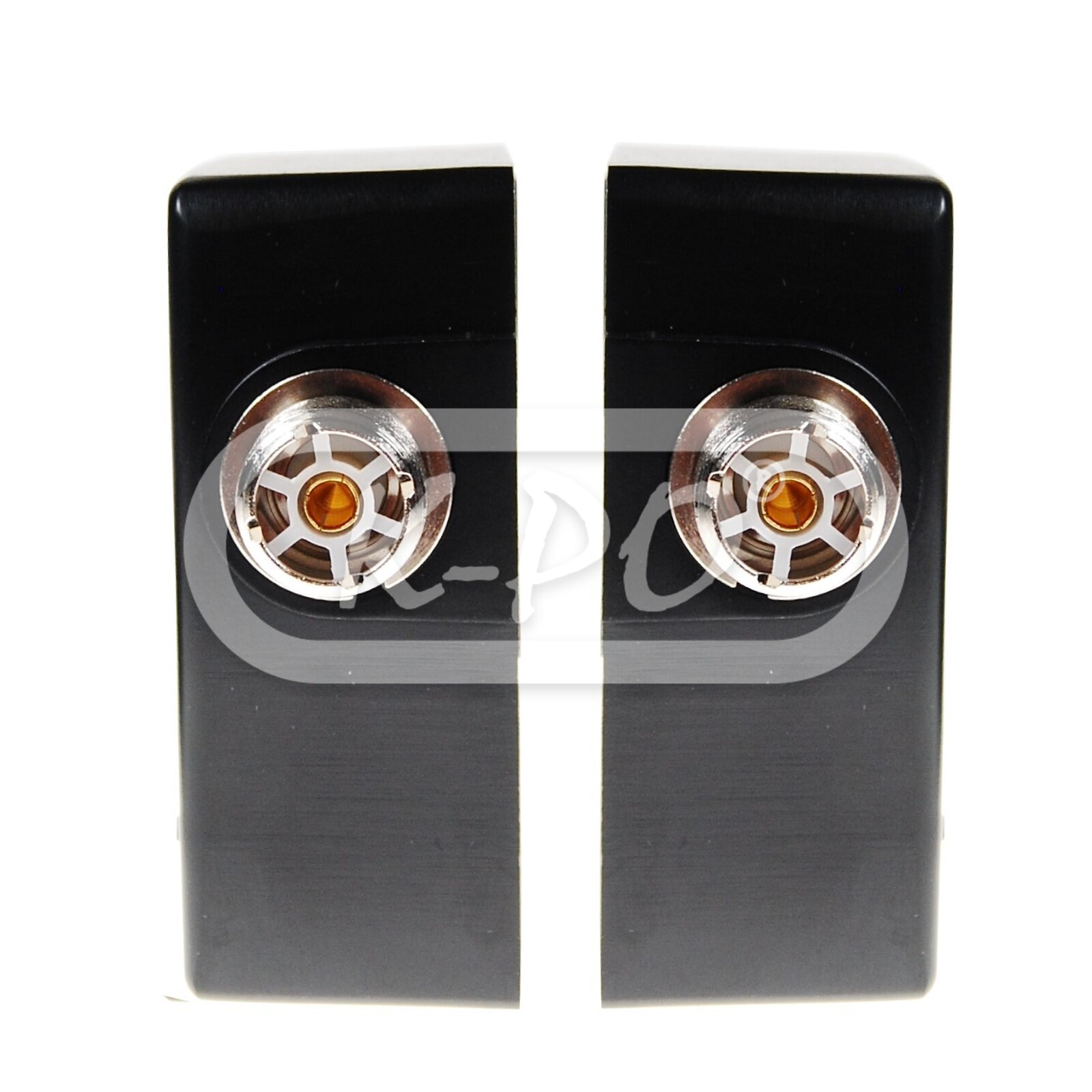

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 70 mm
  • Height: 30 mm
  • Width: 78 mm
  • Weight: 175 gram

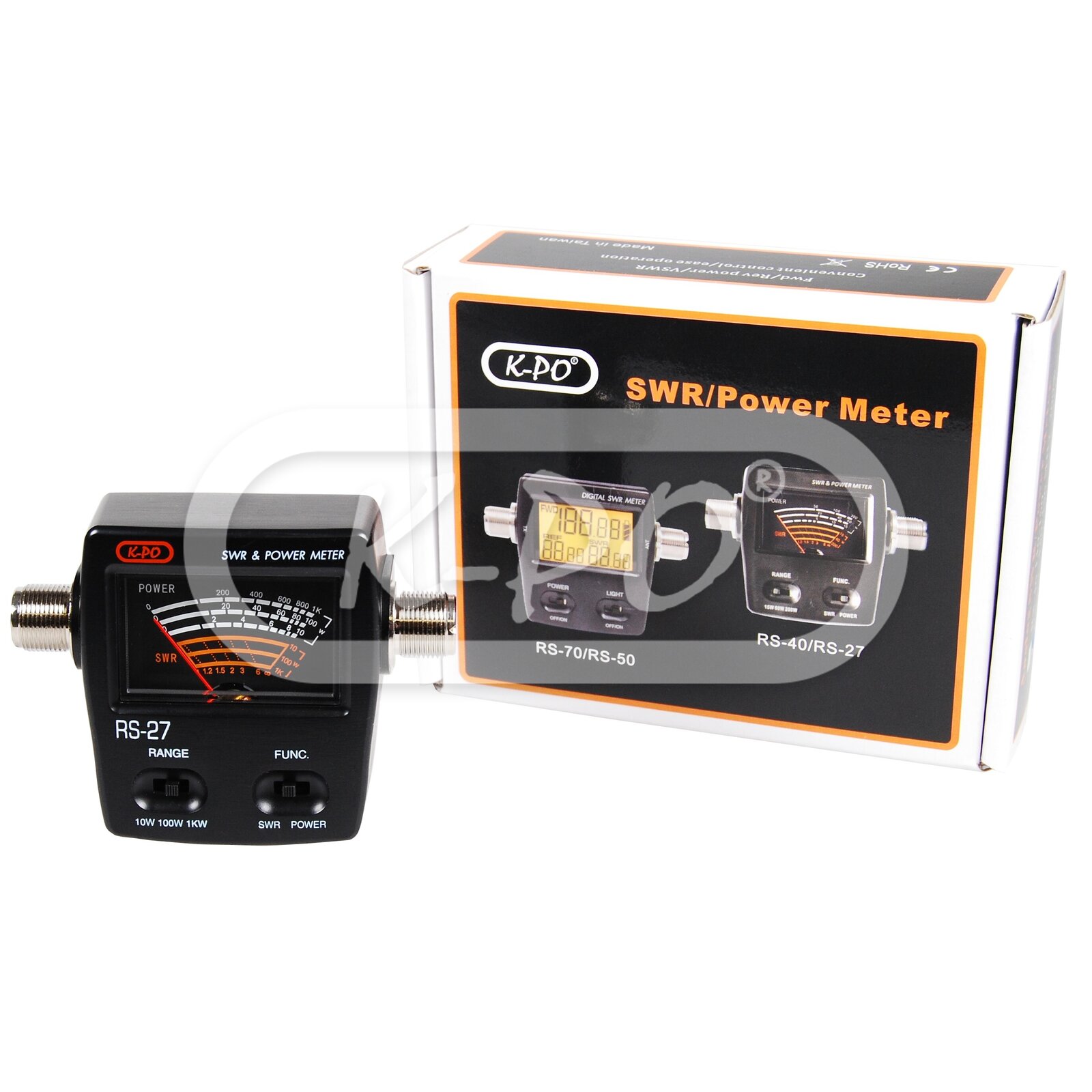

Inside the box

  • Meter: Yes
  • Installation manual: English
