K-PO - RS-70MAX K-PO - RS-70MAX K-PO - RS-70MAX K-PO - RS-70MAX K-PO - RS-70MAX

K-PO - RS-70MAX

Product code: 900571
Barcode: 8718375103609

Our new K-PO RS-70MAX can now officially measure PEP on AM and SSB. On the front of the meter is now a 'MAX' mode switch which allows you to measure PEP (AM and SSB).

It can be powered by 2x AAA batteries or a USB-C cable (not included). Please note that the RS-70MAX has no built-in charging circuitry, which means that rechargeable batteries cannot be charged by the meter itself.

The K-PO RS-70MAX is a compact SWR and Power meter with a clear digital LCD display for 1.6 - 60 MHz. You can read out simultaneously the SWR, Forward and Reflected Power. For use with analogue and FDMA modulations. Output power measuring till 200 Watts.

Made by Nissei, Taiwan.

Frequency range: 1.6 - 60 MHz
Shipped next business day
€99.95 (82.6 excl. 21% VAT)

Features

  • Meter: Clear LCD backlit display
  • Reading: Direct read out of Forward Power, Reflected Power and SWR

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 0 - 200 Watts
  • Accuracy: ± 5% (AVG)
  • Minimum Power for SWR: 1 Watt
  • Insertion loss: 0.3 dB or lower
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Measurement (Analog mode): CW, FM, FDMA
  • Measurement (MAX mode): AM / SSB
  • Maximum power: 200 Watts
  • Power supply: 2x AAA batteries (not included) or USB-C (not for charging the batteries. The meter has no built-in charging circuitry)

Mechanical data

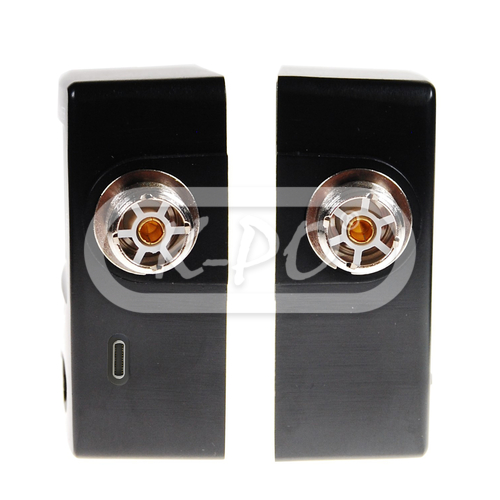

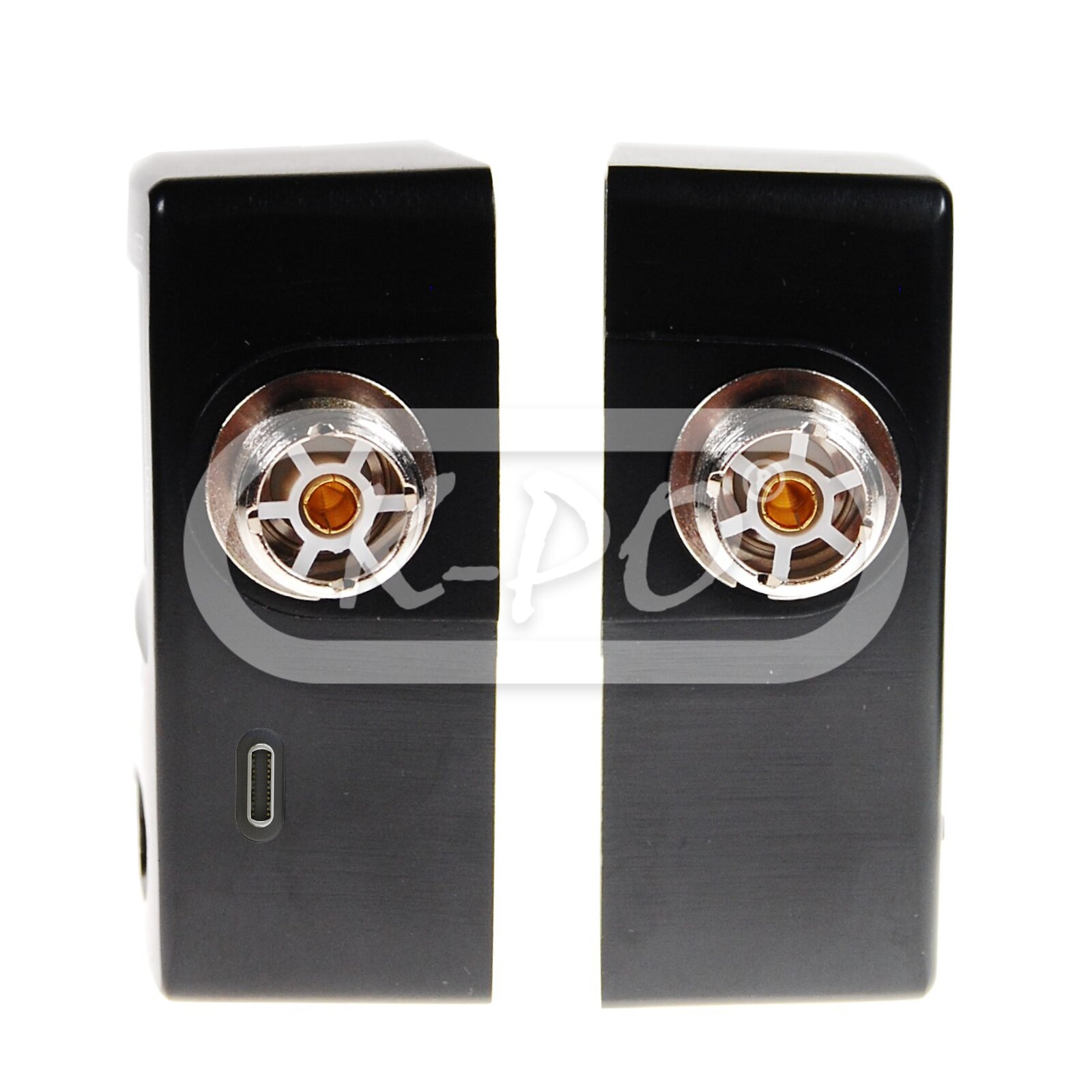

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 70 mm
  • Height: 30 mm
  • Width: 78 mm
  • Weight: 220 gram

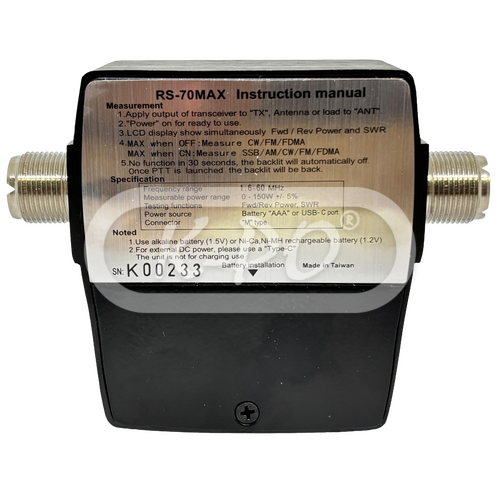

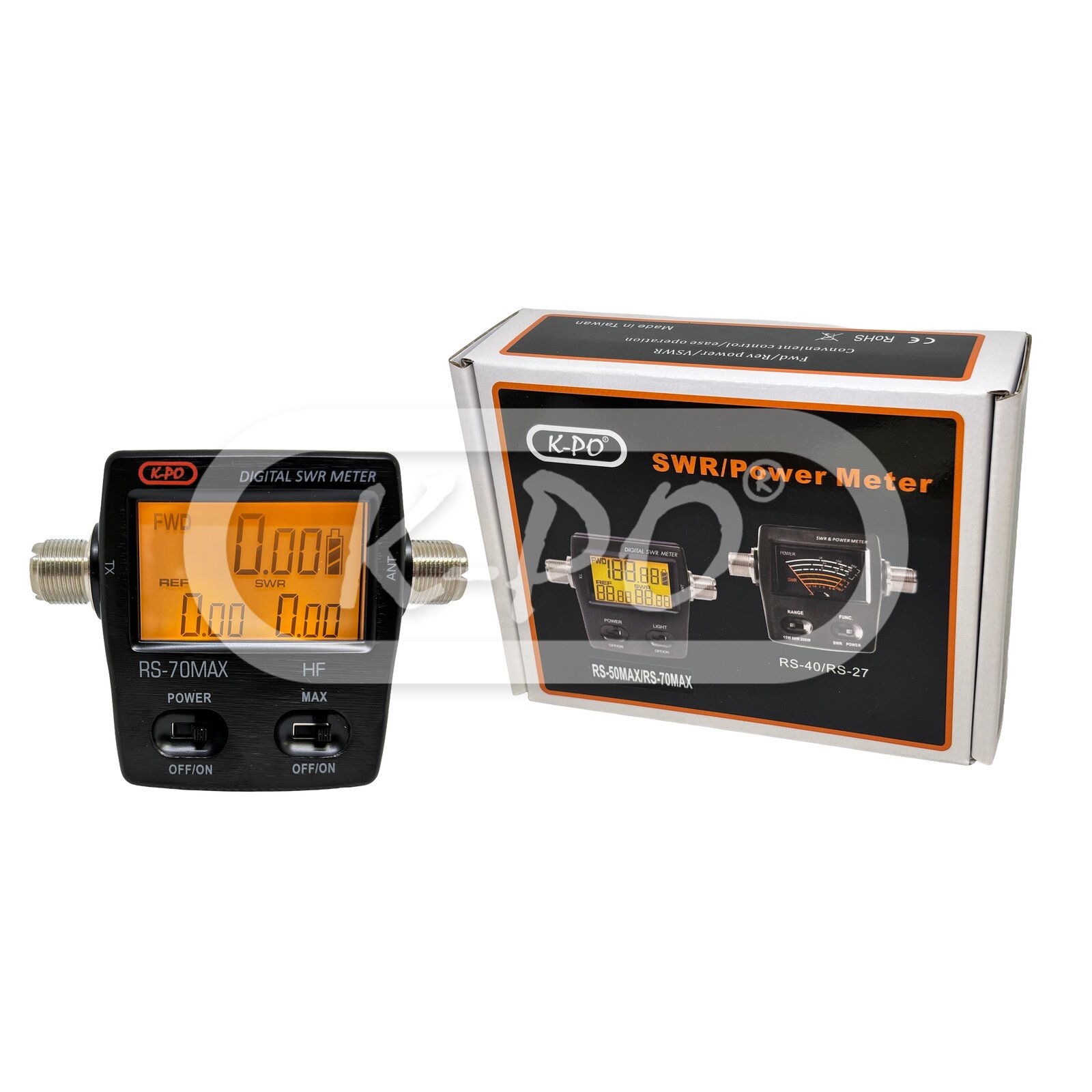

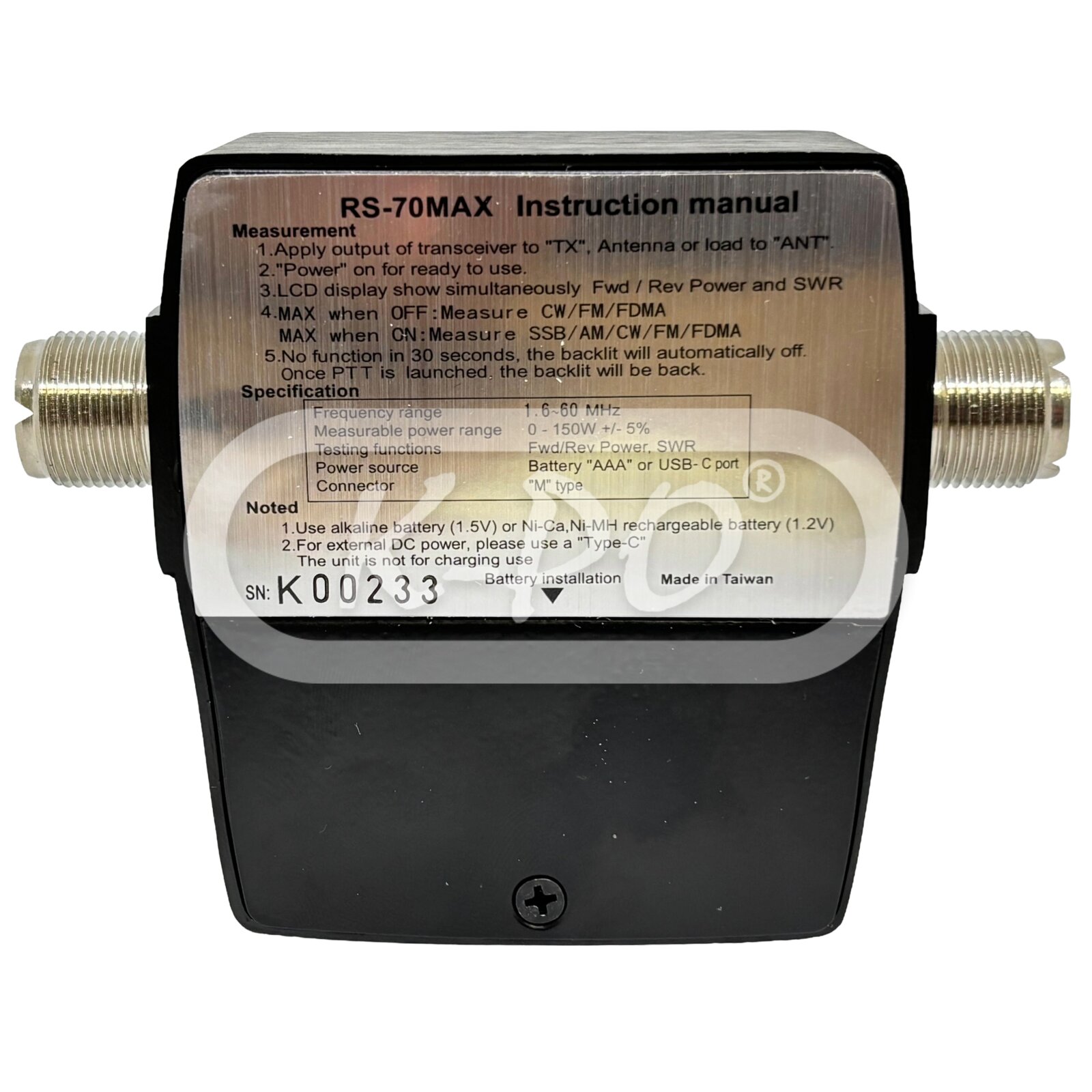

Inside the box

  • Meter: Yes
  • Installation manual: English
