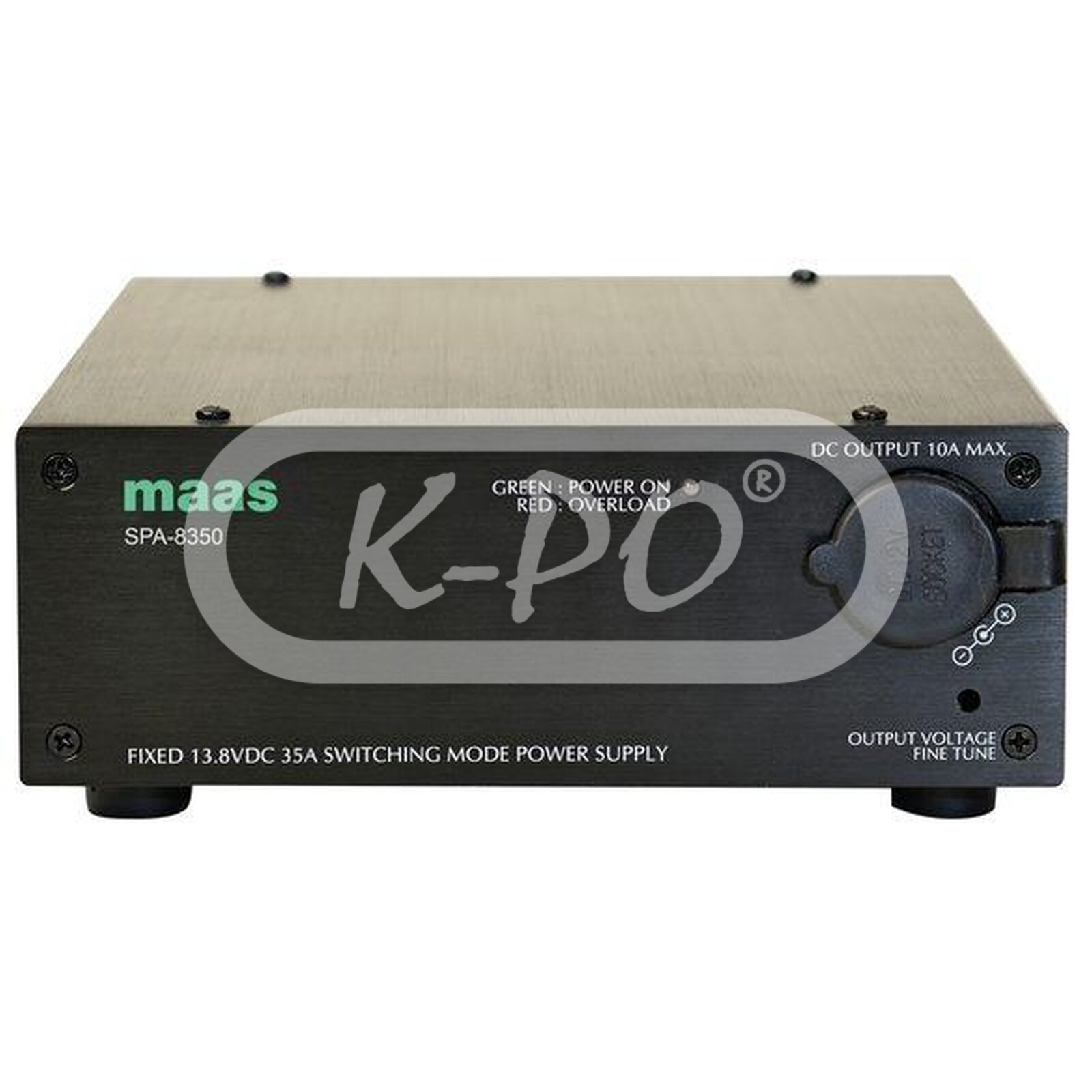

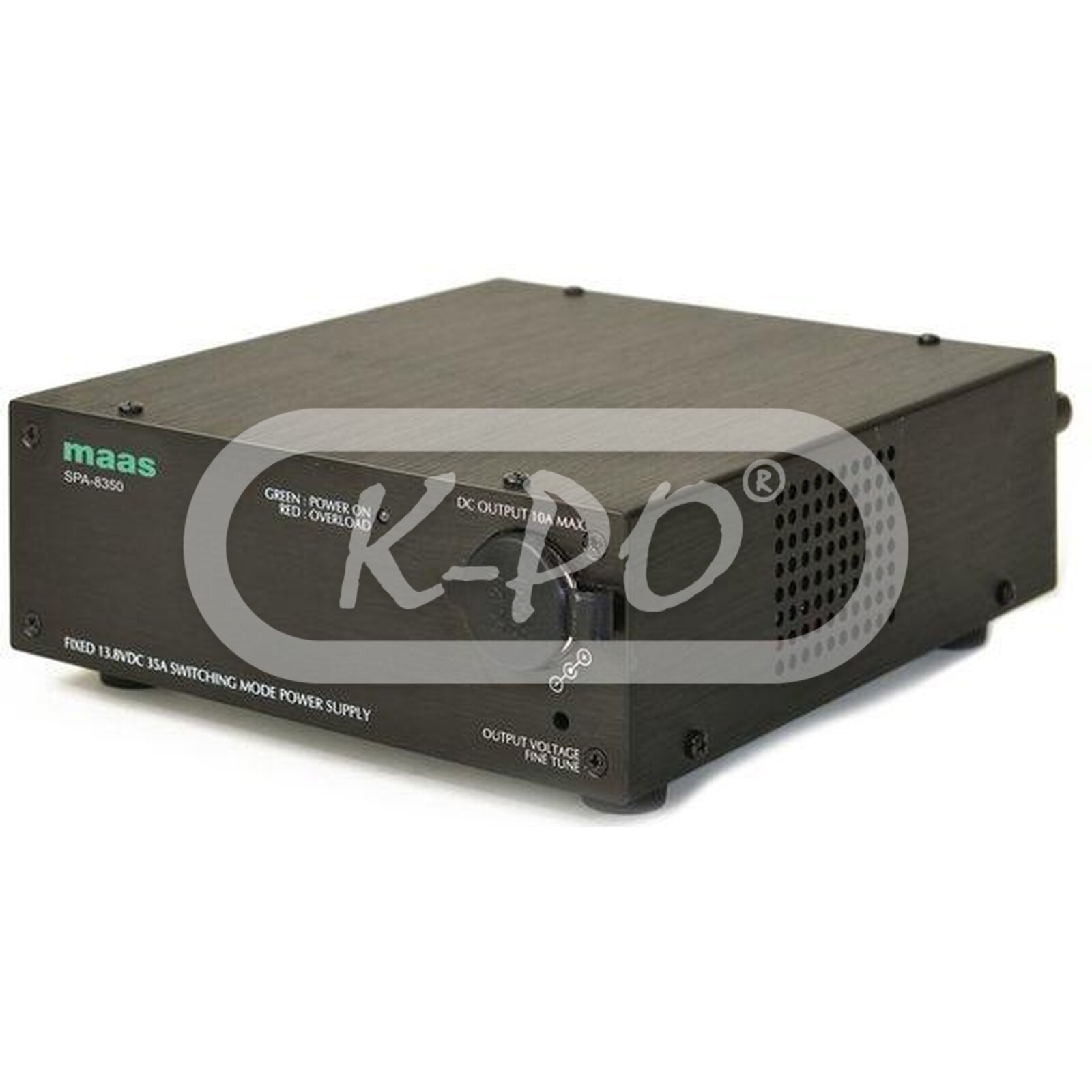

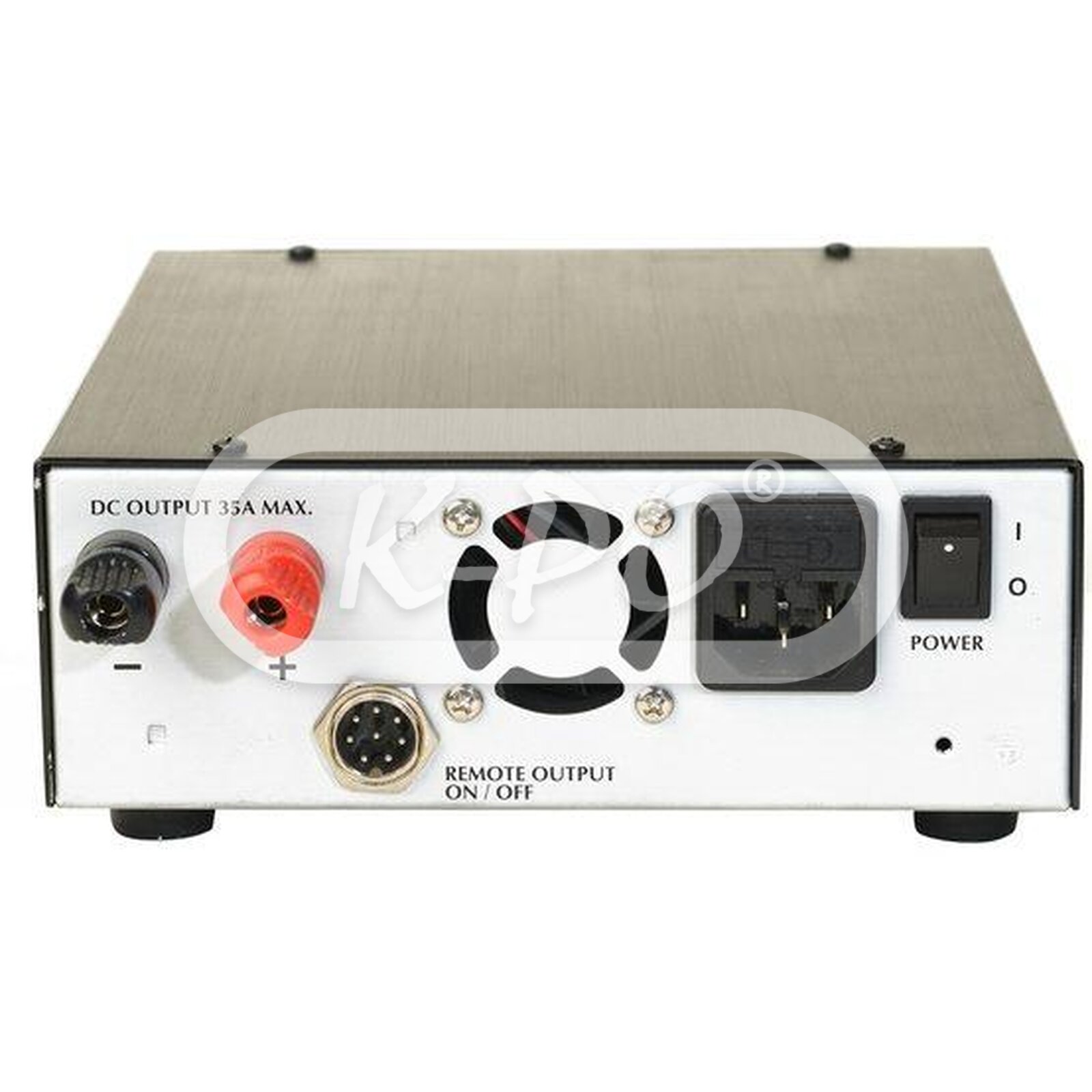

Maas - SPA 8350

Product code: 1486

This series of super efficient power supplies provides a long term cost saving in energy cost, more reliability,longer lifetime and require less warranty coverage. The Zero Voltage Switching design reduces power dissipation in the switching transistors and EMI level resulting a quiet (lesser switching noise) and cooler running supply. It is especially suitable for telecommunication, long hour operation, and in close proximity with other equipment.

Out of stock - Longer delivery time
€165.25 (165.25 excl. 0% VAT)

Electrical data

  • Input voltage: 230 Volt
  • Output voltage: 13.8 Volt
  • Adjustable output voltage: 12 - 14.5 Volt
  • Continuous load: 35A
  • Peak load: 35A
  • Ripple voltage: ≤50mVp-p
  • Short circuit protection: Yes
  • Overload protection: Yes
  • Over temperature protection: Yes
  • Output over voltage: Yes
  • Cooling method: Forced air cooling by variable speed cooling fan

Mechanical data

  • Length: 196 mm
  • Height: 72 mm
  • Width: 175 mm
  • Weight: 1800 gram

Inside the box

  • Power supply: Yes

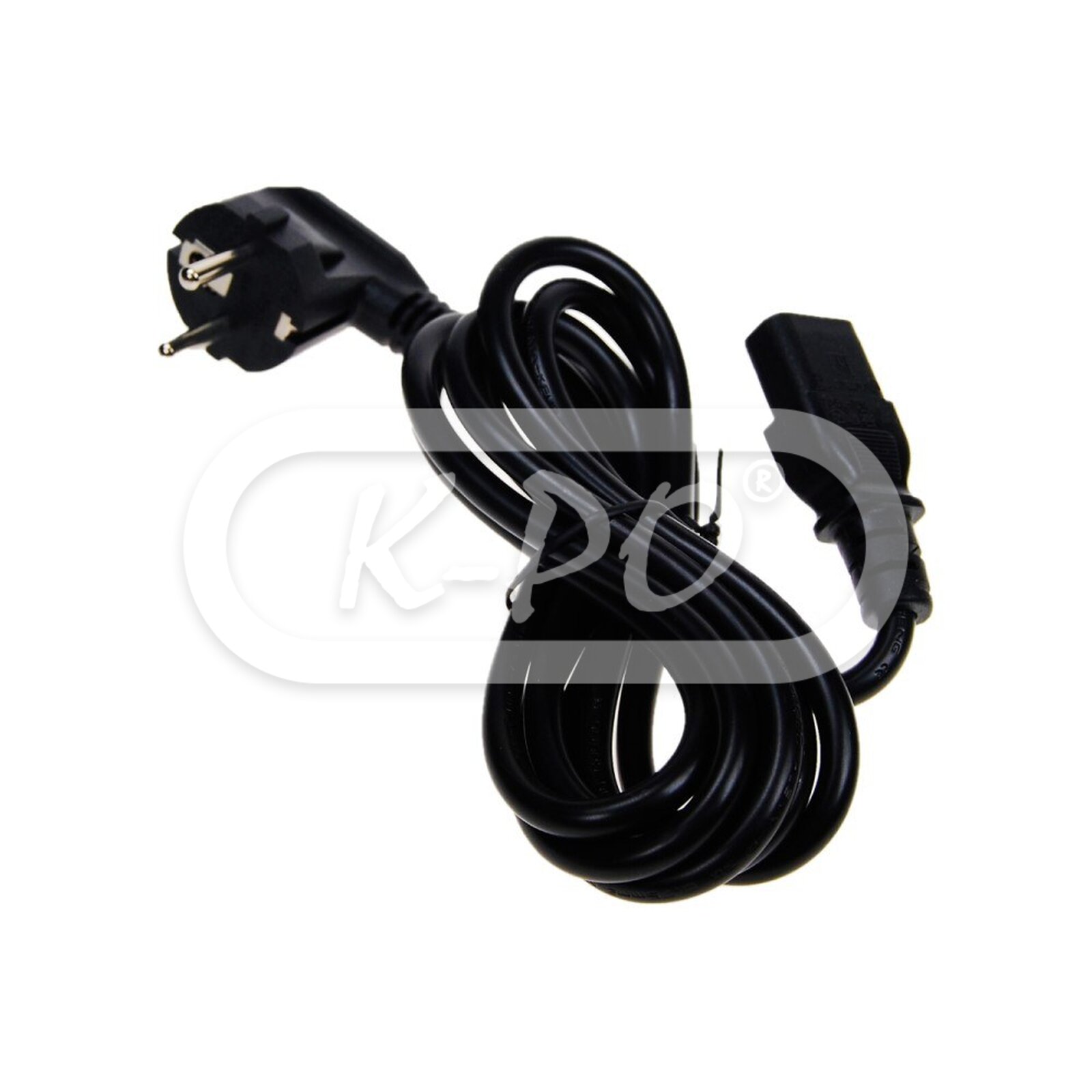

  • AC cord: Yes
  • User manual: English
