K-PO - SW3M

Product code: 905202
Barcode: 8718375100257

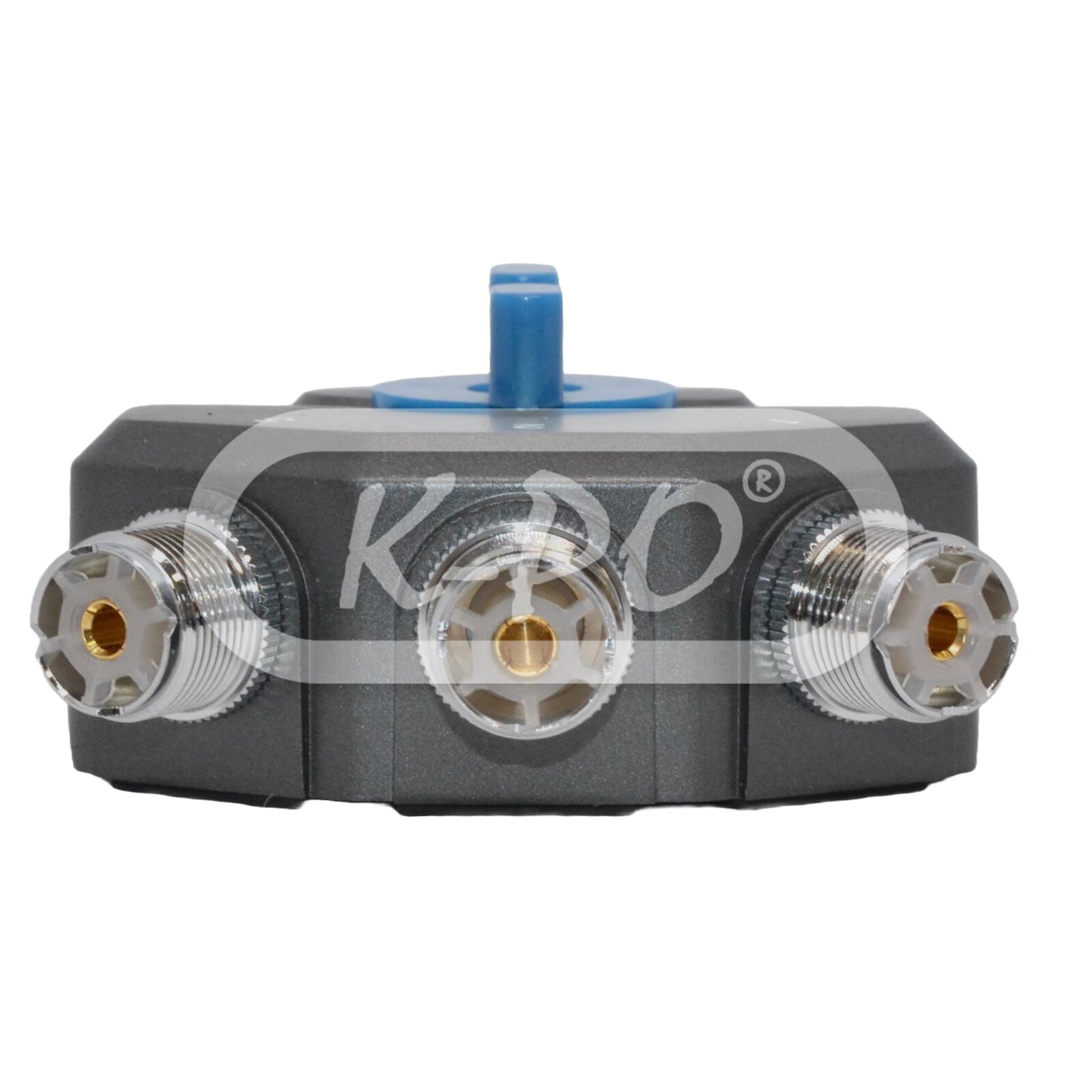

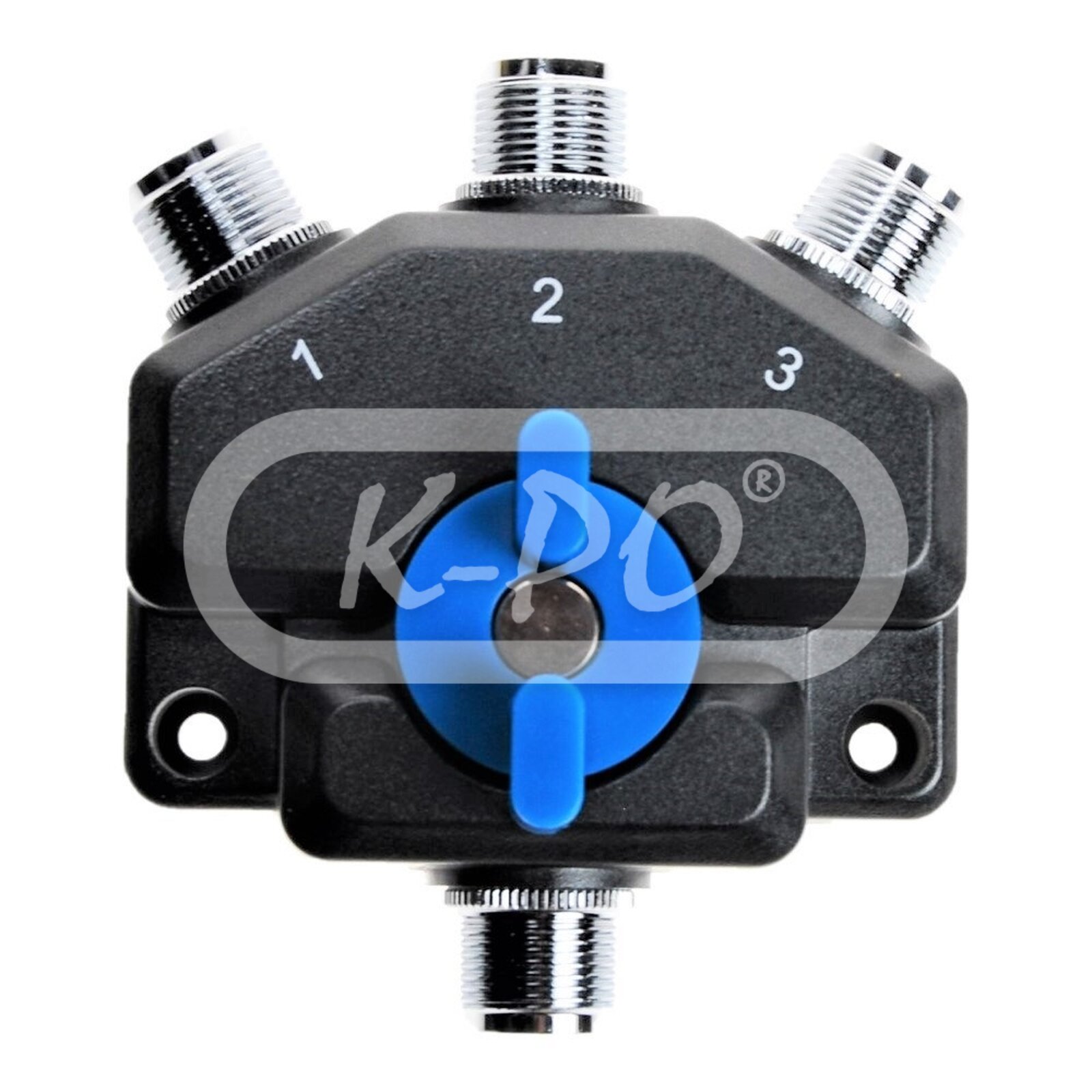

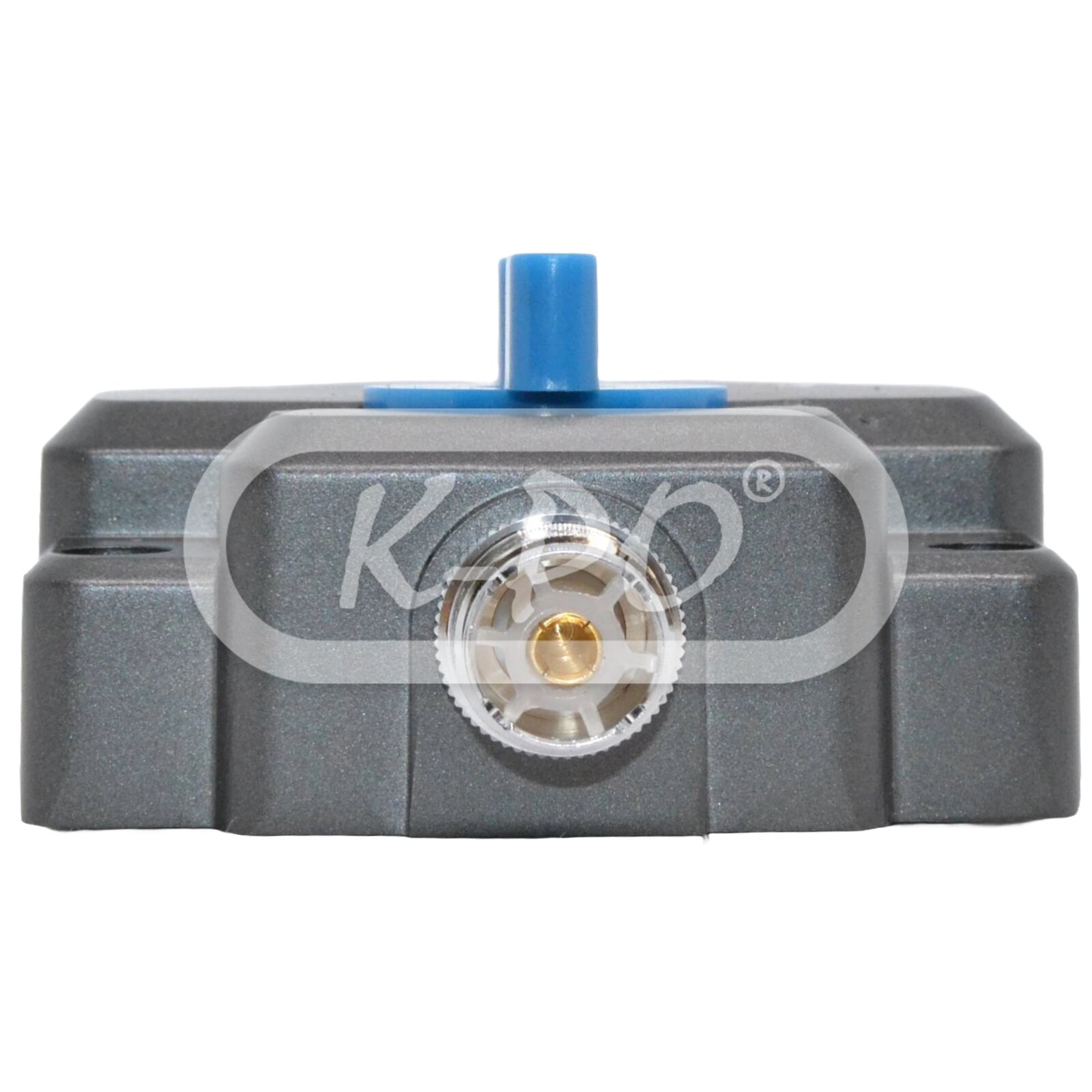

The K-PO SW3M is a 3 way antenna switch with a UHF (PL) female input connector and 3x UHF (PL) female output connectors.

Frequency range: Up to 800 MHz
Out of stock - Longer delivery time
€68.95 (56.98 excl. 21% VAT)

Electrical data

  • VSWR: 0-500 MHz: >=1.05 / 500 MHz - 1 GHz: >=1.15 / 1-1.5 GHz : >=1.25
  • Impedance: 50 Ohm
  • Insertion loss: 0-500 MHz: >=0.05dB / 500 MHz - 1 GHz: >=0.1dB
  • Isolation: 0-500 MHz: <=70dB / 500 MHz - 1 GHz: <=60dB
  • Power range: 0 - 30 MHz: 1.5 kW / 30 - 200 MHz: 1 kW / 200 - 500 MHz: 500 W / 500 MHz - 1 GHz: 250 W

Mechanical data

  • Connector(s) type in: UHF (PL) female
  • Connector(s) type out: UHF (PL) female
  • Length: 100 mm
  • Height: 80 mm
  • Width: 30 mm
  • Weight: 550 gram
