K-PO - TX-402

Product code: 600512
Barcode: 8718375103265

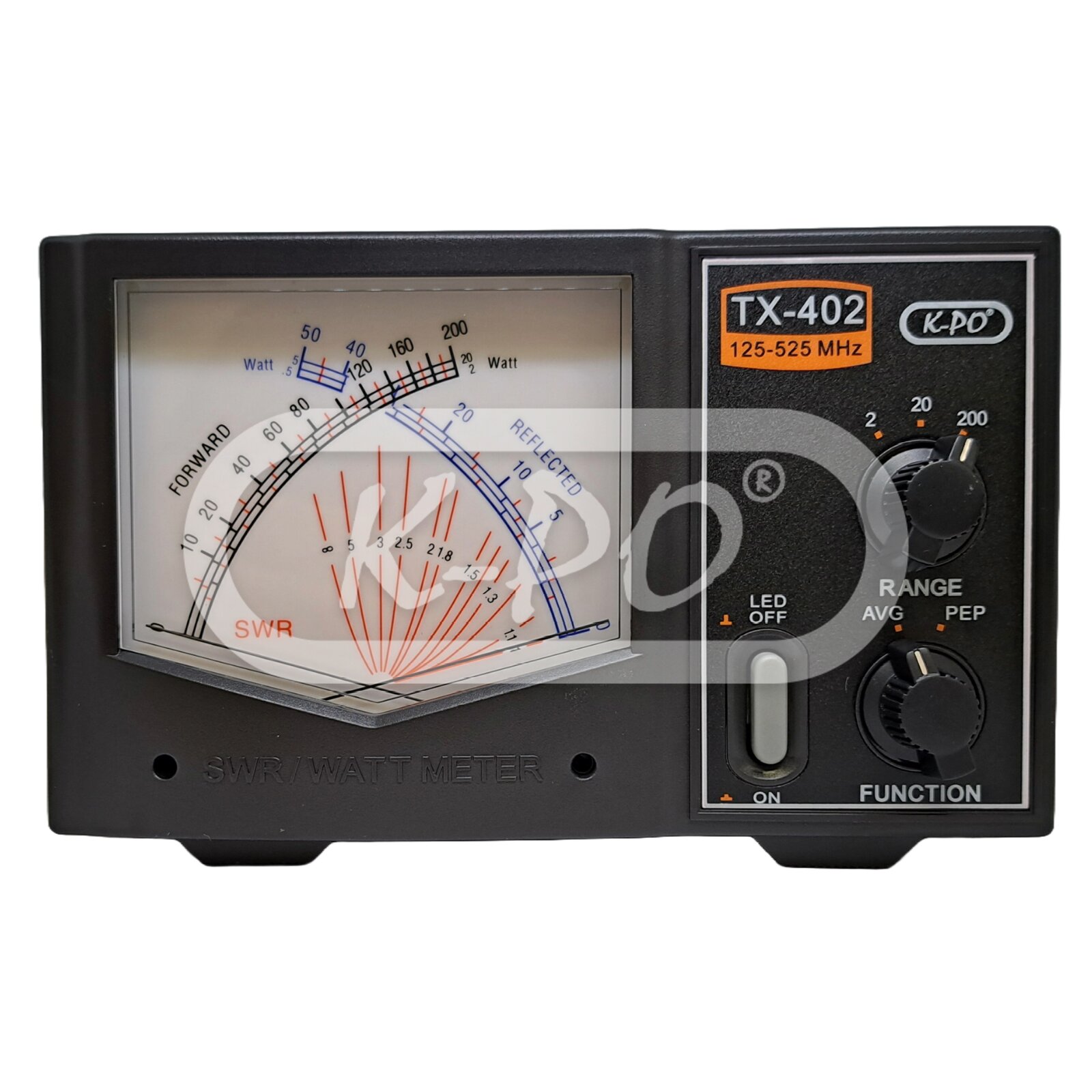

The K-PO TX-402 is a highly accurate SWR and power cross-needle meter for the 125 – 525 MHz frequency range.

The large display makes it easy to read Forward Power, Reflected Power and SWR all at once.

The meter features an AVG/PEP switch to select between average power (AVG) and Peak Envelope Power (PEP), which is especially useful for SSB and AM transmissions.

The K-PO TX-402 supports up to 200 Watt of peak power (short time), ensuring reliable performance.

Made by Nissei, Taiwan.

Frequency range: 125 - 525 MHz
Note - Price on request
€ -- (Price on request)

Electrical data

  • Backlight display / meter: Yes
  • Impedance: 50 Ohm
  • Power range: 2 / 20 / 200 Watts
  • Accuracy: ± 10% of Full Scale or better
  • Minimum Power for SWR: 1 Watt
  • Insertion loss: Less than 0.1dB
  • Testing function: SWR and Power (FWD and REF / AVG and PEP)
  • Voltage: 9–14 VDC, 200 mA max.
  • Center calibrate: 140-150 MHz (2mVHF at 145 MHz / 430-440 MHz (70cm/UHF) at 435 MHz

Mechanical data

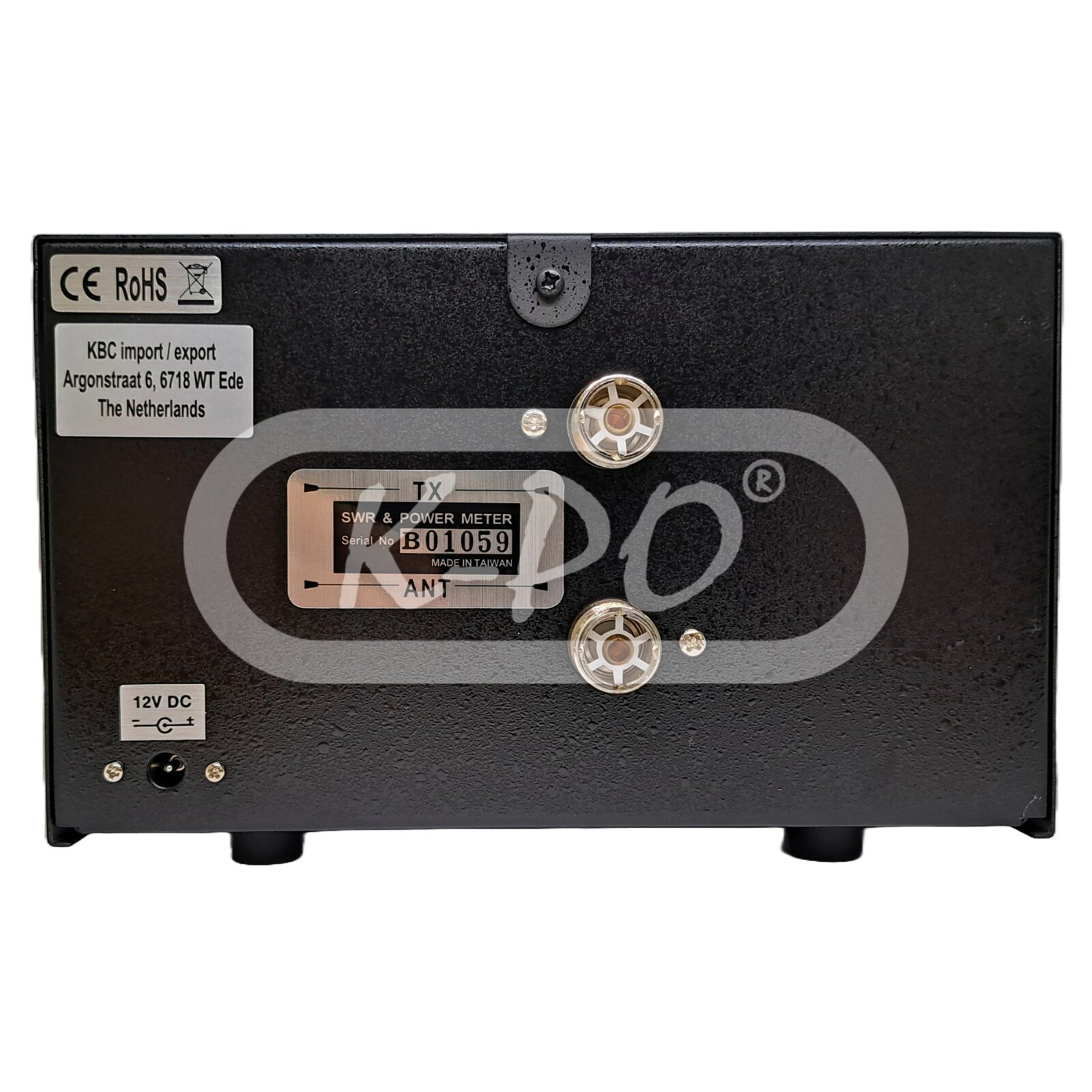

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Weight: 920 gram
  • Width: 184 mm
  • Height: 118 mm
  • Depth: 131 mm

Inside the box

  • Meter: Yes
  • DC power cable: Yes
  • Installation manual: English
