LTC - LXM150 Energy Meter

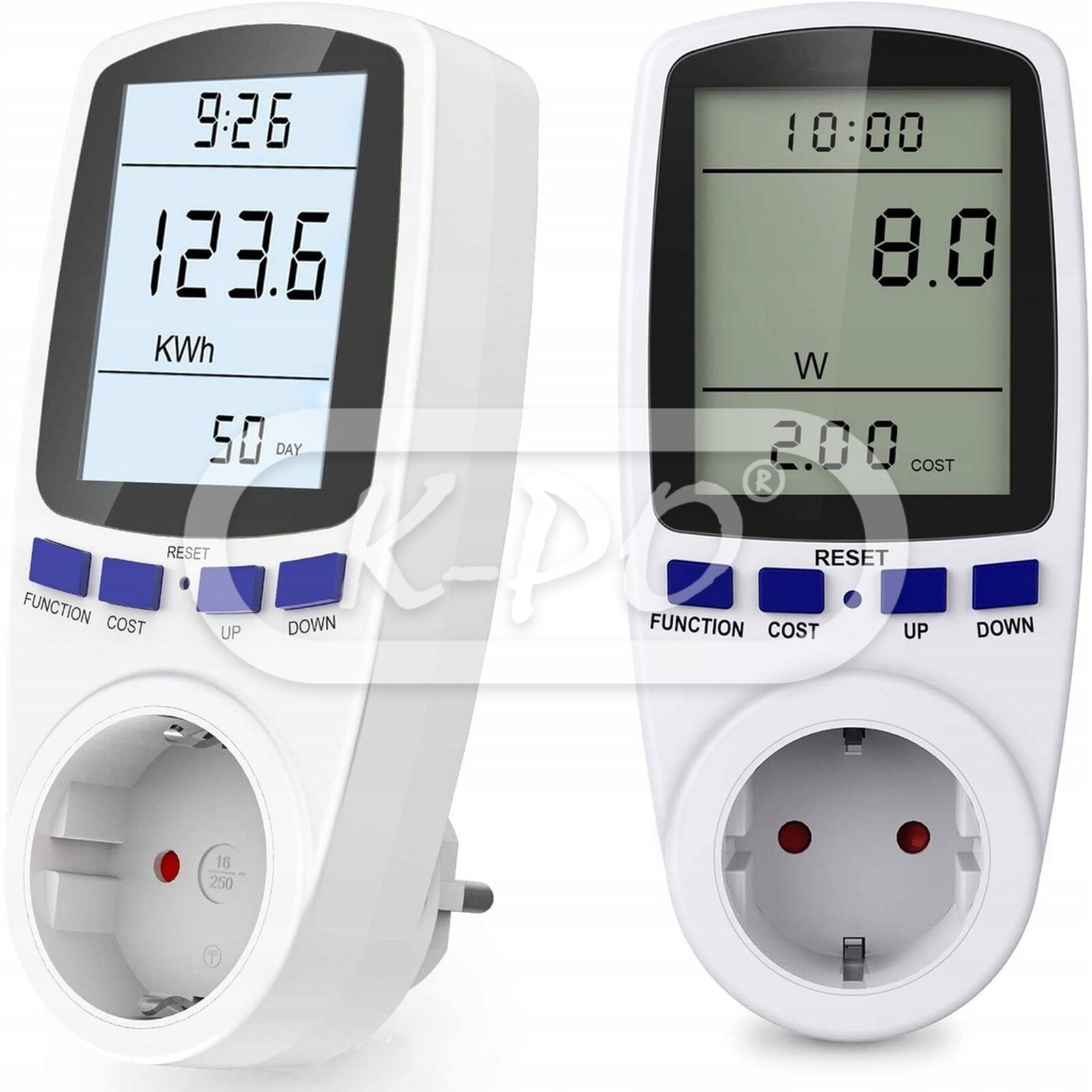

The M150 / LXM150 energy meter is a compact, user-friendly wattmeter that you simply plug into a wall socket. It is ideal for monitoring the power consumption of your devices and gaining insight into your energy costs. Thanks to the clear LCD display, you can see in real time how much electricity is being used, shown in amperes (A), watts (W), and volts (V).
Key Features
-
Real-time monitoring: Measures voltage, current, power, and frequency of connected devices.
-
Total energy consumption: Tracks kWh usage and operating time.
-
Cost calculation: Calculates energy costs based on your tariff.
-
Memory function: Stores all data thanks to the built-in battery.
-
Compact and easy to use: Plug & play; suitable for any standard wall socket.
Technical Specifications
-
Power supply: 230 V AC, 50 Hz
-
Maximum current: 16 A
-
Maximum power: approx. 3,680 W
-
Voltage range: 230–250 V
-
Power display range: 0–9,999 W
-
Voltage display range: 0–9,999 V
-
Current display range: 0–16 A
-
Frequency display: 0–9,999 Hz
-
Energy consumption: 0–9,999 kWh
-
Battery: 1 × 3.6 V (for memory function)
