Maas - SPS-8250

Product code: 8250

Barcode: 4250158704367

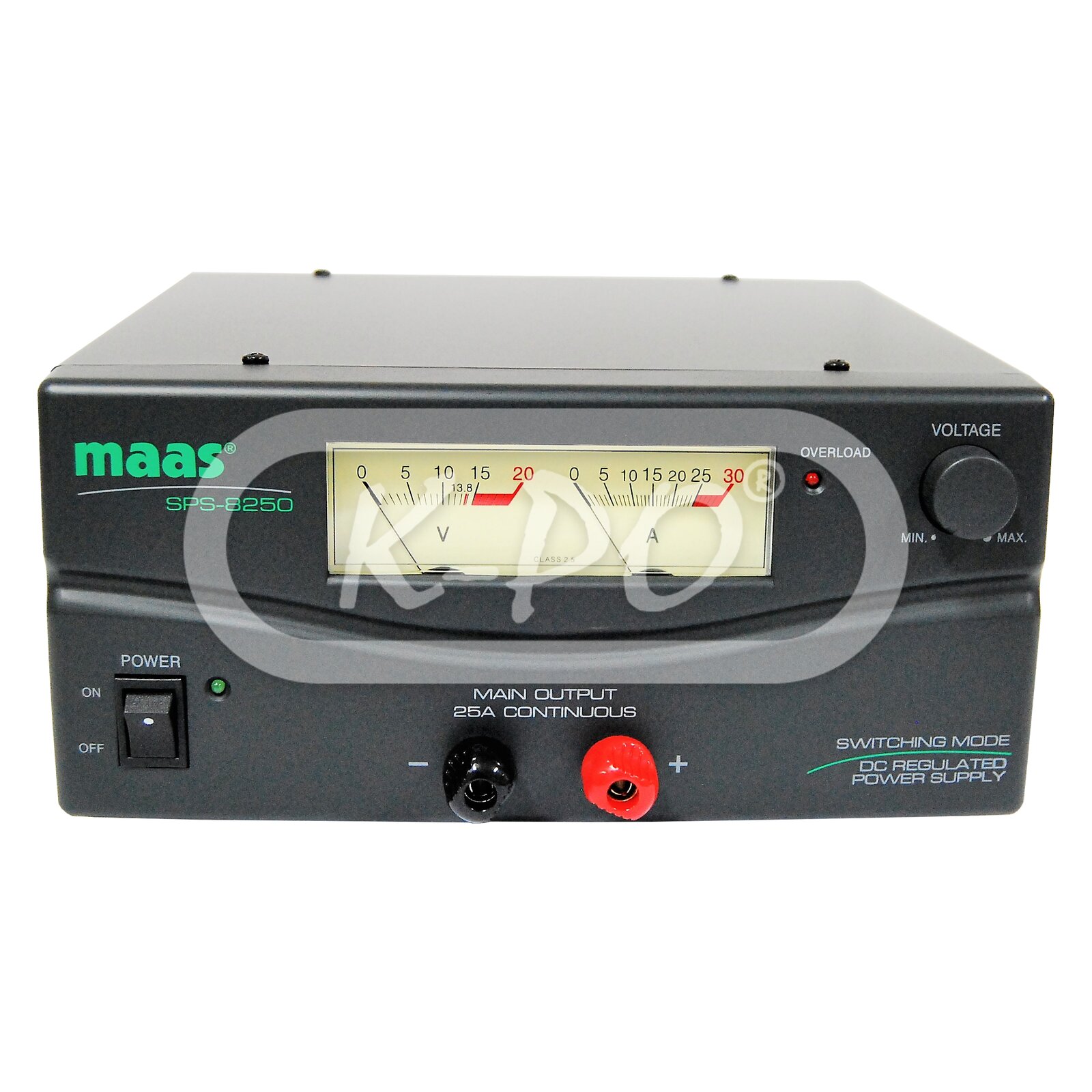

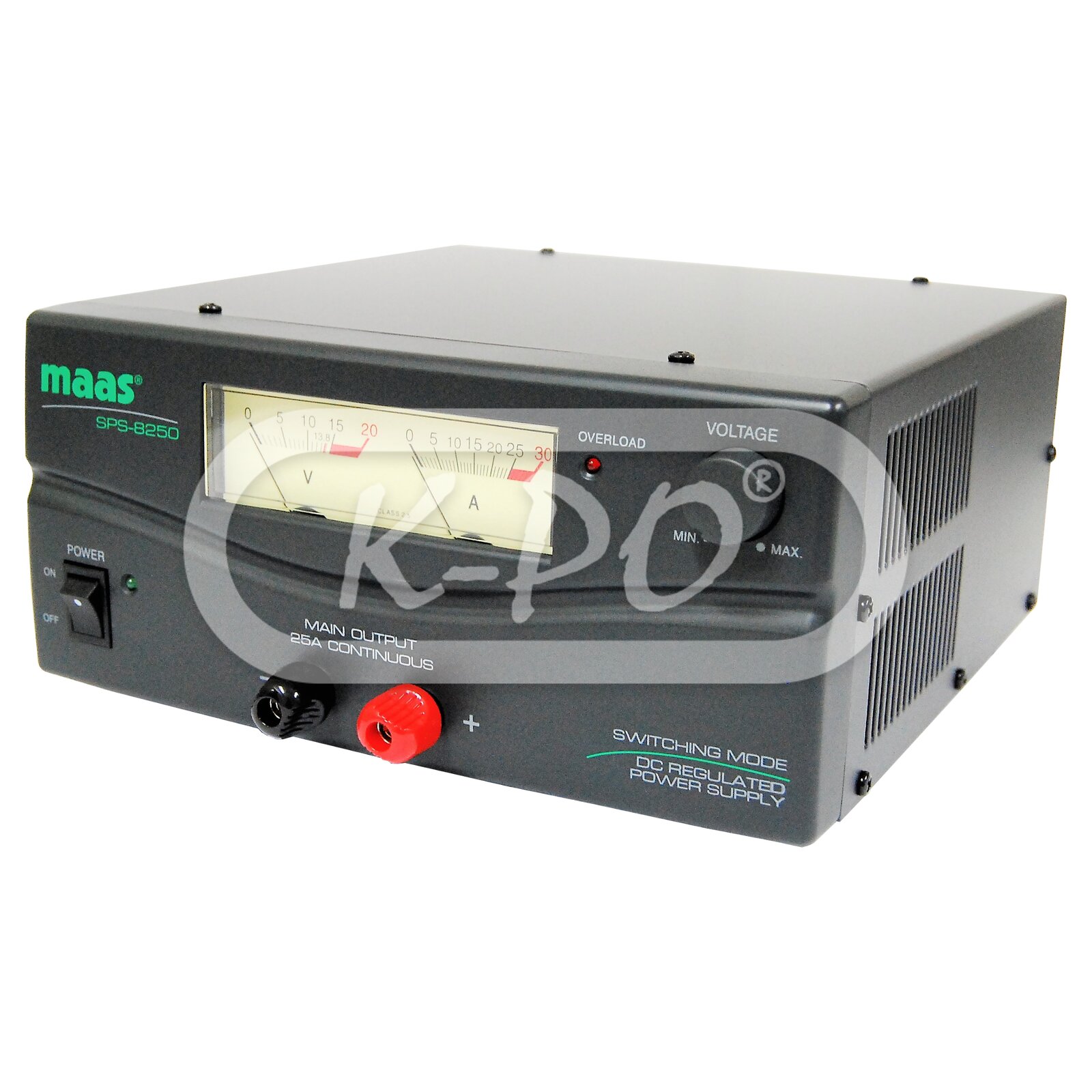

The Maas SPS-8250 is a power high power switching mode and has 2 analog meters. They are suitable for a wide range of uses, such as radio equipment. The power supply has a variable output from 3 to 15 Volt. The SPS-8250 can be used for equipment till 25A continuous.

Shipped next business day - Stock: 2

€189.95 (156.98 excl. 21% VAT)

Electrical data

• Input voltage: 230 Volt / 50-60 Hz /
• Output voltage: 13.8 Volt
• Adjustable output voltage: 3-15 Volt
• Continuous load: 25A
• Ripple voltage: ≤50mVp-p
• Display indicator: Voltage / ampère
• Background light: Yes
• Fan: Yes
• Short circuit protection: Yes
• Overload protection: Yes
• Rated output power: 375W
• Cooling method: Thermostatic control fan

Mechanical data

• Length: 220 mm
• Height: 110 mm
• Width: 220 mm
• Weight: 2700 gram

Inside the box

• Power supply: Yes

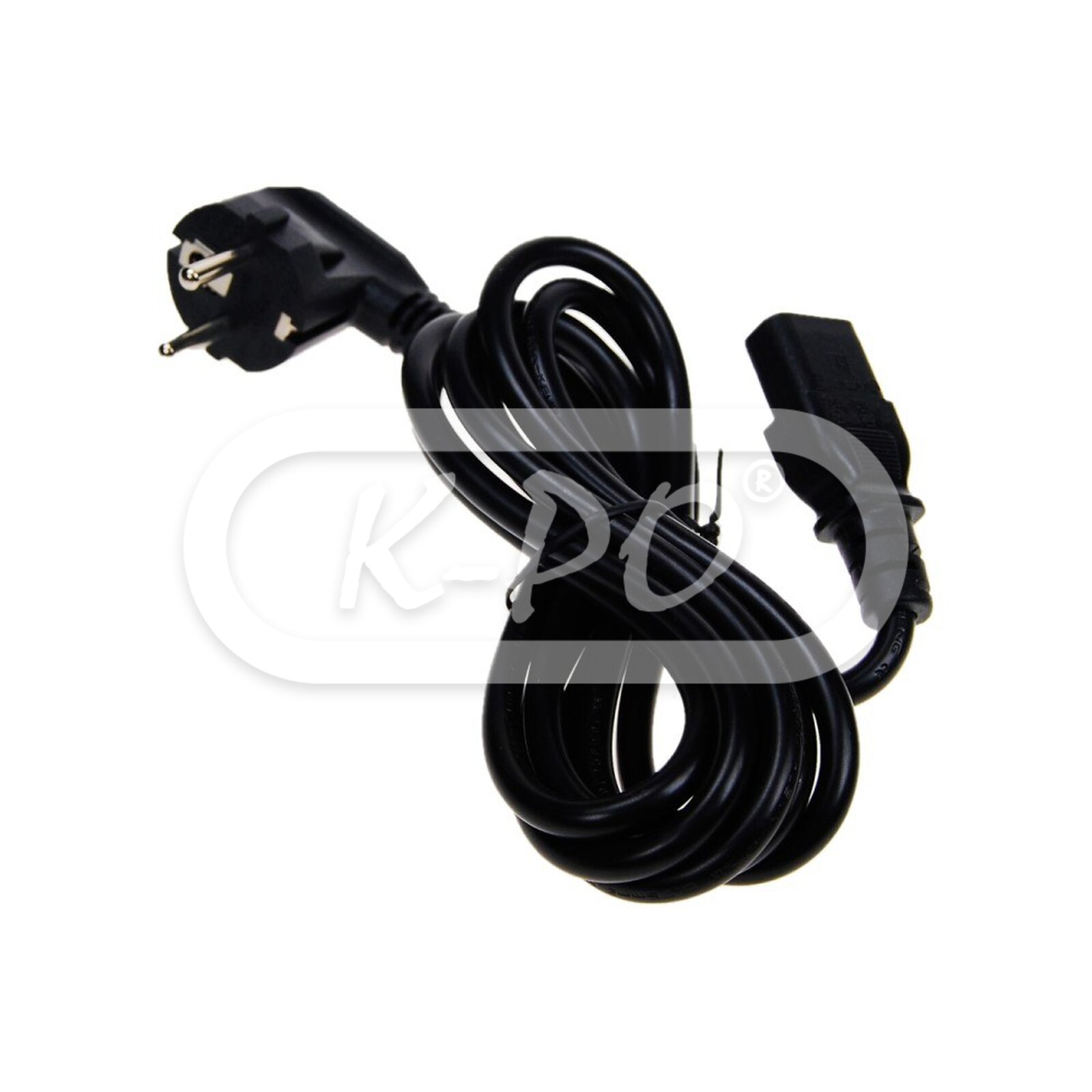

• AC cord: Yes
• User manual: English

Downloads

• Datasheet: User manual
