Manson - SDC 5340

Product code: 2172

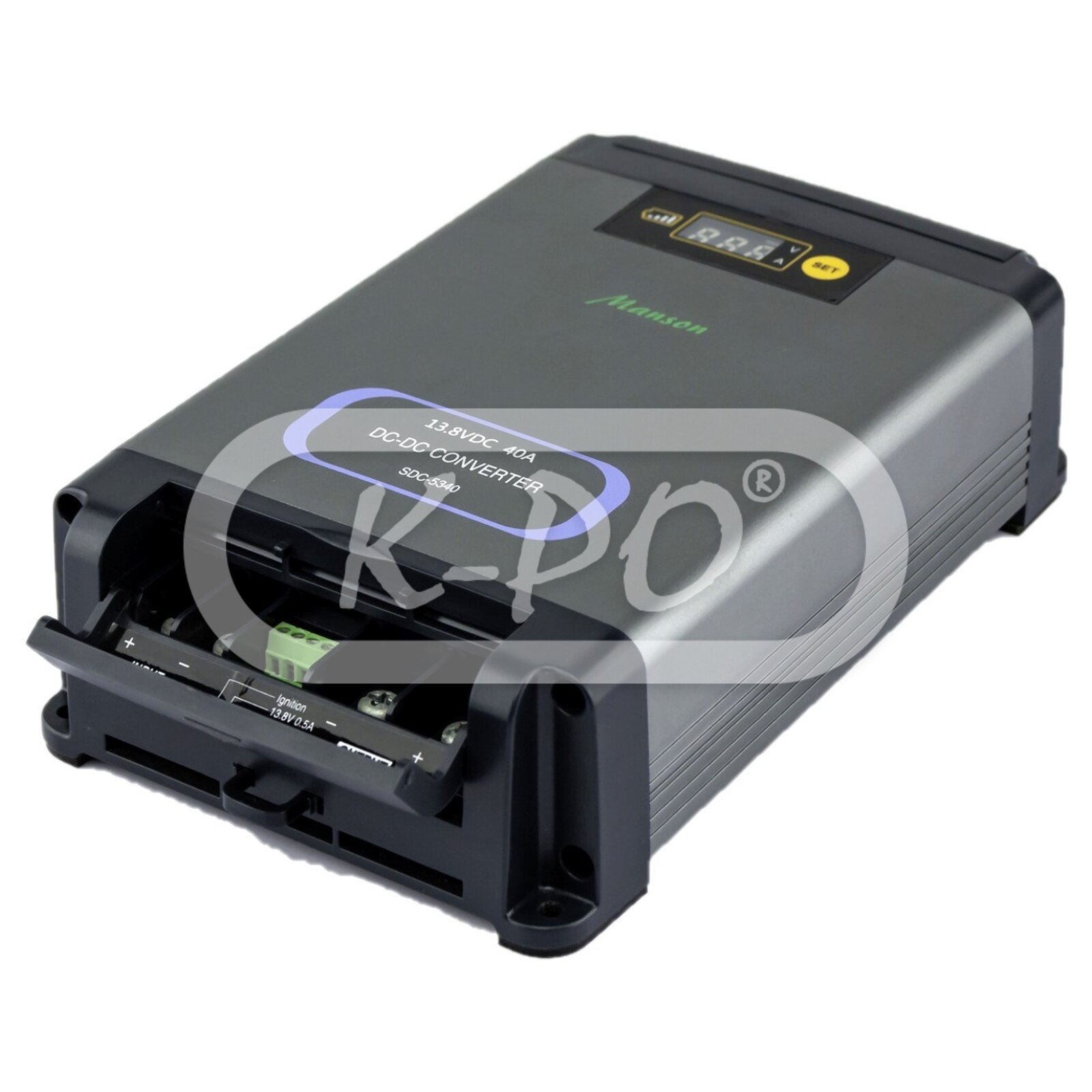

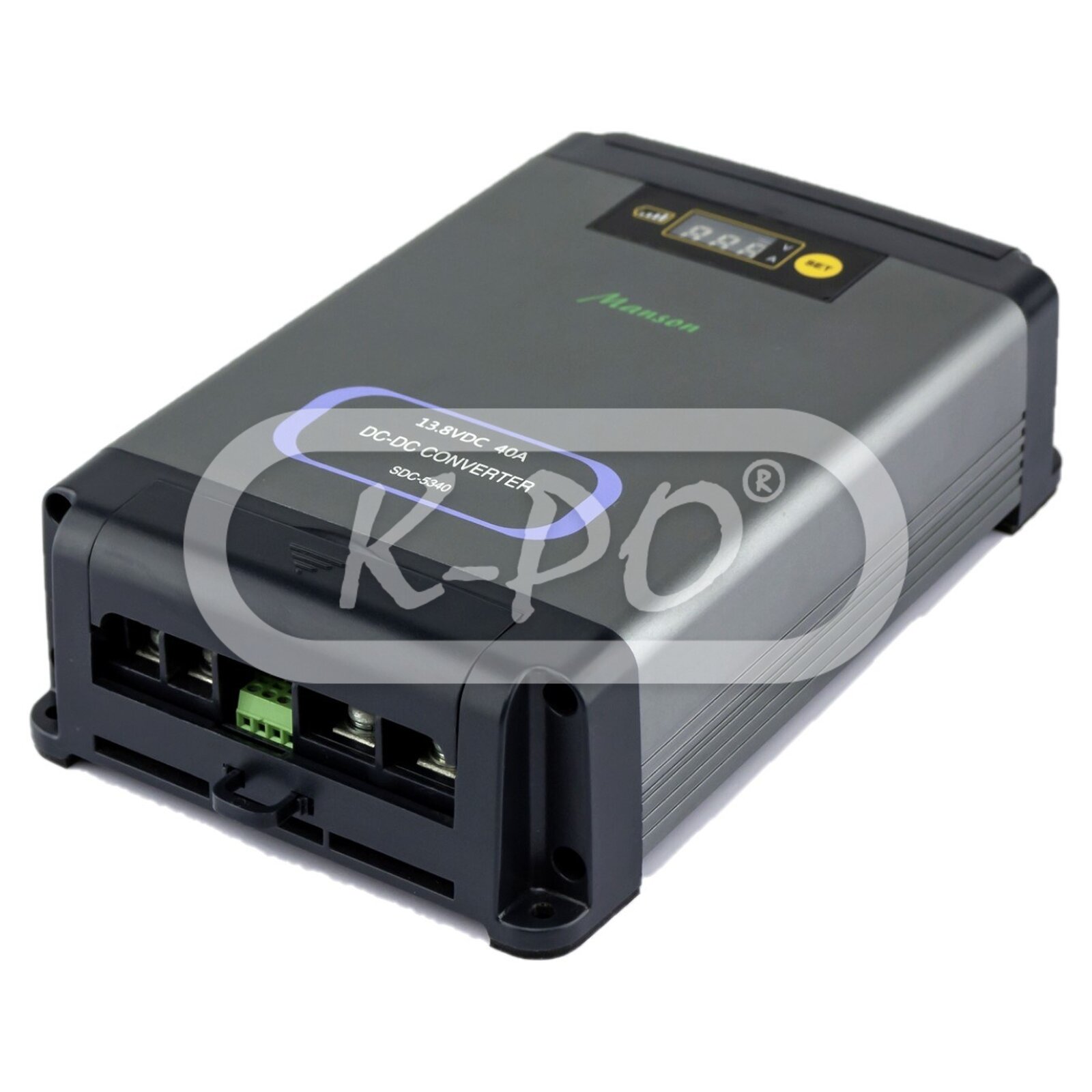

The Manson SDC 5340 is a voltage reducer from 19-33V to 13.8V DC

power and has an continuous/peak output of 40A. Connection is via screw

terminals (no cable included). The SDC 5340 is a new serie of

non-isolated digital DC-DC step down converter with micro-processor

control for fine adjustment of output voltage to optimally suit the

loading condition. The 3 digit LED display shows: output voltage,

current, operation mode and fault status.

Out of stock - Longer delivery time

Available from - 08-10-2026

€79.94 (66.07 excl. 21% VAT)

Electrical data

Input power: 19 - 33 Volt
Output voltage: 13.8 Volt
Continuous output current: 40 A
No load current: <40mA
Efficiency: <90%
Protections: OVP,OTP,Overload,Input Reverse Polarity,Output Short Circuit Protection
Cooling system: Thermostatic control fan
Max operating temperature: -10 °C to +50 °C
Approvals: EN 55014
Adjustable output voltage range: 12 - 15 Volt
Battery charger mode: Yes
Output remote on/off control: Yes
Voltage remote sense: Yes
Display: 3 digit LED display
