Manson - SPA-8330

Product code: 1489

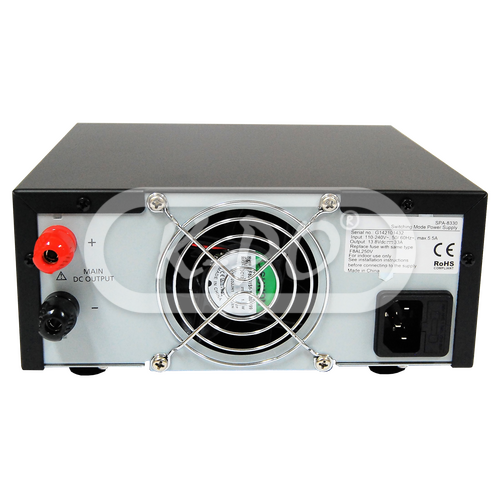

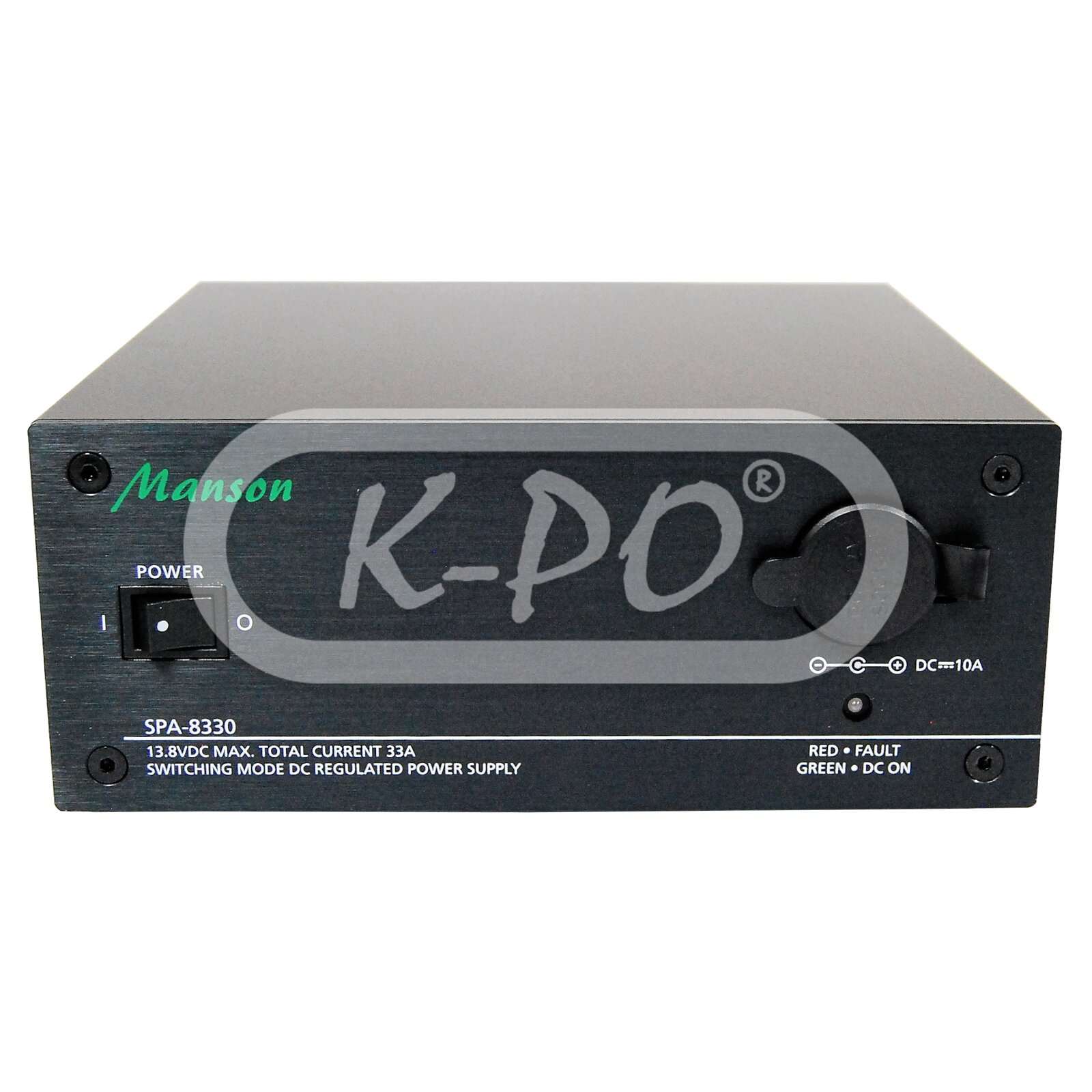

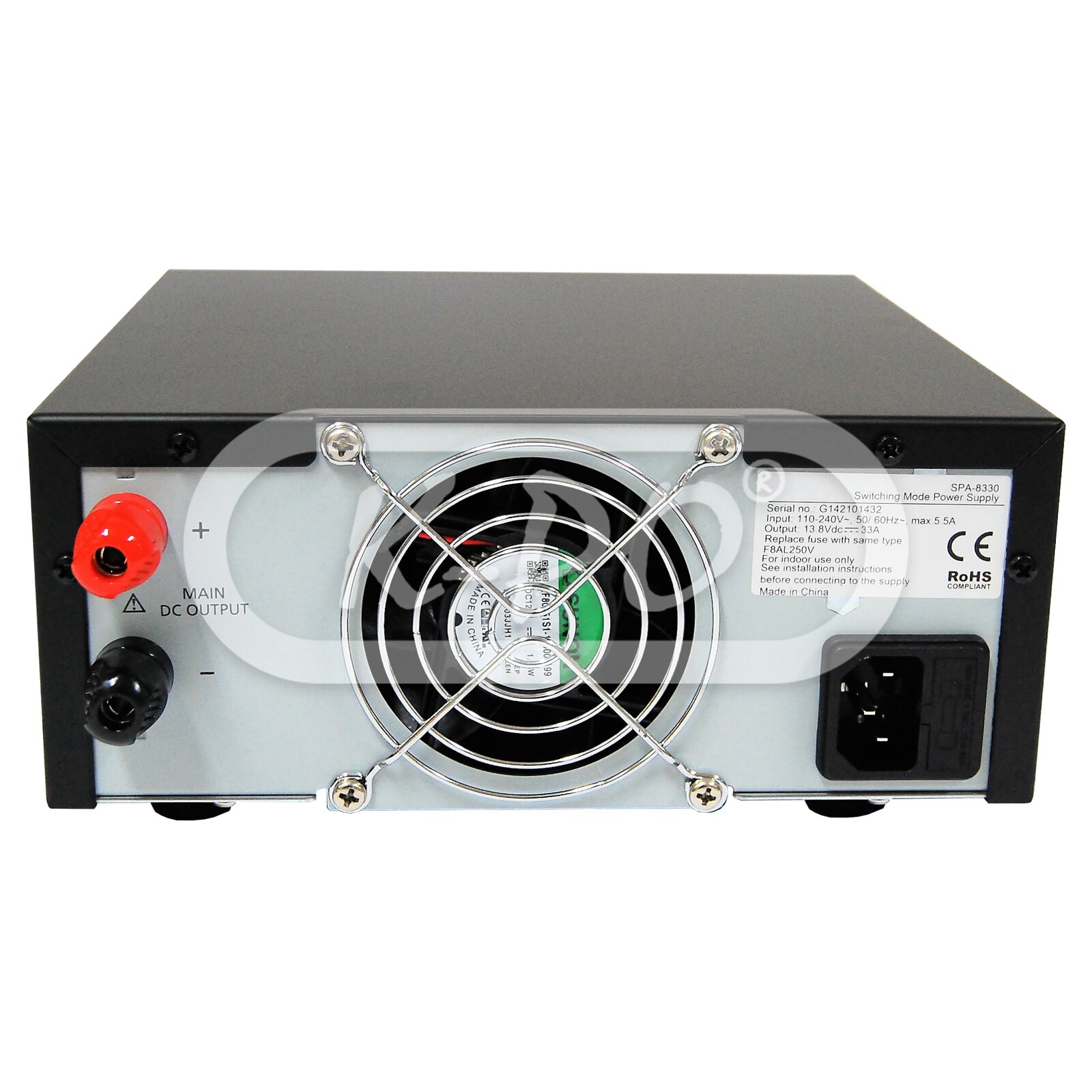

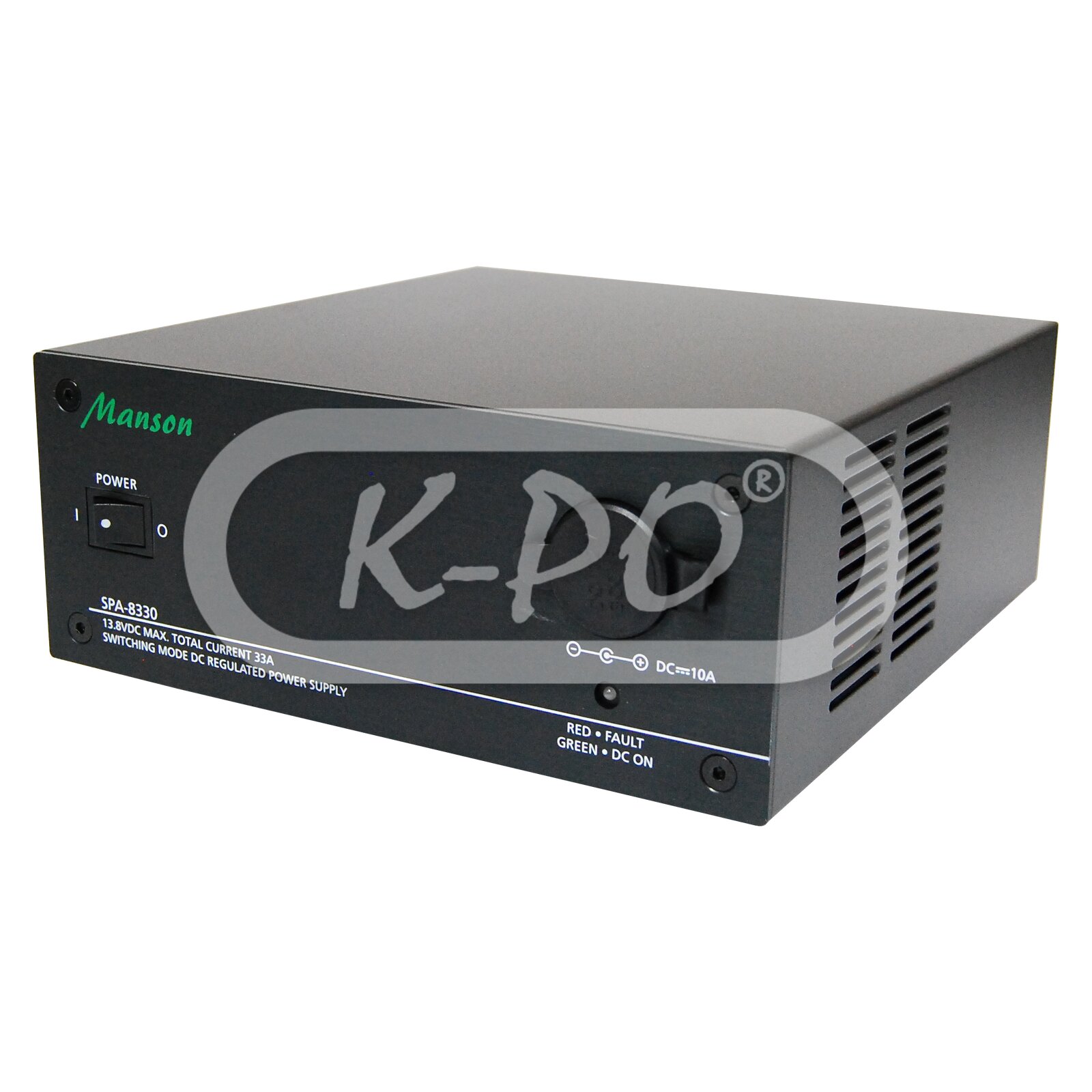

The Manson SPA-8330 is a very compact en silent power supply. The SPA-8330 can be used for equipment till 33A continuous and 36A short.

Note - Discontinued

€ -- (Discontinued)

Electrical data

• Input voltage: 230 Volt / 50-60 Hz /
• Output voltage: 13.8 Volt
• Adjustable output voltage: 10-15 Volt
• Continuous load: 33A
• Peak load: 36A
• Ripple voltage: ≤50mVp-p
• Fan: Yes
• Short circuit protection: Yes
• Overload protection: Yes
• Rated output power: 497W
• Cooling method: Fan cool (0 to full speed)

Mechanical data

• Length: 200 mm
• Height: 80 mm
• Width: 213 mm
• Weight: 2600 gram

Inside the box

• Power supply: Yes

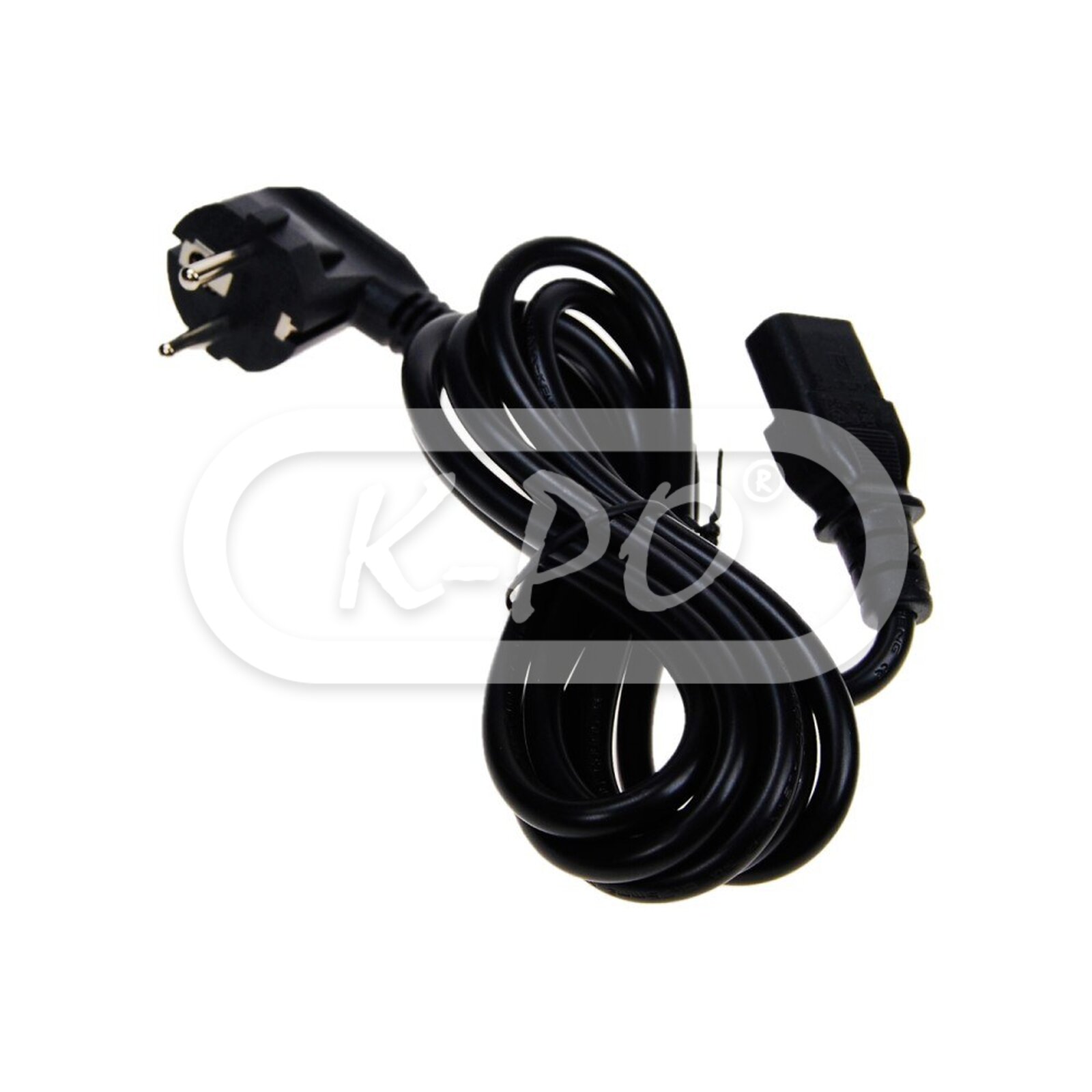

• AC cord: Yes
• User manual: English

Downloads

• Datasheet: User Manual 8330
