mAT-tuner - mAT-1500 PRO II
The mAT-1500 PRO II is a multipurpose high-power automatic antenna tuner that can match almost all transmitters and linear amplifiers. The maximum RF power allowed is 1500 watts (SSB), the frequency range allowed is 1.8-30MHz, and two antennas can be connected at the same time. According to the different connected transmitters, the tuner has three modes, YAESU, ICOM and GENERAL. The tuner can automatically determine and match the type of the connected transmitters to minimize the manual operation.
When the mAT-1500 PRO II is working in GENERAL mode, in addition to manual operation on the front panel, it can also be remotely operated. There is an RS232 remote control interface on the rear panel of the tuner, which can be easily controlled by a computer or another terminal device. The remote operation function can only be used in GENERAL mode, and this function is not available in other modes.
The mAT-1500 PRO II can accurately measure the current RF power and SWR, and display them on a 4.3-inch high-resolution display. The display can also show information such as the working status of the tuner. When the tuner is set to BYPASS mode, it can be used as an accurate RF power & SWR meter.
Features
Electrical data
Mechanical data

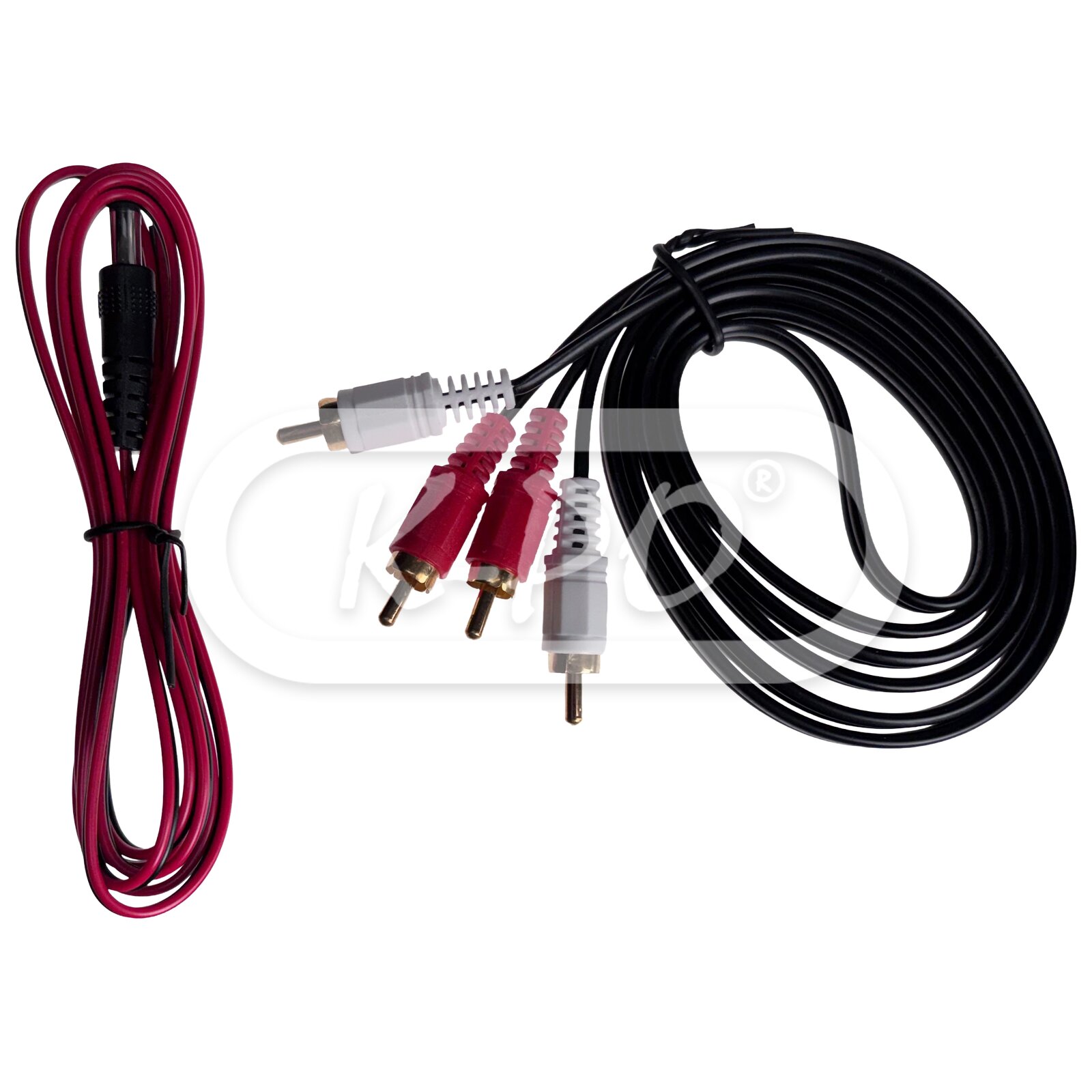

Inside the box
