mAT-tuner - mAT-600A

Product code: 700706

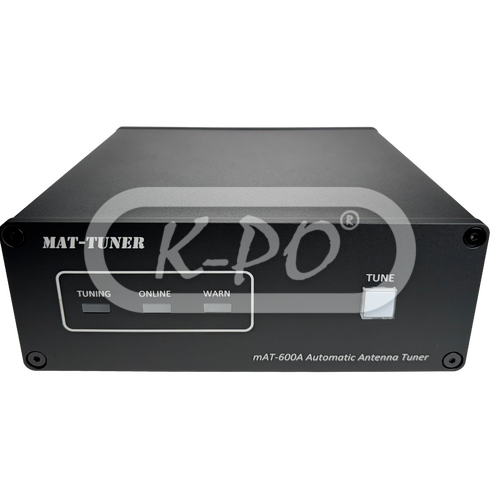

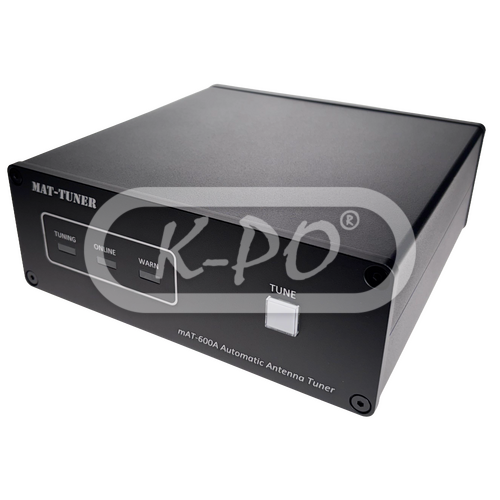

The mAT-600A is a universal high-power automatic antenna tuner compatible with nearly all transceivers and linear amplifiers. It supports a maximum RF power of 600 watts (SSB) and operates across a frequency range of 1.8-54MHz. Featuring an extremely simple operation, the tuner's front panel contains just one button and three indicator lights.

The unit is constructed with a full aluminum enclosure and CNC-machined panel, combining an aesthetically pleasing rugged design with relatively lightweight portability

Frequency range: 1.8 - 54.0 MHz
Shipped next business day - Stock: 2
€449.95 (371.86 excl. 21% VAT)

Features

  • Frequency memories: 16.000 for instantaneous frequency and band changing

Electrical data

  • Impedance: 50 Ohm
  • Power range: 600 Watts SSB
  • Current consumption: 500 mA or less
  • Tuning time: Maximum: 8Sec. From memory: Less than 100 msec.
  • Tuning Power:: 5-15W
  • Power Requirements:: DC 12-14V, 1.0A

Mechanical data

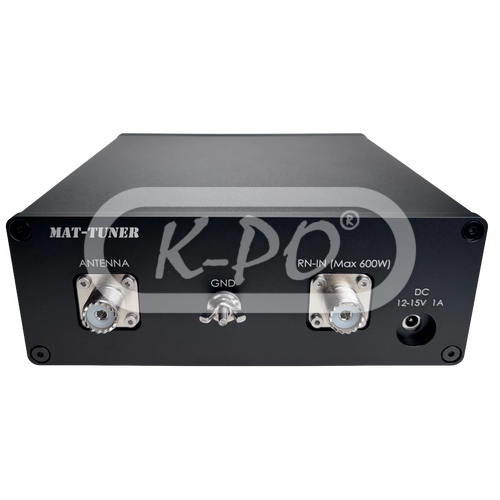

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 205 mm
  • Height: 76 mm
  • Width: 192 mm
  • Weight: 2200 gram

Inside the box

  • Tuner: Yes
  • DC power cable: 1x
  • Installation manual: English
